Aluminium round tube Ø80×2 mm – profile EN AW-6060, length 2000 mm
0
Description

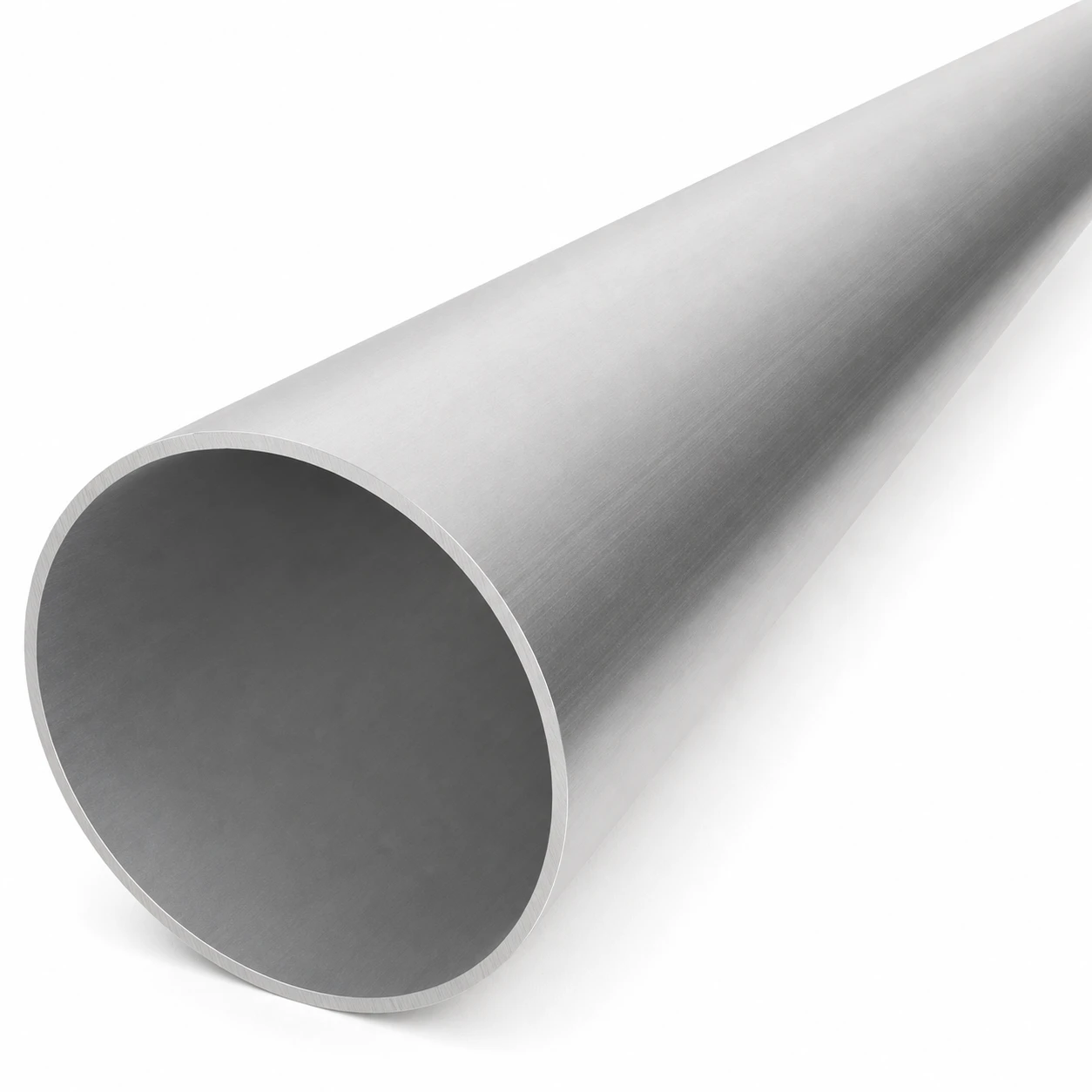

Aluminium round tube Ø80×2 mm – profile EN AW-6060, length 2000 mm
Aluminium round tube Ø80×2 mm with length 2000 mm is a universal closed profile made from EN AW-6060 T66 alloy (AlMgSi0.5 / PA38). Thanks to the excellent stiffness-to-weight ratio and natural corrosion resistance of aluminium, the tube performs well wherever construction durability matters whilst achieving weight savings.
EN AW-6060 alloy in T66 condition provides enhanced mechanical strength after heat treatment, whilst maintaining very good machinability — the tube is easily cut, drilled, bent and joined mechanically and by welding. The raw surface (non-anodised) allows any finishing treatment — anodising, powder coating or leaving in natural state.
Applications
- Aluminium constructions and load-bearing frames
- Balustrades, handrails and barriers
- Machine frames and supports
- Furniture and interior fitting elements
- Decorative and cladding elements
- Modelling and prototyping
Technical specification
- Cross-section: closed round tube
- External diameter (D): 80 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 80 × 80 × 2000 mm
- Mass: 2.66 kg (1.33 kg/m)
Material
- Alloy: aluminium EN AW-6060 T66 (AlMgSi0.5)
- Alternative designations: PA38 / 3.3206
- Surface: raw (non-anodised)
Profile available in a type range covering many combinations of diameters and wall thicknesses — check other variants in the offer to select the optimal cross-section for project requirements.
Technical data
| Material | Aluminium |
| Diameter | 80 |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
