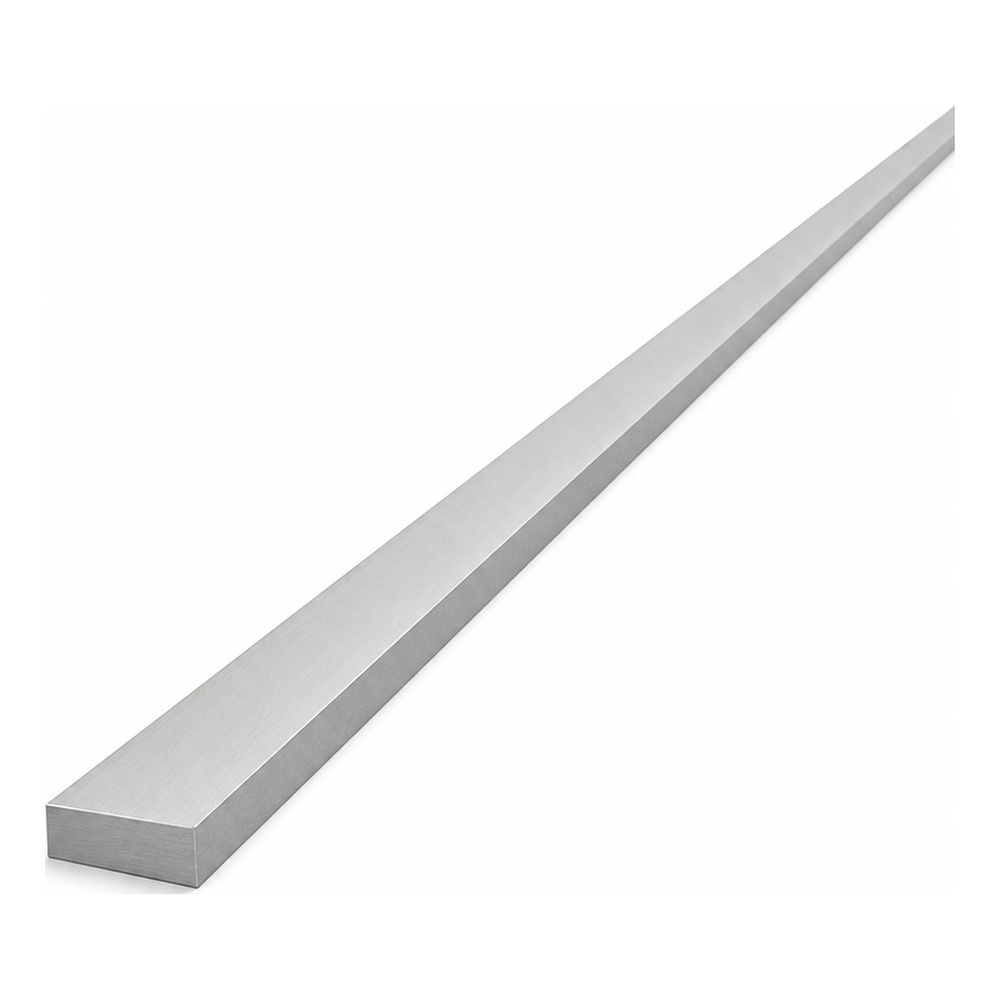

Aluminium flat bar 15×5 mm – flat profile EN AW-6060 L=2000 mm
Leave feedback on the product
Aluminium flat bar EN AW-6060 T6/T66 (AlMgSi0.5), flat cross-section 15×5 mm, length 2000 mm. Section weight: 0.40 kg (0.20 kg/m). Raw, non-anodised surface.
Product code: 001-791
Product features
[PIM] Cat 150 #150
- Material Aluminium
- Length [mm] 2000
- Thickness [mm] 5
Description
Aluminium flat bar 15×5 mm – flat profile EN AW-6060 L=2000 mm
Aluminium flat bar 15×5 mm is a versatile flat profile designed for structural, finishing, and repair applications. Made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), it combines low self-weight with good rigidity and high corrosion resistance. With a length of 2000 mm and a weight of just 0.40 kg per section, the flat bar is convenient to transport and easy to machine — ideal as a component for frames, substructures, reinforcements, and mounting details.
Technical specification
- Cross-section: flat bar (flat profile)
- Width (A): 15 mm
- Thickness (T): 5 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per 2 m section: 0.40 kg (0.20 kg/m)
Applications
The flat bar is suitable wherever a lightweight and durable linear element with a flat cross-section is required. Most commonly used as reinforcement for frames and support structures, a finishing element in technical enclosures, a spacer or connector in photovoltaic and industrial installations, as well as a semi-finished product for further mechanical processing — cutting, drilling, or bending.
The EN AW-6060 alloy in the T6/T66 temper provides good machinability and sufficient mechanical strength for most mounting applications. The raw surface allows optional anodising or powder coating to match the aesthetic requirements of a project.
