Aluminium channel EN AW-6060 C/U profile 103.6×38×1.8 mm – length 2000 mm
0
Description
Aluminium channel EN AW-6060 C/U profile 103.6×38×1.8 mm – length 2000 mm

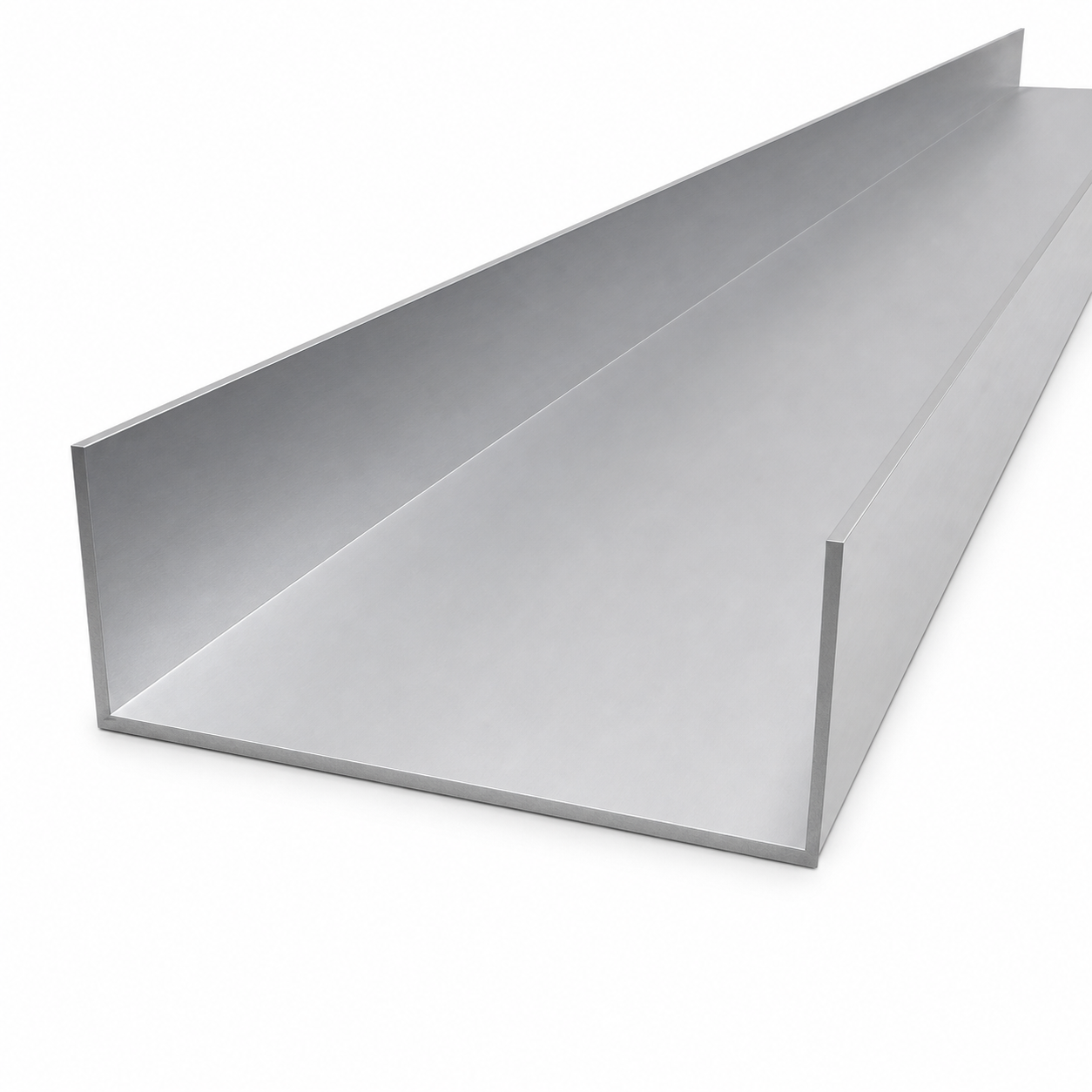

Aluminium channel 103.6×38×1.8 mm is a sturdy open-section profile with a channel (C/U) cross-section, manufactured from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). The profile length is 2000 mm, allowing convenient adaptation to standard construction dimensions without the need to join sections. Thanks to its low weight of just 1.78 kg (linear weight 0.89 kg/m), the channel is easy to transport and install whilst providing good mechanical rigidity.
The 6060 series aluminium combines high corrosion resistance with excellent machinability — the profile can be freely cut, drilled, bent and joined without specialist tools. The raw (non-anodised) surface allows further finishing treatment, such as anodising or powder coating, depending on project requirements.
Applications
- Aluminium structures and load-bearing frames
- Guide rails and cover strips
- Frames, surrounds and trims
- Furniture and decorative components
- Modelling and workshop projects
Technical specification

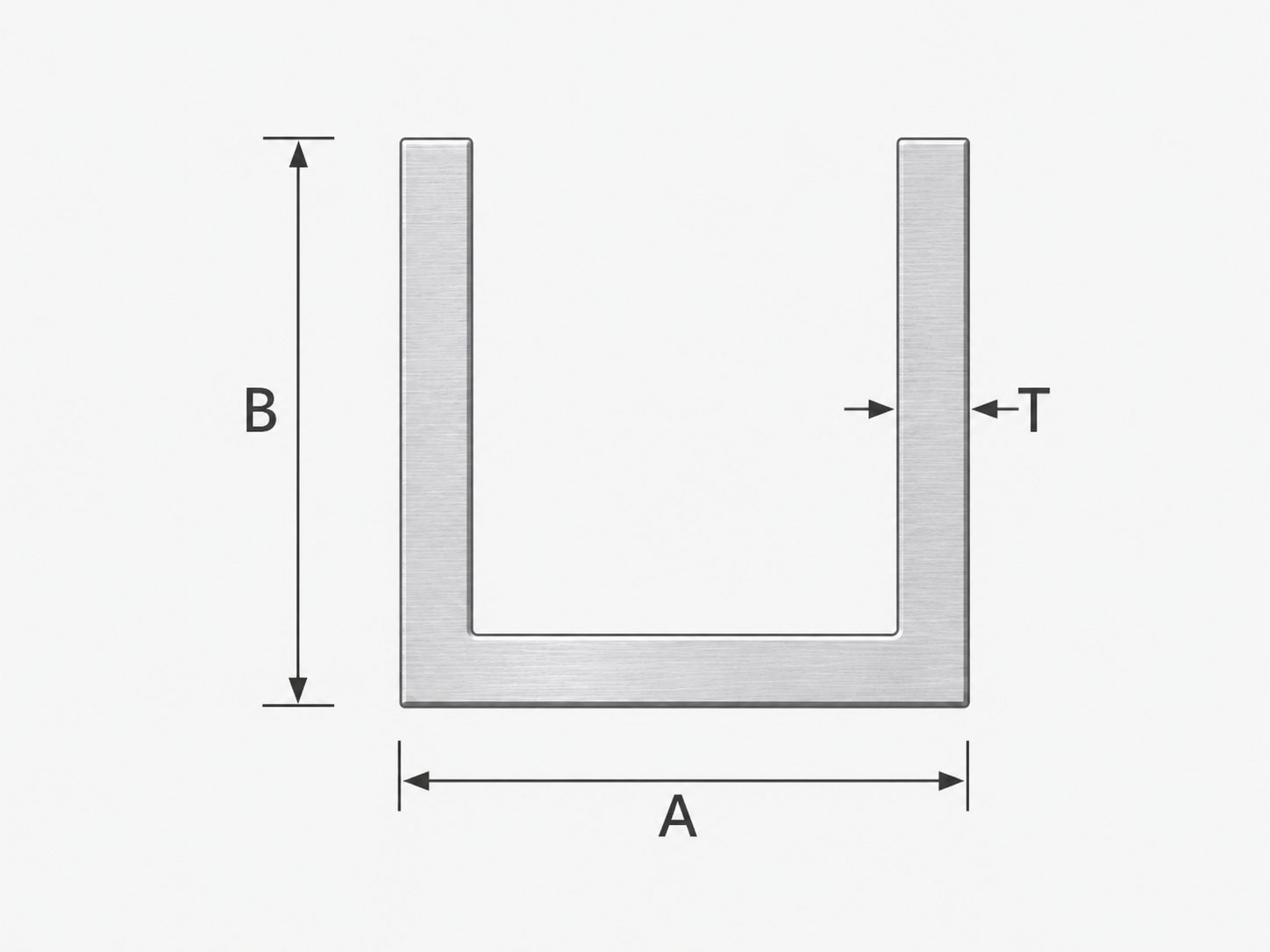

- Section type: channel (open C/U profile)
- External width (A): 103.6 mm
- Height (B): 38 mm
- Wall thickness (T): 1.8 mm
- Length: 2000 mm
- Overall dimensions: 103.6 × 38 × 2000 mm
- Weight: 1.78 kg (0.89 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
The profile is available in a range covering many dimensional variants of cross-section and wall thickness — allowing the optimum channel to be selected for a specific structural application.
Technical data
| Material | Aluminium |
| Height [mm] | 103.6 |
| Wall Thickness [mm] | 1.8 |
| Length [mm] | 2000 |
