Aluminium channel 40×40×3 mm – C/U profile EN AW-6060, L=2000 mm

Go to Product feedback

Aluminium channel EN AW-6060 T6/T66 (PA38, AlMgSi0.5), C/U cross-section. Dimensions: 40×40×3 mm, length 2000 mm. Weight: 1.84 kg (0.92 kg/m). Raw, non-anodised surface.

Go to full description
with VAT without VAT
Price €20.55
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] ceowniki #149

  • Material Aluminium
  • Height [mm] 40
  • Wall Thickness [mm] 3
  • Length [mm] 2000

Description

Aluminium channel 40×40×3 mm – C/U profile EN AW-6060, L=2000 mm

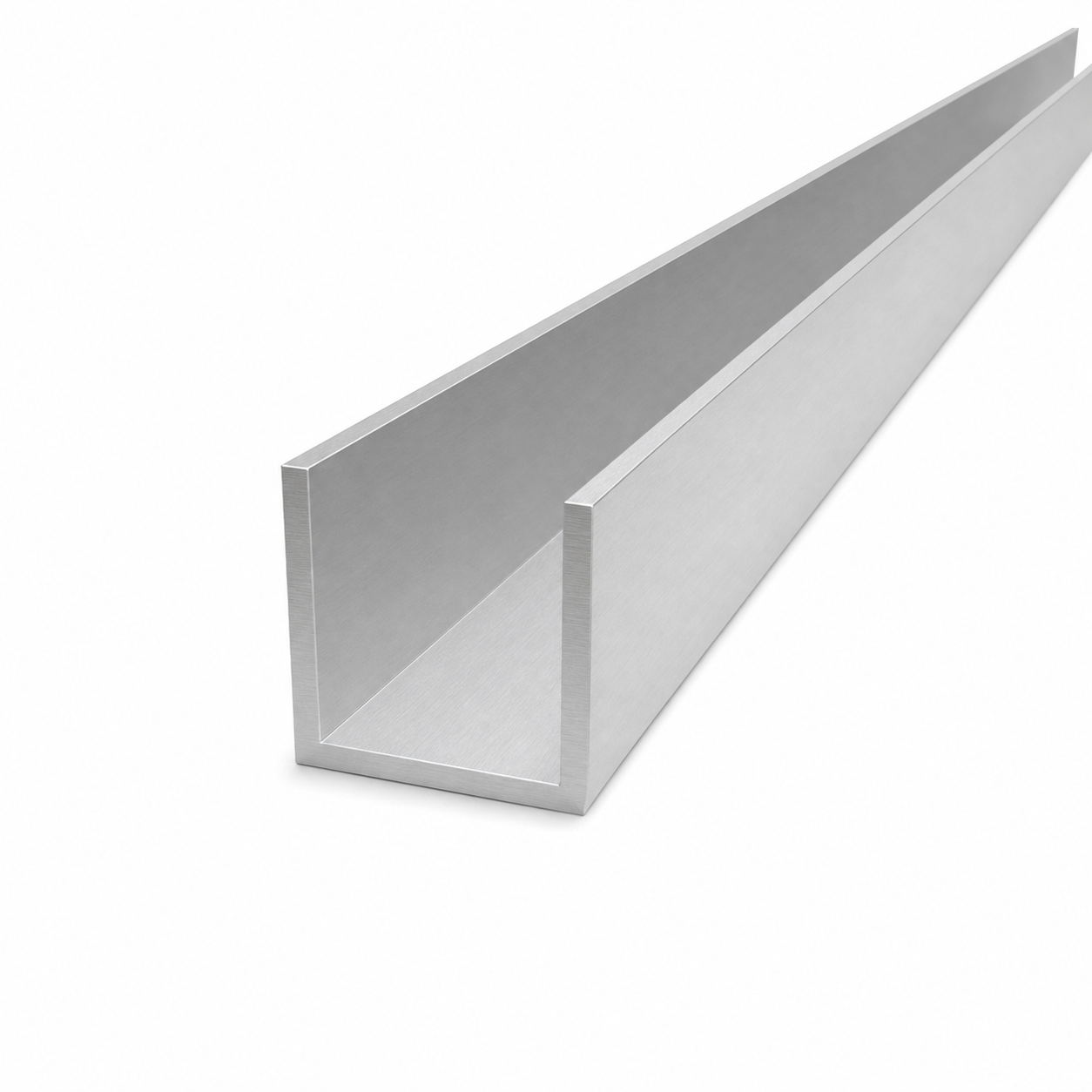

Aluminium channel 40×40×3 mm – perspective view of C/U profile
Aluminium channel 40×40×3 mm – perspective view of C/U profile

Aluminium channel 40×40×3 mm is a versatile open profile with a C/U cross-section, made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its lightweight nature, rigidity and natural corrosion resistance, it performs reliably wherever a durable and aesthetically pleasing structural solution is required — from frames and subframes to guides and cover strips, as well as finishing elements for photovoltaic and construction installations.

The 2000 mm length profile is easy to process — it can be cut, drilled, bent and mechanically joined with ease, which significantly speeds up assembly work on site. The raw (non-anodised) surface allows for further processing, powder coating or anodising in accordance with project requirements.

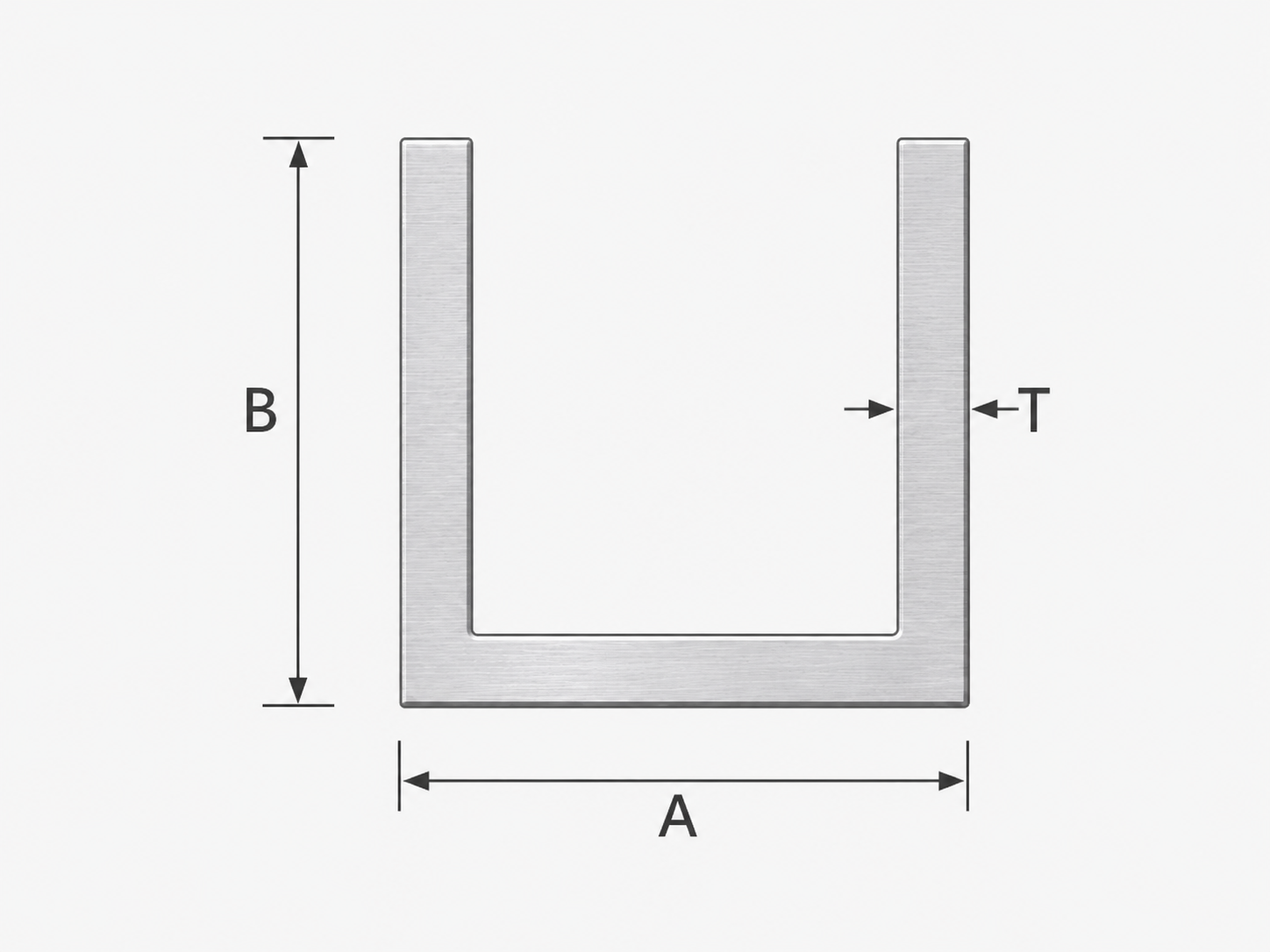

Aluminium channel 40×40×3 mm – cross-section drawing with dimensions A, B, T
Aluminium channel 40×40×3 mm – cross-section drawing with dimensions A, B, T

Technical specifications

  • Cross-section type: channel (open C/U profile)
  • External width (A): 40 mm
  • Height (B): 40 mm
  • Wall thickness (T): 3 mm
  • Length: 2000 mm
  • Dimensions (W × H × L): 40 × 40 × 2000 mm
  • Weight: 1.84 kg (0.92 kg/m)
  • Material: aluminium PA38 (EN AW-6060 T6/T66), alloy AlMgSi0.5
  • Surface: raw (non-anodised)

Applications

  • Aluminium structures and load-bearing frames
  • Guides and cover strips for PV and construction installations
  • Subframes, brackets and finishing elements
  • Furniture frames and decorative elements
  • Scale modelling and DIY projects

The EN AW-6060 T6/T66 alloy (also designated 3.3206) combines good mechanical strength with excellent formability and weldability. It is one of the most widely chosen alloys for extruded profiles — proven across thousands of installation and structural applications.
