Aluminium channel 120×40×4 mm – C/U profile EN AW-6060 length 2000 mm

Go to Product feedback

Aluminium channel EN AW-6060 T6/T66, C/U profile. Dimensions: 120×40×4 mm, length 2000 mm. Weight 4.14 kg (2.07 kg/m). Raw, non-anodised surface. AlMgSi0.5 alloy (PA38, material no. 3.3206).

Go to full description
with VAT without VAT
Price €46.23
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] ceowniki #149

  • Material Aluminium
  • Height [mm] 120
  • Wall Thickness [mm] 4
  • Length [mm] 2000

Description

Aluminium channel 120×40×4 mm – C/U profile EN AW-6060 length 2000 mm

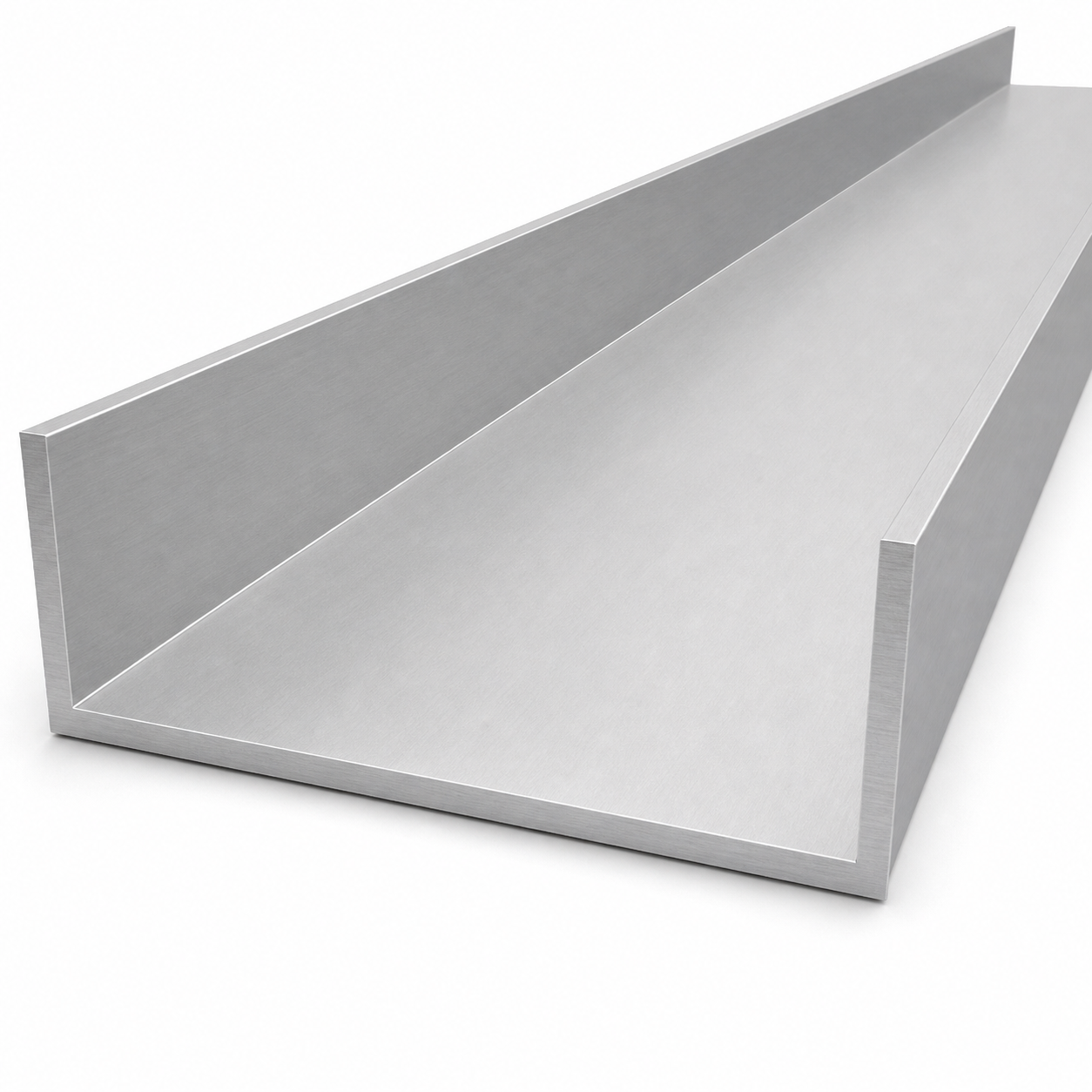

Aluminium channel 120×40×4 mm – perspective view of C/U profile
Aluminium channel 120×40×4 mm – perspective view of C/U profile

Aluminium channel 120×40×4 mm is a robust open-section profile with a channel cross-section (C/U), made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its large external width of 120 mm and wall thickness of 4 mm, it is suitable wherever a rigid yet lightweight aluminium structure is required — from frames and subframes, to guides and cover strips, through to finishing and decorative elements.

The profile is supplied in a 2000 mm length section weighing just 4.14 kg, making it easy to transport and handle manually on site. The 6060-series aluminium is readily cut, drilled, bent and joined, and its natural corrosion resistance allows the channel to be used both indoors and outdoors without the need for additional surface protection.

Dimensions and technical specification

Cross-section of aluminium channel with dimension labels A, B and T
Cross-section of aluminium channel with dimension labels A, B and T
  • Section type: channel (open C/U profile)
  • External width (A): 120 mm
  • Height (B): 40 mm
  • Wall thickness (T): 4 mm
  • Length: 2000 mm
  • Dimensions (W × H × L): 120 × 40 × 2000 mm
  • Weight: 4.14 kg (linear weight 2.07 kg/m)

Material and surface

  • Aluminium alloy: EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / material no. 3.3206)
  • Surface: raw (non-anodised)

Applications

The 120×40 aluminium channel is a popular choice among installation and construction companies for building aluminium structures, frames and subframes, guides and cover strips. It is also used as a finishing element in furniture, scale modelling, and projects requiring a lightweight yet rigid open profile.
