Aluminium Trapezoidal Bracket H100 L330 with 2 mm EPDM Gasket for PV Mounting
0
Description

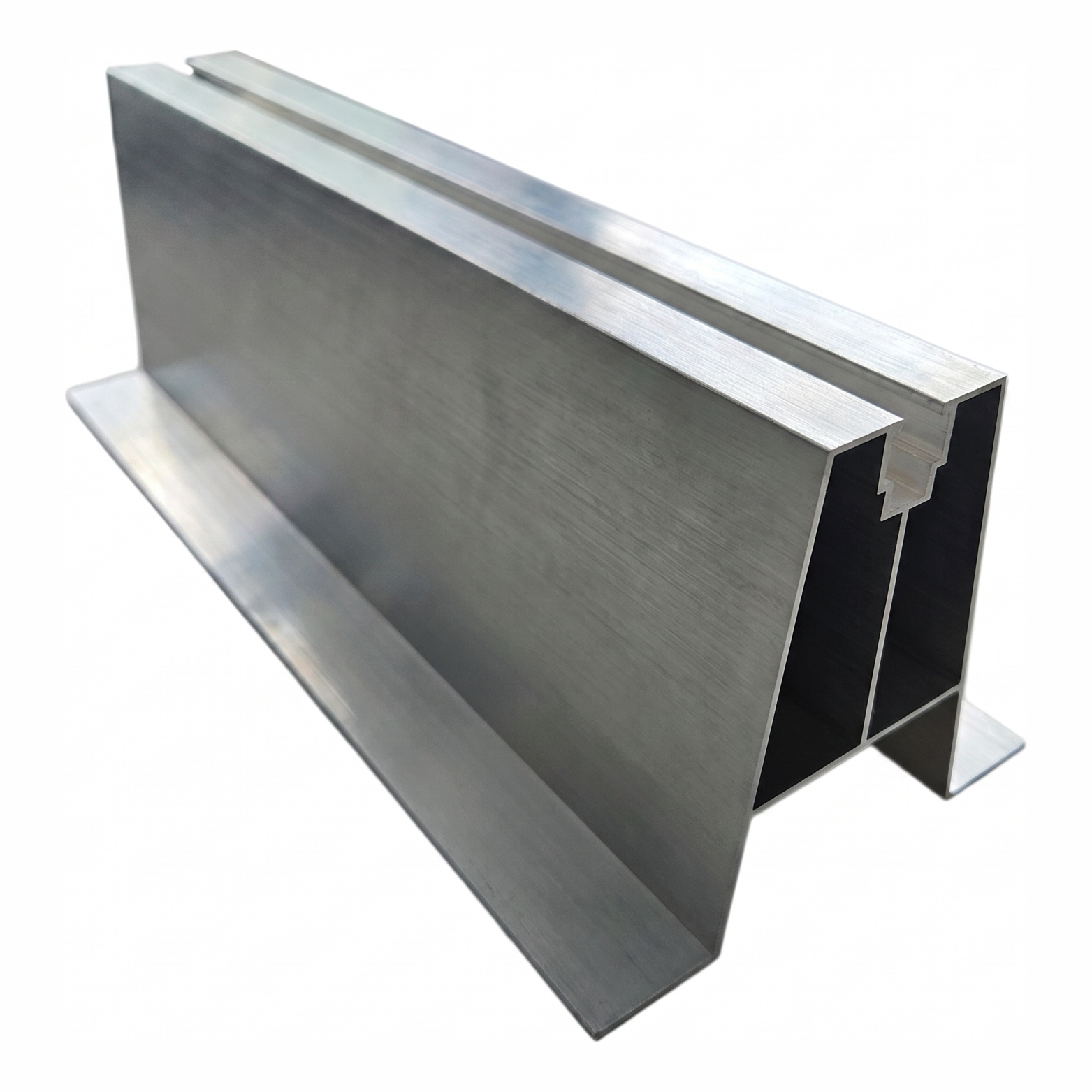

Aluminium Trapezoidal Bridge H100 L330 with 2 mm EPDM Gasket for PV Mounting
The aluminium trapezoidal bridge H100 L330 is a ready-made roof adapter designed for securing photovoltaic structures on roofs covered with trapezoidal sheet metal. Thanks to the factory-fitted 2 mm EPDM gasket, the bridge ensures a watertight fit against the sheet metal profile, eliminating the need for additional sealing and significantly speeding up installation.
The profile is manufactured from aluminium with a standard anodised finish, guaranteeing high corrosion resistance and long-term durability in outdoor conditions. The trapezoidal cross-section perfectly mirrors the geometry of popular roofing sheets — the bridge sits stably on the sheet crests, distributing loads evenly across the roof substructure.
The upper part of the profile is fitted with a mounting channel with a slot width of 9 mm and a depth of 16 mm, enabling rapid attachment of mounting rails or clamps using hook bolts or T-nuts. This solution allows flexible positioning of PV structural components without the need to drill additional holes.

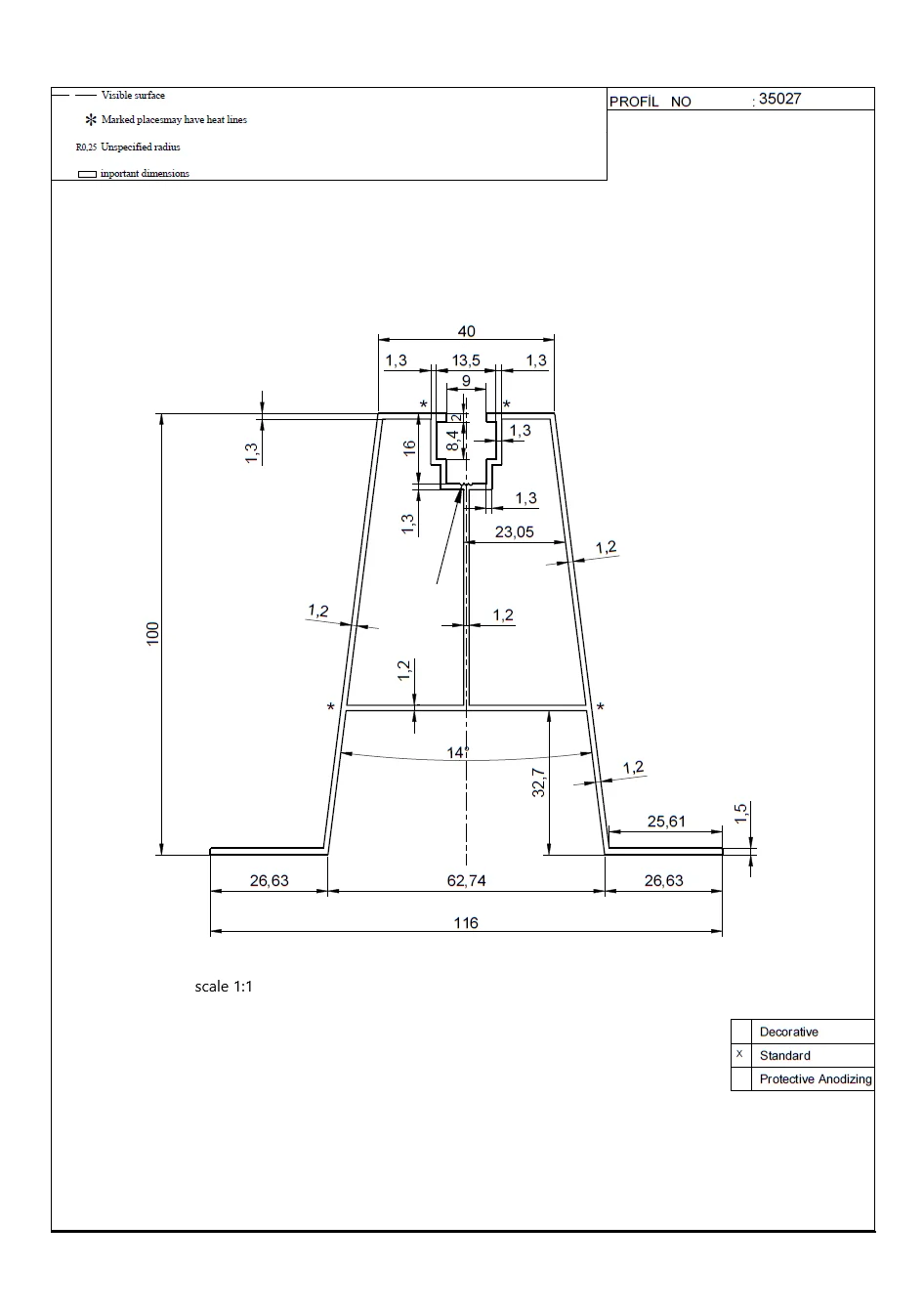

Profile Dimensions and Geometry
- Bridge length: 330 mm
- Total height: 100 mm
- Total base width: 116 mm
- Upper platform width: 40 mm
- Inner base width: 62.74 mm
- Side foot width: 26.63 mm (each)
- Side wall inclination angle: 14°
Mounting Channel (Upper Part of Profile)
- Inlet slot width: 9 mm
- Internal channel width: 13.5 mm
- Channel depth: 16 mm
- Lower chamber depth: 8.4 mm
- Channel lip thickness: 2 mm
Wall Thicknesses and Construction
- Side wall thickness: 1.2 mm
- Internal crosspiece thickness: 1.2 mm
- Upper platform wall thickness: 1.3 mm
- Base foot thickness: 1.5 mm
- Unspecified radius: R0.25 mm
- Height to internal crosspiece: 32.7 mm
Product Parameters
- Profile material: aluminium (standard anodising)
- Gasket: EPDM 2 mm
- Weight: 0.438 kg
- Overall dimensions: L 330 × H 100 mm
The trapezoidal bridge is an essential component connecting the roof sheet to the supporting structure of PV panels. The EPDM gasket protects the roof covering against water ingress at the fixing points, whilst the aluminium construction adds minimal weight to the roof. The universal geometry means the profile is compatible with the most widely used trapezoidal sheets employed in industrial and warehouse construction.
