Aluminium T-bar 40×40×4 mm T-profile EN AW-6060, length 2000 mm

Go to Product feedback

Aluminium T-bar EN AW-6060 T6/T66 (AlMgSi0.5), T-section profile. Flange width 40 mm, height 40 mm, wall thickness 4 mm, length 2000 mm. Weight 1.64 kg. Raw, non-anodised surface.

Go to full description
with VAT without VAT
Price €20.11
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] teowniki #166

  • Material Aluminium
  • Height [mm] 40
  • Wall Thickness [mm] 4
  • Length [mm] 2000

Description

Aluminium T-bar 40×40×4 mm T-profile EN AW-6060, length 2000 mm

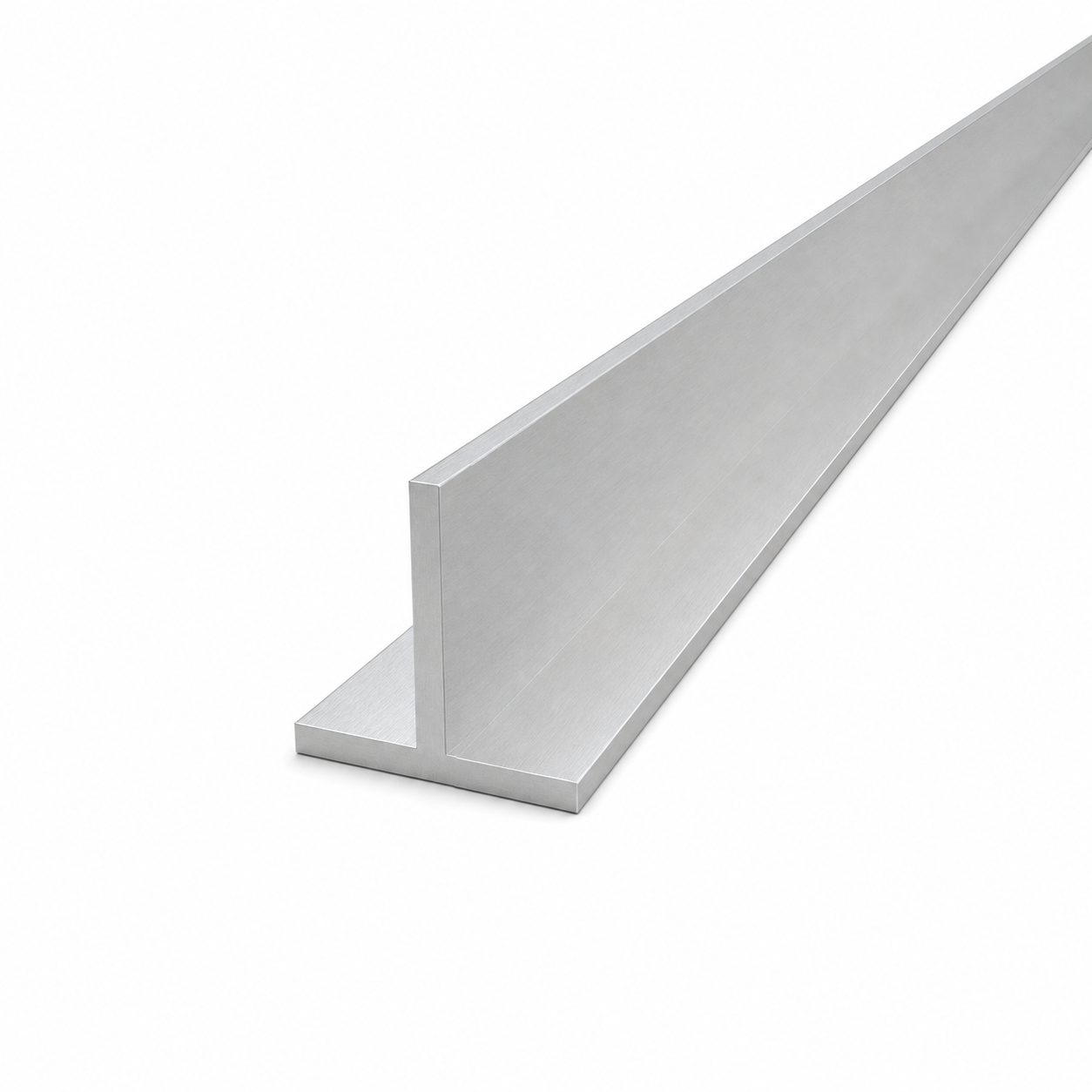

Aluminium T-bar 40×40×4 mm – perspective view of T-profile
Aluminium T-bar 40×40×4 mm – perspective view of T-profile

Aluminium T-bar 40×40×4 mm is a versatile T-section profile designed for constructing lightweight aluminium structures, frames, supports, and finishing elements. Made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), it combines low weight with high rigidity and natural corrosion resistance — eliminating the need for additional surface protection in most applications.

The profile is easy to machine — it can be readily cut, drilled, bent, and joined using standard workshop tools. This reduces installation time on site and allows precise fitting of components directly at the point of assembly.

Applications

  • Aluminium structures and load-bearing frames
  • Supports and fixing elements
  • Finishing and decorative elements
  • Furniture and technical enclosures
  • Modelling and prototyping

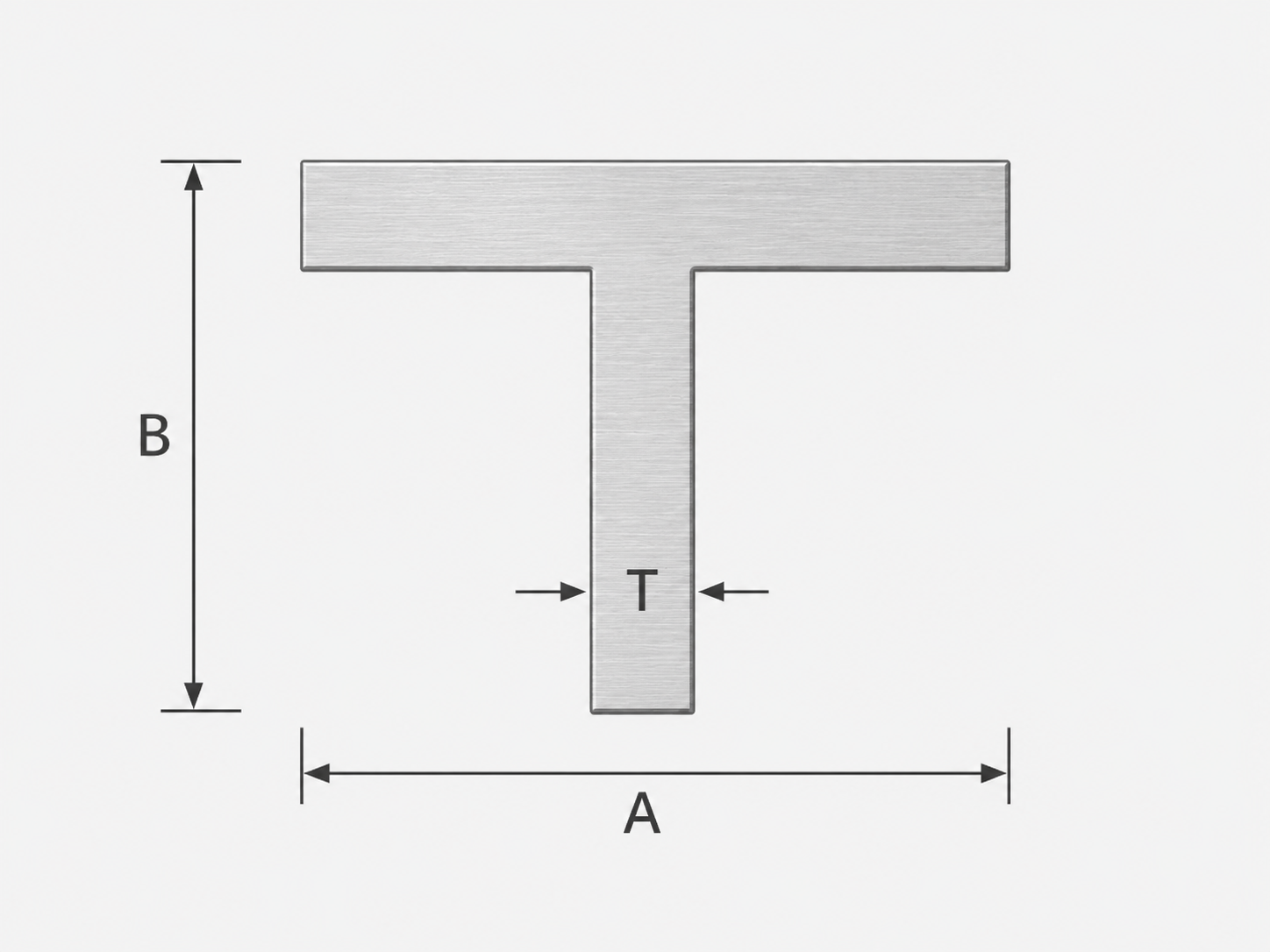

Cross-section drawing of aluminium T-bar with dimensions A, B and T
Cross-section drawing of aluminium T-bar with dimensions A, B and T

Dimensions and technical parameters

  • Section type: T-bar (T-profile)
  • Flange width (A): 40 mm
  • Profile height (B): 40 mm
  • Wall thickness (T): 4 mm
  • Length: 2000 mm
  • Dimensions (W × H × L): 40 × 40 × 2000 mm
  • Weight: 1.64 kg (linear density 0.82 kg/m)

Material and surface

  • Aluminium alloy: EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
  • Surface: raw (non-anodised)

The EN AW-6060 alloy belongs to the structural aluminium group and offers excellent suitability for anodising and surface treatment. The raw surface allows further finishing — anodising, powder coating, or painting — depending on project requirements. The profile is available in a range covering multiple cross-section sizes and wall thicknesses.
