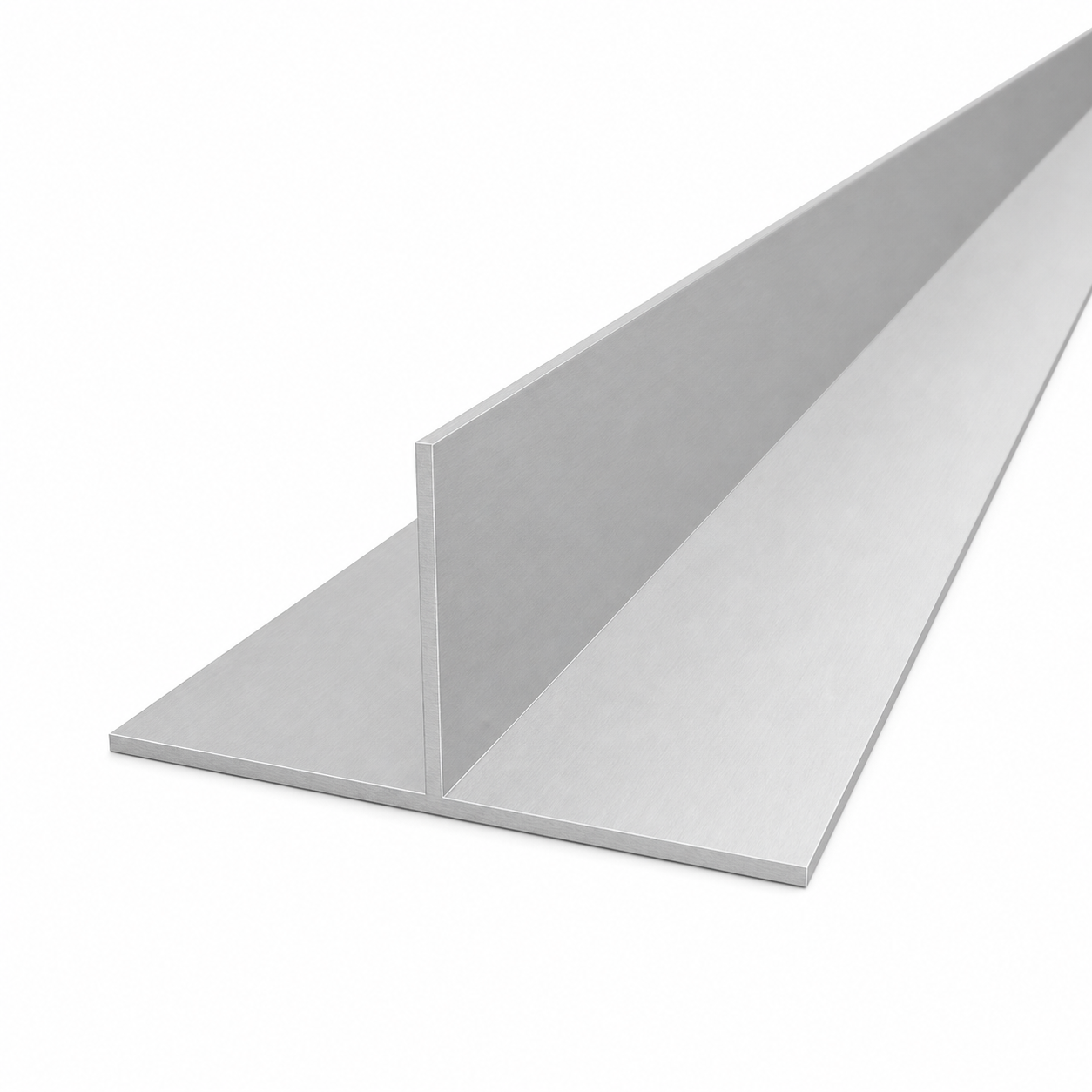

Aluminium T-Bar EN AW-6060 – T Profile 100×50×2 mm, Length 2000 mm
Leave feedback on the product
Aluminium T-bar EN AW-6060 T6/T66, T profile. Cross-section dimensions: 100×50×2 mm, length 2000 mm. Weight: 1.60 kg (0.80 kg/m). Raw, non-anodised surface. AlMgSi0.5 alloy, precipitation hardened.
Product code: 001-871
Product features
[PIM] teowniki #166
- Material Aluminium
- Height [mm] 100
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Aluminium T-Bar EN AW-6060 – T Profile 100×50×2 mm, Length 2000 mm
Aluminium T-bar 100×50×2 mm is a sturdy T-section profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its excellent mass-to-rigidity ratio, it is ideally suited for lightweight aluminium structures, frames and mounting assemblies, finishing elements, and wherever low weight, ease of machining and corrosion resistance are essential.
The profile in its raw (non-anodised) state is ready for further processing — it can be easily cut, drilled, bent and mechanically joined. The 2000 mm length allows flexible adaptation to project requirements with minimal material waste.

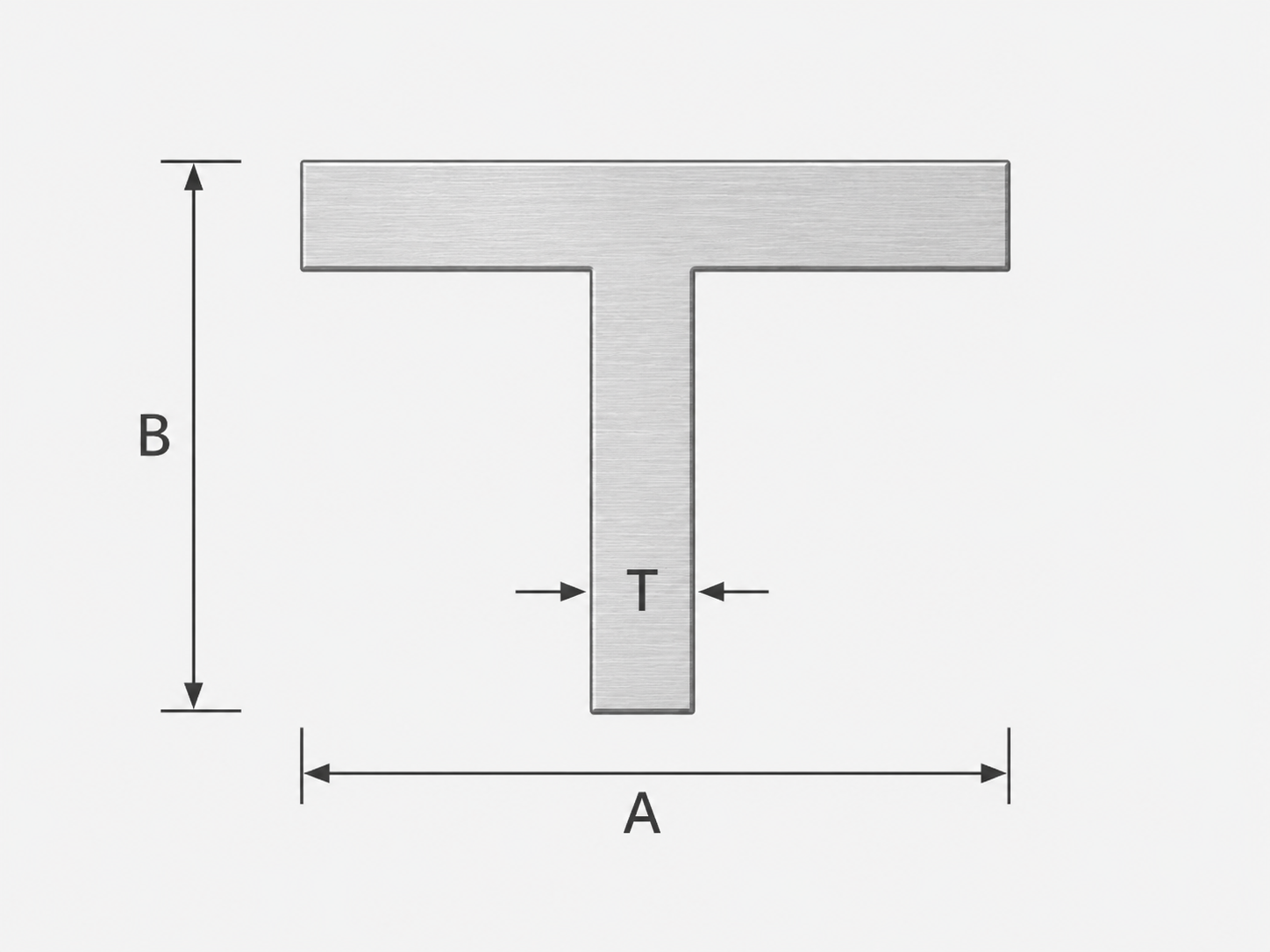

Technical Specification
- Profile type: T-bar (T)
- Flange width (A): 100 mm
- Profile height (B): 50 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 100 × 50 × 2000 mm
- Weight: 1.60 kg (0.80 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Mounting assemblies and support elements
- Architectural finishes and decorative elements
- Furniture and display structures
- Modelling and prototype projects
The AlMgSi0.5 alloy (6060 series) is noted for its excellent suitability for anodising and mechanical machining. The T6/T66 delivery condition denotes heat-treated material — the profile is precipitation hardened, providing high rigidity whilst retaining the lightweight characteristics typical of aluminium. The profile is available in a range encompassing many cross-sectional dimension and wall thickness variants.
