Aluminium T-Bar 30×30×3 mm – T Profile EN AW-6060 Length 2000 mm
0
Description

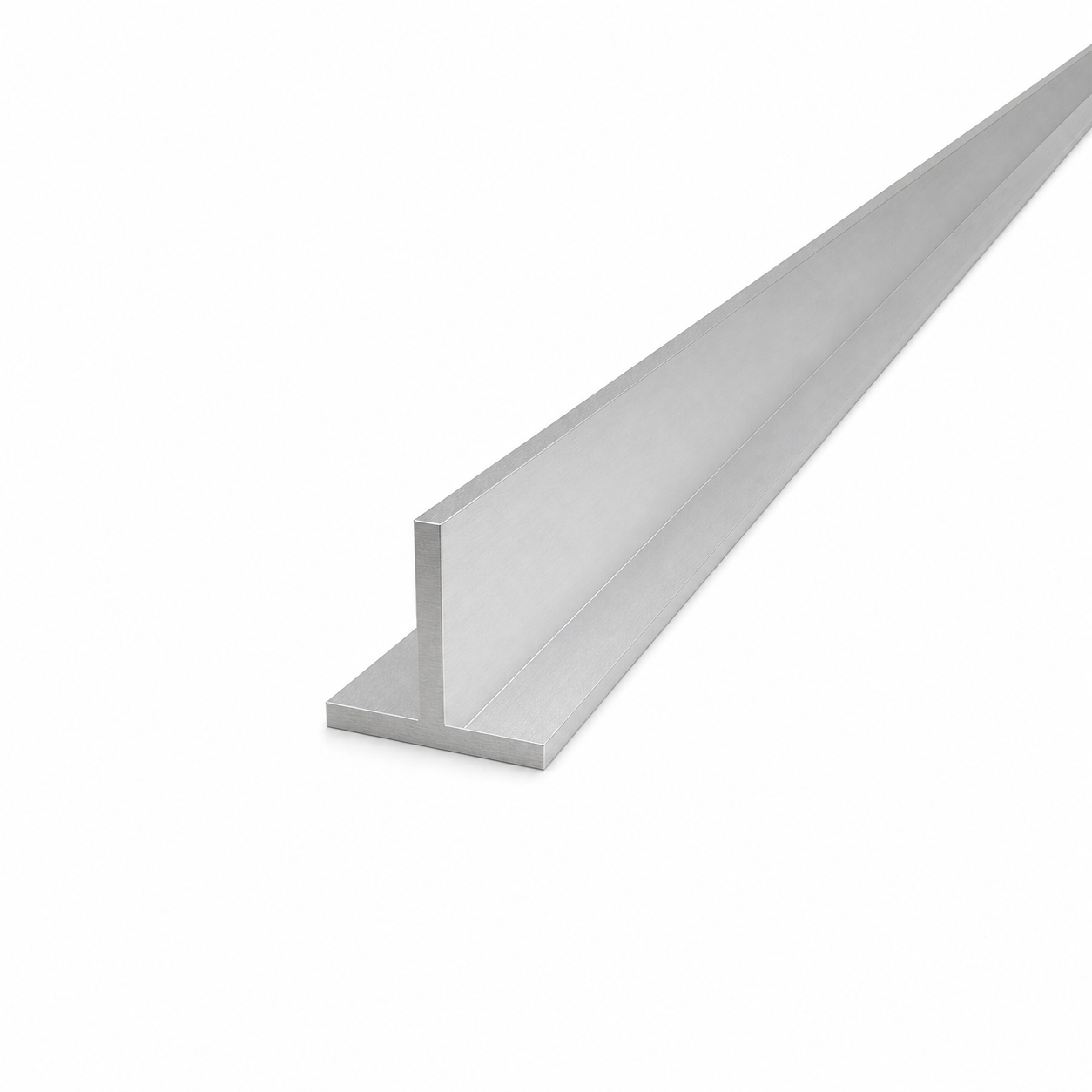

Aluminium T-Bar 30×30×3 mm – T Profile EN AW-6060 Length 2000 mm
Aluminium T-bar 30×30×3 mm is a lightweight and durable T-section profile designed for building aluminium structures, frames, brackets and finishing elements. Thanks to the use of EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), the profile combines high rigidity with natural corrosion resistance, eliminating the need for additional surface protection in most indoor applications.
The material is easy to process — it is suitable for cutting, drilling, bending and joining with standard tools, resulting in short lead times on site and in the workshop. The profile is available in a range of cross-section dimensions and wall thicknesses, allowing it to be matched to specific structural requirements.

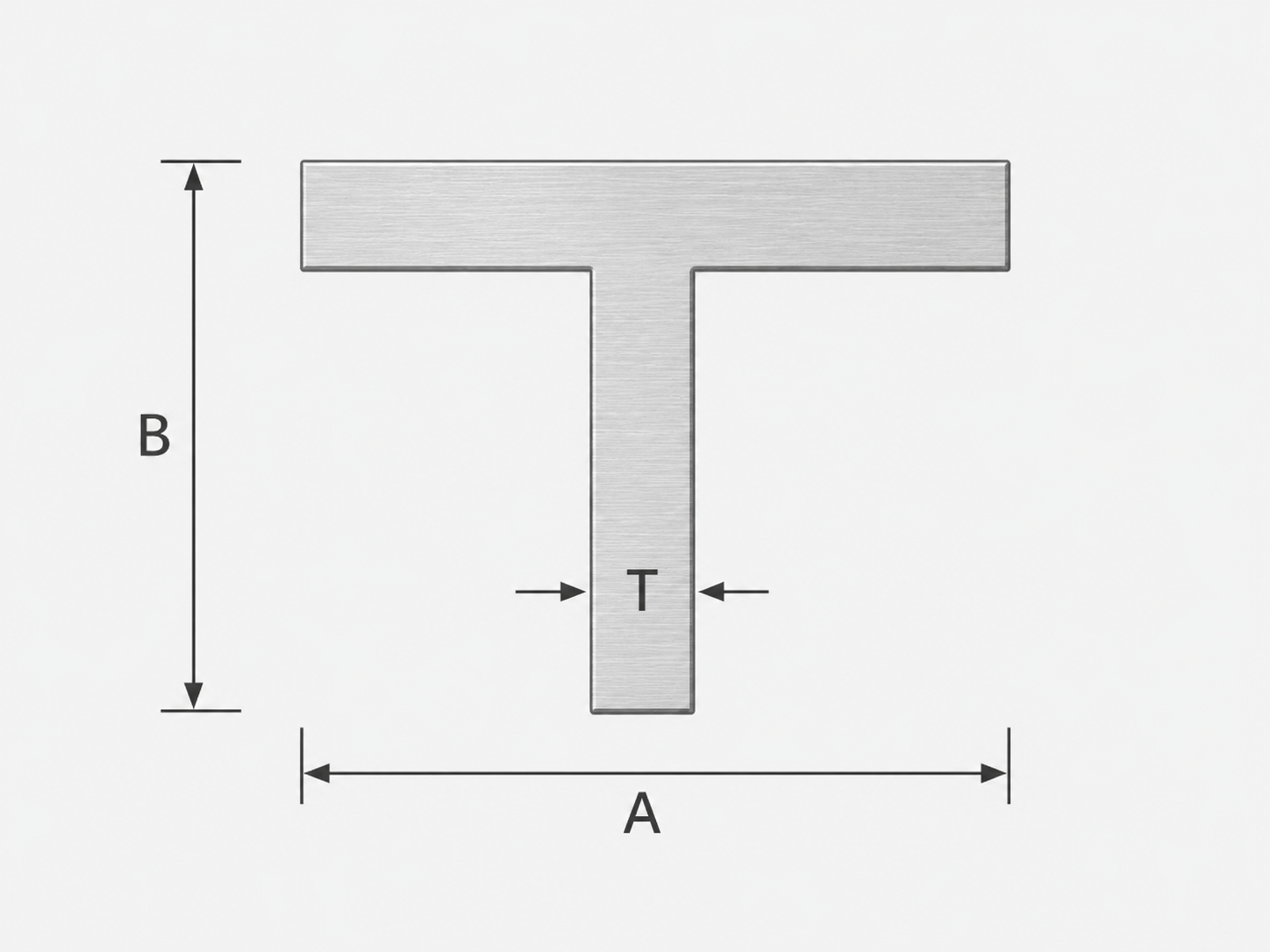

Cross-section dimensions
- Flange width (A): 30 mm
- Profile height (B): 30 mm
- Wall thickness (T): 3 mm
Technical specifications
- Profile type: T-bar (T-section)
- Length: 2000 mm
- Dimensions (W × H × L): 30 × 30 × 2000 mm
- Weight: 0.92 kg (0.46 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Brackets and support elements
- Finishing and decorative elements
- Furniture and enclosures
- Modelling and workshop projects
Technical data
| Height [mm] | 30 |
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
