Aluminium T-Bar 30×30×2 mm – Structural T-Profile L=2000 mm
0
Description

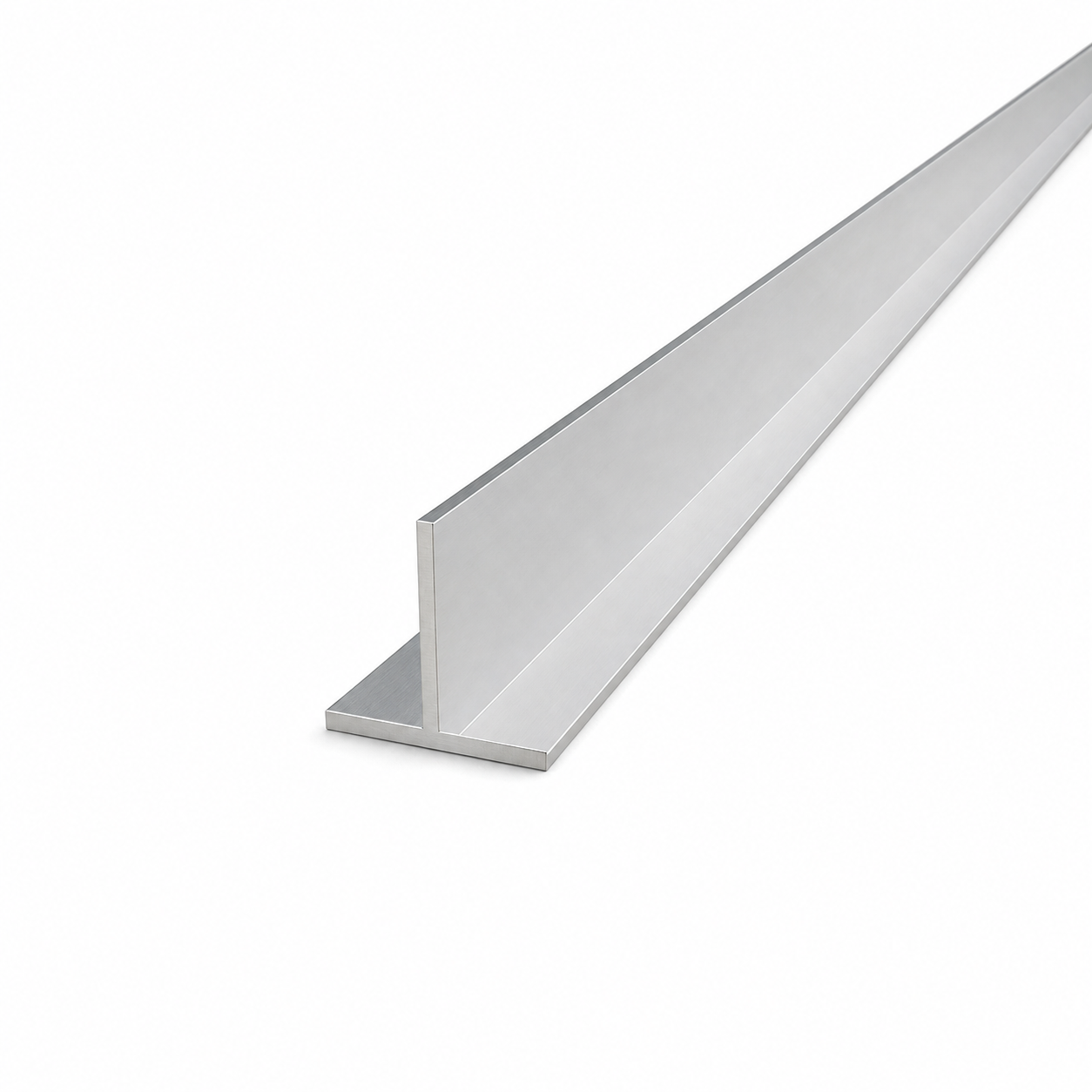

Aluminium T-Bar 30×30×2 mm – Structural T-Profile L=2000 mm
The aluminium T-bar 30×30×2 mm with a length of 2000 mm is a strong, lightweight profile with a T-section, designed for building aluminium frames, racks and structures. Made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), it combines high rigidity with excellent corrosion resistance, making it suitable for both indoor and outdoor use — without the need for additional surface protection.
The profile is easy to work with — it can be cut, drilled, bent and joined using standard workshop tools. Its low self-weight (0.62 kg for a 2 m length) greatly facilitates transport and installation, while the raw surface allows further finishing: anodising, powder coating or painting, depending on project requirements.

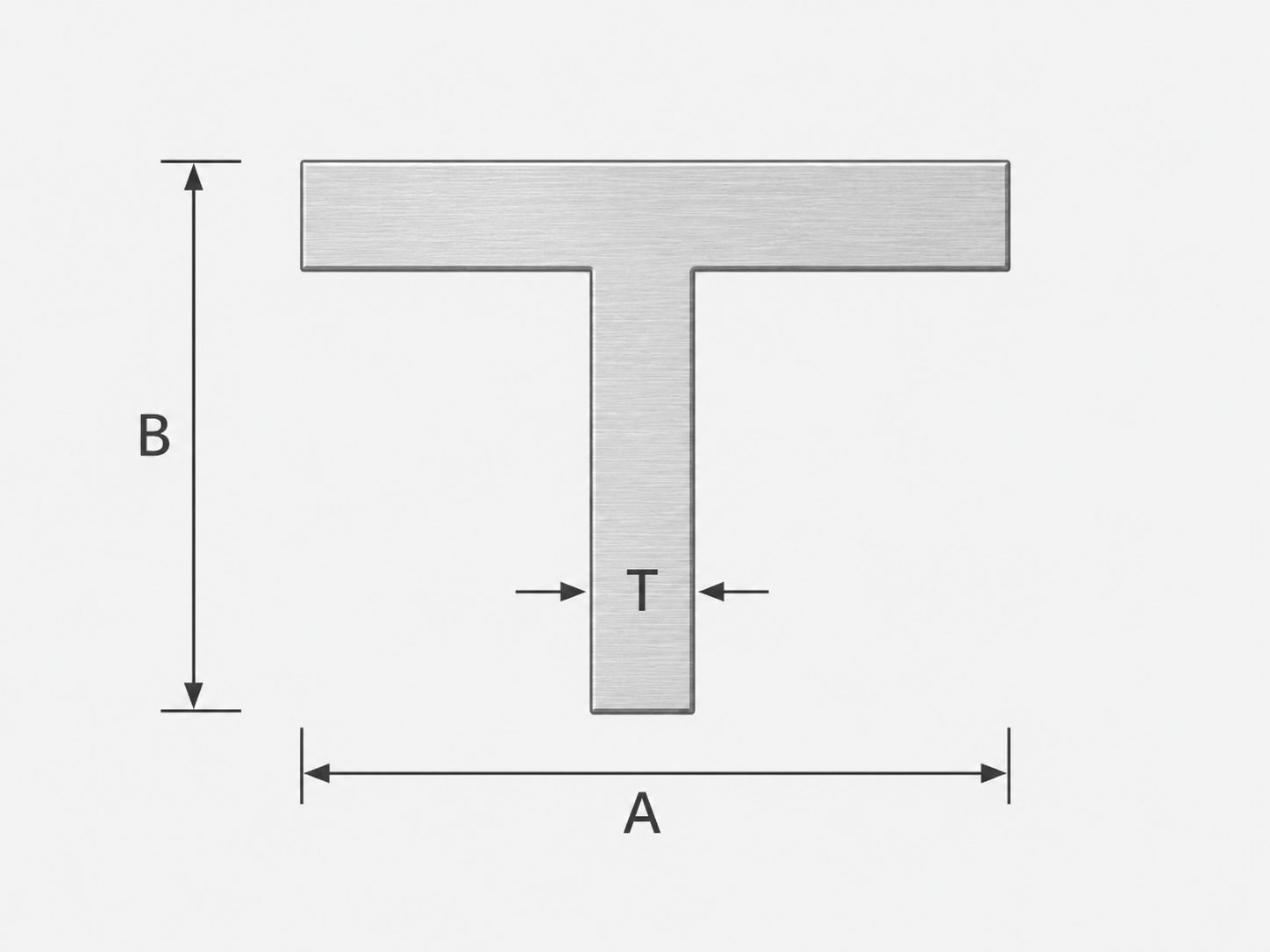

Dimensions and Technical Specifications
- Section type: T-bar (T-profile)
- Flange width (A): 30 mm
- Profile height (B): 30 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 30 × 30 × 2000 mm
- Weight: 0.62 kg (linear weight: 0.31 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
The 30×30 aluminium T-bar is ideal wherever a lightweight yet rigid structural element with a symmetrical T-section is required. The most common applications include:
- Aluminium structures — frames, racks and reinforcements
- Building finishes — joining strips and surrounds
- Furniture and decorative elements
- Scale modelling and prototyping
- DIY projects and workshop tasks
The profile is available in a range of sizes covering multiple cross-section and wall thickness variants, allowing the optimum profile to be selected for a specific load and structural geometry.
Technical data
| Material | Aluminium |
| Height [mm] | 30 |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
