Aluminium T-Bar 25×25×2 mm – T Profile EN AW-6060, L=2000 mm
0
Description
Aluminium T-Bar 25×25×2 mm – T Profile EN AW-6060, L=2000 mm

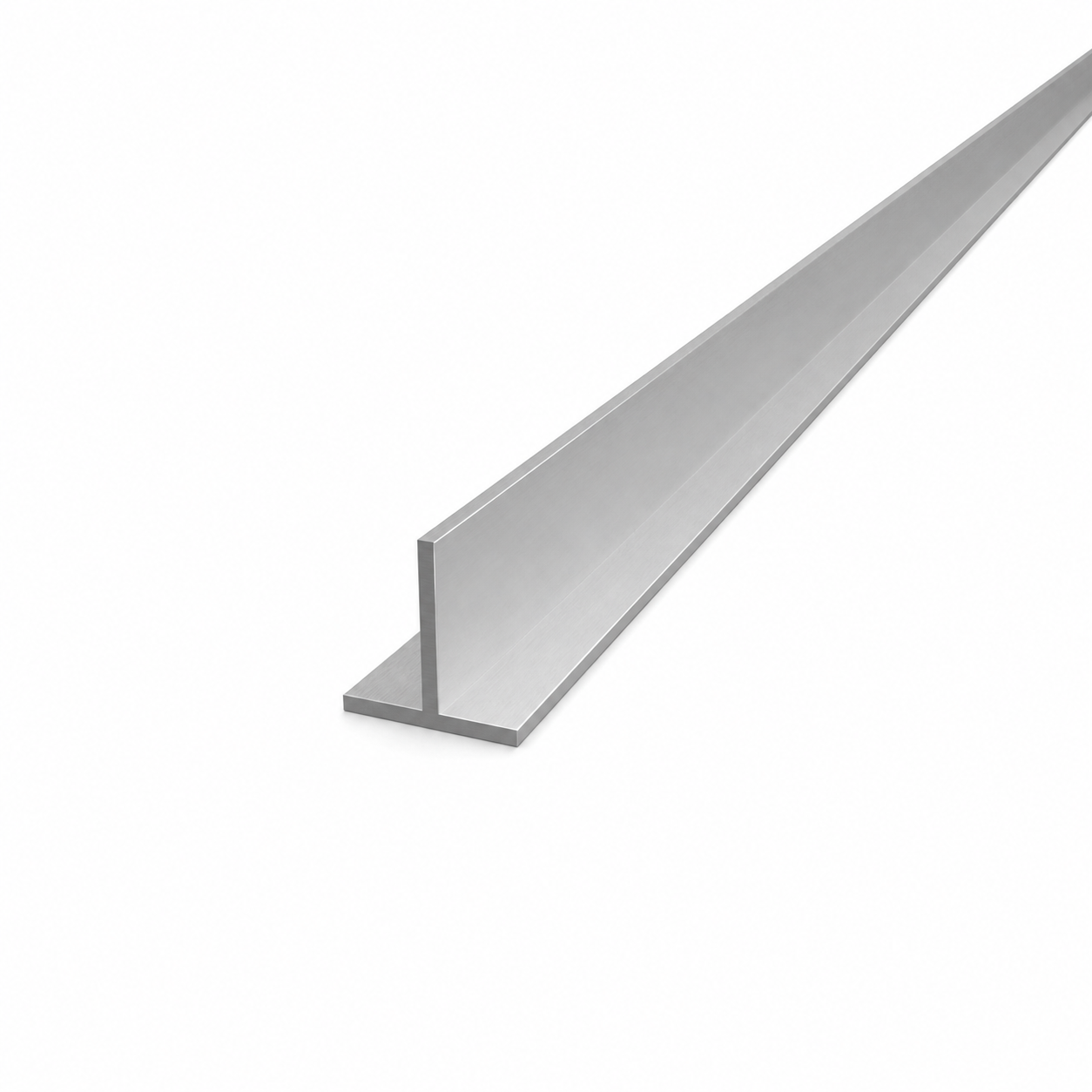

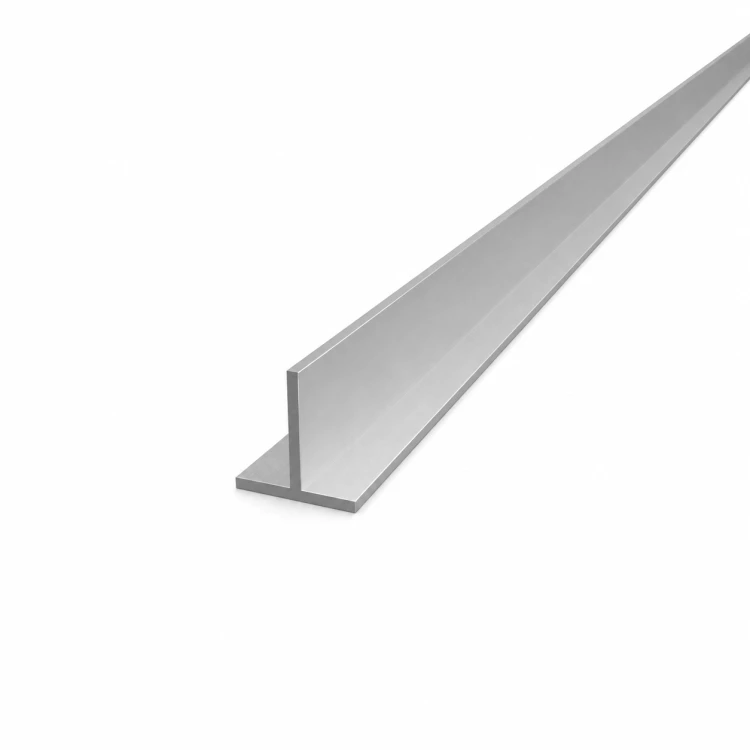

Aluminium T-bar 25×25×2 mm with a length of 2000 mm is a versatile T-section profile made from EN AW-6060 T64 aluminium alloy (AlMgSi0.5 / PA38). Combining low weight with high rigidity and natural corrosion resistance, this profile is equally suited to load-bearing structures, finishing applications, and decorative elements.
The raw, non-anodised surface allows for any desired finishing treatment — anodising, powder coating, or leaving in its natural state. Aluminium 6060 is easy to cut, drill, bend, and join, which significantly speeds up assembly work on site and in the workshop.

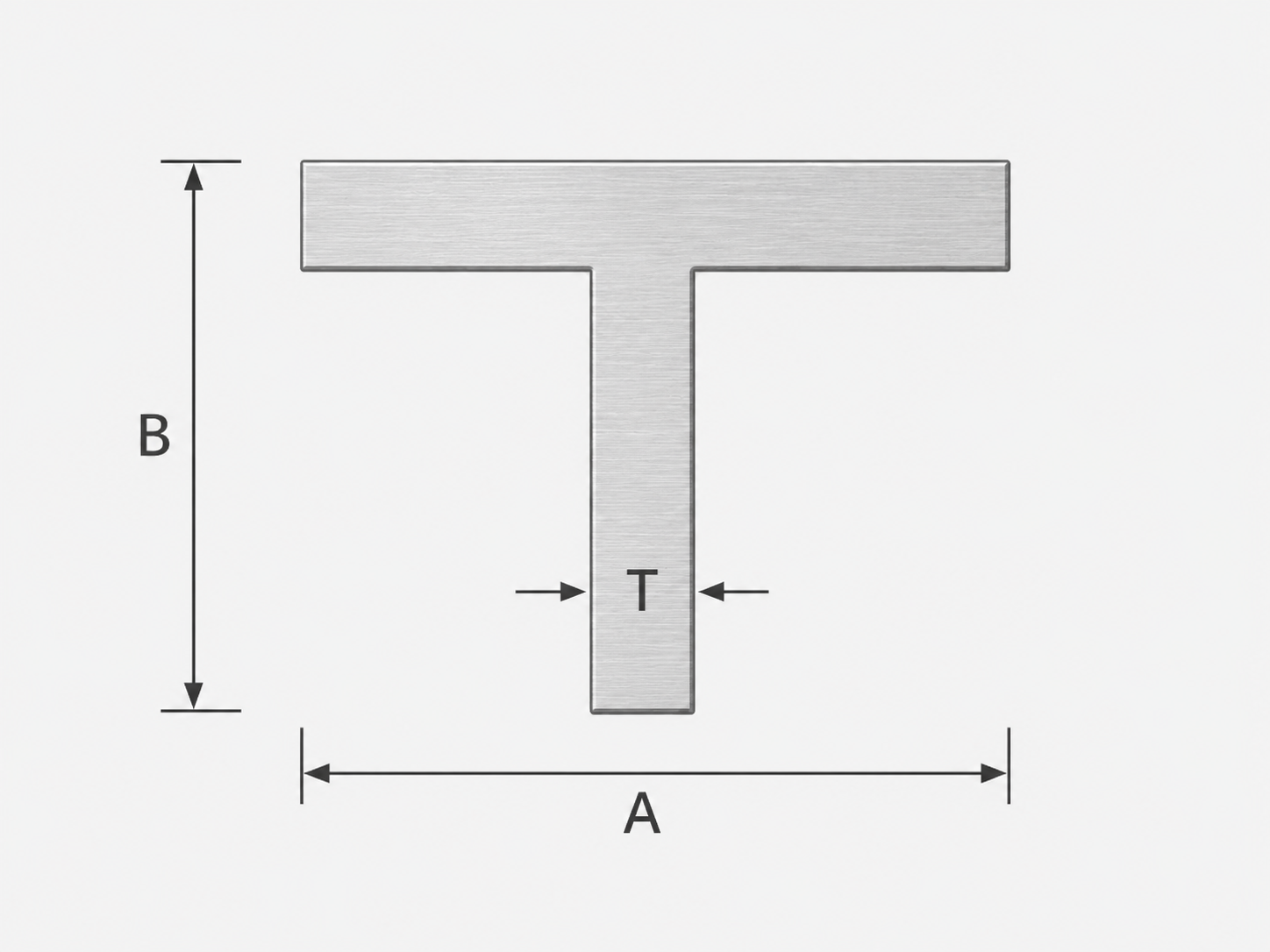

Cross-section dimensions
- Flange width (A): 25 mm
- Profile height (B): 25 mm
- Wall thickness (T): 2 mm
Technical specifications
- Section type: T-bar (T profile)
- Length: 2000 mm
- Dimensions (W × H × L): 25 × 25 × 2000 mm
- Weight: 0.52 kg (0.26 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
The 25×25 mm aluminium T-bar is ideal wherever a lightweight yet strong guide rail, reinforcement, or connecting element is required. Typical areas of use include:
- Aluminium structures — frames, supports, substructures
- Finishing elements — trims, edgings, wall profiles
- Furniture and fitted units — frames, worktop and shelf reinforcements
- Modelling and prototyping — lightweight profile that is easy to work with
- Workshop projects and DIY — versatile structural material
The profile is available in a range of sizes covering multiple cross-section dimensions and wall thicknesses, making it straightforward to select the optimum variant for any given project.
Technical data
| Material | Aluminium |
| Height [mm] | 25 |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
