Aluminium Square Tube 60×60×2 mm – Closed Section Profile PA38 L=2000 mm
Leave feedback on the product
Aluminium square tube EN AW-6060 T6/T66 (PA38). Closed section 60×60 mm, wall thickness 2 mm, length 2000 mm. Weight 2.5 kg (1.25 kg/m). Raw, non-anodised surface.
Product code: 001-680
Product features
[PIM] Cat 144 #144
- Material Aluminium
- Wall Thickness [mm] 2
- Length [mm] 2000
- Height [mm] 60
Description

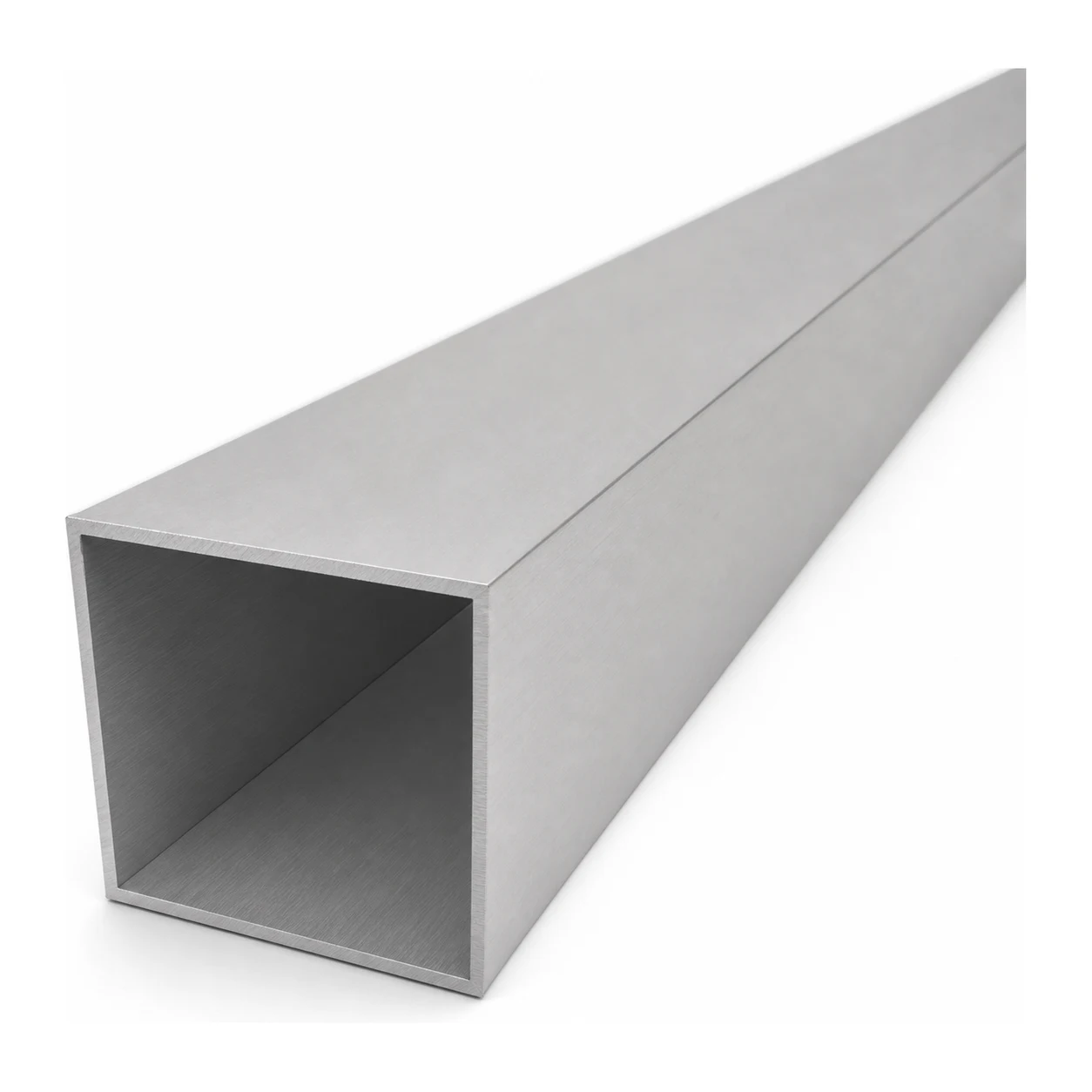

Aluminium Square Tube 60×60×2 mm – Closed Section Profile PA38 L=2000 mm
Aluminium square tube 60×60×2 mm is a versatile closed section profile with a length of 2000 mm, made from aluminium alloy EN AW-6060 T6/T66 (PA38, AlMgSi0.5). Thanks to its square cross-section and thin yet sturdy wall thickness of 2 mm, the profile combines high rigidity with low self-weight — weighing just 2.5 kg (1.25 kg/m). It is an ideal solution for installers and engineers seeking a lightweight, corrosion-resistant material for building frames, load-bearing structures, balustrades, and aluminium constructions.
The profile surface is raw (non-anodised), allowing for further processing — anodising, powder coating, or leaving in its natural state. PA38 aluminium is characterised by excellent machinability — the profile can be easily cut, drilled, bent, and mechanically joined, speeding up project completion on site and in the workshop.
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Frames for photovoltaic and technical installations
- Furniture and decorative elements
- Modelling and DIY projects

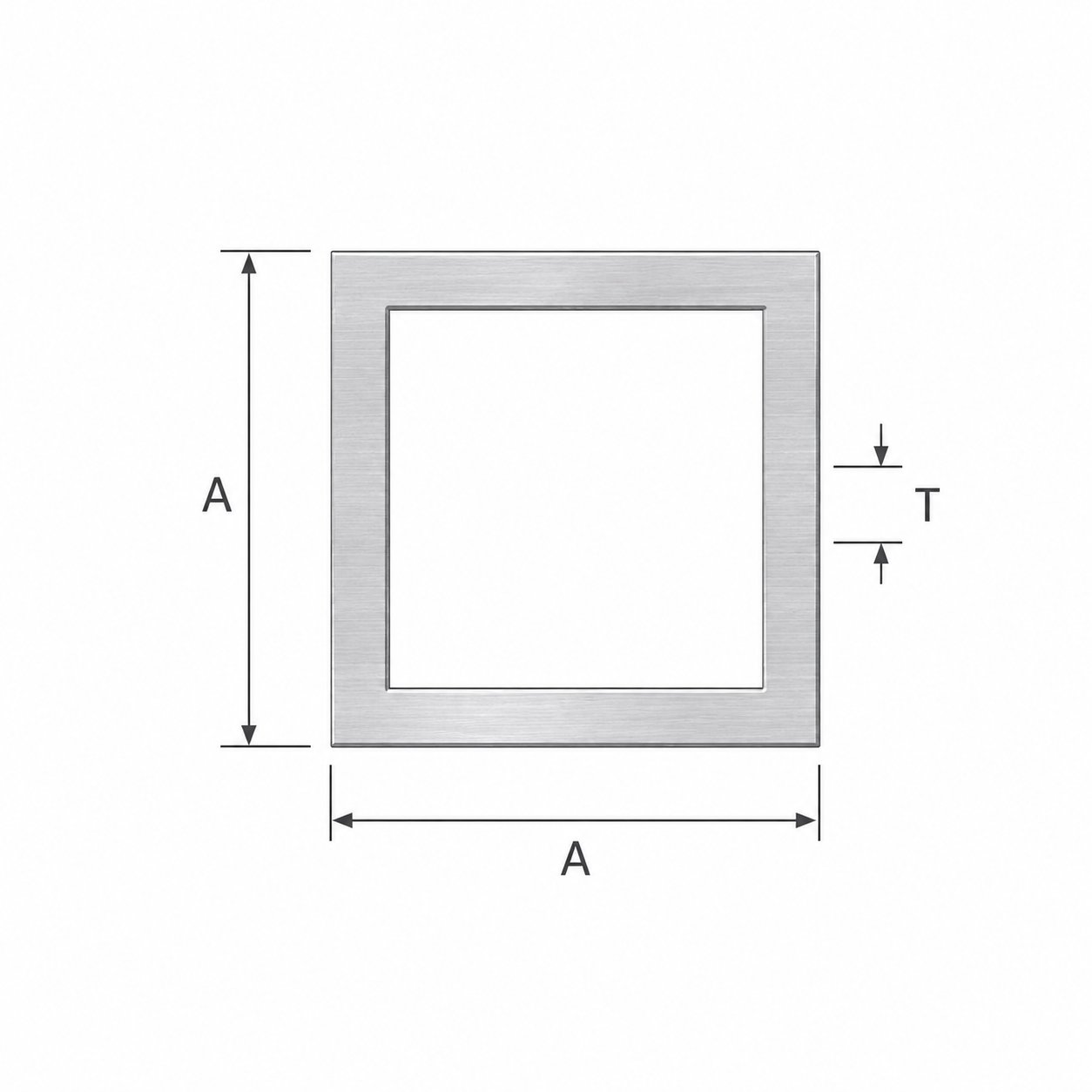

Technical Specification
- Section: closed square tube
- Outer side (A): 60 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (side × side × length): 60 × 60 × 2000 mm
- Weight: 2.5 kg (1.25 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (non-anodised)
The profile is available in a range of cross-section sizes and wall thicknesses, enabling selection of the optimum variant for every project.
