Aluminium H-70 Trapezoidal Bridge with EPDM 330 mm – Type 2 for Trapezoidal Sheet Roofing

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.417 kg

Price / pcs.: £3.59 3.59

excl. shipping costs

* Packaging options:

Piece
Package: 50 pieces
Package: 500 pieces
Package: 1000 pieces

quantity pcs.

Total:

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: -

Product code: PV-02-06

recommend to a friend

Description

Aluminium H-70 Trapezoidal Bridge with EPDM 330 mm – Type 2 for Trapezoidal Sheet Roofing

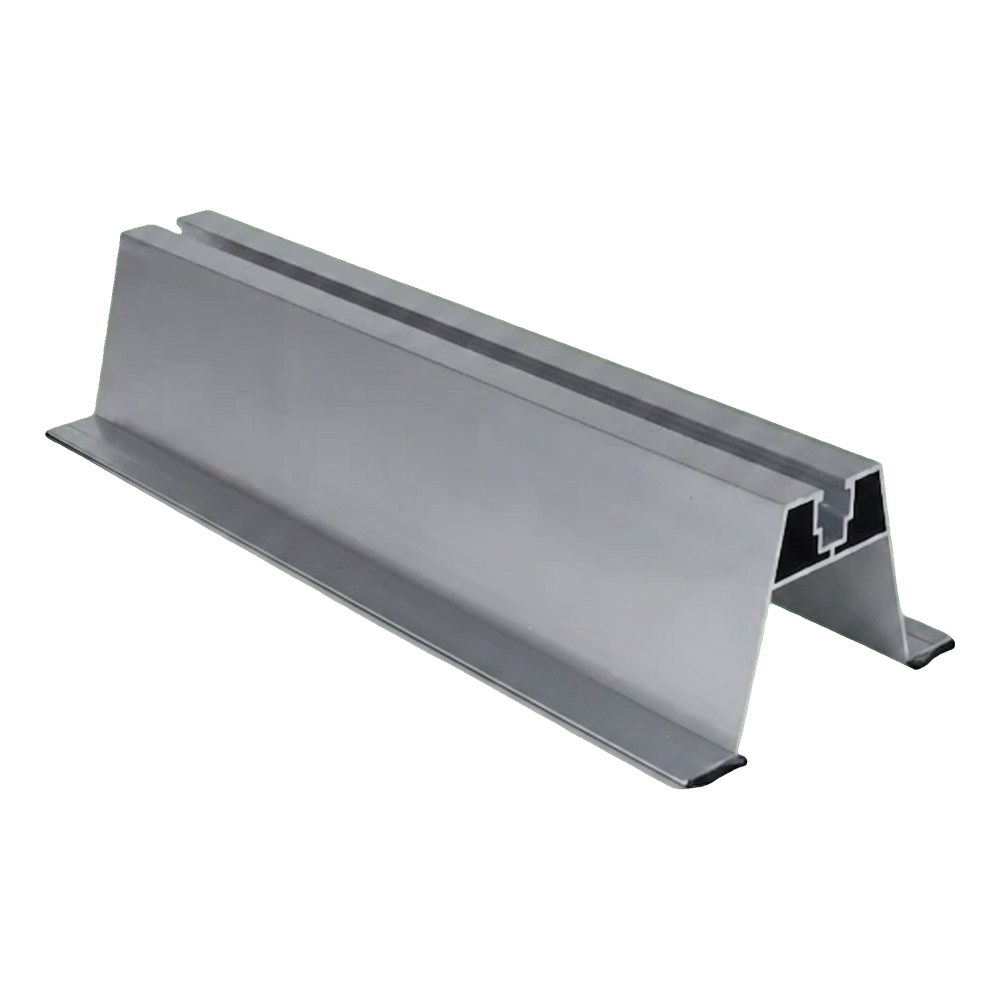

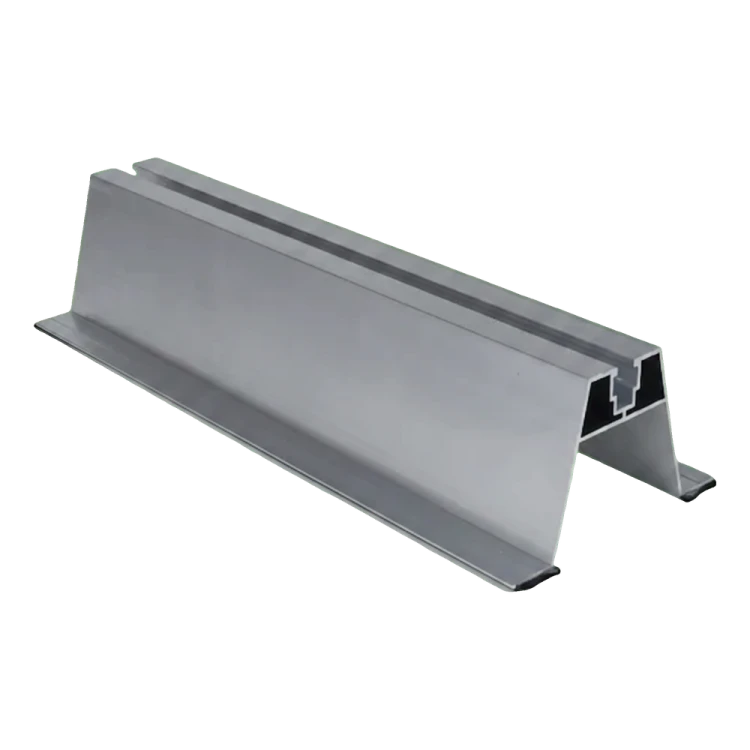

Aluminium H-70 trapezoidal bridge with EPDM – perspective view of the profile with mounting channel

H-70 Trapezoidal Bridge with EPDM is an aluminium mounting profile designed for direct fixing of photovoltaic panels on roofs covered with trapezoidal sheet metal. The type 2 variant is dedicated to higher roof connections — the height of the profile ensures free airflow beneath the modules, allowing them to cool naturally and stay away from the heated roof surface. The profile is fitted with an upper mounting channel, to which mid and end clamps are attached using hex socket screws and square nuts. EPDM gaskets are fitted to the feet of the profile, which dampen vibrations, protect the sheet metal coating from scratching and seal the point of contact with the roof covering. The holes for the screws fixing to the sheet metal are made on site — this allows the installer to match the hole spacing to the spacing of the trapezoidal ridges.

Benefits for the installation team

A height of 70 mm keeps the module away from the roof — better ventilation and lower panel operating temperatures

The EPDM gasket on the feet protects the sheet metal coating and improves the grip of the profile

Mounting channel compatible with mid and end clamps — universal mounting system

Mounting holes made on site, allowing the bridge to be fitted to any trapezoidal profile

Corrosion-resistant 6060 aluminium — maintenance-free operation throughout the lifetime of the installation

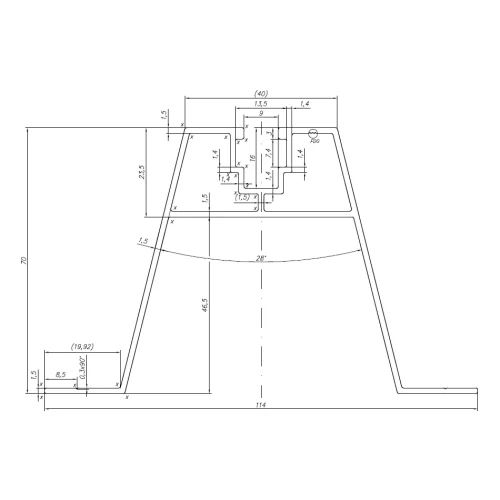

Technical drawing of the H-70 trapezoidal bridge cross-section with dimensions and EPDM gasket detail

The cross-section drawing shows the trapezoidal shape of the profile with a wide base and mounting channel at the top. The detail in the bottom left corner shows the cross-section of the EPDM gasket fitted to the foot of the profile. All cross-sectional dimensions can be found in the specification table below.

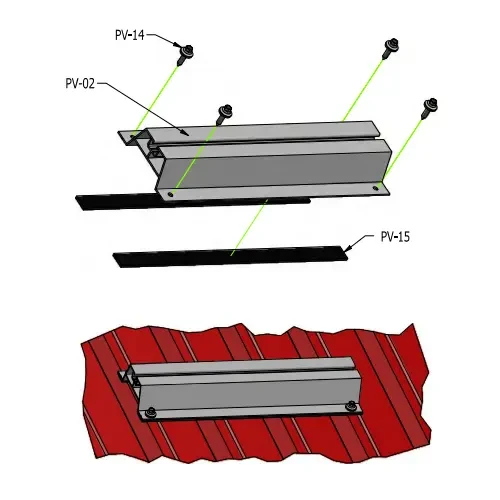

Video presenting the trapezoidal bridge and how to install it on a trapezoidal sheet metal roof

Dimensions

Cross-section (width × height)	114 × 70 mm
Length	330 mm
Wall thickness	1.5 mm
Mounting channel width	40 mm
Channel opening width	9 mm
Weight per metre	1.262 kg/m

Material and finish

Material / alloy	6060 aluminium
EPDM gasket	yes — on the feet of the profile

Installation and compatibility

Mounting channel / groove type	C-channel, width 40 mm, opening 9 mm
Compatible screws	hex socket screws + square nuts
Roof / substrate type	trapezoidal sheet metal roofs — type 2, higher roof connections
Connection method	mounting holes drilled on site, mid and end clamps in the channel

Safety

Shipping costs The price does not include any possible payment costs

Shipping country:

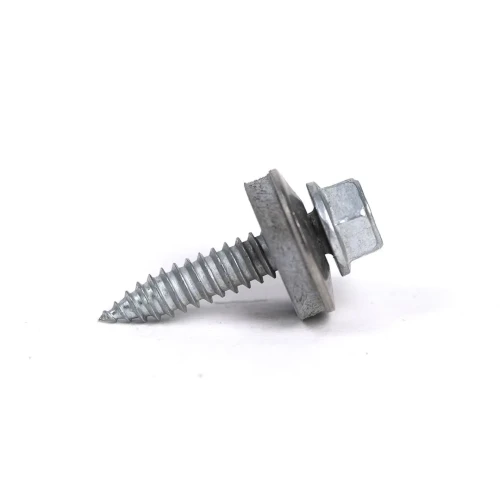

EJOT JF3-2-5,5x25 E16 – self-drilling screw for A2 metal sheet for photovoltaics

EJOT JF3-2-5,5x25 E16 self-drilling screw made of A2 (1.4301) stainless steel, for mounting photovoltaic structures on trapezoidal sheet metal. Thread 5.5 mm, length 25 mm, ⌀16 mm washer with vulcanised EPDM. Weight 0.007 kg. EJOFAST thread, chip-free.

Price: £0.24

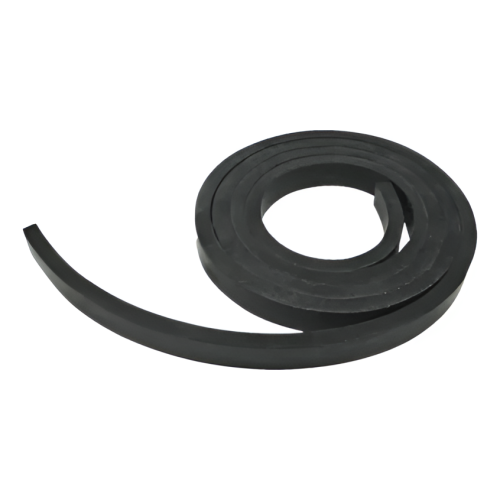

Self-adhesive EPDM gasket 1000×20×2 mm for PV mounting profiles

Self-adhesive EPDM gasket, black, 1000×20×2 mm. Weight 0.009 kg. Used for lining PV mounting profiles under trapezoidal sheet metal, provides anti-vibration insulation and seals the contact between the profile and the sheet. Self-adhesive fitting, can be cut to size.

Price: £0.18

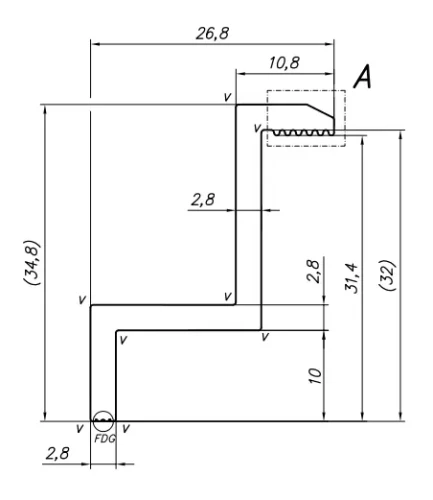

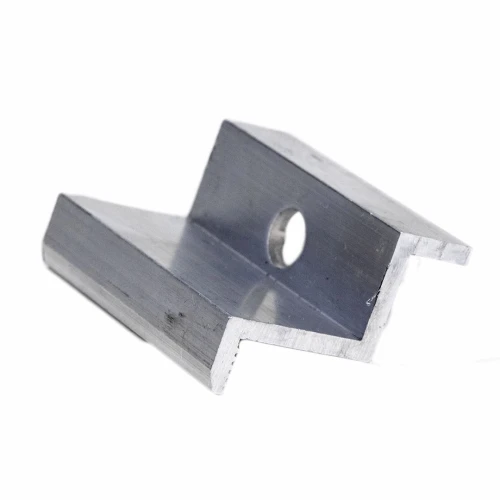

End clamp H32 aluminum 6060 hole M8
