Aluminium H-30 Trapezoidal Bracket with EPDM 330 mm – PV Mounting for Trapezoidal Sheet Roofing
product unavailable
add to wish list
5
Description
Aluminium H-30 Trapezoidal Bracket with EPDM 330 mm – PV Mounting for Trapezoidal Sheet Roofing

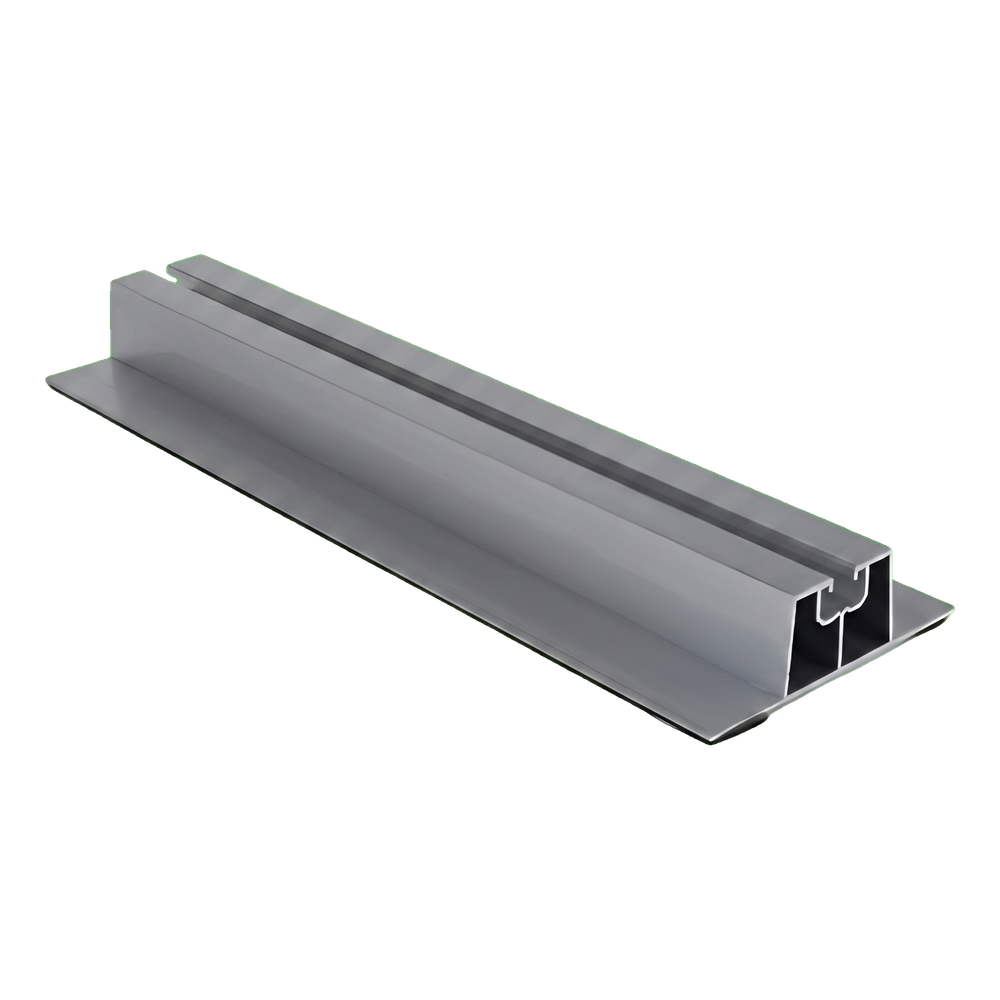

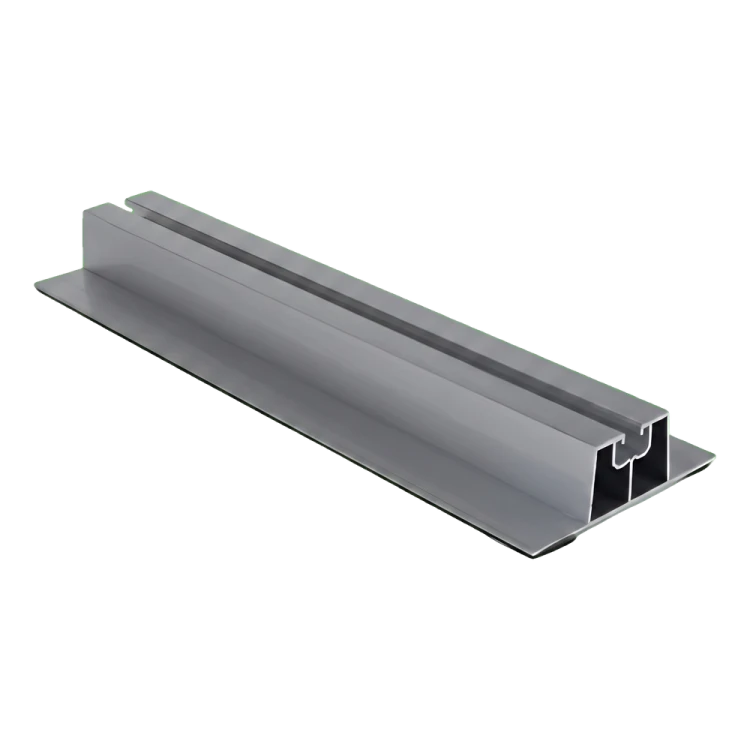

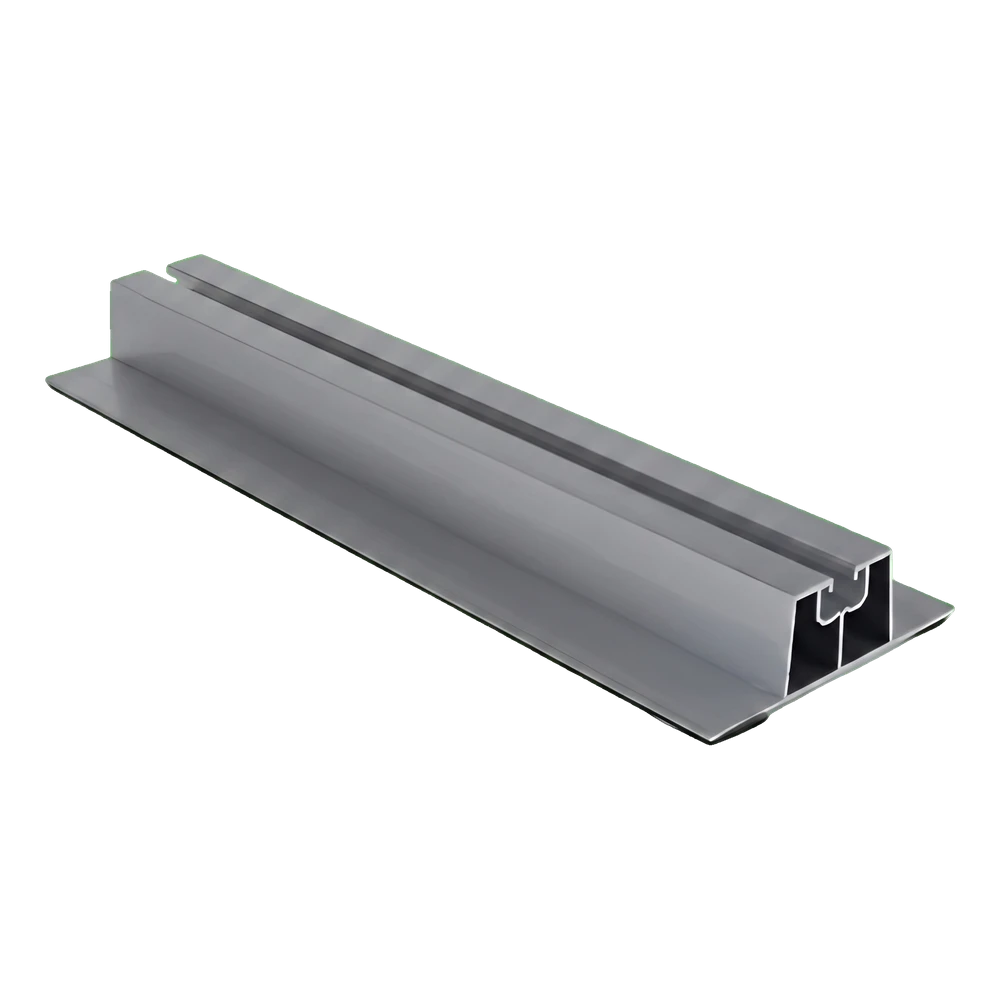

The aluminium H-30 trapezoidal bracket with EPDM seal is a dedicated structural component for the direct mounting of photovoltaic panels on roofs covered with trapezoidal sheet metal. The profile height of 30 mm ensures free airflow beneath the module, enabling natural cooling and lifting the panel away from the heated roof surface — which translates into higher installation efficiency during the warmer months. The bracket works together with mid and end clamps, which are attached to the upper rail channel using a sliding key, threaded insert, or hammer-head bolt. Holes for the screws fixing the profile to the trapezoidal sheet are made directly on the roof during installation, allowing precise adjustment of the spacing to match the specific sheet profile. Made from 6060 aluminium alloy, the profile combines low weight with high resistance to corrosion and weather conditions.
Key benefits for the installer
- Direct mounting on trapezoidal sheet — eliminates the need for additional supports
- The EPDM seal at the base of the profile ensures a tight fit against the sheet metal and protects the roof covering from damage at the mounting point
- A height of 30 mm guarantees ventilation of the PV modules
- 6060 aluminium is suitable for anodising, providing additional surface protection
- Holes drilled on site — adaptable to any trapezoidal sheet wave spacing

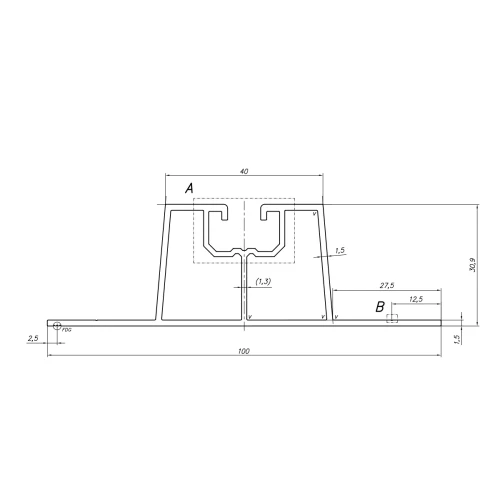

The profile cross-section shows a trapezoidal structure with a wide 100 mm base narrowing to a 40 mm mounting channel at the top. A wall thickness of 1.5 mm combined with a base plate thickness of 2.5 mm ensures adequate rigidity while keeping the overall weight low. The profile shape mirrors the geometry of typical trapezoidal sheets, guaranteeing stable adhesion to the substrate.
