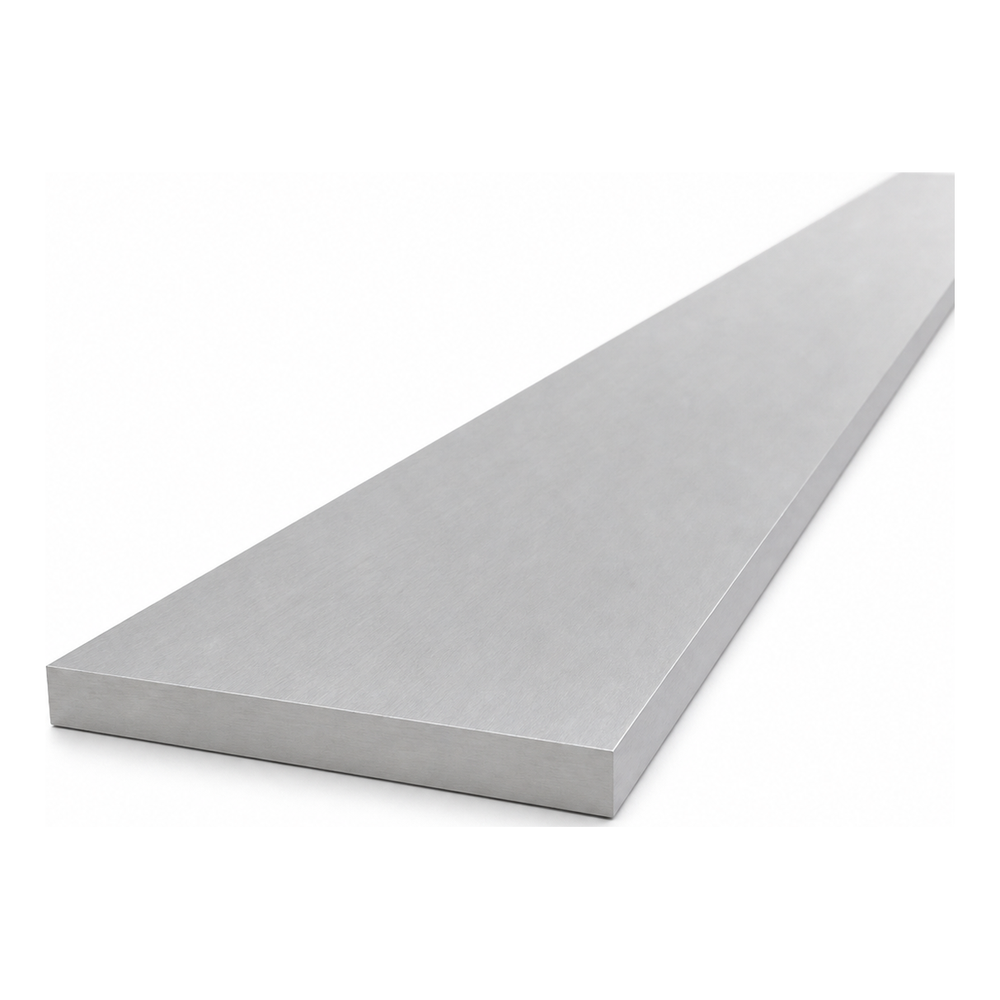

Aluminium Flat Bar EN AW-6060 80×8 mm, Length 2000 mm – Flat Profile
Leave feedback on the product
Aluminium flat bar EN AW-6060 T6/T66, 80×8 mm, length 2000 mm. Material: AlMgSi0.5 / PA38. Raw surface (non-anodised). Weight: approx. 3.46 kg/pc., 1.73 kg/m.
Product code: 001-782
Product features
[PIM] Cat 150 #150
- Material Aluminium
- Length [mm] 2000
- Thickness [mm] 8
Description
Aluminium Flat Bar EN AW-6060 80×8 mm, Length 2000 mm – Flat Profile
Aluminium flat bar 80×8 mm with a length of 2000 mm is a versatile flat profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its excellent strength-to-weight ratio, it is suitable wherever a lightweight, rigid and corrosion-resistant structure is required — from mounting frames and finishing elements to repairs and reinforcements of existing structures.
The raw (non-anodised) aluminium surface allows for further processing — anodising, powder coating or direct installation in locations where decorative finishing is not required. The profile is easy to cut, drill and join using standard workshop tools, enabling fast completion of assembly jobs.
Technical Specification
- Cross-section type: flat bar (flat profile)
- Width (A): 80 mm
- Thickness (T): 8 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight per piece (2 m): approx. 3.46 kg
- Linear weight: 1.73 kg/m
Applications
The 80×8 mm aluminium flat bar is widely used in installation and structural work. It is ideally suited as a component in support structures and mounting frames, profile reinforcements, architectural finishes, as well as a material for repairs and modifications of existing aluminium structures. EN AW-6060 alloy in the T6/T66 temper provides good mechanical strength while remaining easy to machine, which is essential when working in the field.
