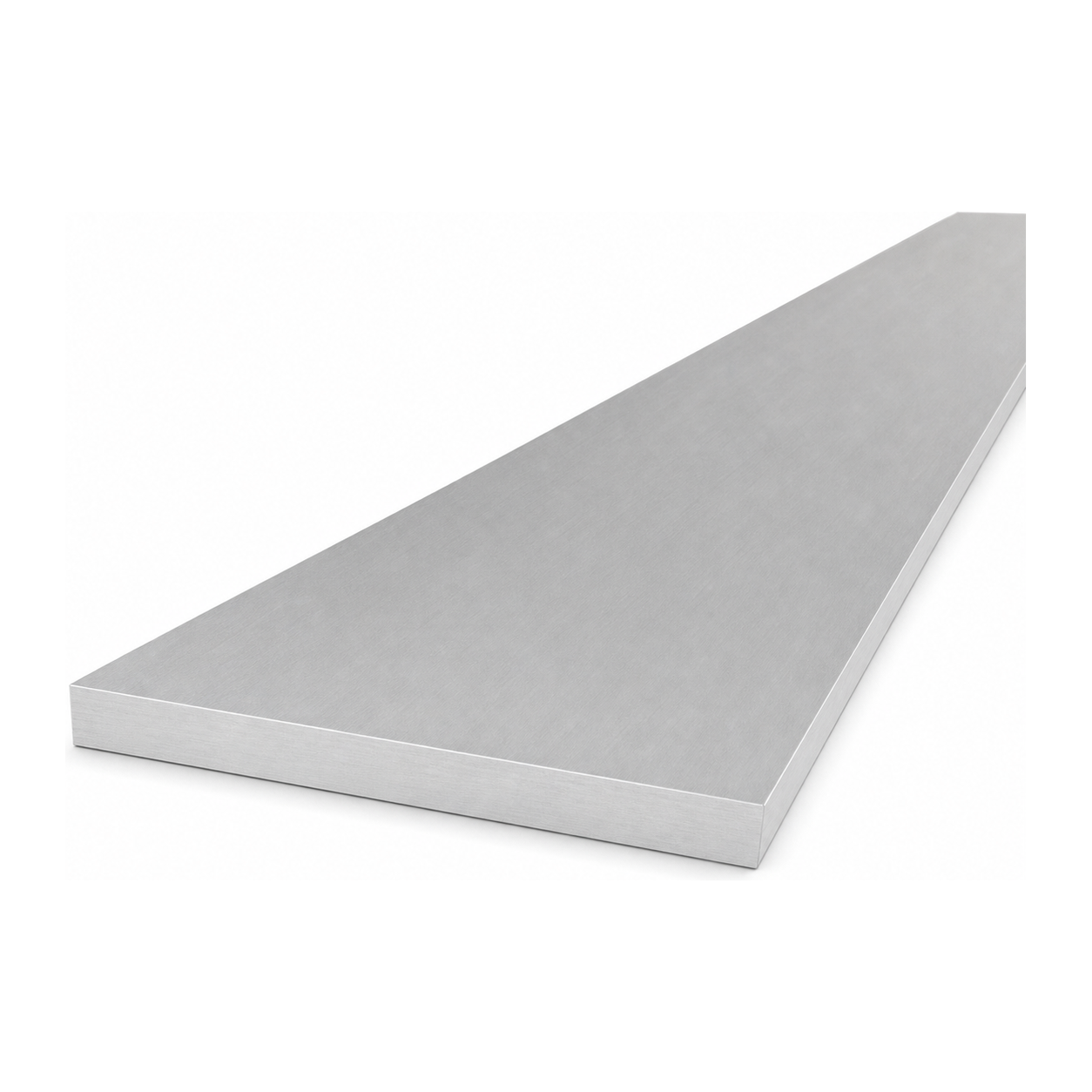

Aluminium Flat Bar 100×8 mm EN AW-6060 – Flat Profile L=2000 mm
Leave feedback on the product
Aluminium flat bar EN AW-6060 T6/T66, 100×8 mm, length 2000 mm. Material: AlMgSi0.5 / PA38. Raw, non-anodised surface. Weight: 4.32 kg. For support structures, mounting frames and installations.
Product code: 001-783
Product features
[PIM] Cat 150 #150
- Material Aluminium
- Length [mm] 2000
- Thickness [mm] 8
Description
Aluminium Flat Bar 100×8 mm EN AW-6060 – Flat Profile L=2000 mm
Aluminium flat bar 100×8 mm is a versatile flat profile made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38) with a length of 2000 mm. Thanks to its low weight of just 4.32 kg combined with high rigidity, the profile is ideal for support structures, mounting frames, finishing elements and installation repairs. The raw, non-anodised aluminium surface provides natural corrosion resistance and allows for further processing — anodising, powder coating or leaving without any additional coating.
The 6060 series flat bar combines good machinability with sufficient strength for structural applications. The T6/T66 temper guarantees dimensional stability and consistent parameters in every piece. The profile can be cut, drilled, milled and welded using standard methods — the perfect solution for installation teams carrying out projects that require precise aluminium components.
Technical Specification
- Cross-section: flat bar (flat profile)
- Width (A): 100 mm
- Thickness (T): 8 mm
- Length: 2000 mm
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
- Weight: 4.32 kg (2.16 kg/m × 2 m)
Applications
- Support structures and mounting frames
- Finishing and protective elements
- Reinforcements and connectors in photovoltaic installations
- Repairs and modifications of aluminium components on site
- Bases for mounting rails and load-bearing profiles
