Aluminium Channel EN AW-6060 C/U Profile 8×8×1 mm, Length 2000 mm
0
Description

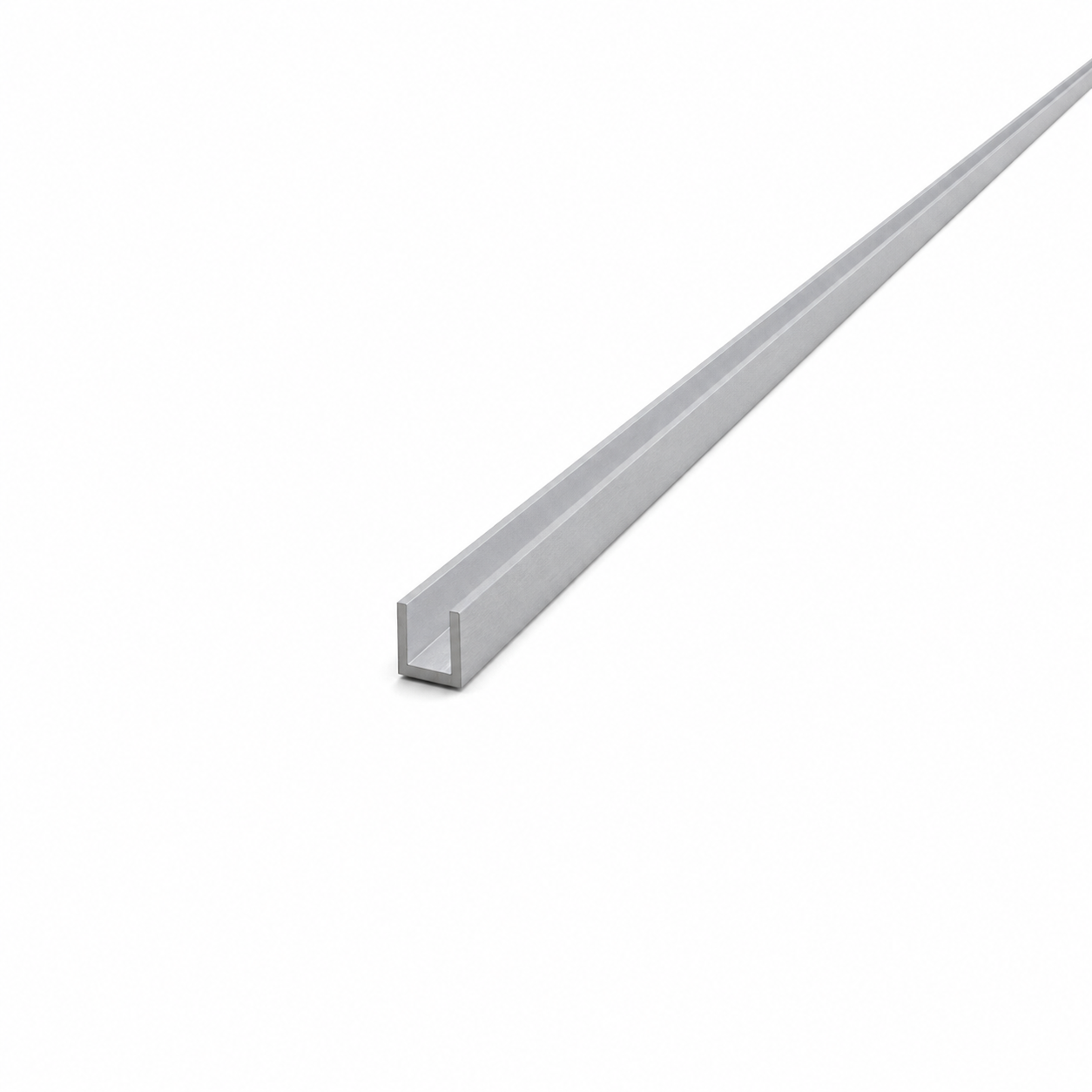

Aluminium Channel EN AW-6060 C/U Profile 8×8×1 mm, Length 2000 mm
Aluminium channel 8×8×1 mm is a lightweight open profile with a C/U cross-section, manufactured from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its small cross-sectional dimensions and low self-weight (0.06 kg/m), it is ideally suited as a guide rail, cover strip, frame element, or finishing component in aluminium structures and technical installations.
The raw aluminium surface provides good adhesion for paints and anodising, allowing the profile to be finished in any way to suit project requirements. The profile is easy to machine — cutting, drilling, bending, and mechanical joining — resulting in fast on-site assembly without the need for specialist tools.
Dimensions and Technical Specification

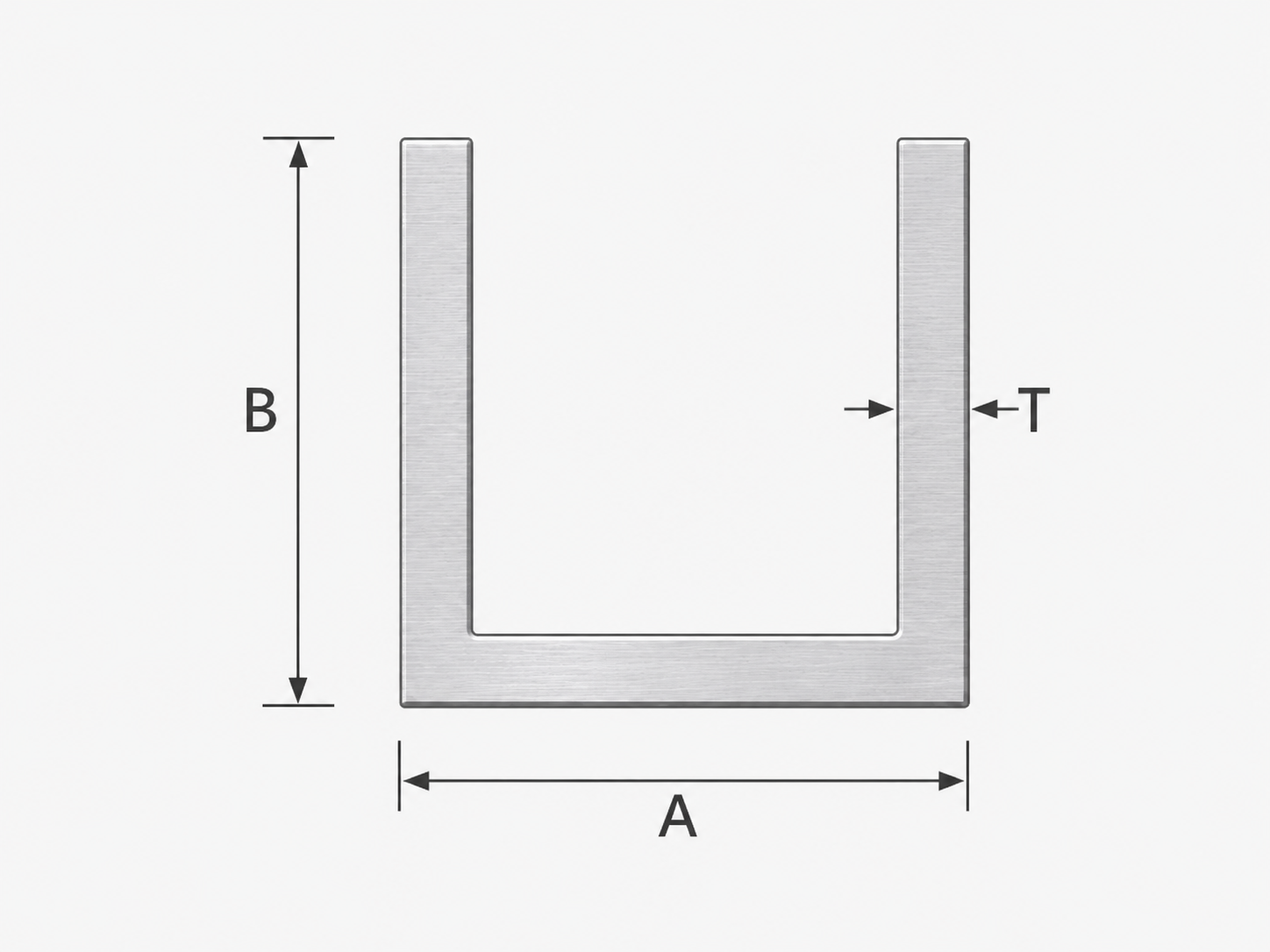

- Profile type: channel (C/U) – open profile
- External width (A): 8 mm
- Height (B): 8 mm
- Wall thickness (T): 1 mm
- Length: 2000 mm
- Overall dimensions: 8 × 8 × 2000 mm
- Weight: 0.12 kg (0.06 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
- Corrosion resistance: high – natural aluminium oxide layer
Applications
The 8×8 mm aluminium channel finds wide application in installation and construction work. It serves as a guide rail for sliding components, a cover strip for the edges of boards and panels, and as a frame profile in lightweight frameworks and supporting structures. It is also suitable for interior finishing, furniture manufacturing, as well as modelling and prototyping.
Technical data
| Material | Aluminium |
| Height [mm] | 8 |
| Wall Thickness [mm] | 1 |
| Length [mm] | 2000 |
