Aluminium Channel EN AW-6060 C/U Profile 12×12×2 mm, Length 2000 mm
Leave feedback on the product
Aluminium channel EN AW-6060 T6/T66, C/U profile. Cross-section dimensions: 12×12×2 mm, length 2000 mm. Weight 0.34 kg. Raw, non-anodised surface. Material AlMgSi0.5 (PA38 / 3.3206).
Product code: 001-880
Product features
[PIM] ceowniki #149
- Material Aluminium
- Height [mm] 12
- Wall Thickness [mm] 2
- Length [mm] 2000
Description
Aluminium Channel EN AW-6060 C/U Profile 12×12×2 mm, Length 2000 mm
Aluminium channel 12×12×2 mm with a length of 2000 mm — a lightweight open-section C/U profile, ideal for building aluminium structures, guides, frames, subframes, and cover strips. Made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), which combines high rigidity with excellent corrosion resistance and ease of machining.
The raw (non-anodised) profile can be freely cut, drilled, bent, welded, and mechanically joined — providing full flexibility during the realisation stage. The symmetrical channel cross-section ensures even load distribution and facilitates precise positioning of components within a structure.

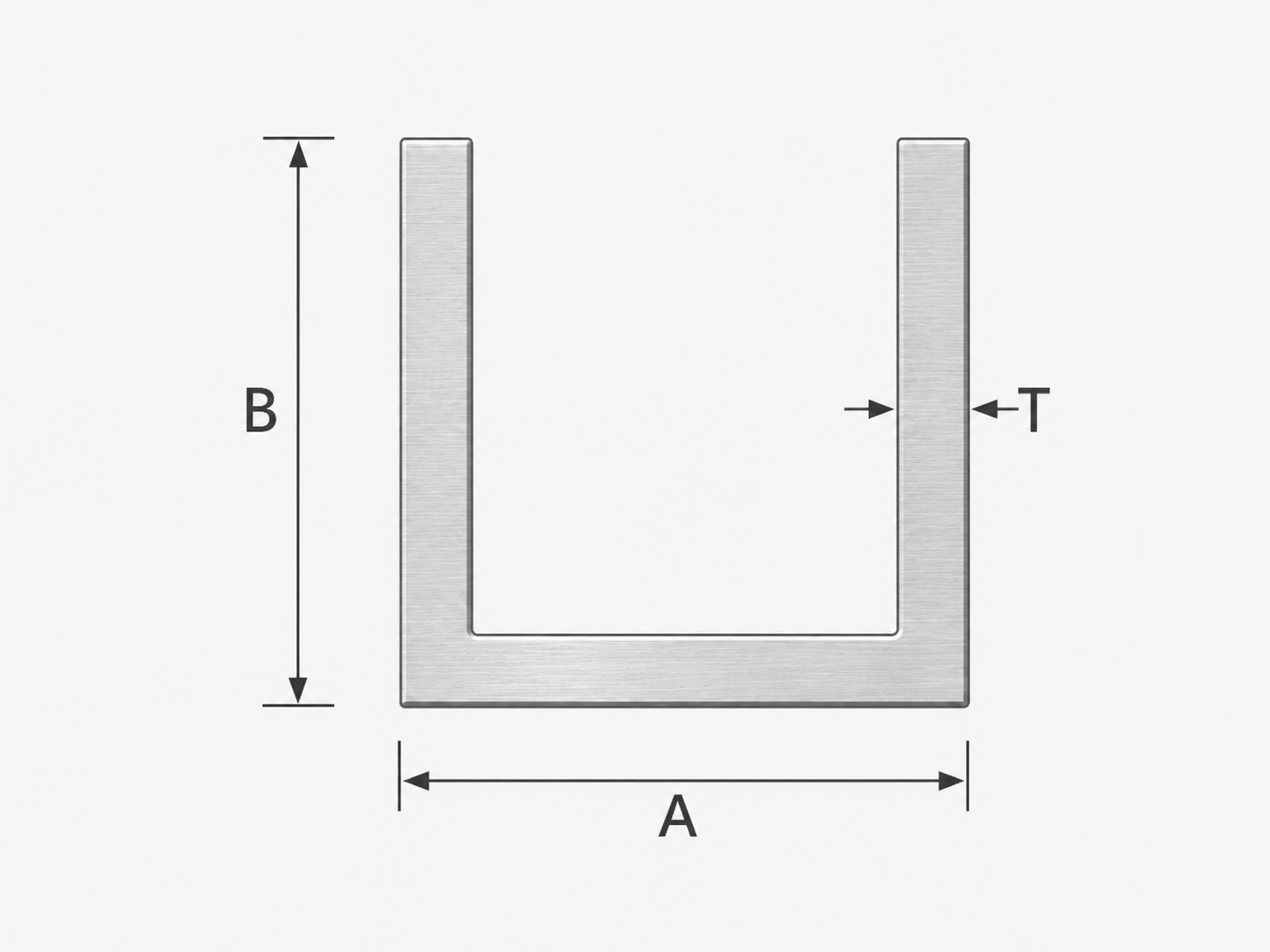

Cross-section dimensions
- External width (A): 12 mm
- Height (B): 12 mm
- Wall thickness (T): 2 mm
Technical specification
- Profile type: channel – open C/U section
- Length: 2000 mm
- Dimensions (W × H × L): 12 × 12 × 2000 mm
- Weight: 0.34 kg (0.17 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and subframes
- Guides and cover strips
- Frames, guards, and trims
- Furniture and decorative components
- Modelling and workshop projects
The profile is available in a range of sizes covering multiple cross-section variants and wall thicknesses — enabling the optimum size to be selected for any project.
