Aluminium Channel 80×40×5 mm – C/U Profile EN AW-6060, Length 2000 mm

Go to Product feedback

Aluminium channel EN AW-6060 T6/T66, open C/U profile. Dimensions: 80×40×5 mm, length 2000 mm. Weight 4.06 kg (2.03 kg/m). Raw, unanodised surface. For structures, guide rails and frames.

Go to full description
with VAT without VAT
Price €49.57
incl. 23% VAT
pcs.
Availability:
In stock (almost sold out)
Shipping time: 10 Business days

Product features

[PIM] ceowniki #149

  • Material Aluminium
  • Height [mm] 80
  • Wall Thickness [mm] 5
  • Length [mm] 2000

Description

Aluminium Channel 80×40×5 mm – C/U Profile EN AW-6060, Length 2000 mm

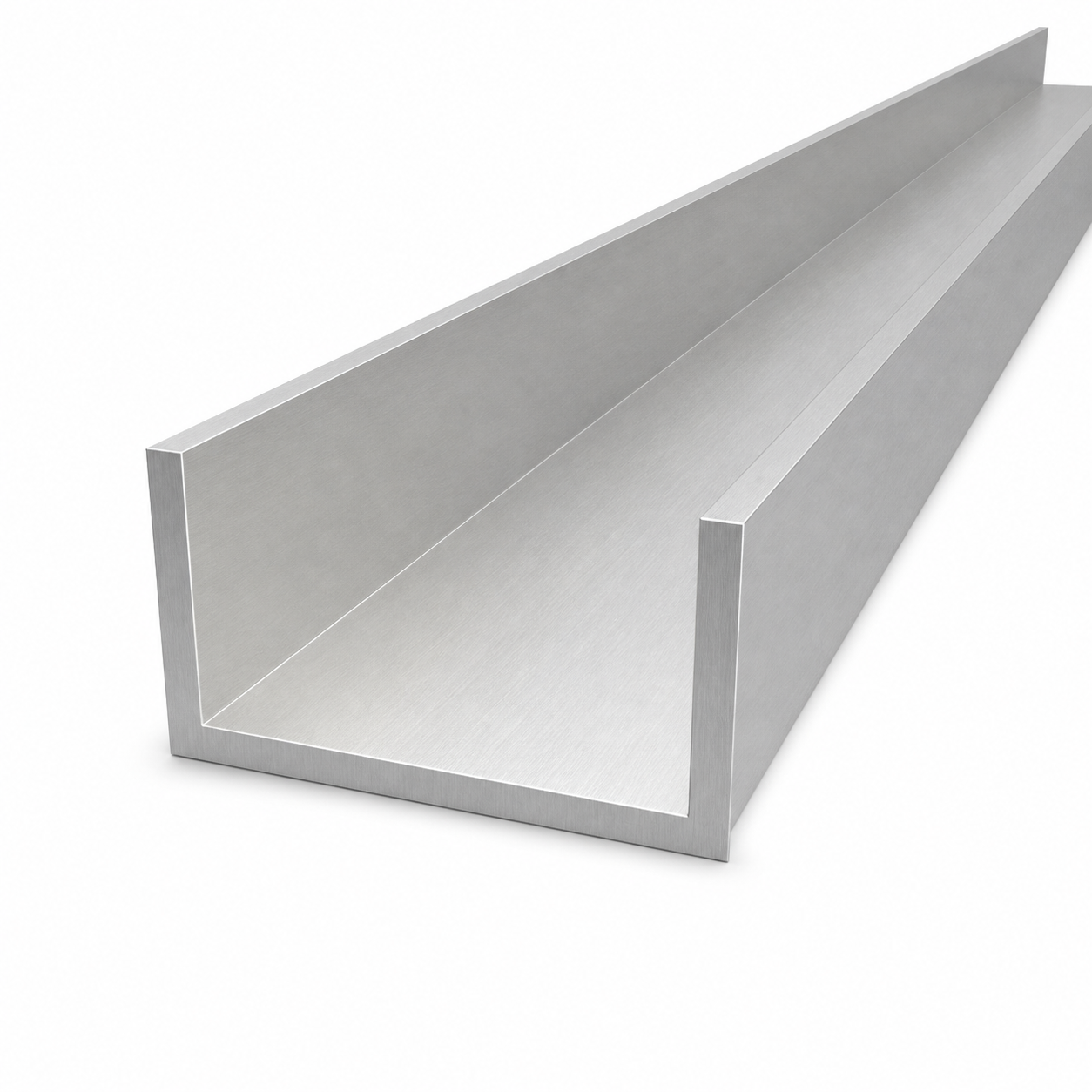

Aluminium channel 80×40×5 mm – perspective view of C/U profile
Aluminium channel 80×40×5 mm – perspective view of C/U profile

Aluminium channel 80×40×5 mm is a robust open profile with a C/U cross-section, manufactured from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio, it is an ideal structural material for installation companies undertaking projects that require lightweight yet load-bearing components – from guide rails and frames to structural frames and cover strips.

The raw, unanodised surface allows any finishing treatment – anodising, powder coating, or leaving in its natural state. The profile is easy to cut, drill, bend and mechanically fasten, enabling rapid assembly and flexibility in adapting to individual project requirements.

Cross-section drawing of the channel with dimension labels A, B and T
Cross-section drawing of the channel with dimension labels A, B and T

Technical Specifications

  • Profile type: channel (C/U) – open profile
  • Outer width (A): 80 mm
  • Height (B): 40 mm
  • Wall thickness (T): 5 mm
  • Length: 2000 mm
  • Dimensions: 80 × 40 × 2000 mm
  • Weight: 4.06 kg (2.03 kg/m)
  • Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5, 3.3206)
  • Surface: raw (unanodised)

Applications

  • Aluminium structures and load-bearing frames
  • Guide rails and mounting tracks
  • Cover and finishing strips
  • Frames and brackets for technical enclosures
  • Furniture and decorative elements
  • Modelling and prototyping

The EN AW-6060 T6/T66 alloy offers excellent corrosion resistance, high ductility and outstanding weldability. The 80×40×5 mm channel provides a large bearing surface and bending stiffness, making it a versatile structural component for installation and construction projects. The profile is available in a range of cross-sectional sizes and wall thicknesses.
