Aluminium Channel 60×40×5 mm – C/U Profile EN AW-6060, Length 2000 mm
0
Description

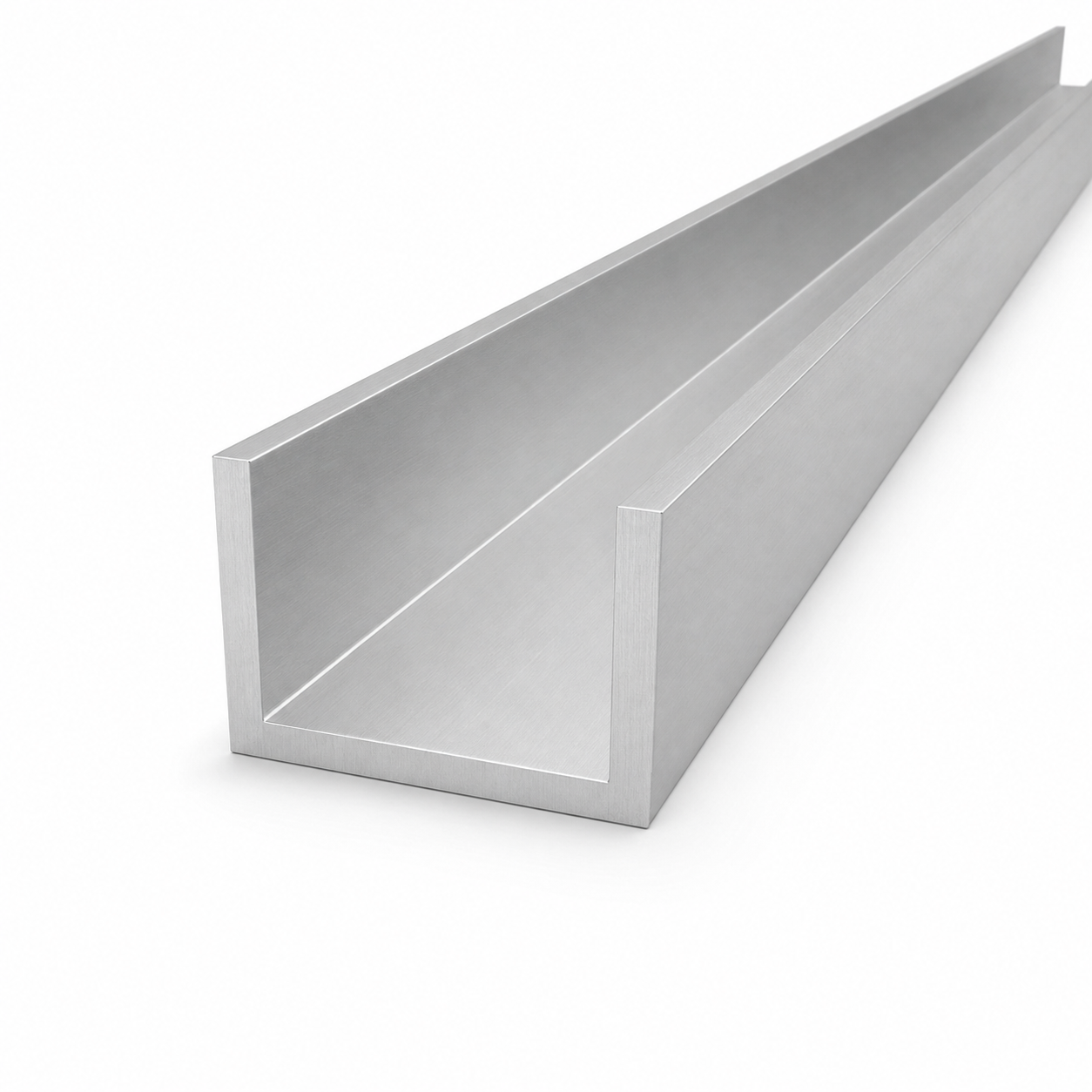

Aluminium Channel 60×40×5 mm – C/U Profile EN AW-6060, Length 2000 mm
Aluminium channel 60×40×5 mm is a robust open-section profile with a C/U cross-section, made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its favourable stiffness-to-weight ratio and aluminium's natural corrosion resistance, this profile is suitable wherever a lightweight yet rigid structure is required — from guides and mounting frames to racks and finishing elements.
The raw, non-anodised surface allows further processing — anodising, powder coating or painting — to suit the requirements of the project. The profile is easy to cut, drill, bend and join, which speeds up work on site and in the workshop.

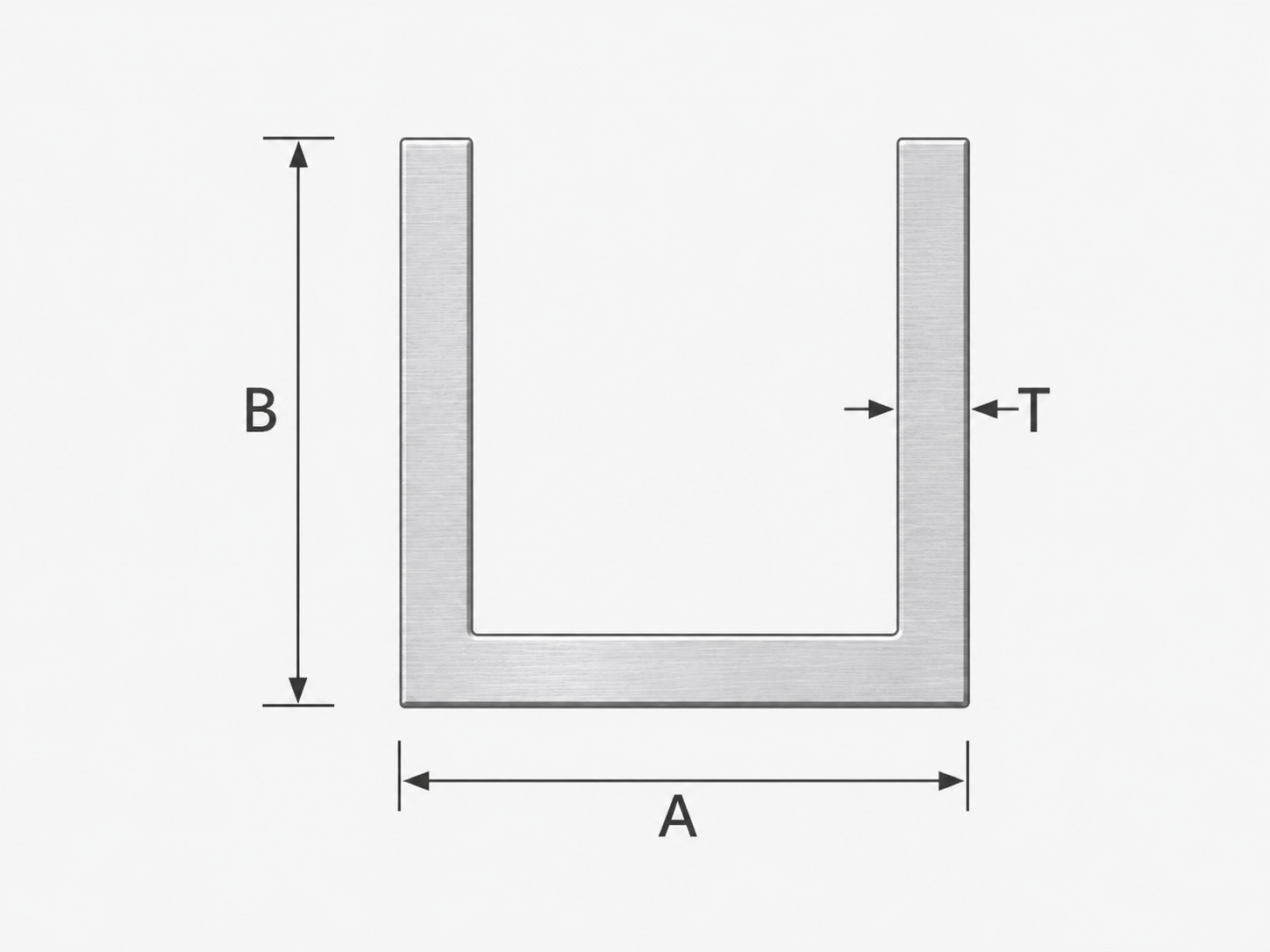

Dimensions and Technical Specifications
- Section type: channel (open C/U profile)
- Outer width (A): 60 mm
- Height (B): 40 mm
- Wall thickness (T): 5 mm
- Length: 2000 mm
- Overall dimensions (W × H × L): 60 × 40 × 2000 mm
- Weight: 3.52 kg (1.76 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures — frames, racks and supports
- Guides and cover strips in technical installations
- Finishing and decorative elements
- Furniture and display frames
- Modelling, prototyping and workshop projects
The profile is available in a range covering many cross-section sizes and wall thicknesses, allowing the optimum variant to be selected for a specific project.
Technical data
| Material | Aluminium |
| Height [mm] | 60 |
| Wall Thickness [mm] | 5 |
| Length [mm] | 2000 |
