Aluminium Channel 50×50×4 mm – C/U Profile Length 2000 mm
Leave feedback on the product
Aluminium channel EN AW-6060 T6/T66, C/U profile, 50×50×4 mm, length 2000 mm. Weight 3.06 kg (1.53 kg/m). Raw, non-anodised surface. Alloy AlMgSi0.5 / PA38.
Product code: 001-898
Product features
[PIM] ceowniki #149
- Material Aluminium
- Height [mm] 50
- Wall Thickness [mm] 4
- Length [mm] 2000
Description
Aluminium Channel 50×50×4 mm – C/U Profile Length 2000 mm

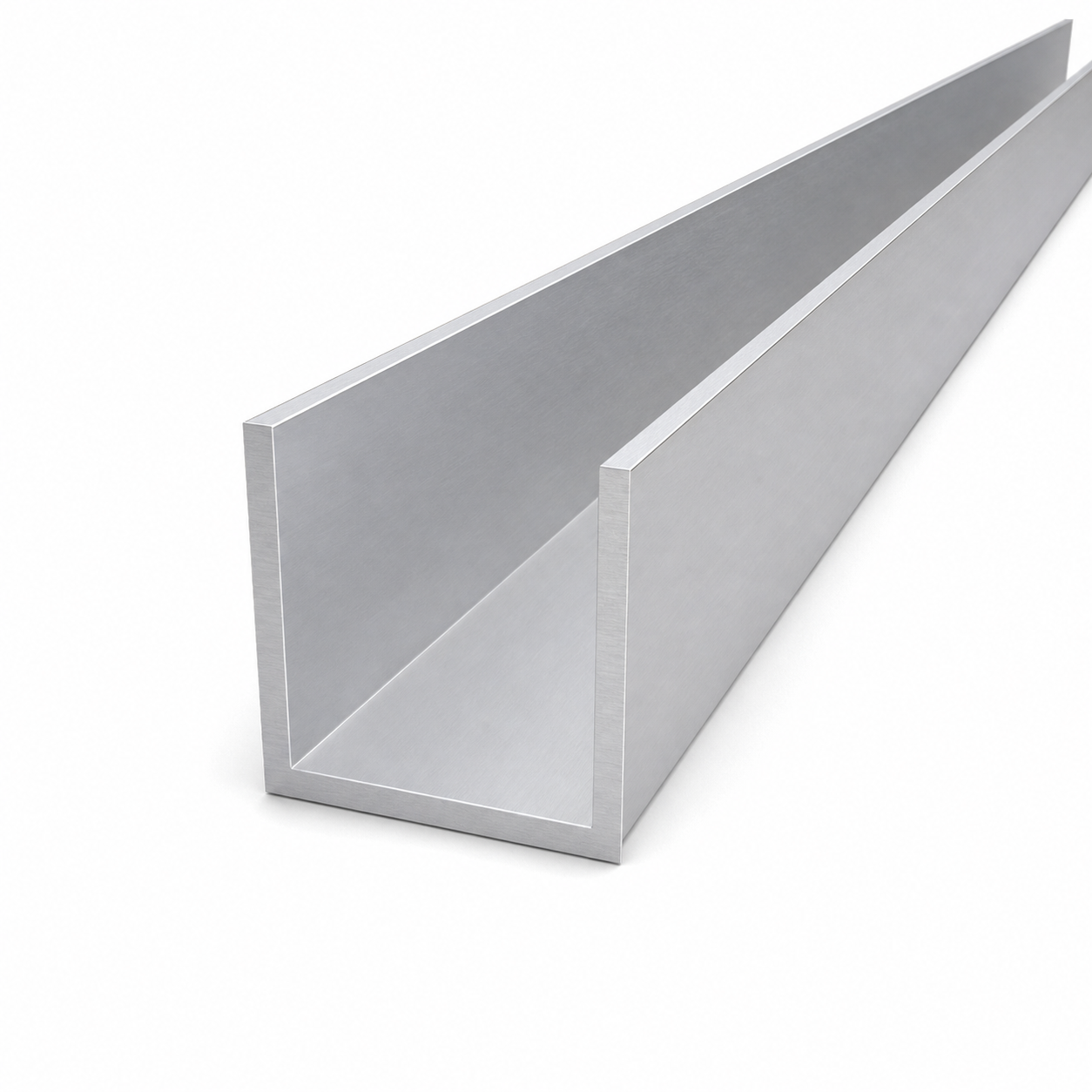

Aluminium channel 50×50×4 mm is a versatile open profile with a channel cross-section (C/U), made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its favourable stiffness-to-weight ratio, it offers an economical solution wherever a lightweight yet strong structure is required — from frames and racks to guide rails and cover strips, through to finishing and furniture components.
The profile with a raw (non-anodised) surface can be easily cut, drilled, bent and joined using standard aluminium processing methods. The length of 2000 mm allows convenient cut planning, minimising material waste on site.

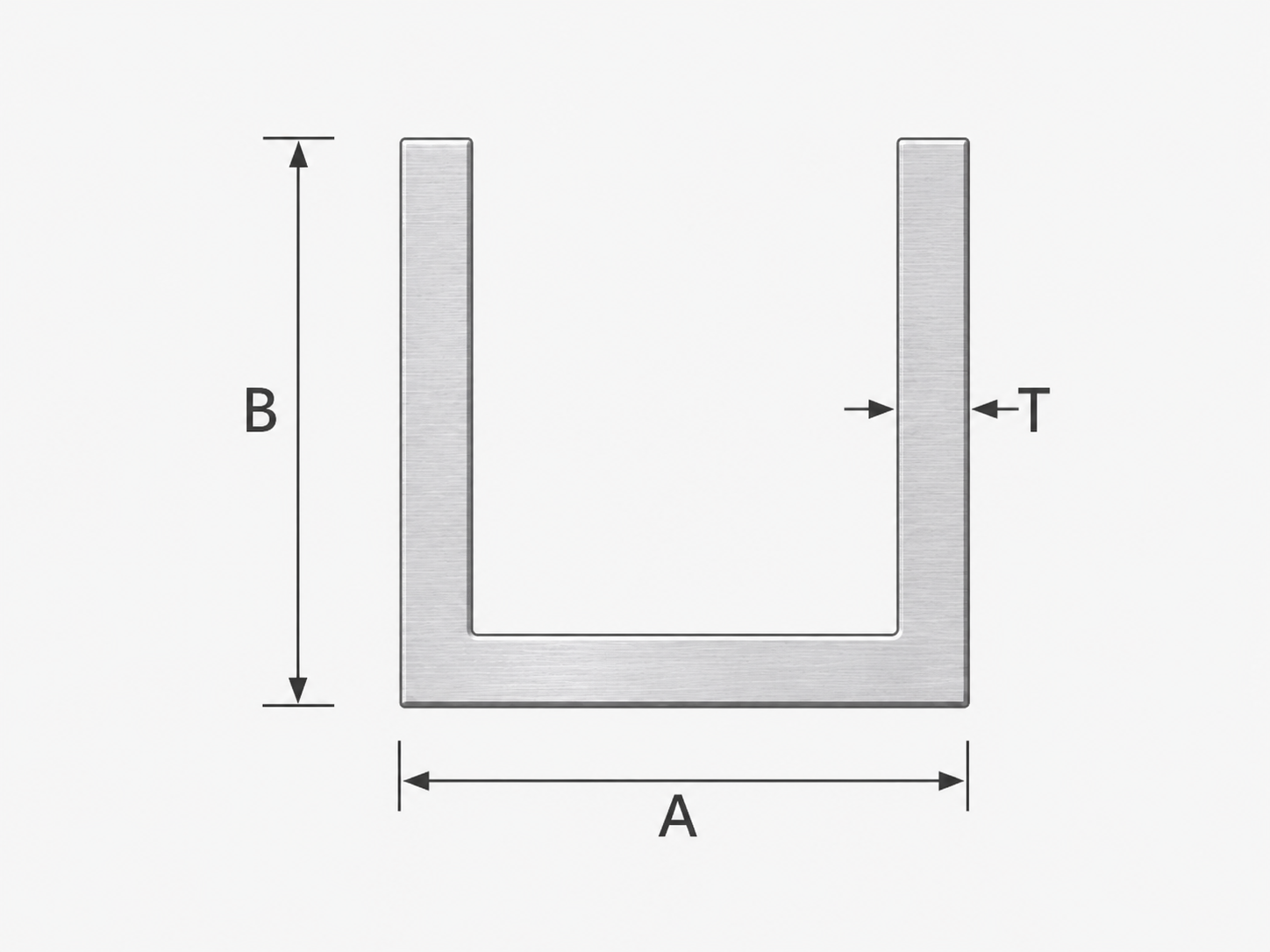

Dimensions and Technical Specifications
- Cross-section type: channel (open C/U profile)
- External width (A): 50 mm
- Height (B): 50 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Dimensions (W × H × L): 50 × 50 × 2000 mm
- Weight: 3.06 kg (1.53 kg/m)
Material
- Alloy: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Guide rails and cover strips
- Racks, finishing and decorative elements
- Furniture, model making and workshop projects
