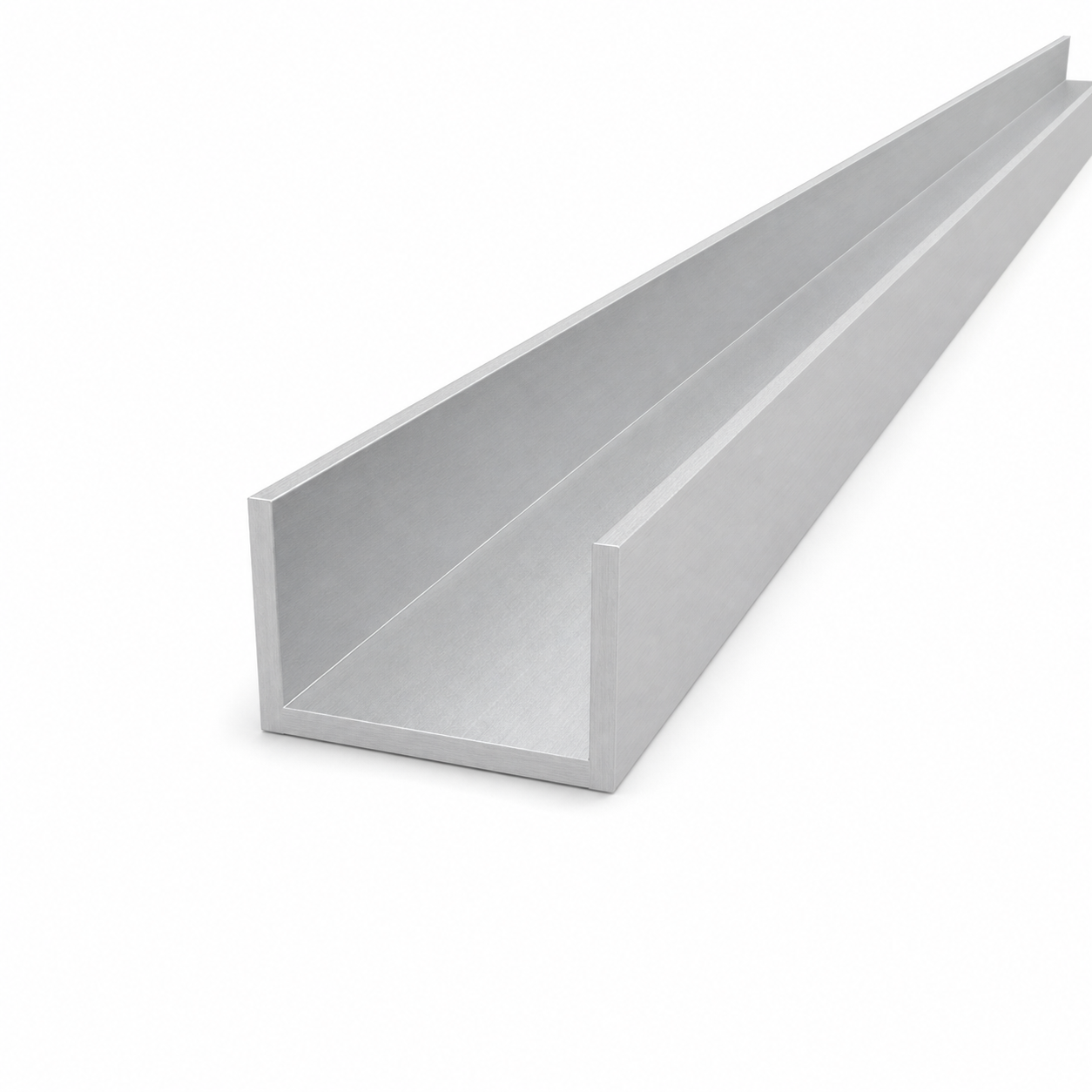

Aluminium Channel 50×30×3 mm – C/U Profile Length 2000 mm
Aluminium channel 50×30×3 mm is a versatile open profile with a channel cross-section (C/U), made from lightweight and corrosion-resistant aluminium. Thanks to its precise dimensions and high rigidity, it performs excellently wherever a reliable guide, frame element, or cover strip is required. The 2000 mm length makes it easy to adapt to standard structures — the profile can be readily cut, drilled, and bent directly on site.
Dimensions and Technical Specifications

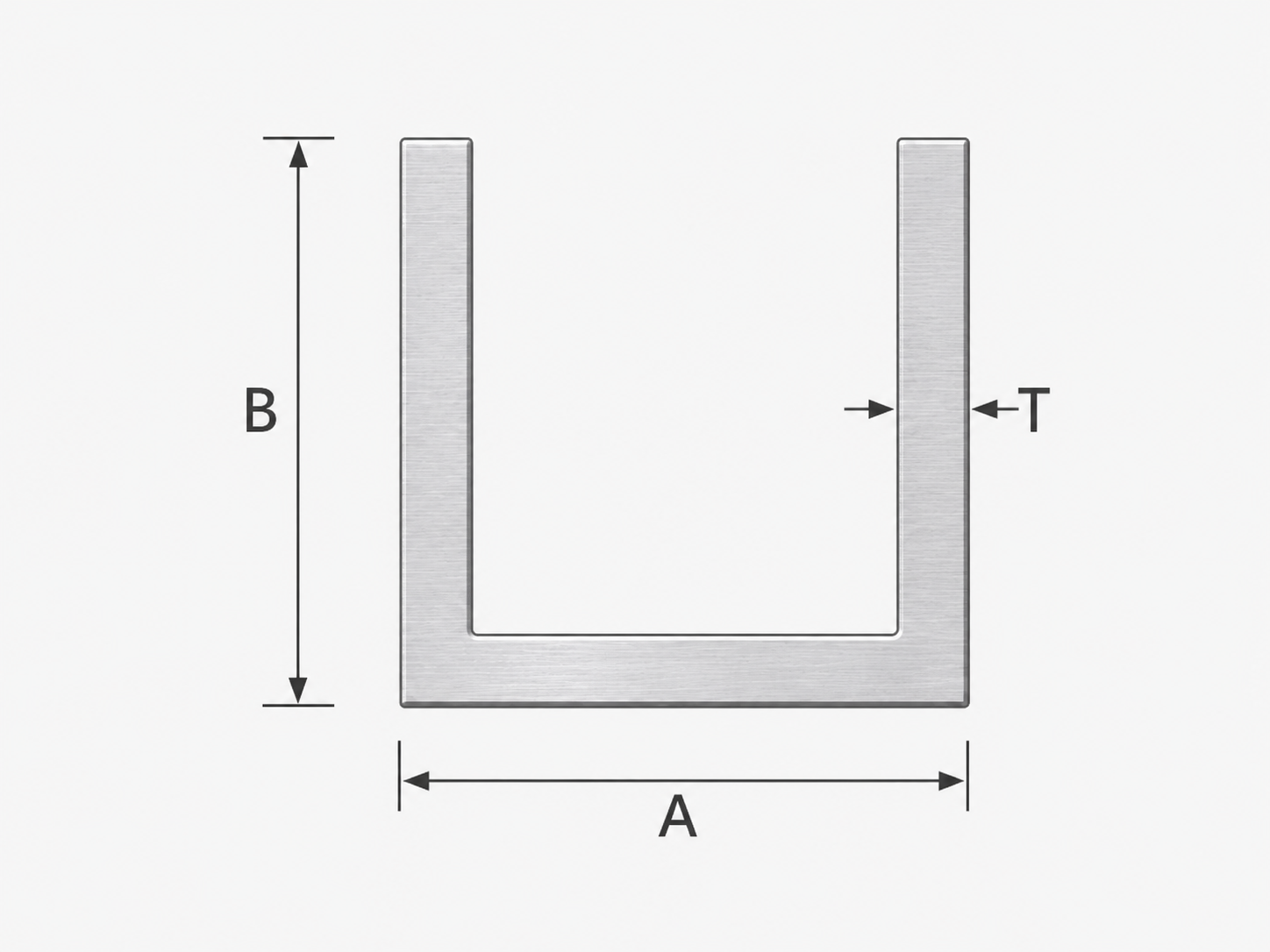

- Cross-section type: channel (open C/U profile)
- Outer width (A): 50 mm
- Height (B): 30 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 50 × 30 × 2000 mm
- Weight: 1.68 kg (0.84 kg/m)
Material and Surface
- Material: aluminium EN AW-6060 T64 (PA38), AlMgSi0.5 alloy
- Surface: raw (non-anodised)
The EN AW-6060 (AlMgSi0.5) alloy combines good mechanical strength with excellent resistance to atmospheric corrosion. In its raw state, the profile can be anodised, powder-coated, or left without any surface treatment — depending on the project requirements.
Applications
The 50×30 aluminium channel is widely used in installation and structural work:
- Aluminium structures — frames, subframes, load-bearing elements
- Guides and cover strips — edge protection, sliding guides
- Finishing and decorative elements — surrounds, cladding
- Frames and subframes — technical furniture, shelving, enclosures
- Modelling and prototyping — rapid construction of test structures
The channel profile is easy to work with — cutting, drilling, bending, and joining require no specialist equipment. Available in a range of dimensional variants, allowing the optimum cross-section to be selected for any project.
Technical data
| Material | Aluminium |
| Height [mm] | 50 |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
