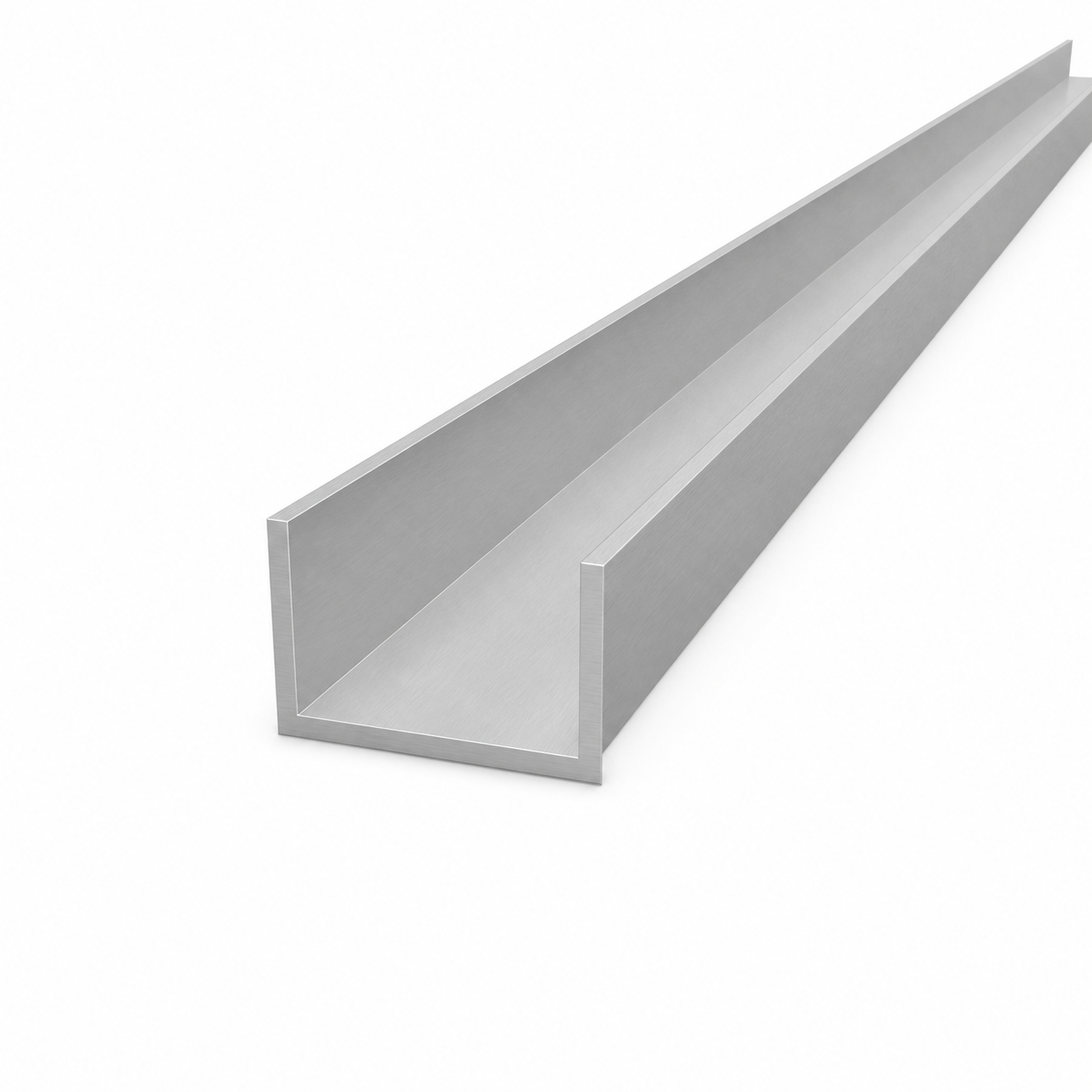

Aluminium Channel 45×25×2.5 mm – C/U Profile, Length 2000 mm
Leave feedback on the product
Aluminium channel EN AW-6060 T6/T66, open C/U profile. Dimensions: 45×25×2.5 mm, length 2000 mm. Weight 1.22 kg (0.61 kg/m). Raw, non-anodised surface.
Product code: 001-896
Product features
[PIM] ceowniki #149
- Material Aluminium
- Height [mm] 45
- Wall Thickness [mm] 2.5
- Length [mm] 2000
Description
Aluminium Channel 45×25×2.5 mm – C/U Profile, Length 2000 mm
Aluminium channel 45×25×2.5 mm is a versatile open profile with a C/U cross-section, designed for building aluminium structures, guides, frames, brackets, and cover strips. By using the EN AW-6060 T6/T66 (AlMgSi0.5) alloy, the profile combines low weight with high rigidity and natural corrosion resistance — no additional anti-corrosion protection is required.
The raw, non-anodised surface allows for further processing: anodising, powder coating, or leaving in its factory state. The profile is easy to cut, drill, bend, and join — enabling rapid installation and flexibility on site.
Applications
- Aluminium structures and brackets
- Guides and guide rails
- Cover and finishing strips
- Frames and equipment enclosures
- Furniture and decorative elements
- Modelling and DIY projects

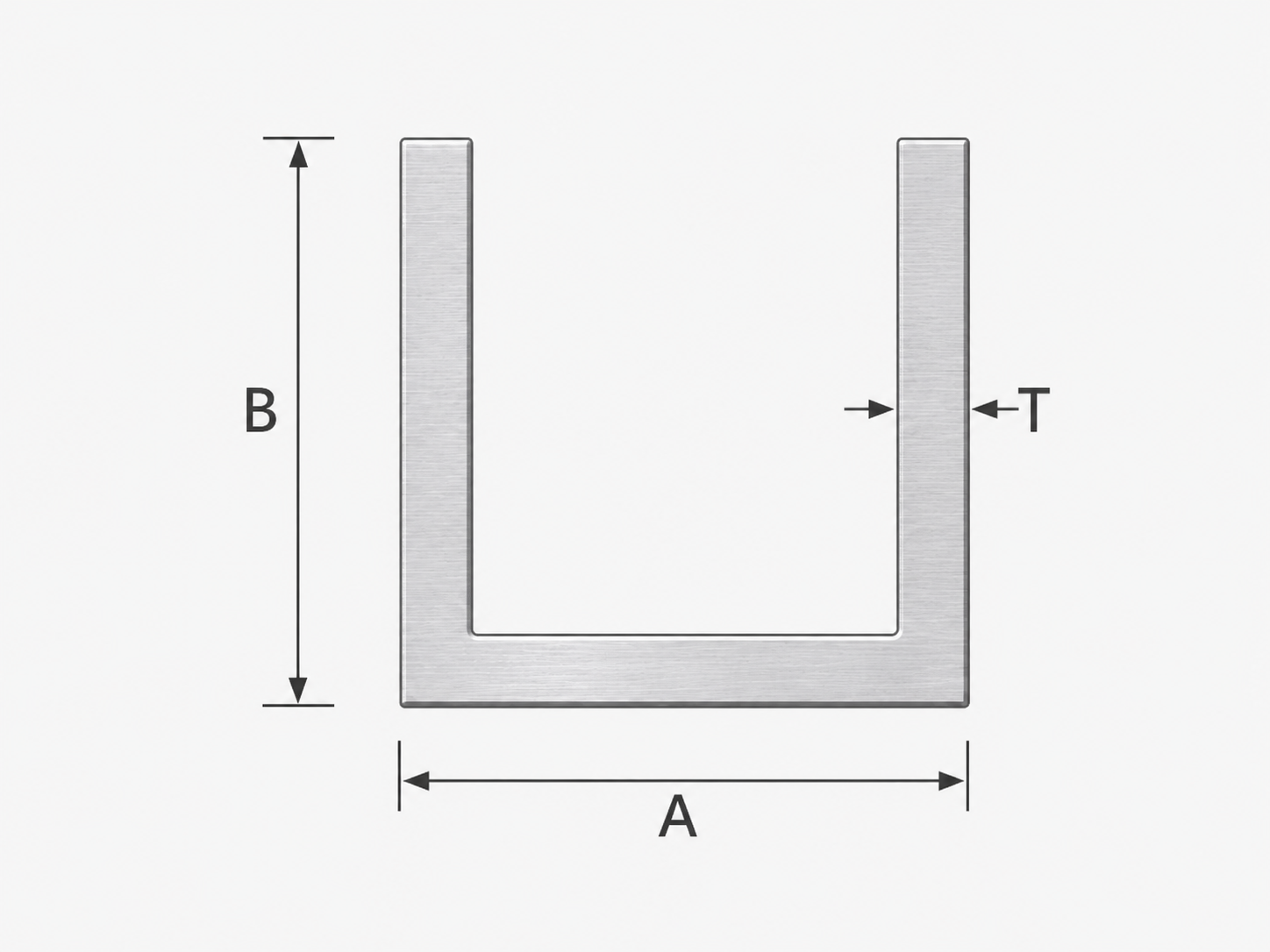

Dimensions and Technical Specifications
- Section type: channel (open C/U profile)
- External width (A): 45 mm
- Height (B): 25 mm
- Wall thickness (T): 2.5 mm
- Length: 2000 mm
- Dimensions (W × H × L): 45 × 25 × 2000 mm
- Weight: 1.22 kg (0.61 kg/m)
Material and Surface
- Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5 alloy)
- Alloy numerical designation: 3.3206
- Surface: raw (non-anodised)
The profile is available as part of a product range — in numerous cross-section dimension and wall thickness variants. Check the other sizes in the range below.
