Aluminium Channel 40×40×2 mm – C/U Profile EN AW-6060, Length 2000 mm
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
1.26 kg
Rating:
0
0
Vendor:
-
Product code:
001-893
Description
Aluminium Channel 40×40×2 mm – C/U Profile EN AW-6060, Length 2000 mm

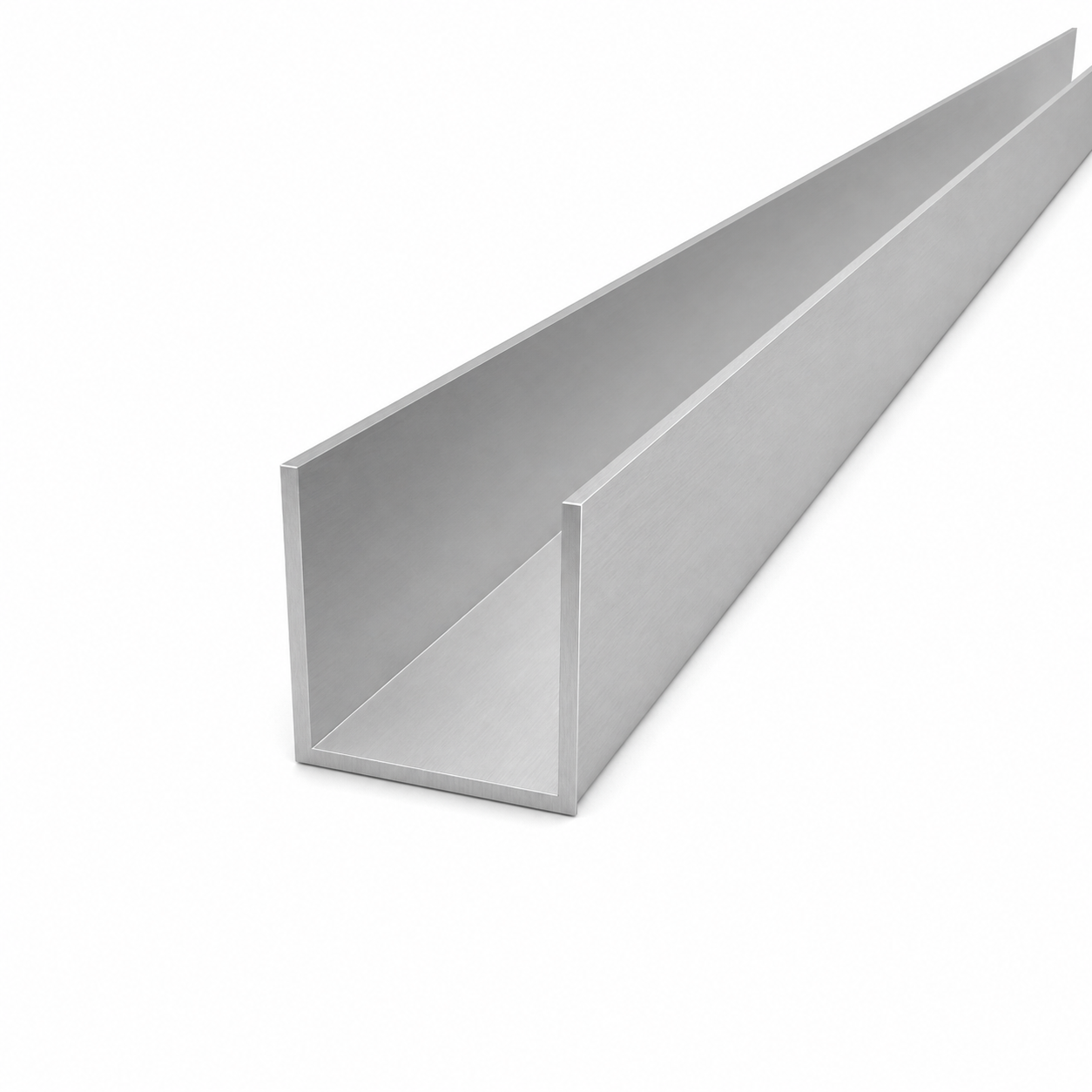

Aluminium channel 40×40×2 mm is a robust open profile with a C/U cross-section, ideal for constructing lightweight structures, guides, frames and supports. Made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), it combines low weight with high rigidity and natural corrosion resistance — no additional surface protection is required for indoor applications.
The 2000 mm length profile is easy to process — it can be freely cut, drilled, tapped and joined using standard connectors or welding. Thanks to its raw (unanodised) surface, it is suitable for direct installation as well as further finishing, including anodising or powder coating.
Applications
- Aluminium structures and frames
- Guides and mounting rails
- Cover strips and finishing trims
- Frames, enclosures and furniture components
- Decorative elements and modelling

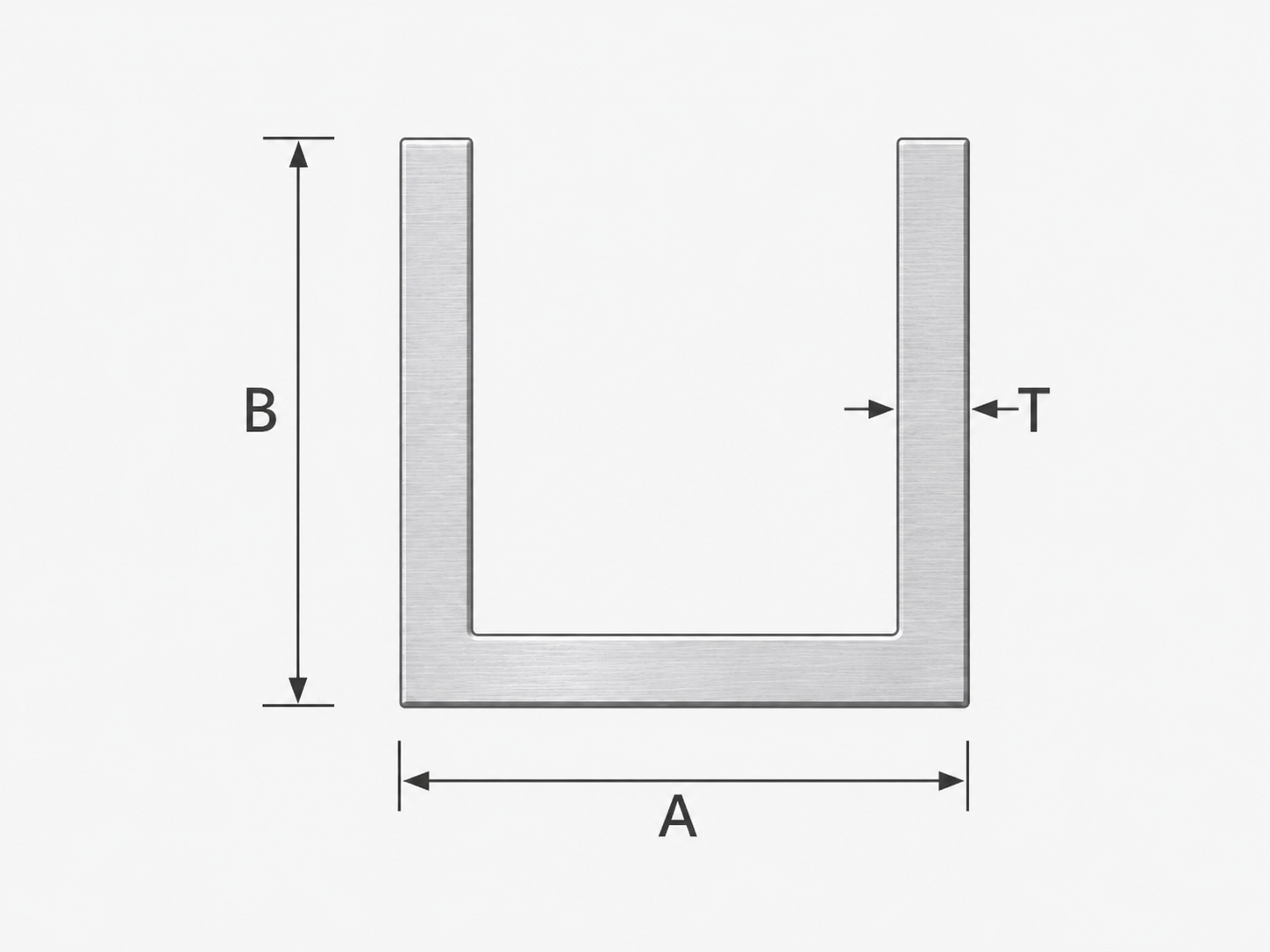

Dimensions and Technical Specifications
- Cross-section type: channel (open C/U profile)
- External width (A): 40 mm
- Height (B): 40 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Overall dimensions: 40 × 40 × 2000 mm
- Weight: 1.26 kg (0.63 kg/m)
Material and Surface
- Aluminium alloy: EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Material number: 3.3206
- Surface: raw (unanodised)
Loading...
Technical data
| Material | Aluminium |
| Height [mm] | 40 |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
