Aluminium Channel 30×30×3 mm – C/U Profile EN AW-6060 L=2000 mm
0
Description

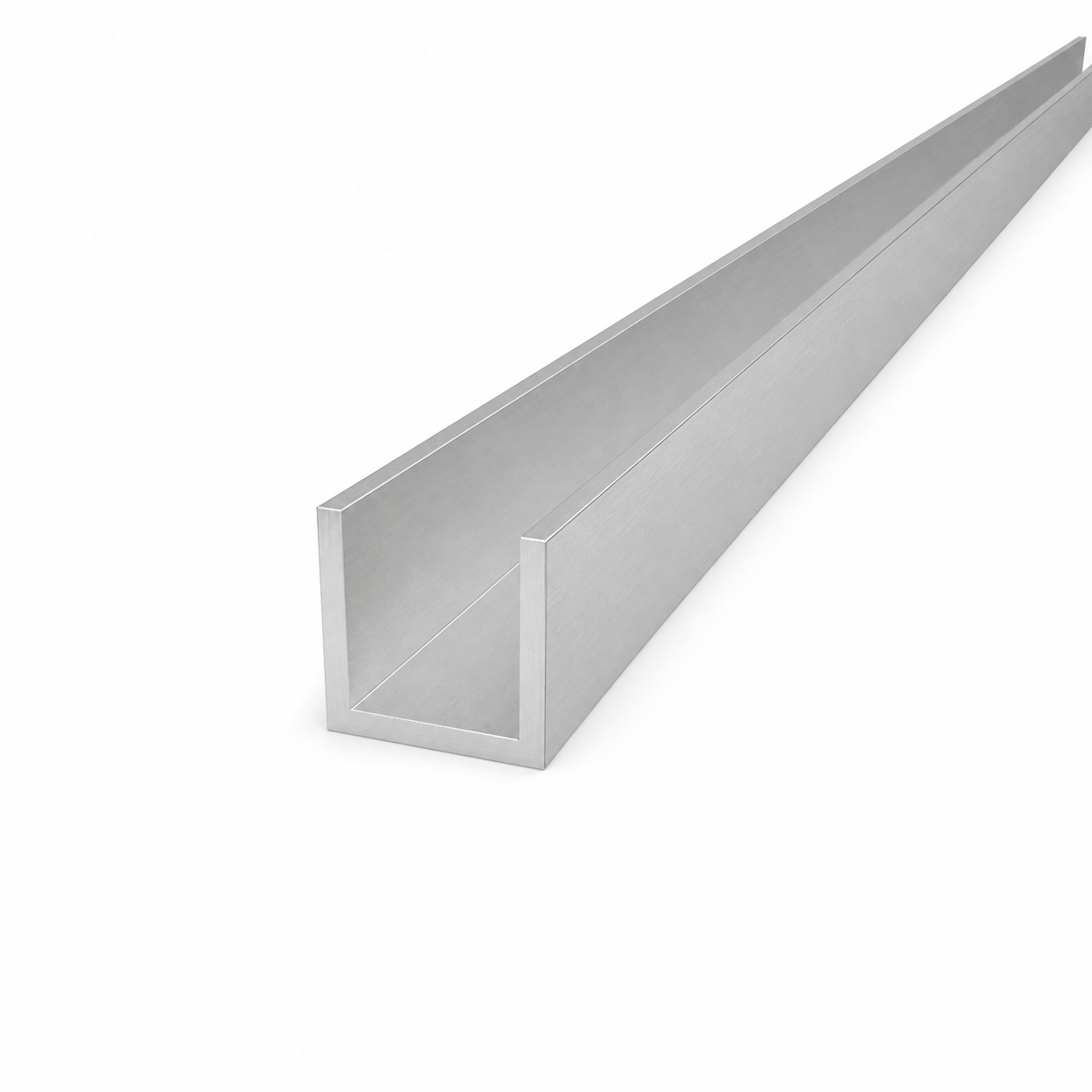

Aluminium Channel 30×30×3 mm – C/U Profile EN AW-6060 L=2000 mm
Aluminium channel 30×30×3 mm with a length of 2000 mm is a versatile open profile with a C/U cross-section, made from lightweight and durable aluminium alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). Thanks to its symmetrical channel cross-section, the profile is ideal as a guide rail, trim strip, frame element or structural support — wherever rigidity at low weight and natural corrosion resistance are required without the need for additional protective coatings.
The raw, non-anodised surface allows further processing — anodising, powder coating or leaving in its natural state for unexposed applications. The profile is easy to cut, drill, bend and join using standard methods, reducing working time on site and in the workshop.

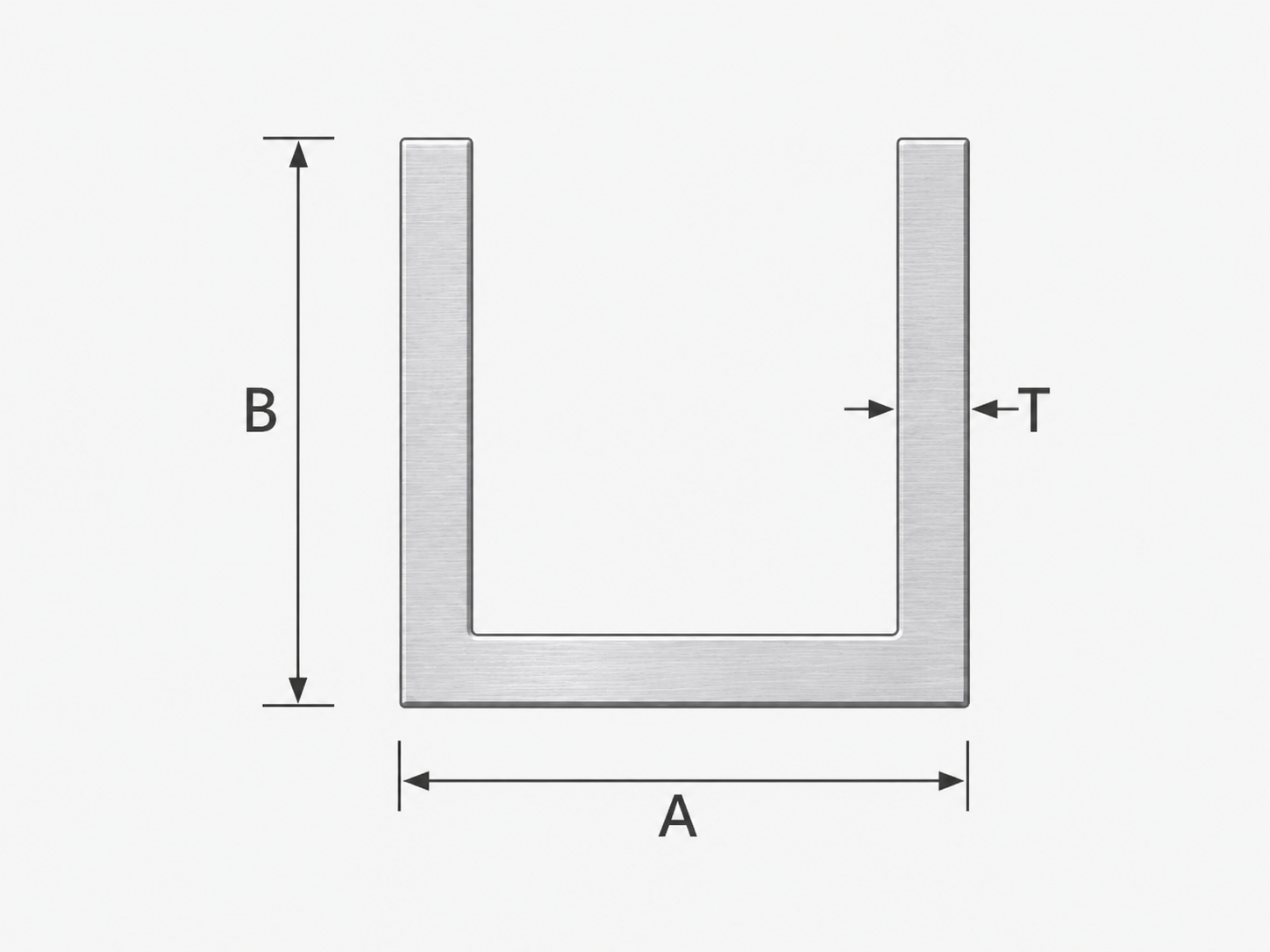

Dimensions and Technical Specifications
- Cross-section type: channel (open C/U profile)
- External width (A): 30 mm
- Height (B): 30 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 30 × 30 × 2000 mm
- Weight: 1.36 kg (0.68 kg/m)
Material and Surface
- Aluminium alloy: EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and frames
- Guide rails and trim strips
- Frames, brackets and finishing elements
- Furniture, decorative elements and modelling
- Edge guards and protective profiles
The profile is available in a range of sizes — with many cross-section dimension and wall thickness variants — allowing you to select the optimum profile for your specific application and load requirements.
Technical data
| Material | Aluminium |
| Height [mm] | 30 |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
