Aluminium Channel 30×30×2 mm – C/U Profile EN AW-6060, Length 2000 mm

Go to Product feedback

Aluminium channel EN AW-6060 T6/T66 (AlMgSi0.5), C/U cross-section. Dimensions: A=30 mm, B=30 mm, T=2 mm, length 2000 mm. Weight 0.92 kg. Raw (unanodised) surface finish.

Go to full description
with VAT without VAT
Price €11.30
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] ceowniki #149

  • Material Aluminium
  • Height [mm] 30
  • Wall Thickness [mm] 2
  • Length [mm] 2000

Description

Aluminium Channel 30×30×2 mm – C/U Profile EN AW-6060, Length 2000 mm

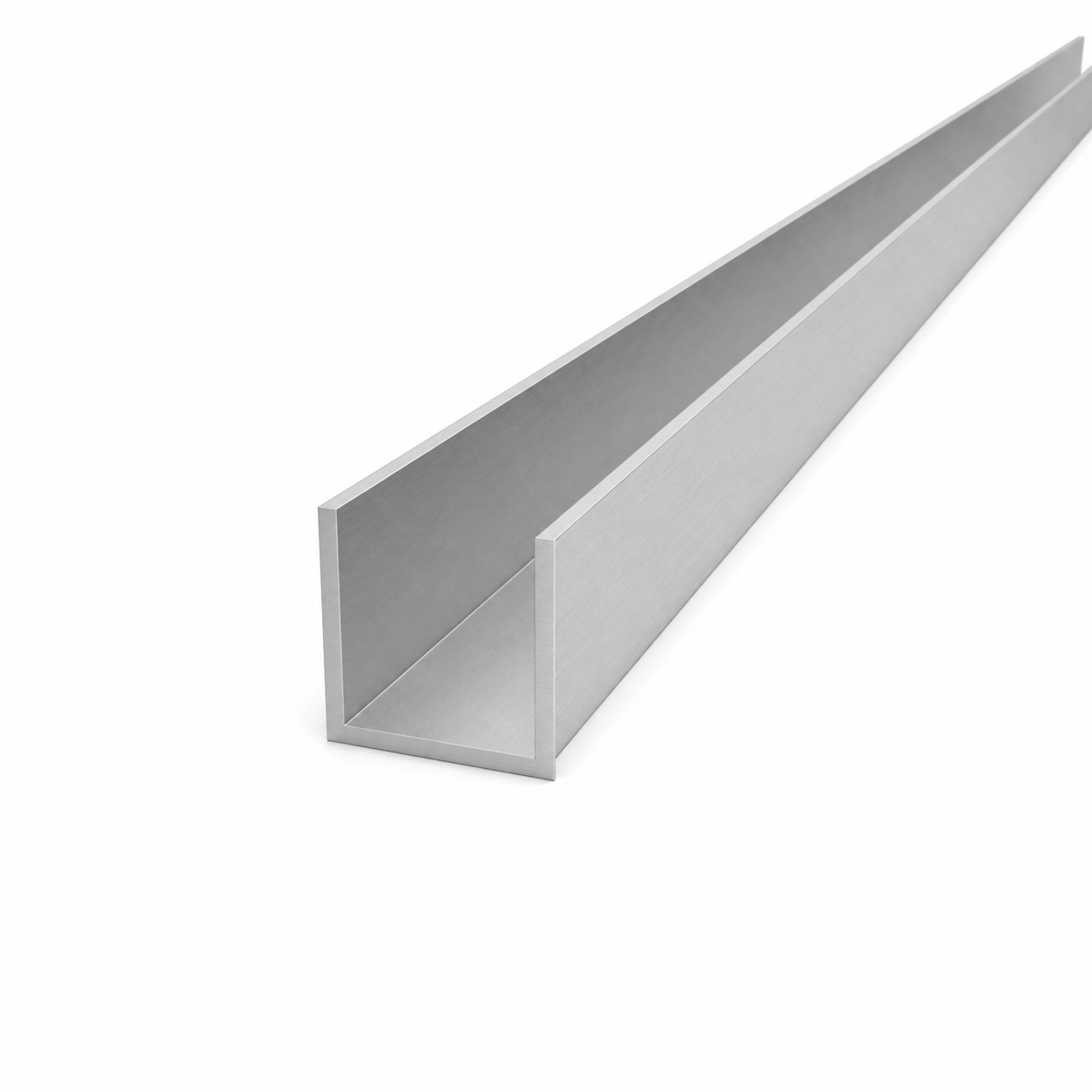

Aluminium channel 30×30×2 mm – perspective view of the C/U profile
Aluminium channel 30×30×2 mm – perspective view of the C/U profile

Aluminium channel 30×30×2 mm is a versatile open profile with a C/U cross-section, manufactured from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). Thanks to its low weight (0.92 kg at a length of 2 m), combined with high rigidity and corrosion resistance, it is suitable wherever structural durability is required with minimal load. The raw (unanodised) profile can be freely processed — cut, drilled, bent, and mechanically joined — offering full flexibility on site and in the workshop.

Technical Specification

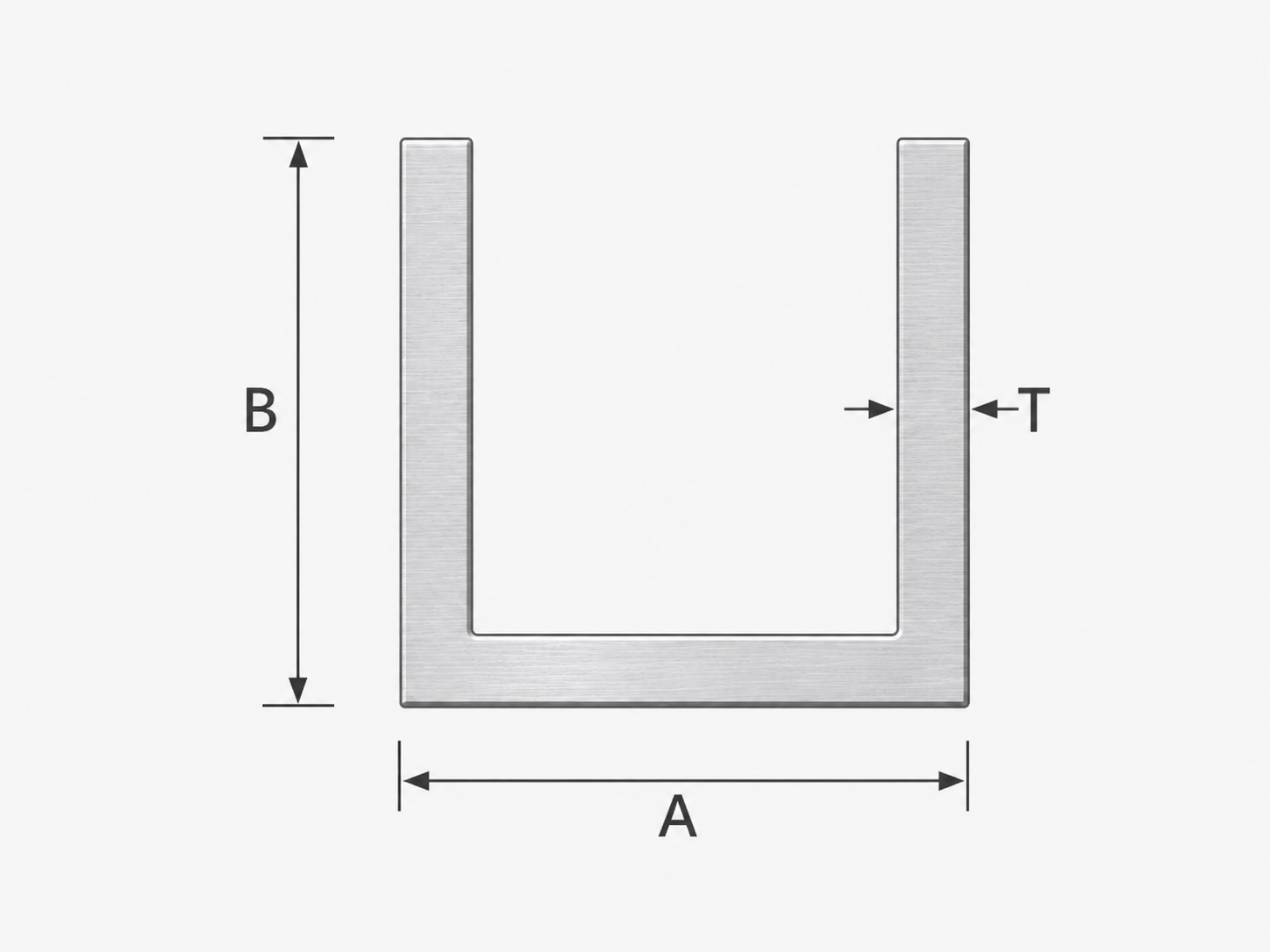

Cross-section drawing of aluminium channel with dimensions A, B and T
Cross-section drawing of aluminium channel with dimensions A, B and T
  • Cross-section type: channel (open C/U profile)
  • Outer width (A): 30 mm
  • Height (B): 30 mm
  • Wall thickness (T): 2 mm
  • Length: 2000 mm
  • Dimensions (W × H × L): 30 × 30 × 2000 mm
  • Weight: 0.92 kg (0.46 kg/m)
  • Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
  • Surface finish: raw (unanodised)

Applications

The 30×30 mm aluminium channel is an excellent choice as a component in aluminium structures, guide rails, cover strips, frames, and frameworks. The profile is widely used in fit-out work, furniture manufacturing, decorative elements, as well as in modelling and workshop projects. For installation companies, it provides a convenient material for building custom brackets, cable covers, and small support structures.

The AlMgSi0.5 alloy (6060 series) offers excellent machinability and weldability whilst maintaining adequate strength. The raw surface finish allows further processing — anodising, powder coating, or painting — depending on project requirements.
