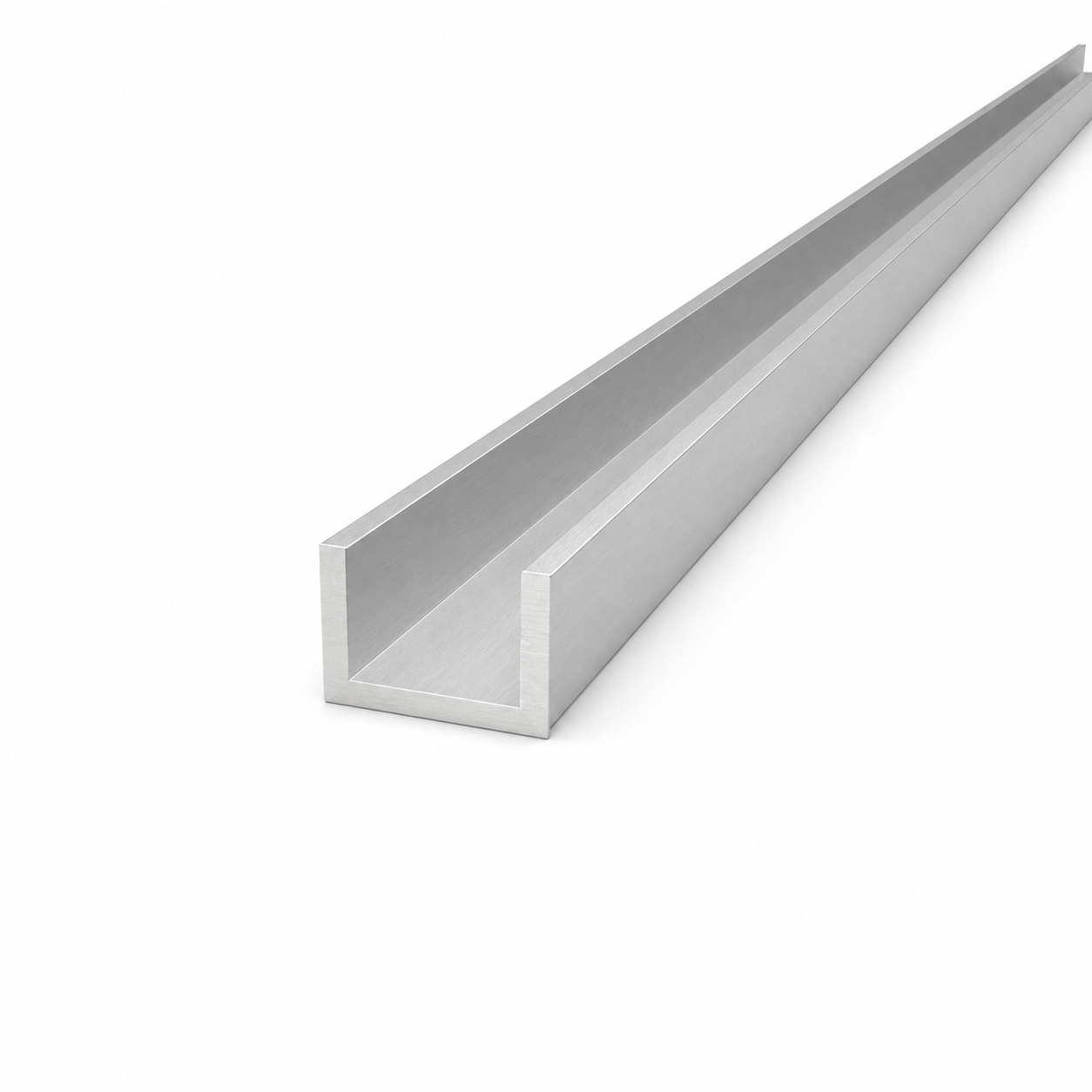

Aluminium Channel 30×20×3 mm – C/U Profile, Length 2000 mm
Leave feedback on the product
Aluminium channel EN AW-6060 T6/T66, C/U profile. Dimensions: A=30 mm, B=20 mm, T=3 mm, length 2000 mm. Weight 1.04 kg. Raw, non-anodised surface. AlMgSi0.5 alloy (PA38, 3.3206).
Product code: 001-888
Product features
[PIM] ceowniki #149
- Material Aluminium
- Height [mm] 30
- Wall Thickness [mm] 3
- Length [mm] 2000
Description
Aluminium Channel 30×20×3 mm – C/U Profile, Length 2000 mm
Aluminium channel 30×20×3 mm is a versatile open profile with a C/U cross-section, designed for constructing lightweight frameworks, guides, frames and brackets. Made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38), it combines low weight with good rigidity and high corrosion resistance. Thanks to its raw, non-anodised surface, the profile can be easily subjected to further processing — cutting, drilling, bending or anodising — and tailored to the specific requirements of your project.
A section of 2000 mm in length and weighing just 1.04 kg is convenient for transport and manual installation. The channel is suitable wherever a lightweight yet sturdy guiding or finishing element is required — from aluminium structures and installation cover strips to furniture frames and decorative components.

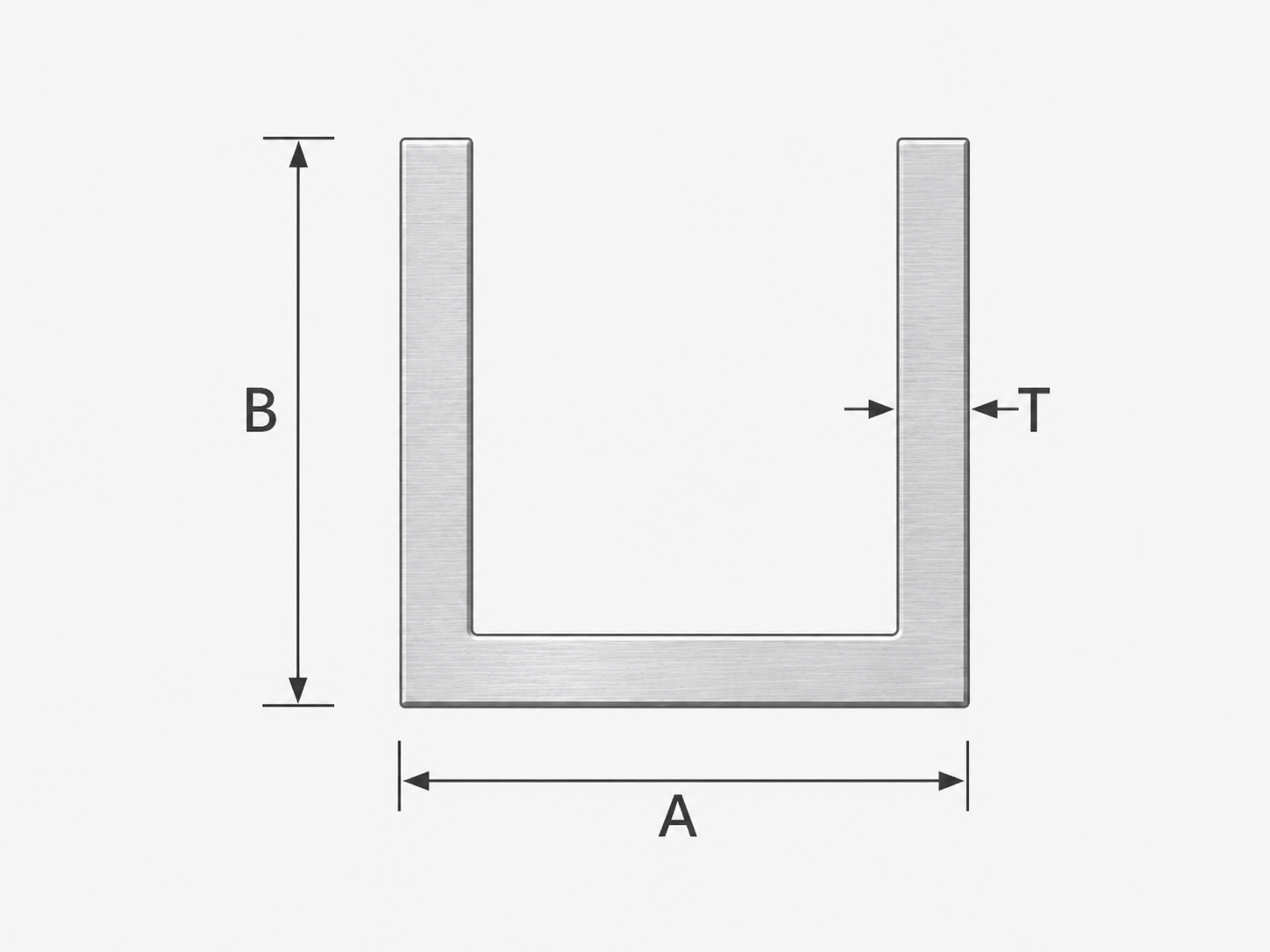

Cross-section dimensions and technical parameters
- Cross-section type: channel (open C/U profile)
- External width (A): 30 mm
- Height (B): 20 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 30 × 20 × 2000 mm
- Weight: 1.04 kg (0.52 kg/m)
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38, alloy 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and frameworks
- Guides and guide rails
- Cover strips and finishing trims
- Frames, enclosures and furniture components
- Decorative elements and modelling
The profile is available in a range of sizes covering various cross-section dimensions and wall thicknesses, allowing you to select the variant best suited to the load-bearing requirements and weight constraints of your specific application.
