Aluminium Channel 30×20×2 mm – C/U Profile Length 2000 mm
0
Description

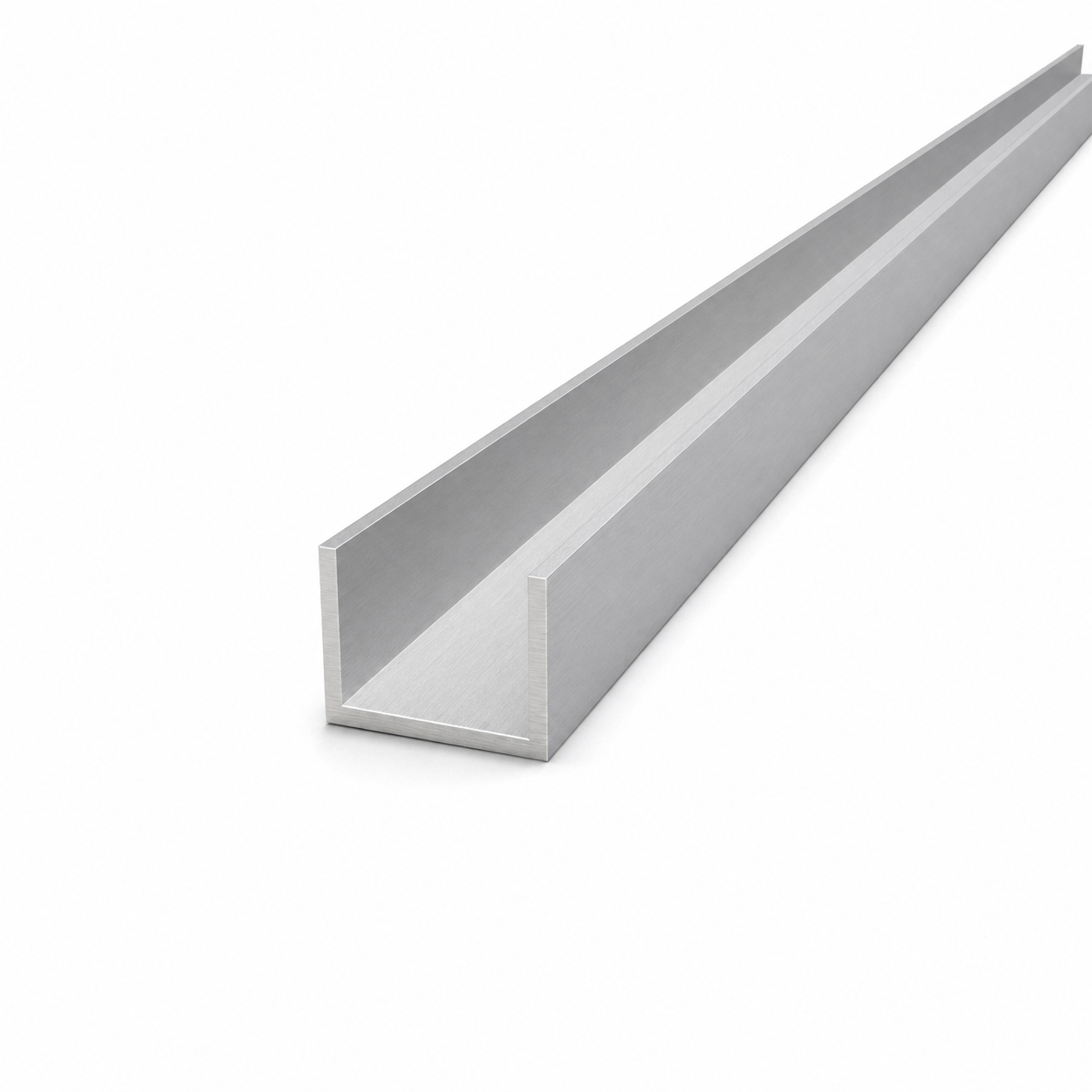

Aluminium Channel 30×20×2 mm – C/U Profile Length 2000 mm
Aluminium channel 30×20×2 mm is a versatile open profile with a C/U cross-section, designed for building lightweight structures, guides, frames, and racks. Made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), it combines low weight with high rigidity and natural corrosion resistance. The profile in its raw (non-anodised) state is ready for further processing — it can be easily cut, drilled, bent, and joined, making it ideal for installation companies seeking material for rapid prototyping of mounting or finishing solutions.
Thanks to its 30×20 mm dimensions and 2 mm wall thickness, the channel is perfectly suited as a guide rail, cover strip, or frame element in aluminium structures. The 2000 mm length allows convenient adaptation to standard installation dimensions with minimal waste.
Applications
- Aluminium structures and racks
- Guide rails and cover strips
- Frames, surrounds, and finishings
- Furniture and decorative elements
- Modelling and DIY projects

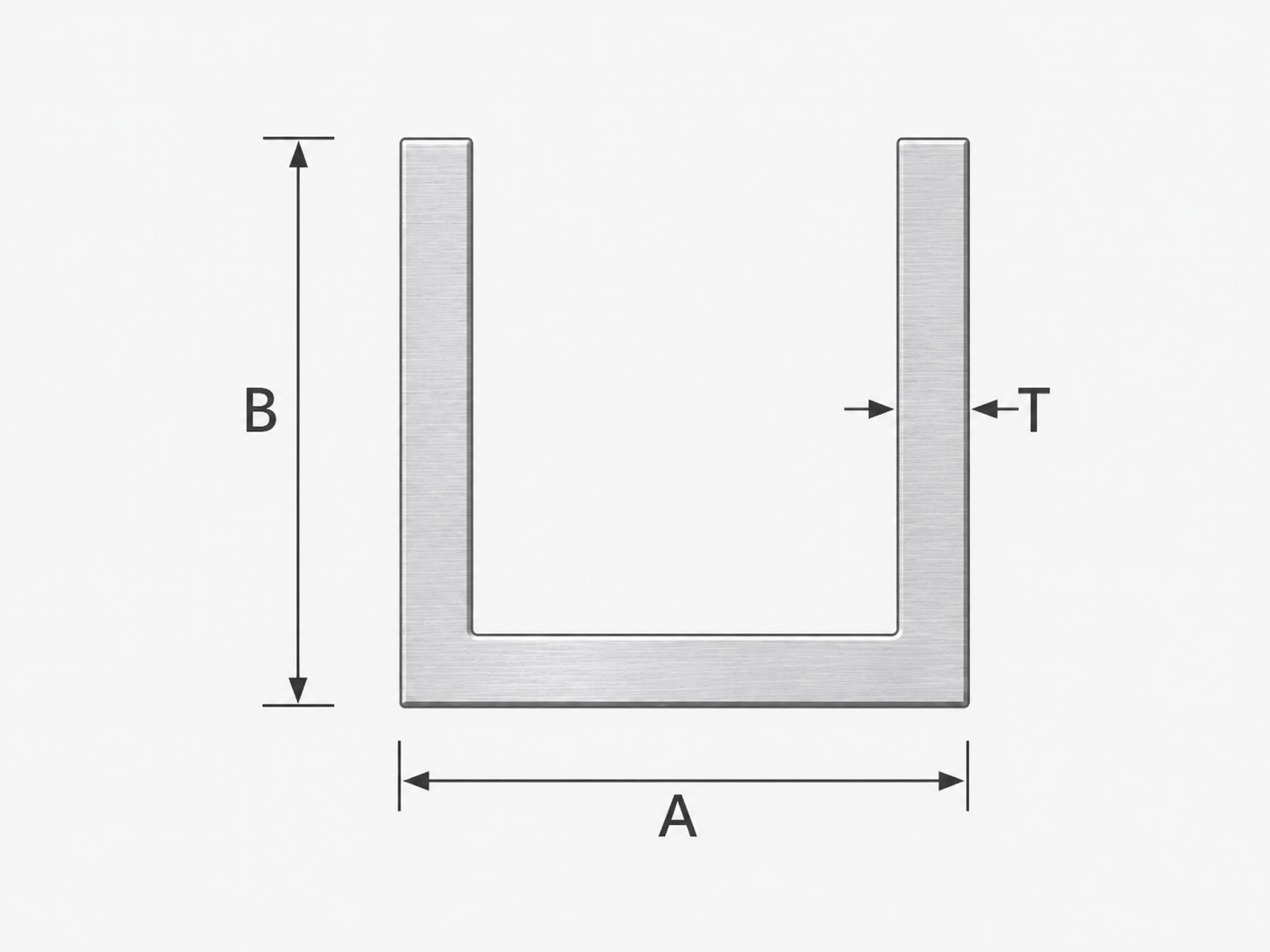

Dimensions and Technical Parameters
- Cross-section type: channel (open C/U profile)
- External width (A): 30 mm
- Height (B): 20 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Overall dimensions (W × H × L): 30 × 20 × 2000 mm
- Weight: 0.72 kg (0.36 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
The profile is available in a range of cross-section sizes and wall thicknesses — check the other variants to select the optimum profile for your project.
Technical data
| Material | Aluminium |
| Height [mm] | 30 |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
