Aluminium Channel 25×25×3 mm – C/U Profile EN AW-6060 L=2000 mm
0
Description
Aluminium Channel 25×25×3 mm – C/U Profile EN AW-6060 L=2000 mm

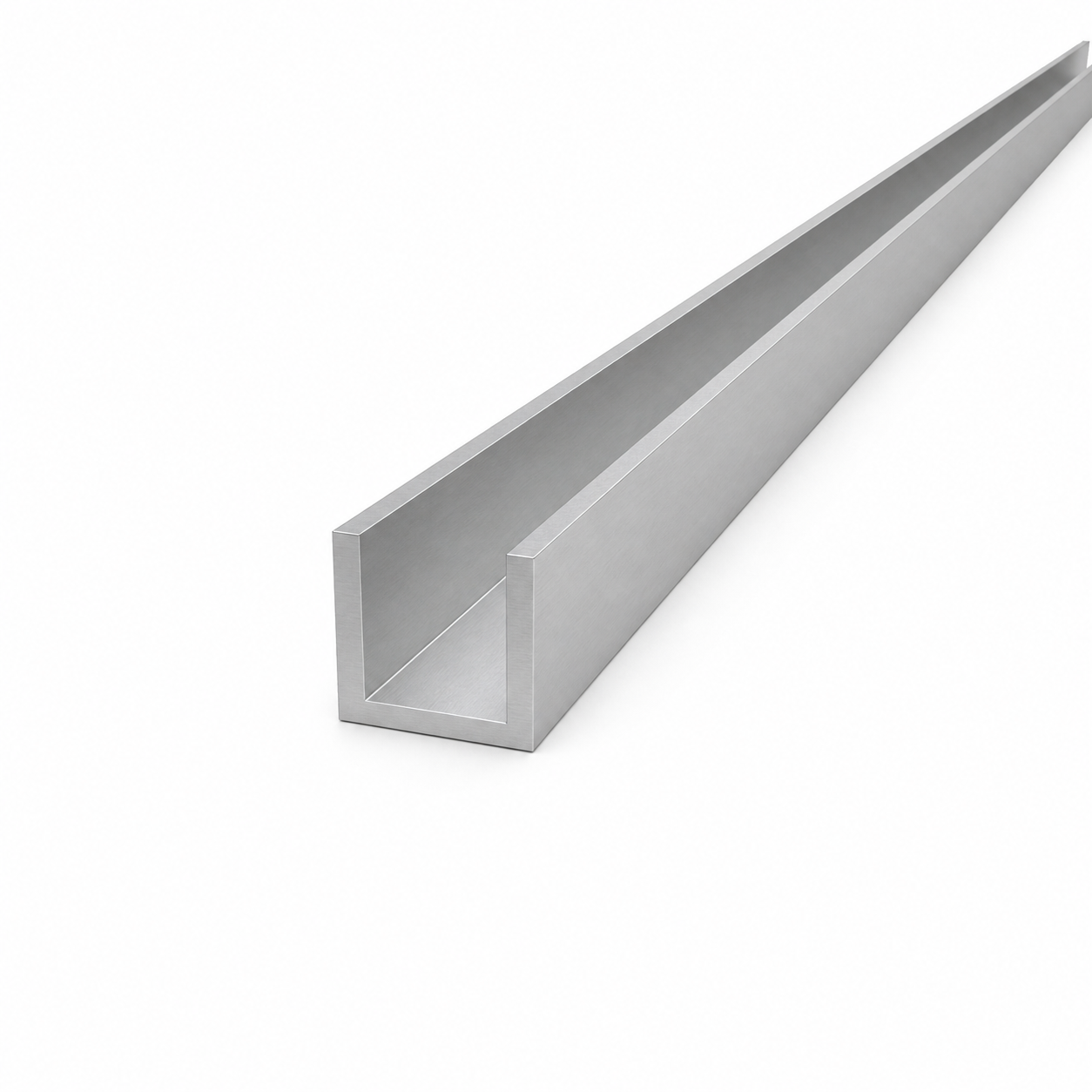

Aluminium channel 25×25×3 mm with a length of 2000 mm is a versatile open-section profile with a channel (C/U) cross-section, made from aluminium alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). Thanks to its favourable stiffness-to-weight ratio, it is an excellent choice as a structural element, guide rail, cover strip or frame — wherever lightness, corrosion resistance and ease of machining are important.
The mill finish (non-anodised) surface is ready for further processing — cutting, drilling, bending, bolting or welding. The option to anodise or powder-coat allows the finish to be tailored to the requirements of a specific project.
Technical Specification

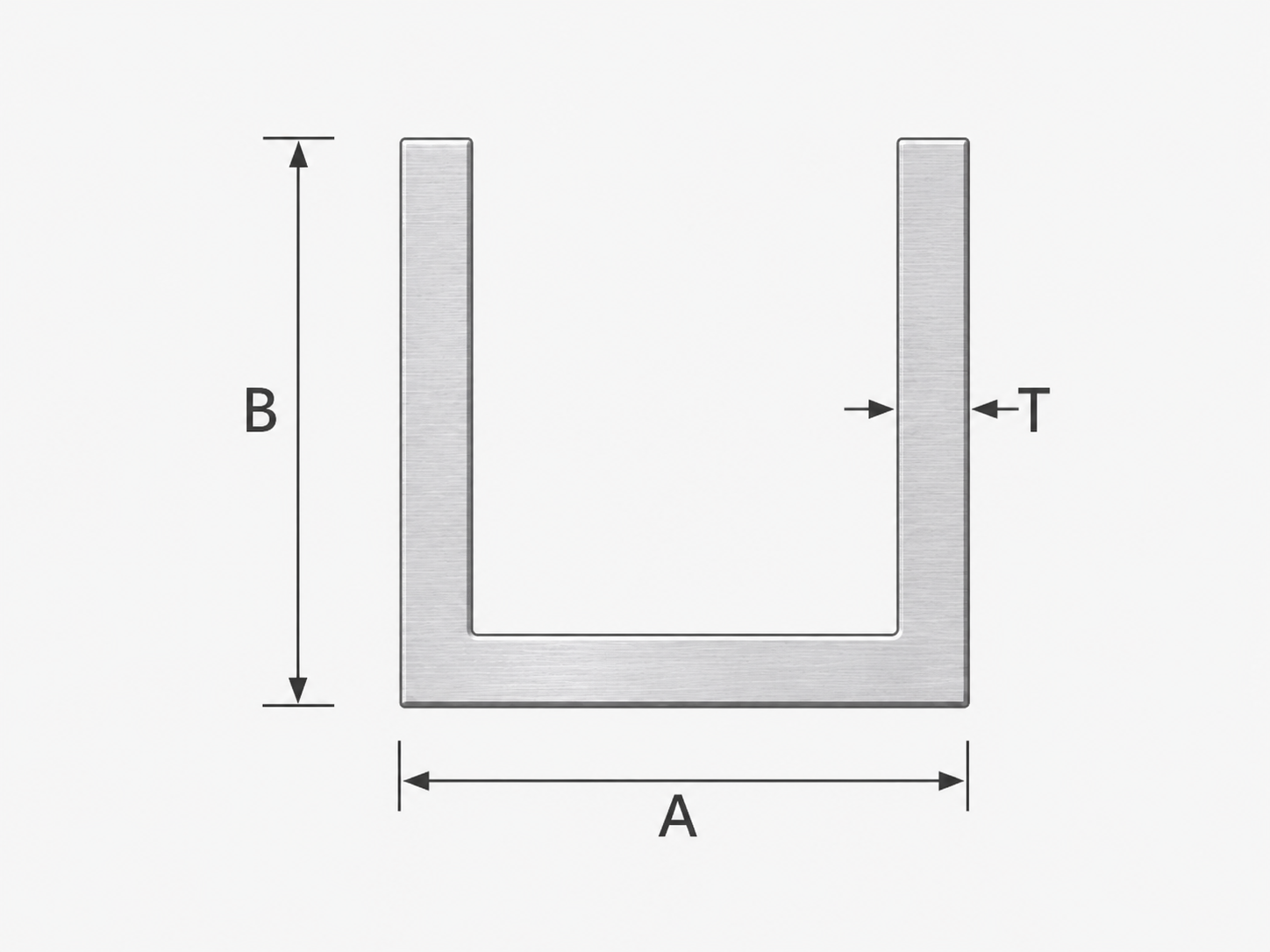

- Section type: channel (open C/U profile)
- External width (A): 25 mm
- Height (B): 25 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 25 × 25 × 2000 mm
- Weight: 1.12 kg (0.56 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: mill finish (non-anodised)
Applications
- Aluminium structures — frames, racks, reinforcements
- Guide rails and cover strips
- Finishing and decorative elements
- Furniture and fitted interiors
- Scale modelling and prototyping
- DIY and hobby projects
The profile is available in a range of cross-sectional sizes and wall thicknesses, enabling selection of the optimum variant for a specific application without the need for pre-machining.
Technical data
| Material | Aluminium |
| Height [mm] | 25 |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
