Aluminium Channel 25×25×2 mm – Open C/U Profile, Length 2000 mm
0
Description

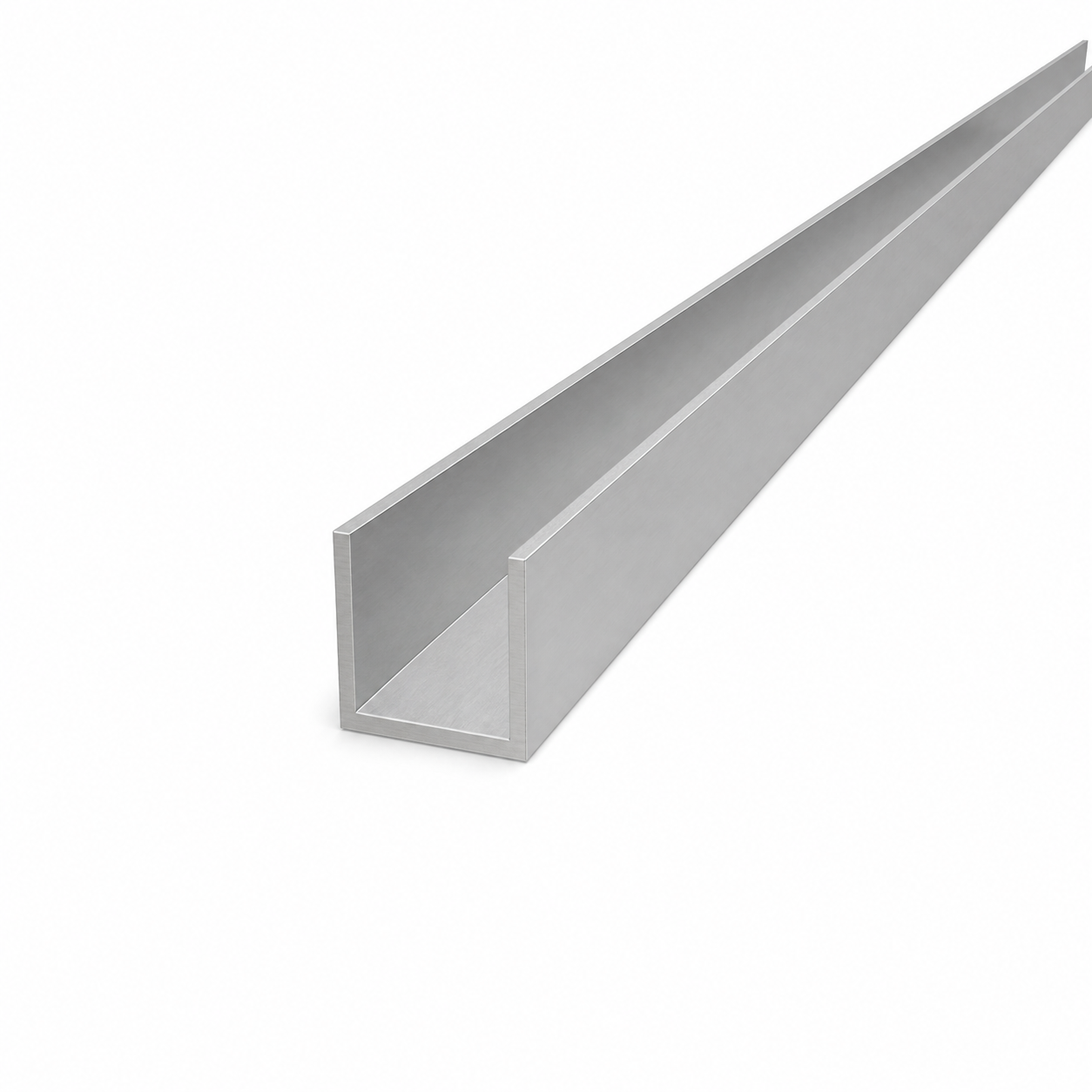

Aluminium Channel 25×25×2 mm – Open C/U Profile, Length 2000 mm
Aluminium channel 25×25×2 mm is a versatile open profile with a C/U cross-section, designed for building lightweight structures, guides, frames, racks, and finishing elements. Thanks to the use of EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), the profile combines low weight with high rigidity and natural corrosion resistance — allowing it to be used without additional surface protection in the majority of indoor applications.
The profile is easy to work with — it can be cut, drilled, bent, and joined using standard workshop tools. It is suitable both as a structural element (frames, racks, guides) and as a cover strip or finishing trim. Available in a range of cross-sectional sizes and wall thicknesses, making it easy to select the optimal variant for a specific project.
Applications
- Aluminium structures and racks
- Guides and cover strips
- Frames and enclosures
- Finishing and decorative elements
- Furniture and model making
Technical Specifications

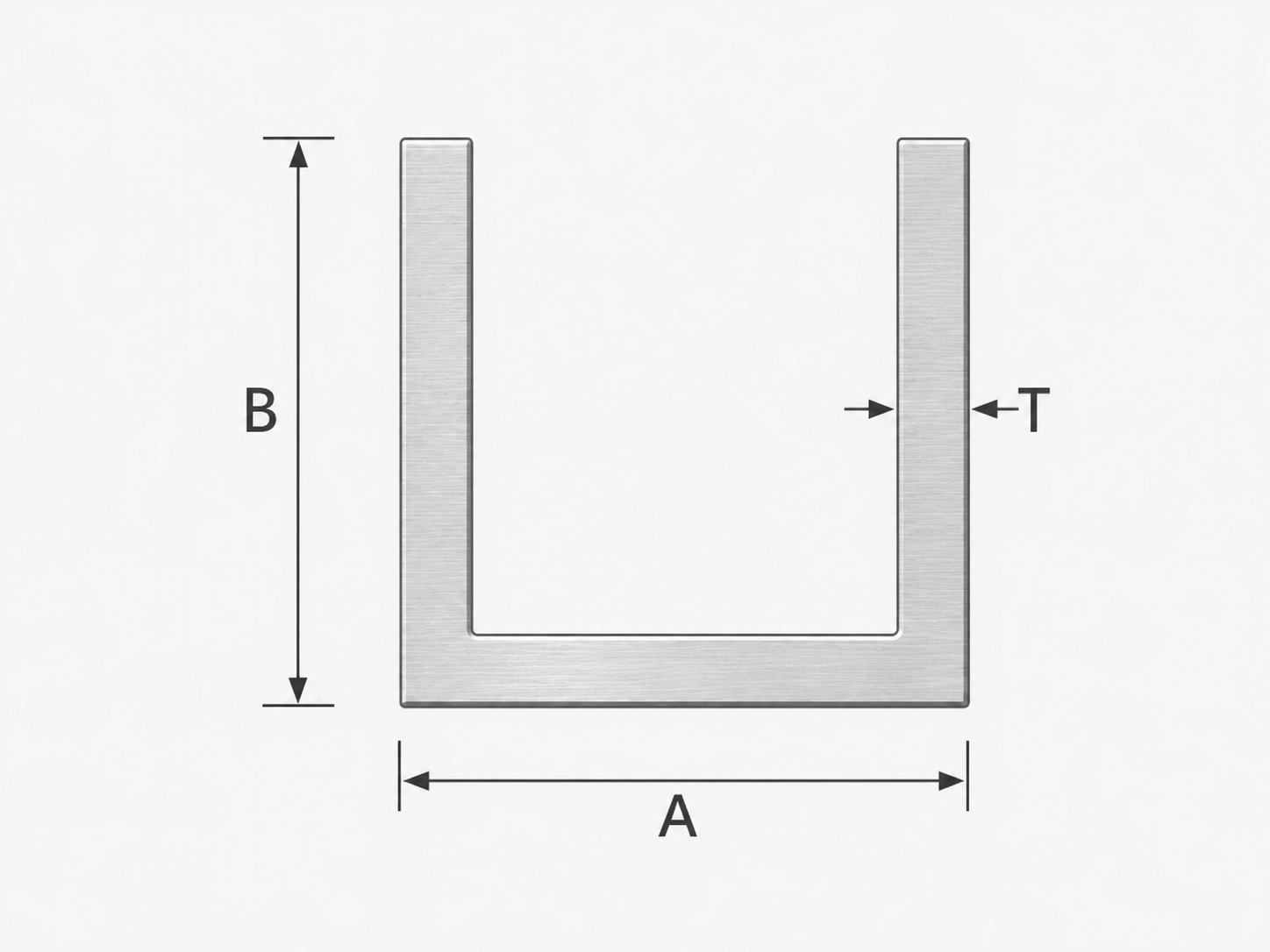

- Cross-section type: channel – open C/U profile
- External width (A): 25 mm
- Height (B): 25 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 25 × 25 × 2000 mm
- Weight: 0.76 kg (0.38 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Technical data
| Material | Aluminium |
| Height [mm] | 25 |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
