Aluminium Channel 20×20×2 mm – C/U Profile Length 2000 mm
0
Description

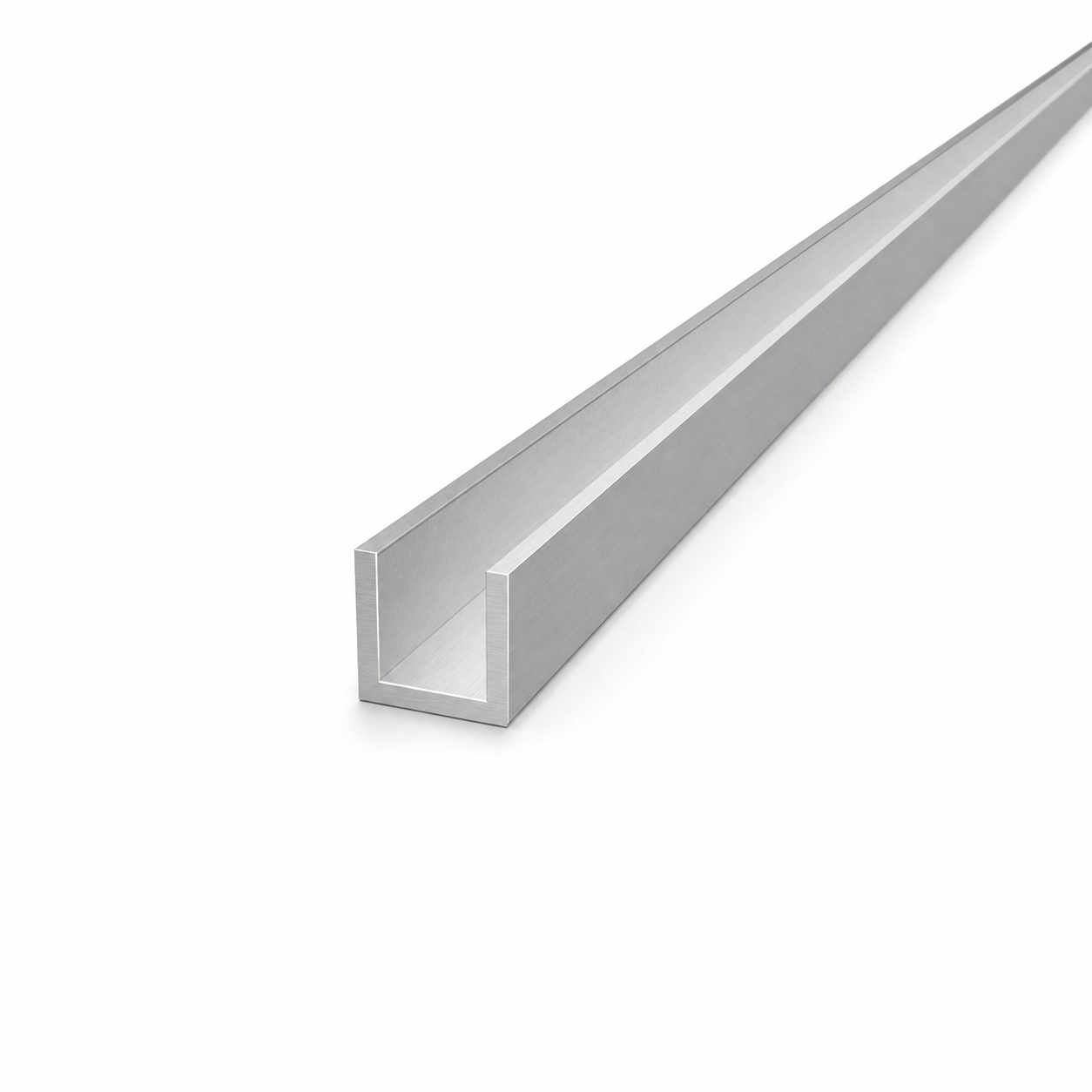

Aluminium Channel 20×20×2 mm – C/U Profile Length 2000 mm
The aluminium channel 20×20×2 mm is a lightweight and durable open-section profile with a C/U cross-section, manufactured from EN AW-6060 T64 aluminium alloy (PA38, AlMgSi0.5). Thanks to its excellent stiffness-to-weight ratio and natural corrosion resistance, it is well suited as a structural element, guide rail, cover strip, or frame in photovoltaic and general construction applications. In its raw (non-anodised) state, the profile can be easily cut, drilled, bent, and joined — enabling quick and straightforward installation on site.
Dimensions and Technical Specifications

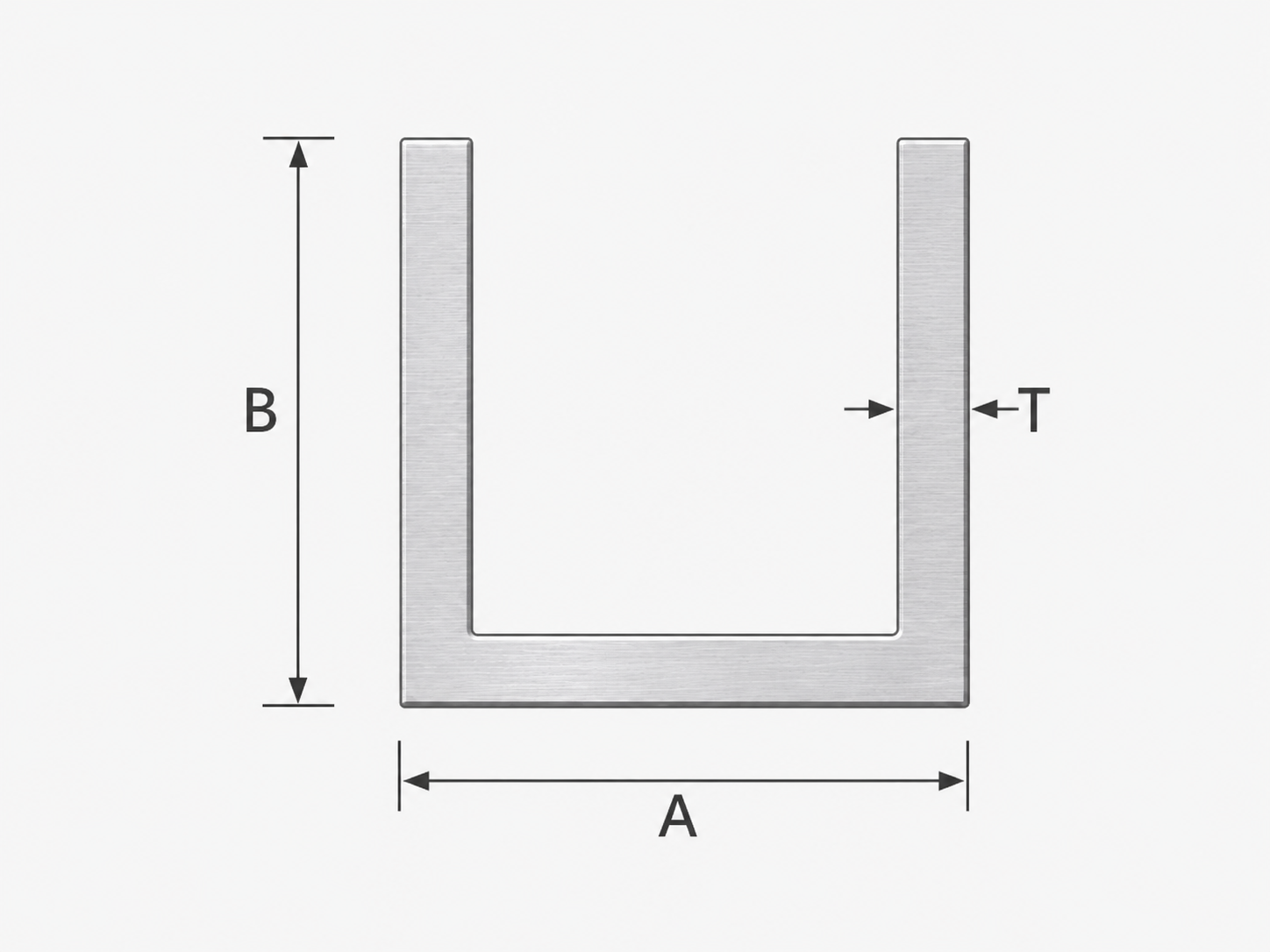

- Cross-section type: channel (open C/U profile)
- External width (A): 20 mm
- Height (B): 20 mm
- Wall thickness (T): 2 mm
- Profile length: 2000 mm
- Overall dimensions (W × H × L): 20 × 20 × 2000 mm
- Weight: 0.60 kg (0.30 kg/m)
- Material: aluminium PA38 (EN AW-6060 T64), alloy AlMgSi0.5
- Surface: raw (non-anodised)
Applications
- Aluminium structures and mounting frames
- Guide rails and cover strips in PV installations
- Frames, shields, and finishing elements
- Lightweight furniture and decorative structures
- Scale modelling and prototyping
The channel is available in a range of sizes covering multiple cross-section and wall thickness variants, allowing the optimum profile to be selected for any given project. Aluminium grade 6060 T64 ensures good machinability whilst maintaining sufficient strength — an ideal solution wherever low weight and durability are paramount.
Technical data
| Height [mm] | 20 |
| Material | Aluminium |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
