Aluminium Channel 15×15×2 mm – C/U Profile, Length 2000 mm
0
Description

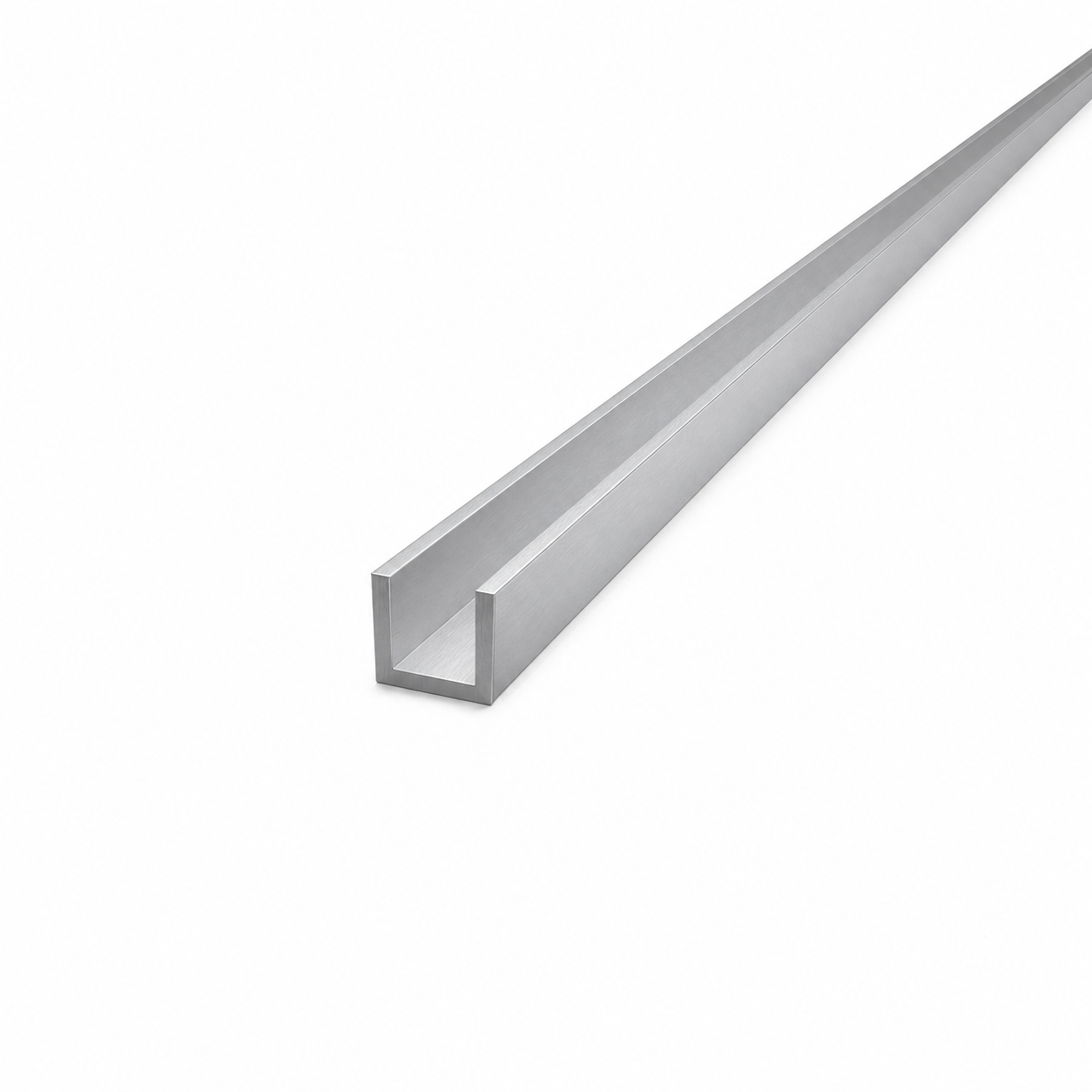

Aluminium Channel 15×15×2 mm – C/U Profile, Length 2000 mm
Aluminium channel 15×15×2 mm is a versatile open profile with a C/U cross-section, manufactured from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its compact dimensions and light weight, it is ideal for use as a guide rail, trim strip, frame element, or support structure. The raw aluminium surface provides excellent adhesion for further processing – anodising, painting, or powder coating.
The profile is easy to work with – it can be cut, drilled, bent, and joined without difficulty using standard workshop tools. A length of 2000 mm allows convenient adaptation to project requirements with minimal waste.
Technical Specification

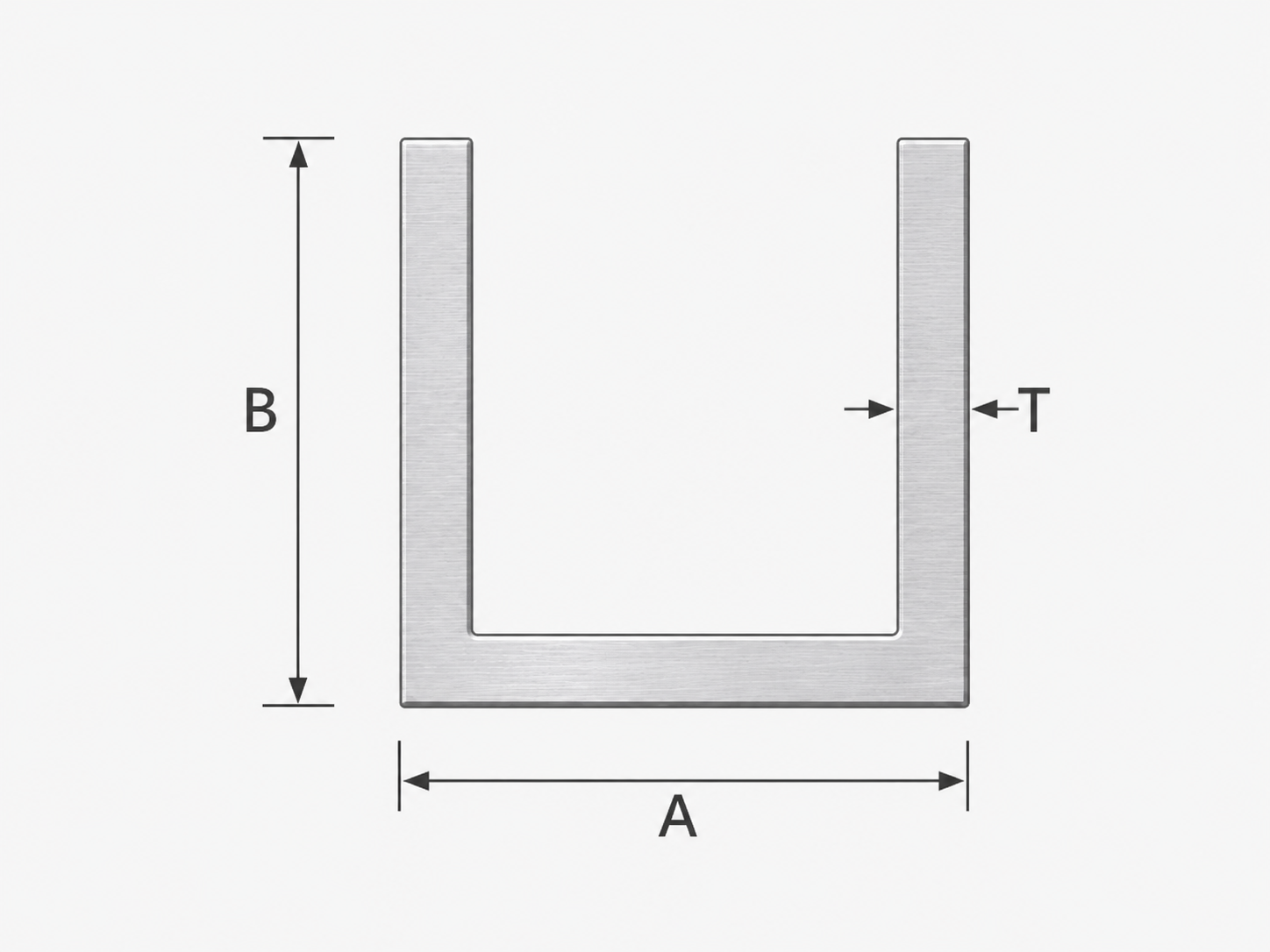

- Cross-section type: channel (open C/U profile)
- External width (A): 15 mm
- Height (B): 15 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 15 × 15 × 2000 mm
- Weight: 0.44 kg (0.22 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
The 15×15 mm aluminium channel is widely used in installation and construction work. It can serve as a sliding guide rail, edge trim strip, frame element, or support structure. It is also suitable for building finishes, furniture construction, decorative elements, as well as modelling and prototype work. The profile is part of an extensive product range – variants are available in many cross-section dimensions and wall thicknesses.
Technical data
| Height [mm] | 15 |
| Material | Aluminium |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
