Aluminium Channel 10×10×1.5 mm – C/U Profile, Length 2000 mm, EN AW-6060
0
Description

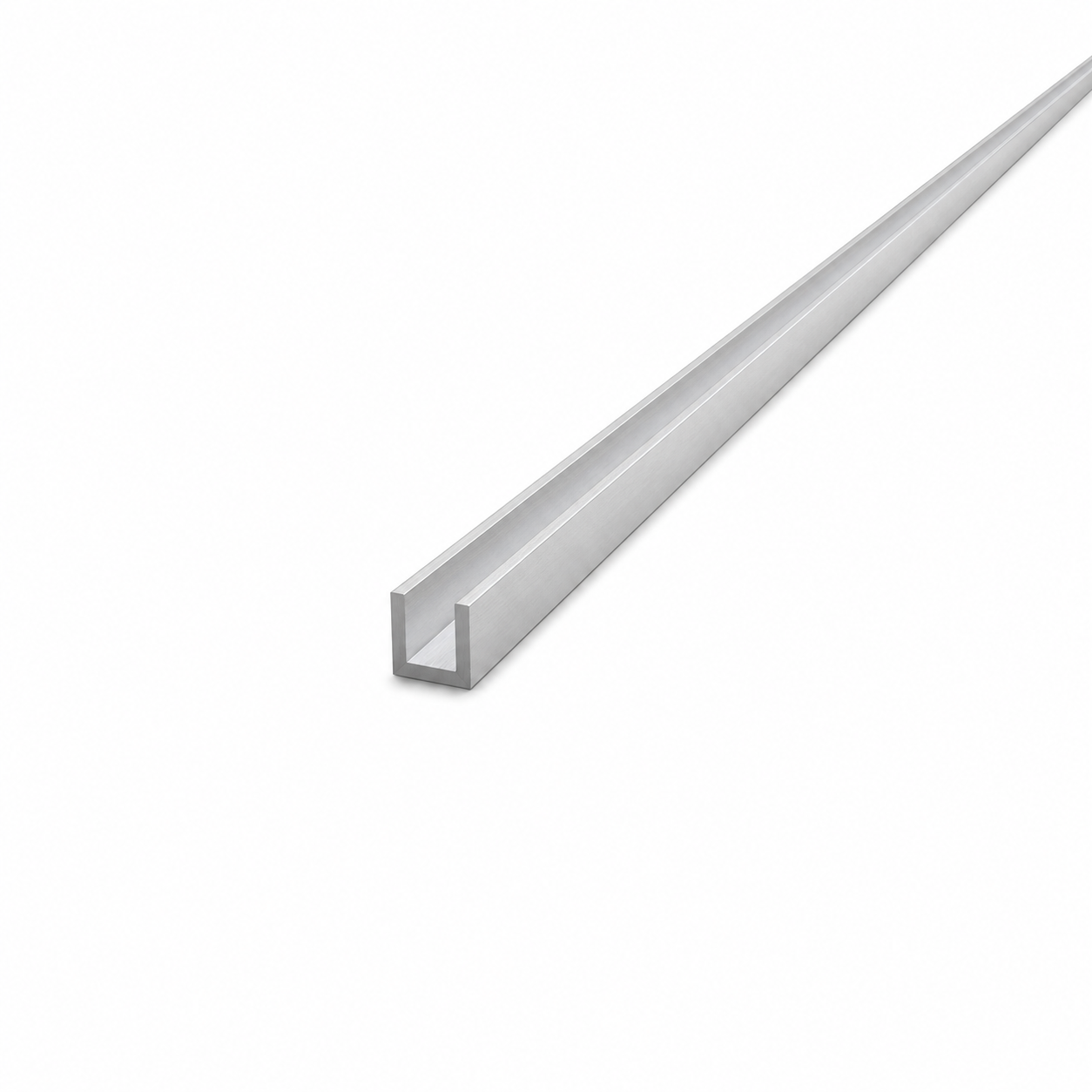

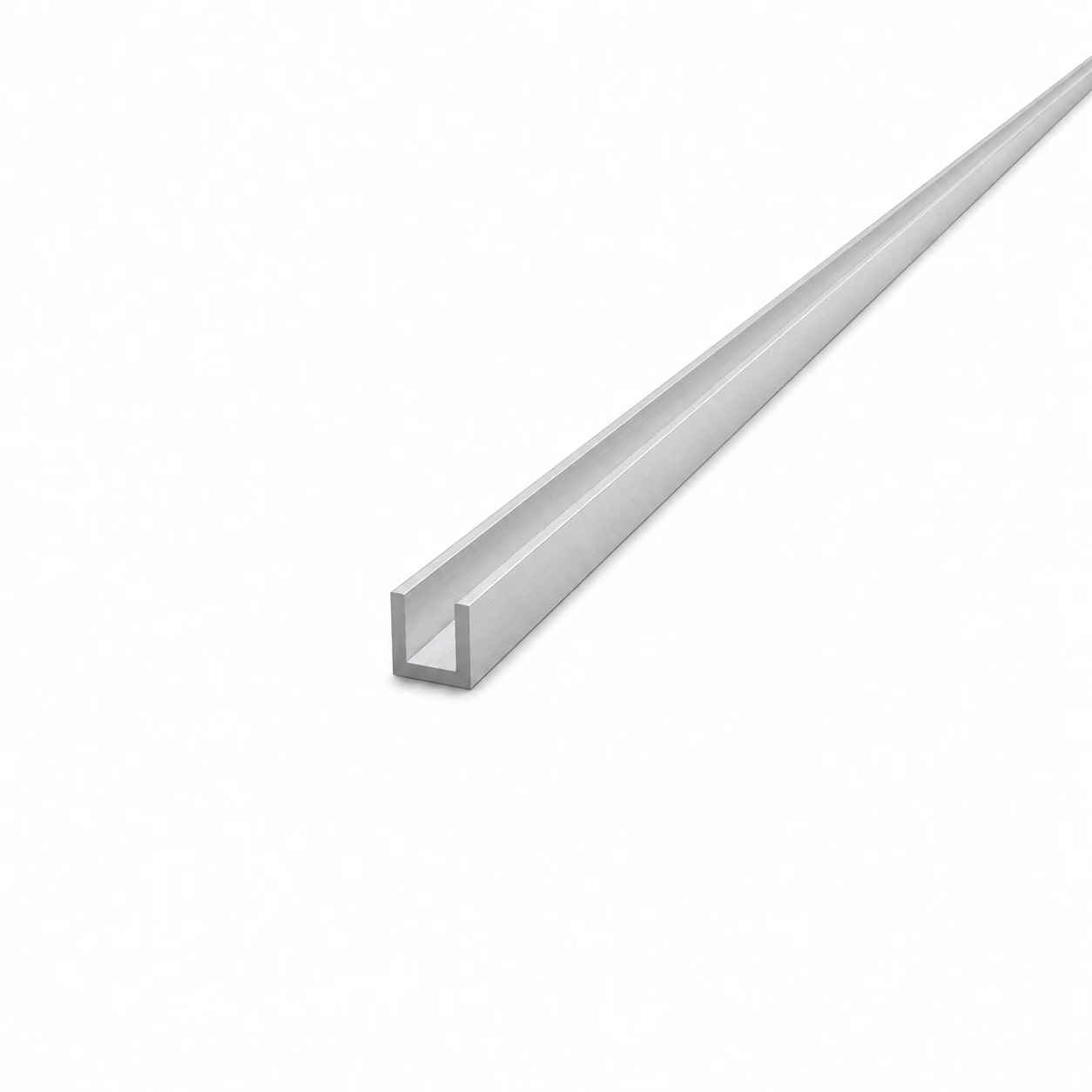

Aluminium Channel 10×10×1.5 mm – C/U Profile, Length 2000 mm, EN AW-6060
Aluminium channel 10×10×1.5 mm is a lightweight and durable open-section profile with a C/U cross-section, ideal for building structures, guides, frames, and cover strips. Made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), it offers high corrosion resistance, ease of machining, and low self-weight — all of which you will appreciate both during transport and on-site installation.
The profile is easy to cut, drill, bend, and join — enabling quick adaptation to individual structural requirements without specialist tools. The raw (unanodised) surface allows for further finishing: anodising, powder coating, or leaving in its natural state for interior applications.
Technical Specification

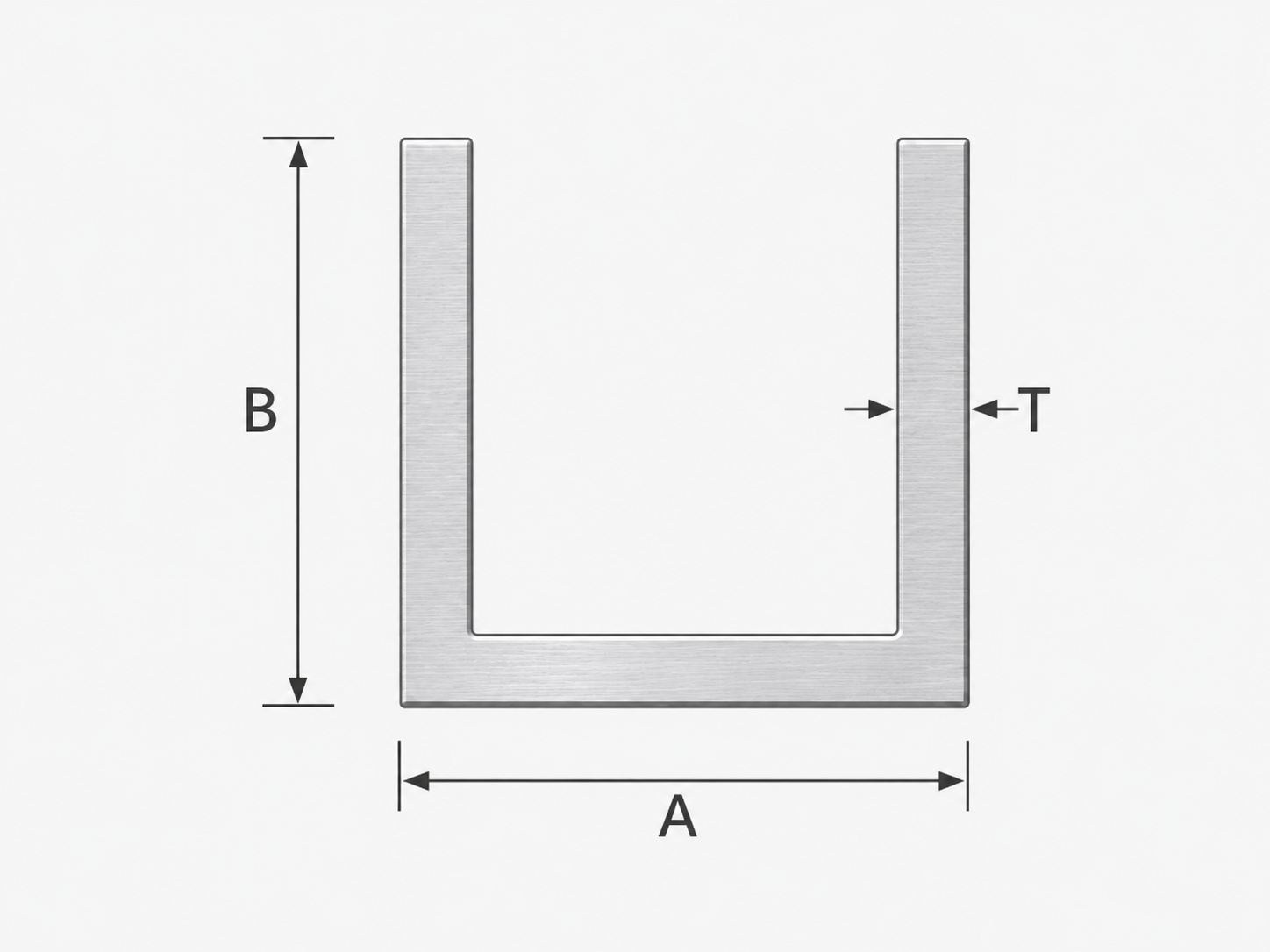

- Cross-section type: channel (open C/U profile)
- External width (A): 10 mm
- Height (B): 10 mm
- Wall thickness (T): 1.5 mm
- Length: 2000 mm
- Weight: 0.22 kg (0.11 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (unanodised)
Applications
- Aluminium structures and frames
- Guides and cover strips
- Frames, surrounds, and trims
- Furniture and decorative elements
- Modelling and DIY projects
The profile is available as part of a product range — in a variety of cross-section sizes and wall thicknesses, allowing you to select the optimum variant for any project.
Technical data
| Material | Aluminium |
| Height [mm] | 10 |
| Wall Thickness [mm] | 1.5 |
| Length [mm] | 2000 |
