Aluminium Channel 100×50×5 mm – C/U Profile EN AW-6060 L=2000 mm

Go to Product feedback

Aluminium channel EN AW-6060 T6/T66 (PA38, AlMgSi0.5), C/U cross-section. Dimensions: 100×50×5 mm, length 2000 mm. Weight: 4.96 kg (2.48 kg/m). Raw, non-anodised surface.

Go to full description
with VAT without VAT
Price €61.09
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] ceowniki #149

  • Material Aluminium
  • Height [mm] 100
  • Wall Thickness [mm] 5
  • Length [mm] 2000

Description

Aluminium Channel 100×50×5 mm – C/U Profile EN AW-6060 L=2000 mm

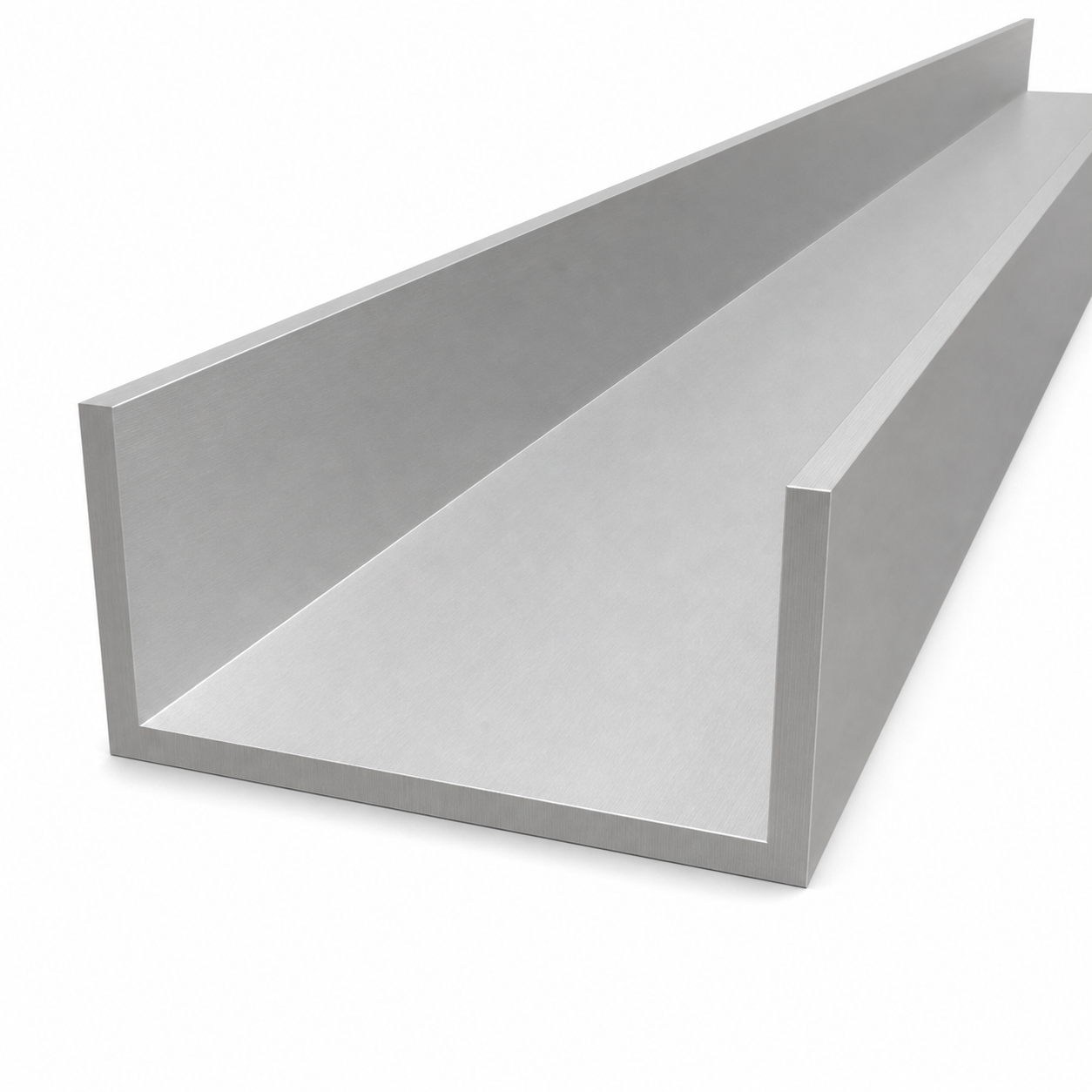

Aluminium channel 100×50×5 mm – perspective view of C/U profile
Aluminium channel 100×50×5 mm – perspective view of C/U profile

Aluminium channel 100×50×5 mm is a robust open-section profile with a channel (C/U) cross-section, manufactured from aluminium alloy EN AW-6060 T6/T66 (PA38, AlMgSi0.5). Thanks to its excellent stiffness-to-weight ratio, it is suitable wherever a lightweight yet load-bearing structure is required — from guides and frames to fascia trims, finishing elements, and decorative features.

The profile, with a length of 2000 mm, is supplied with a raw (non-anodised) surface, allowing any finishing treatment — anodising, powder coating, or leaving in its natural state. PA38 aluminium is easily cut, drilled, bent, and mechanically joined, reducing assembly time and labour costs.

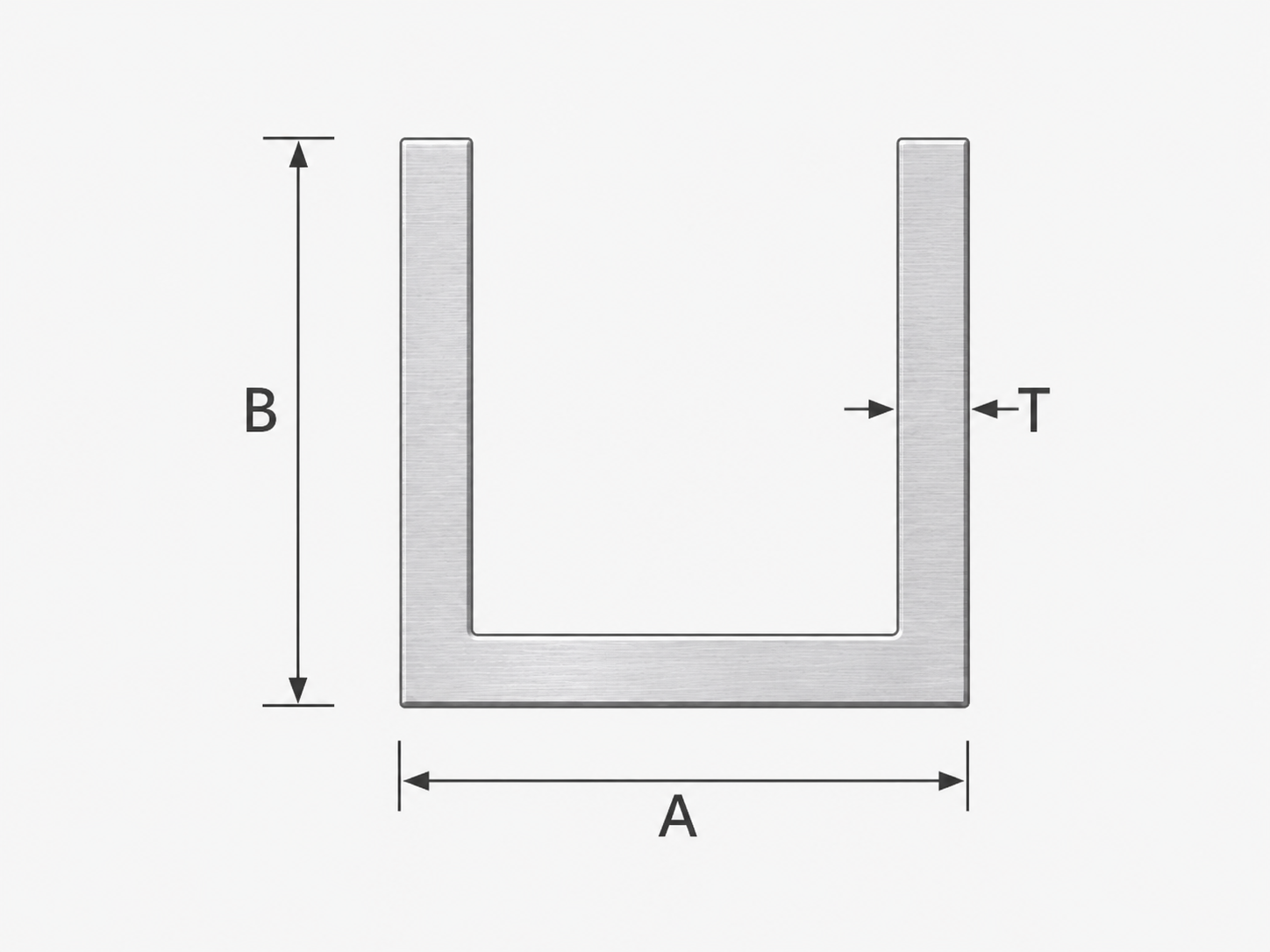

Cross-section drawing of the channel with dimension labels A, B, T
Cross-section drawing of the channel with dimension labels A, B, T

Dimensions and Technical Specifications

  • Cross-section type: channel (open C/U profile)
  • Overall width (A): 100 mm
  • Height (B): 50 mm
  • Wall thickness (T): 5 mm
  • Length: 2000 mm
  • Dimensions (W × H × L): 100 × 50 × 2000 mm
  • Weight: 4.96 kg (2.48 kg/m)
  • Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5, 3.3206)
  • Surface: raw (non-anodised)

Applications

The aluminium channel 100×50×5 mm is widely used in professional installation and structural projects:

  • Aluminium structures — load-bearing frames, racks, supports
  • Guides and rails — sliding elements, linear brackets
  • Fascia and finishing strips — edge covers, surrounds
  • Frames and enclosures — equipment housings, technical enclosures
  • Furniture and decorative elements — shelving, tables, finishing details
  • Modelling and DIY — prototypes, scale models, hobby constructions

Advantages of EN AW-6060 Alloy

The AlMgSi0.5 alloy in T6/T66 condition combines good mechanical strength with high corrosion resistance and excellent machinability. The profile can be cut with a circular or band saw, drilled, tapped, welded by TIG/MIG, and joined with rivets and bolts — without the need for specialist tooling. The low self-weight (2.48 kg/m) facilitates transport and installation, whilst providing sufficient rigidity for typical structural applications.

The profile forms part of a range of aluminium channels — available in numerous cross-sectional size and wall thickness variants, enabling the selection of the optimum profile for any given project.
