Adjustable handrail support rod fi 14×75 mm with flat plate – AISI 304 satin, M8 thread
0
Description

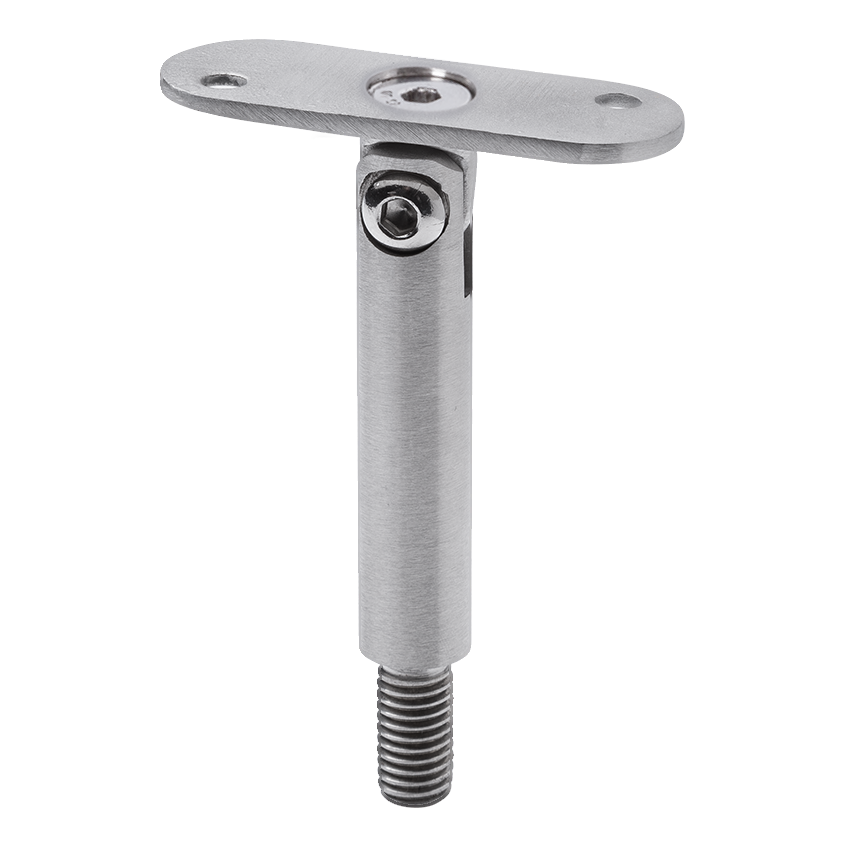

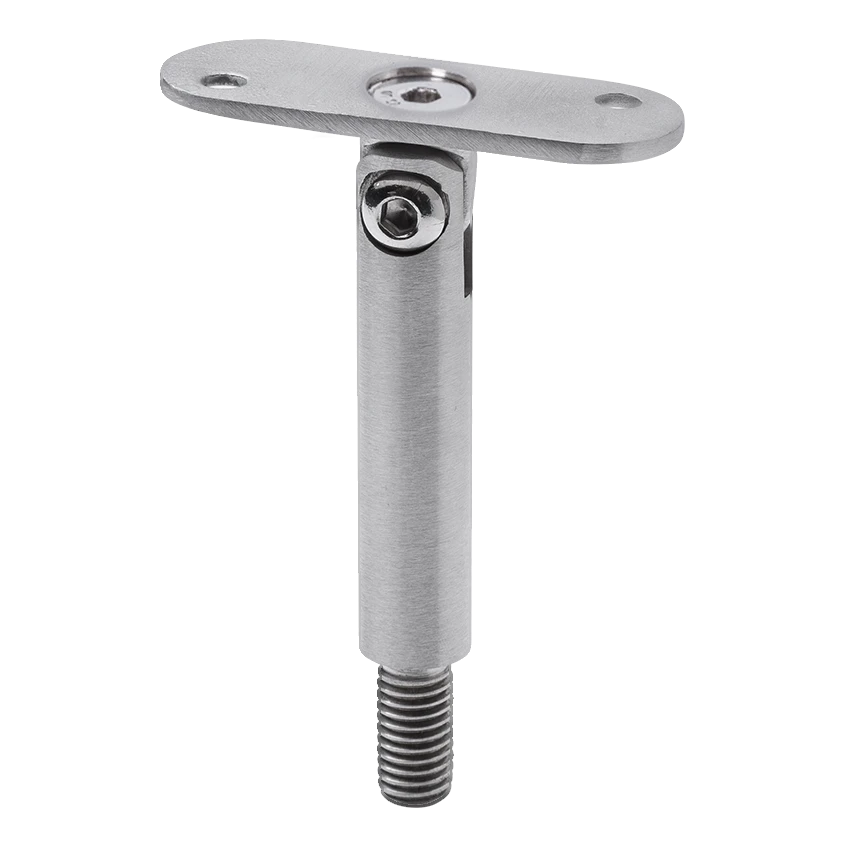

Adjustable handrail support rod fi 14×75 mm with flat plate – AISI 304 satin, M8 thread
Adjustable handrail support rod fi 14×75 mm is a connecting element between the handrail and balustrade post, enabling smooth angle adjustment of the handrail. Thanks to the built-in joint, it works perfectly in stair balustrades where precise adjustment of the handrail slope to the stair run is necessary. Installation is carried out by screwing the M8 thread directly into the post — quickly, securely and without additional adapters.
The product is made of AISI 304 stainless steel with a satin finish, which guarantees high corrosion resistance and an aesthetic, matt appearance consistent with other elements of the flat balustrade system. The flat mounting plate at the top of the rod ensures stable support for the handrail profile and allows the handrail to be screwed to it using screws through mounting holes.

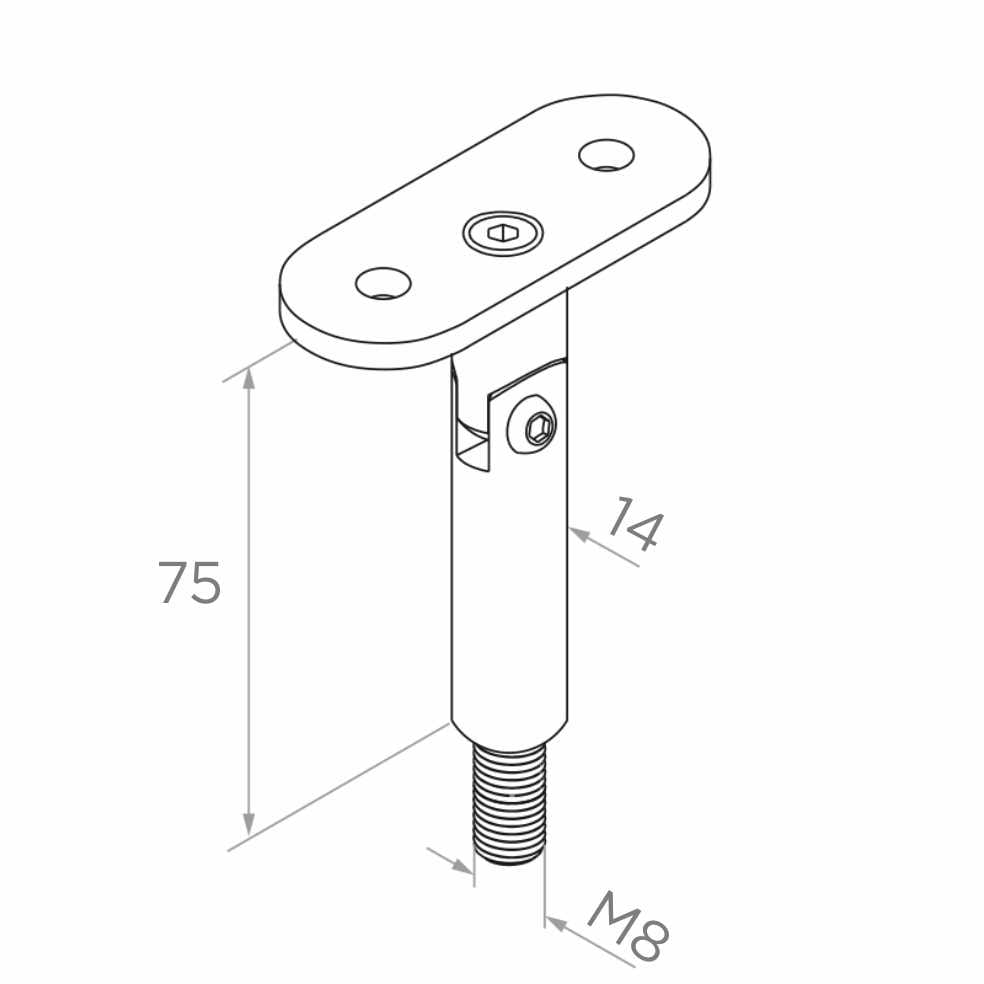

Dimensions and technical data
- Rod diameter: fi 14 mm
- Height (H): 75 mm
- External thread: M8
- Material: AISI 304 stainless steel
- Surface finish: satin
- System: flat
- Mounting plate: flat with holes
- Connection type: adjustable — handrail angle adjustment
- Weight: 0.13 kg
- EAN: 5901289672290
Application
The adjustable rod is designed for installation in stainless steel balustrade systems — particularly in stair balustrades where a change in handrail angle is required. The joint allows smooth adjustment of the mounting plate inclination relative to the rod axis, so the handrail runs parallel to the stair line without the need for additional angled elements. It works well wherever the installer needs a flexible post-handrail connection: staircases, mezzanines, landings and galleries.
Technical data
| Material | AISI 304 |
| Finish | Satin |
