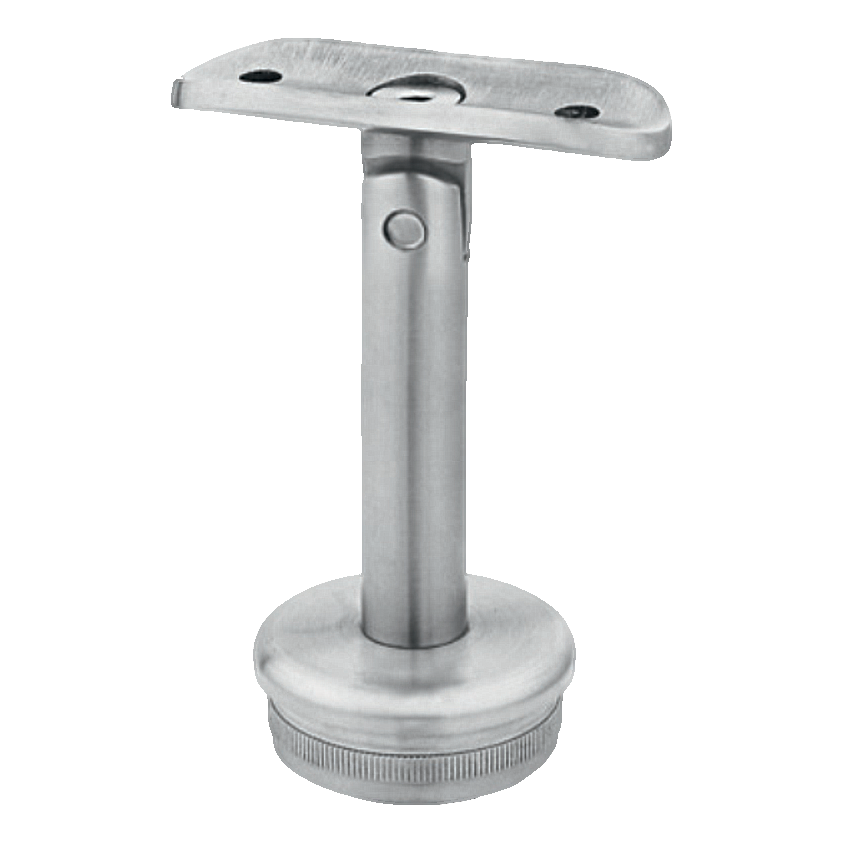

Adjustable handrail support driven 42.4 mm – AISI 304 stainless steel satin finish
0
Description
Adjustable handrail support driven 42.4 mm – AISI 304 stainless steel satin finish
Adjustable handrail support for 42.4 mm balustrade system, designed to be driven directly into the post. The joint allows smooth adjustment of handrail angle, making this connector an ideal solution for mounting stair balustrades — without the need to cut elements to individual angles.
Made from AISI 304 stainless steel with satin finish, the support ensures high corrosion resistance and an aesthetic, matt appearance consistent with the entire balustrade system. The knurled base guarantees secure and stable seating inside the post tube.
Application and mounting
The adjustable connector is mounted by driving the knurled base into the interior of a balustrade post with diameter 42.4 × 2 mm. The upper saddle with mounting holes is used to secure handrails with diameter 42.4 mm. The joint mechanism allows angle adjustment — this is particularly useful in stair balustrades, where the handrail angle must correspond to the staircase gradient. For straight balustrades (balcony, terrace) fixed (straight) version connectors are also available.

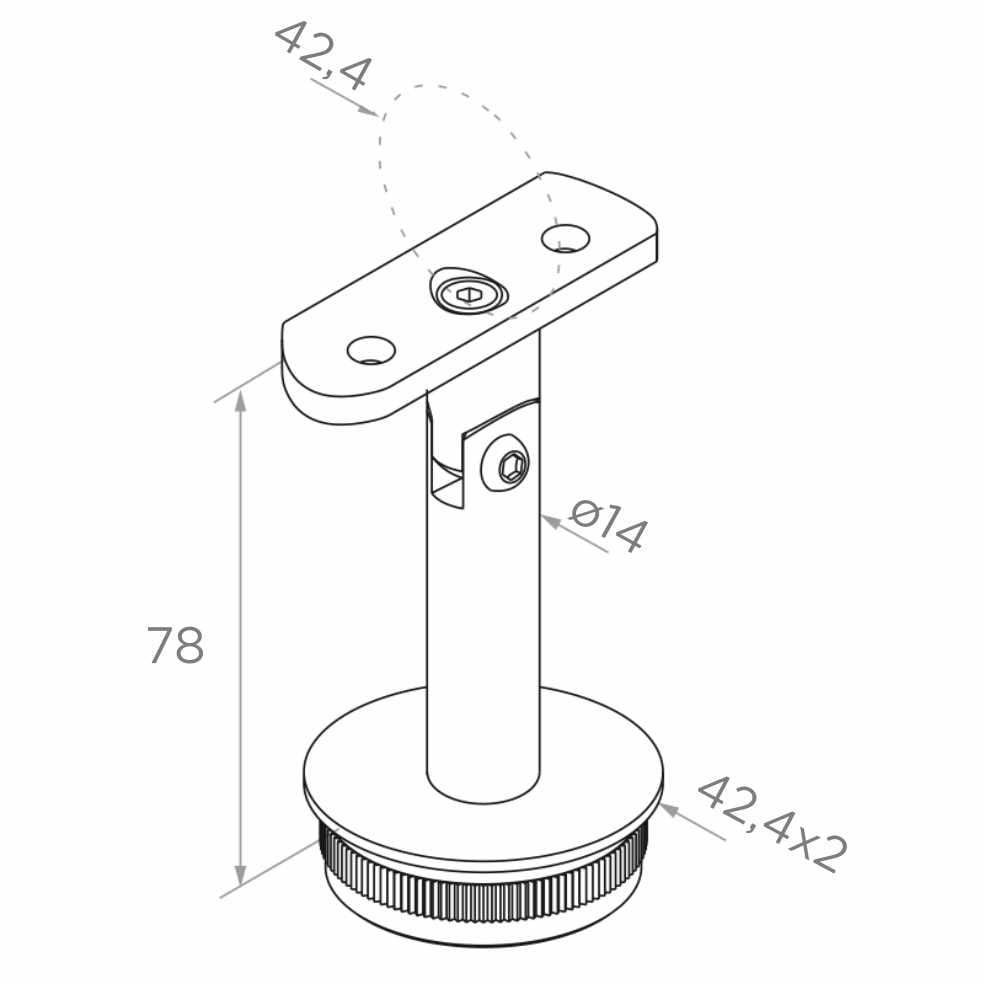

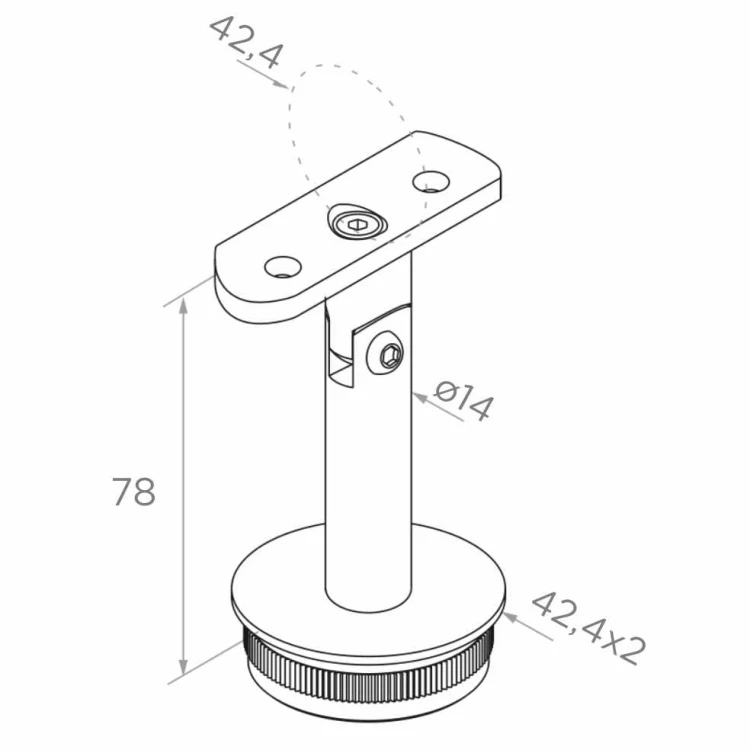

Dimensions and technical parameters
- Total height (H): 78 mm
- Handrail diameter: 42.4 mm
- Spindle diameter: Ø14 mm
- Fits post: 42.4 × 2 mm (diameter × wall thickness)
- Material: AISI 304 stainless steel
- Finish: satin
- Connection type: adjustable (adjustable angle)
- Mounting method: driven into post
- Weight: 0.18 kg
- EAN: 5901289671828
The number of supports required in a balustrade depends on its shape, length and post spacing. The connector forms part of a complete 42.4 mm stainless steel balustrade system — ensuring full compatibility with other system elements (posts, handrails, elbows, end caps).
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
