Adjustable drive-in post support 0-165 mm, silver zinc plated
Leave feedback on the product

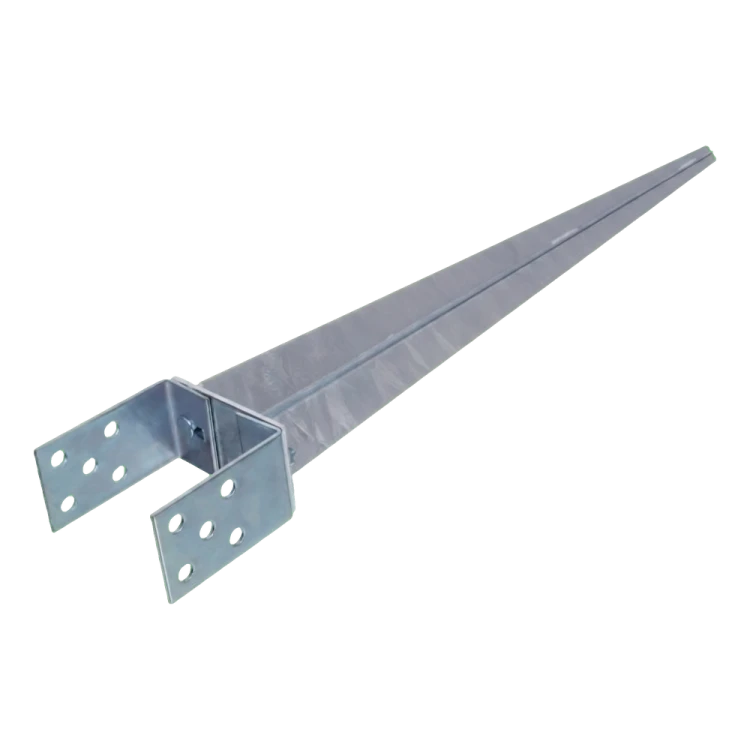

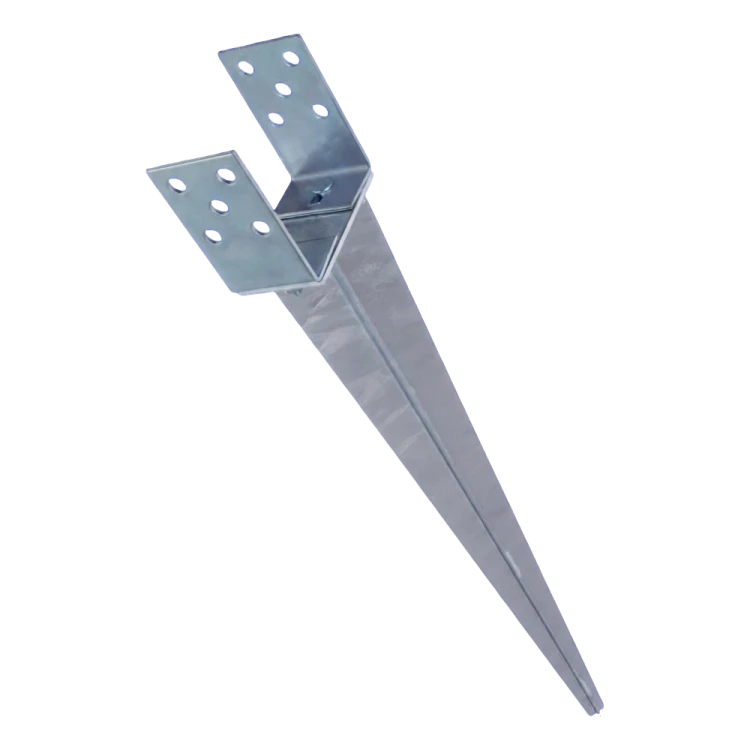

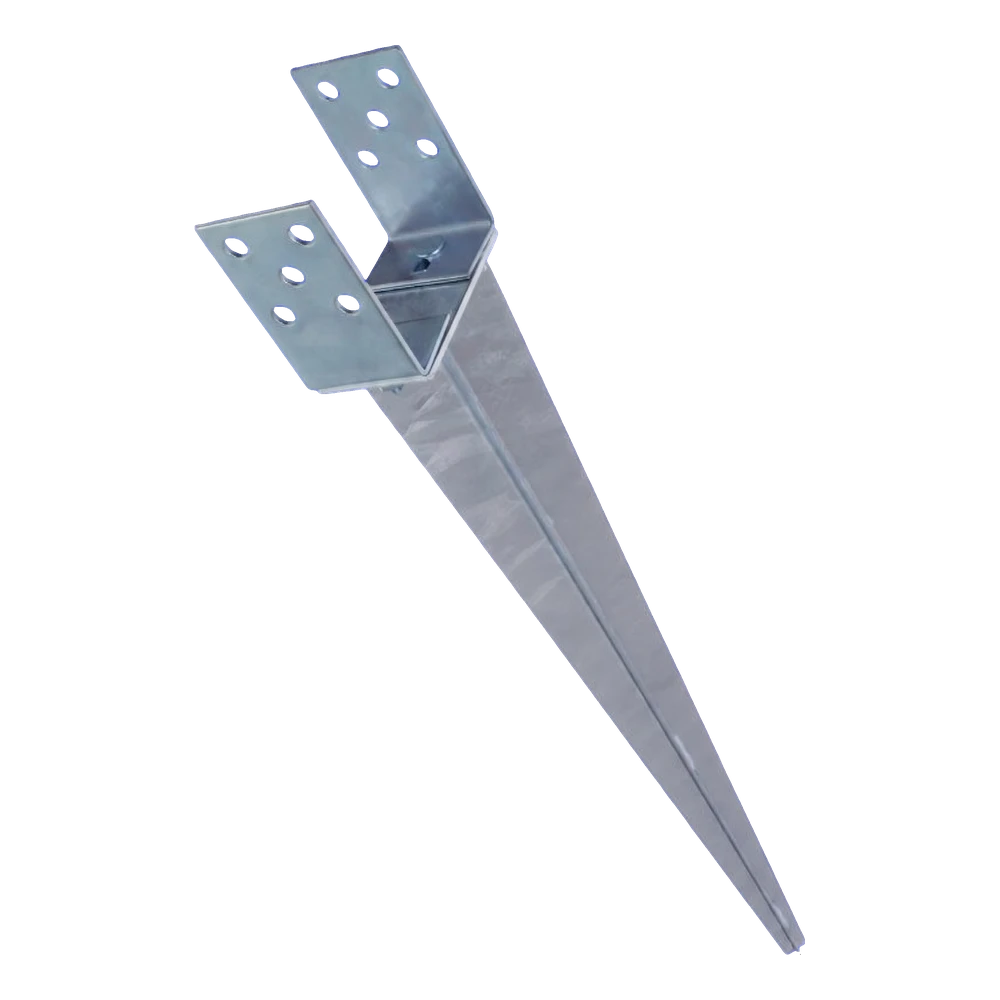

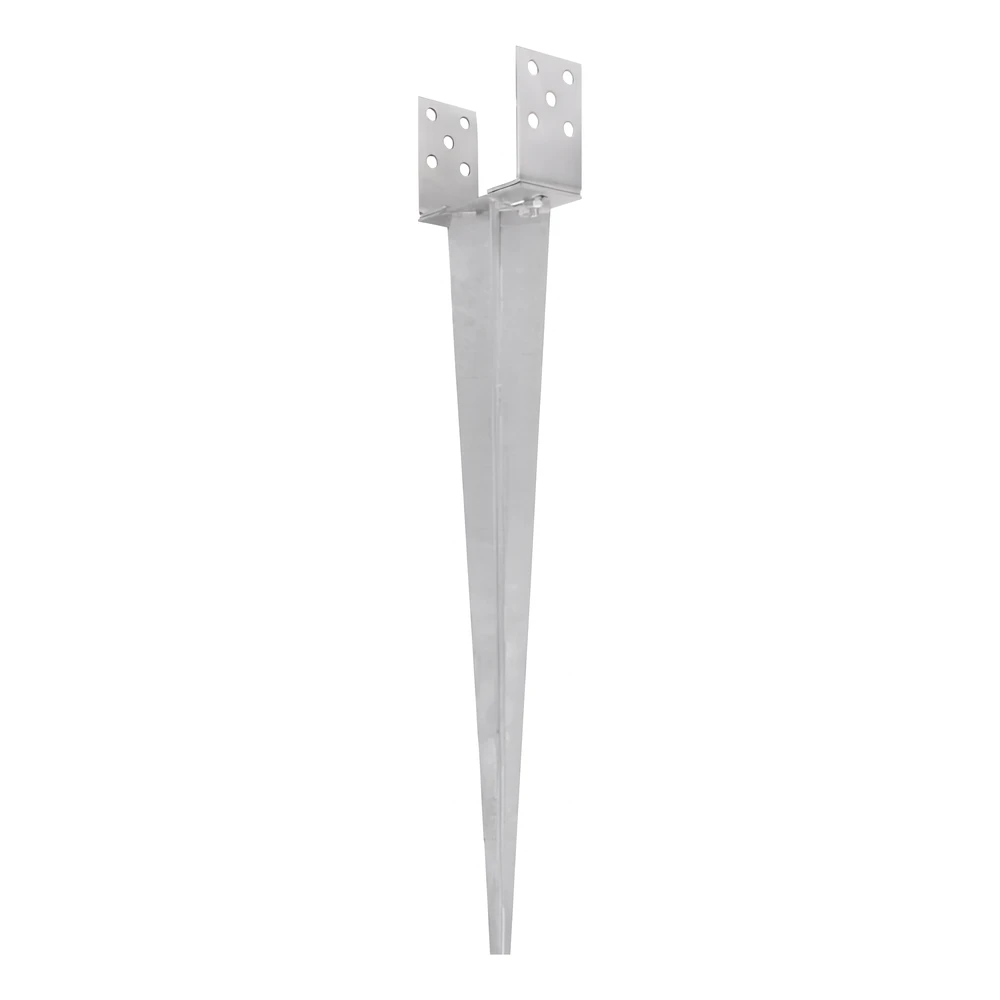

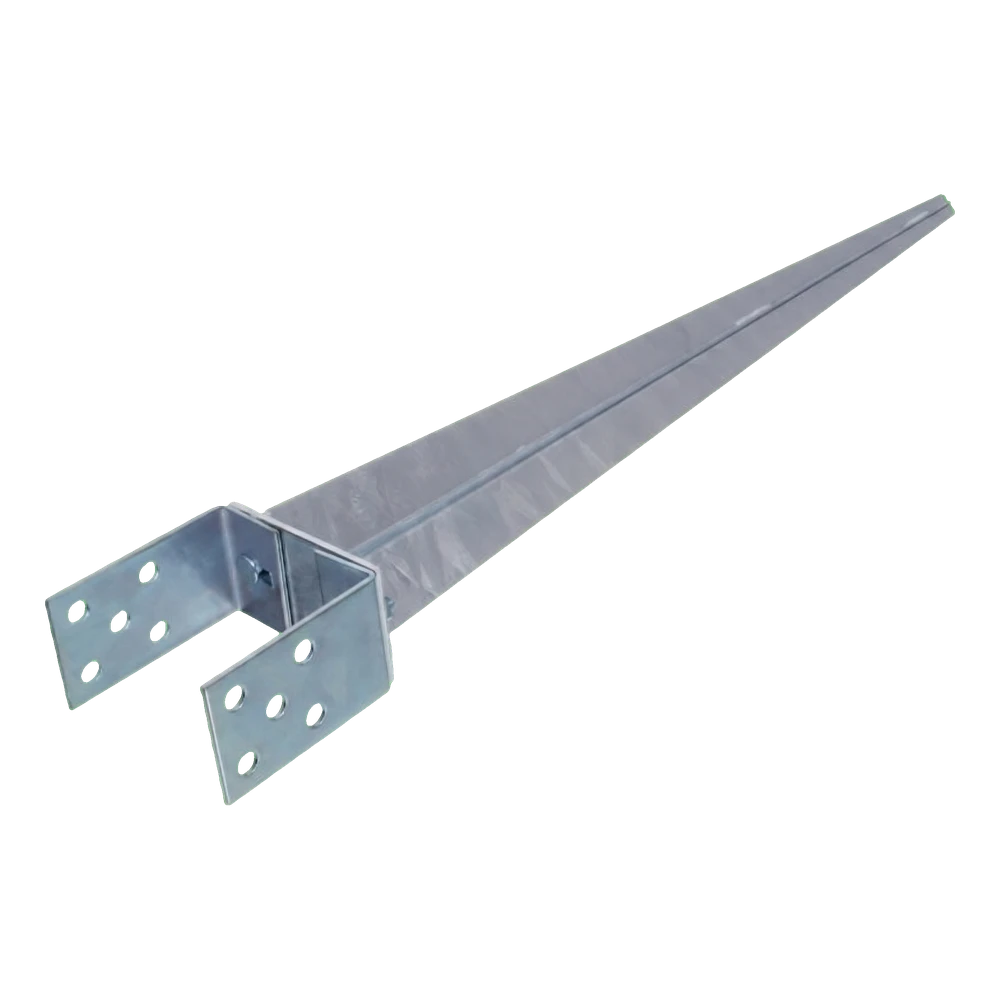

Adjustable drive-in post support made of electro-galvanised steel (silver). Adjustment range 0–165 mm, overall length 500 mm, plate 50 × 165 mm, plate thickness 3 mm, anchor thickness 1.5 mm. Weight 1.25 kg. For timber posts.
Product code: 002-498
Description
Adjustable drive-in post support 0-165 mm, silver zinc plated
The adjustable drive-in post support 0–165 mm is a structural steel connector designed for setting timber posts directly into the ground. The adjustable upper plate allows the support to be fitted to posts of different cross-sections, which reduces the number of variants needed on site.
The design consists of a sharply pointed drive-in anchor and two mounting plates with holes, which grip the post on two sides. As a result, the post has no direct contact with damp soil, which significantly extends its service life.
The support is made of steel coated with electro-galvanised zinc (silver zinc plating), which provides protection against corrosion in typical outdoor conditions. The upper plate ensures stable support for the post, while the anchor retains the necessary rigidity and is still easy to drive into the ground. The compact weight of the item makes it easy to transport and store — you take to site only as many pieces as the project requires.
Design features
- Smooth adjustment of the clamp width to suit the post cross-section
- Sharp anchor driven directly into the ground, with no concreting
- Mounting holes in the side plates for screwing the post in place
- Zinc coating protecting against corrosion in outdoor conditions
- Post isolation from ground moisture, extending the life of the timber
- Compact form for easier storage and transport to site
- Universal design suitable for posts of different cross-sections
Applications
- Timber fences – quick setting of posts in the ground without the need for concreting
- Pergolas and gazebos – stable fixing of structural posts in the garden
- Garden structures – installation of canopies, trellises and small architectural features
- Temporary supports – quick installation and removal thanks to the drive-in anchor
- Fence repairs – easy replacement of a damaged support without concrete work
The support is sold individually, so you can order exactly the number of pieces needed to complete your project. The steel construction with silver zinc plating is suitable both for building new fences and for renovating existing timber structures set in the ground.
