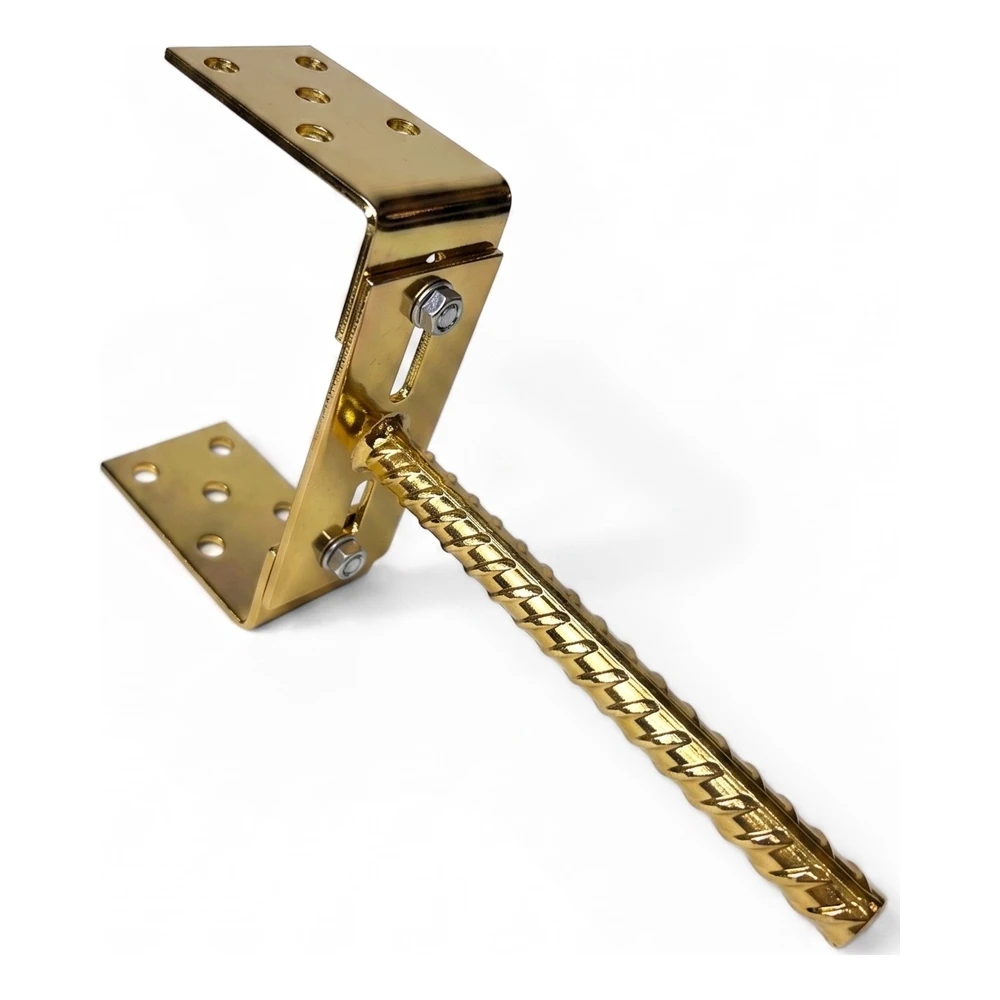

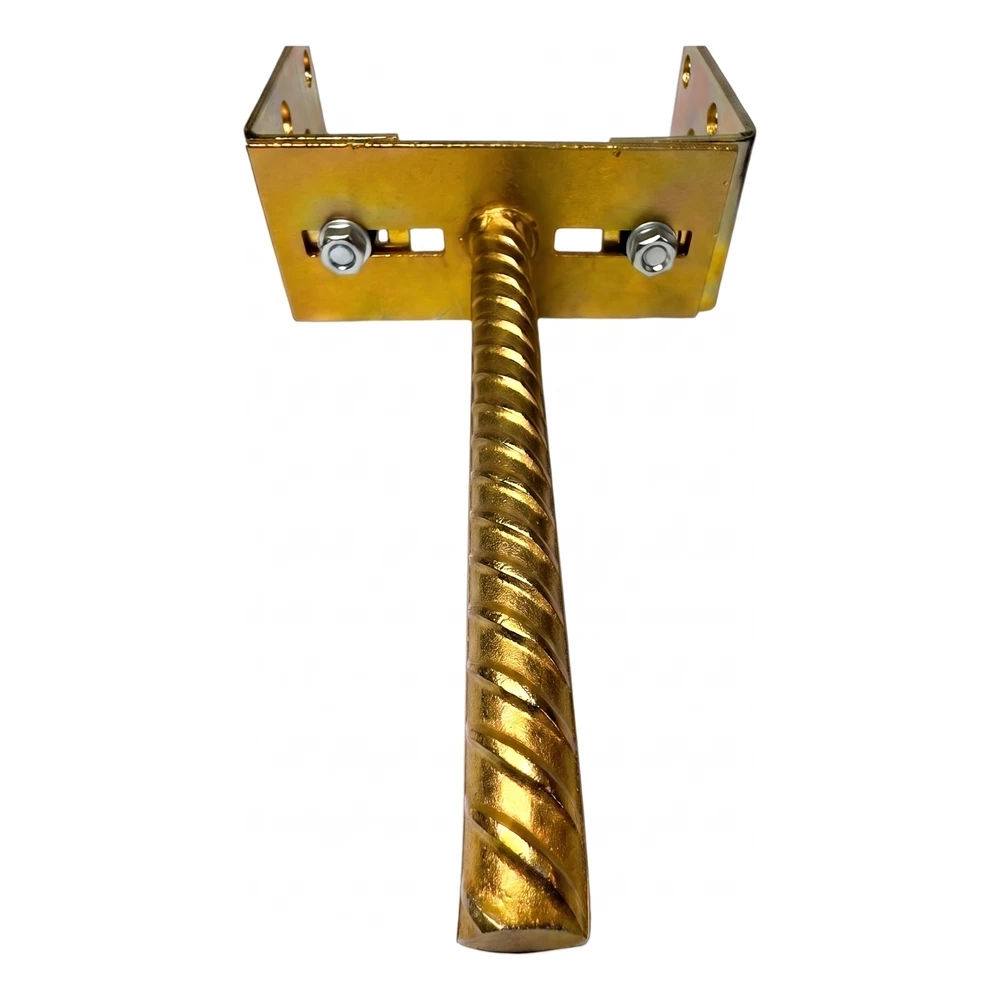

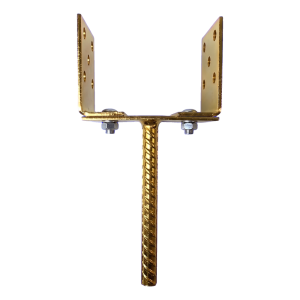

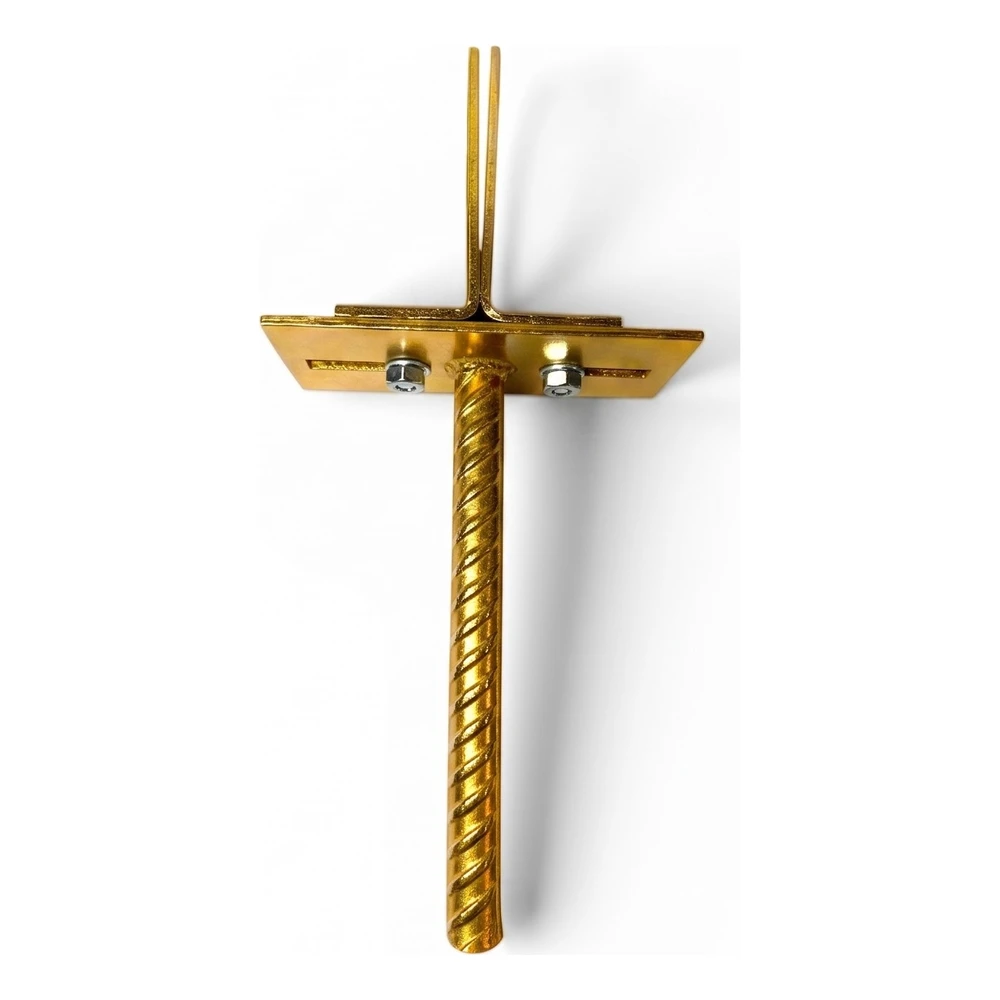

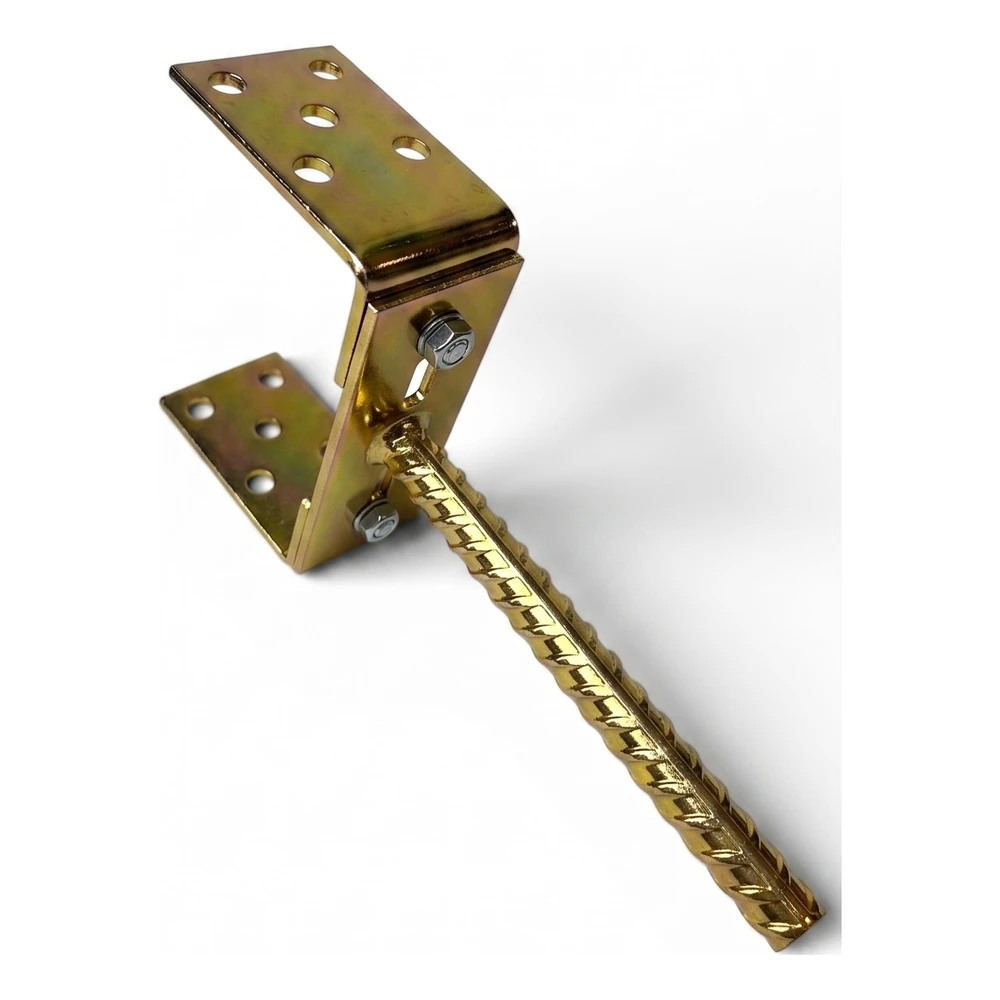

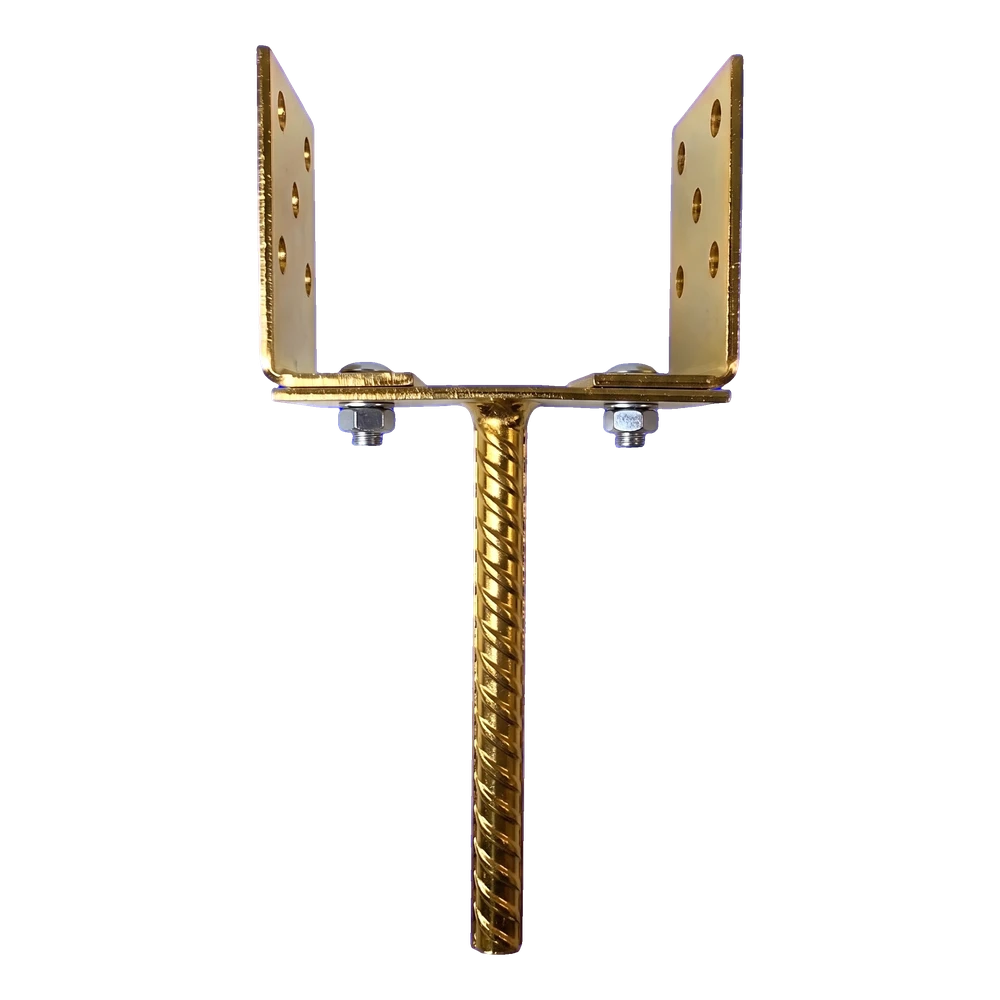

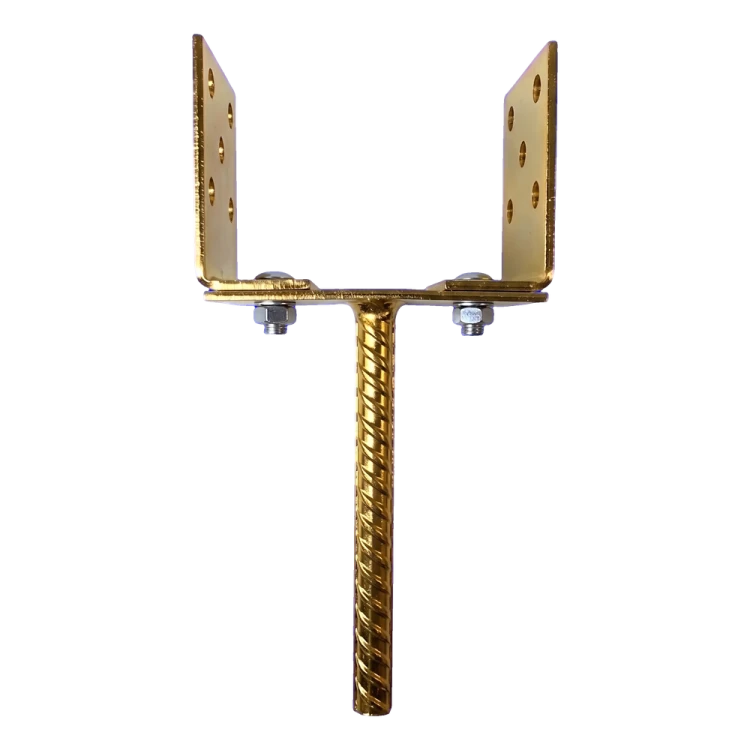

Adjustable concrete-in post base (with rod) 0–165 mm – 190 mm rod, 4 mm plate, gold zinc-plated
Leave feedback on the product
Adjustable concrete-in post base with rod, electro-galvanised steel, gold. Width adjustment range 0–165 mm, rod length 190 mm, plate thickness 4 mm. Weight 1.15 kg. For timber posts, suitable for indoor and outdoor use.
Product code: 002-492
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 4
- Connector Type Post base with rod
- Material Steel
Description
Adjustable concrete-in post base (with rod) 0–165 mm – 190 mm rod, 4 mm plate, gold zinc-plated
The adjustable concrete-in post base with rod is a heavy-duty structural connector designed for setting timber posts in concrete foundations. Thanks to its smooth width adjustment, the post base fits a range of post sections, making it a versatile component on site.

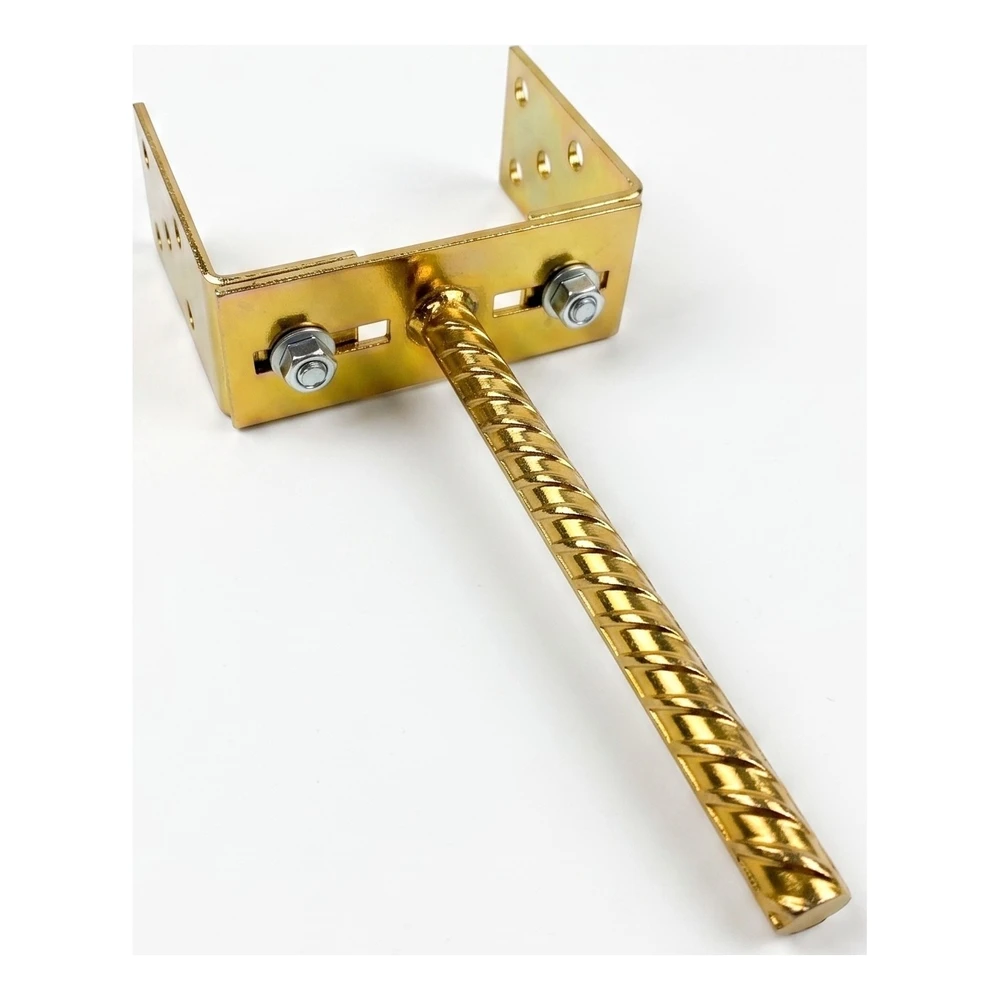

The post base is made from thick steel plate and a reinforcing rod that provides a durable anchor in the concrete. Two adjustable side angle brackets with mounting holes allow precise width setting and secure fixing of the post with bolts.

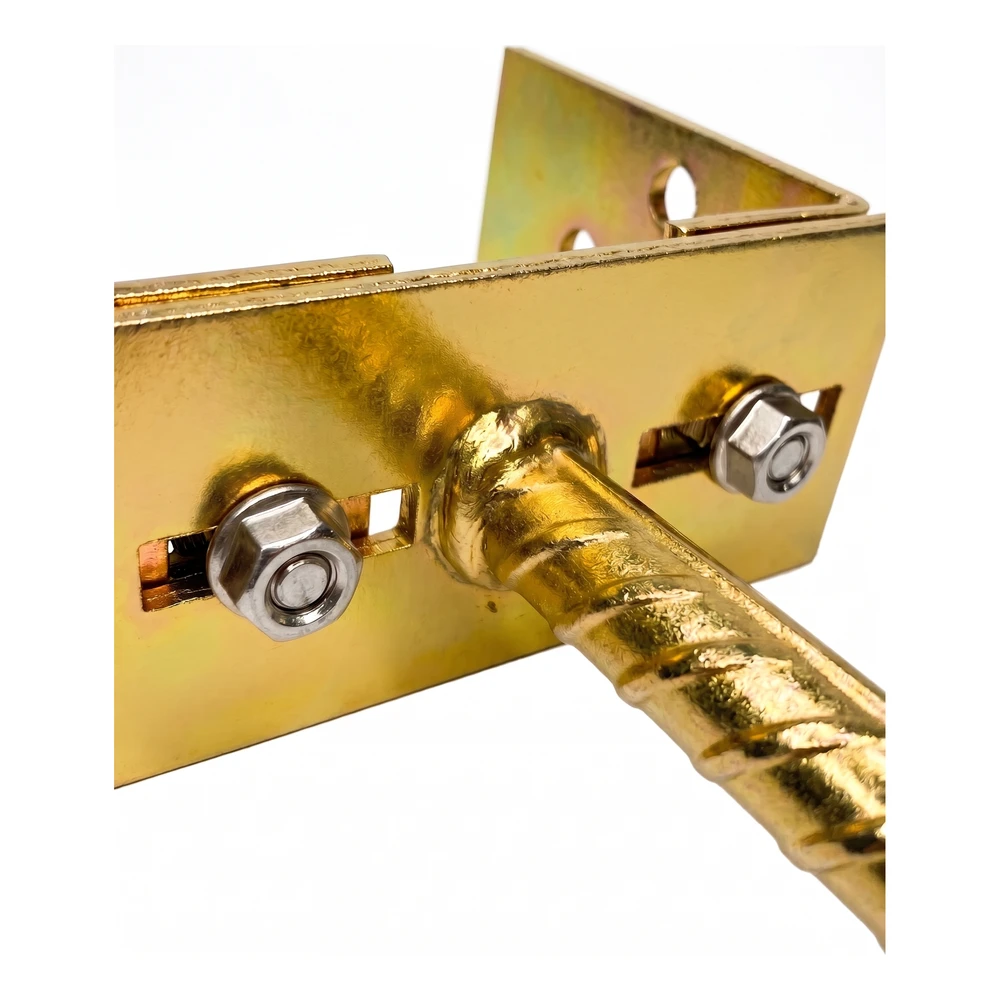

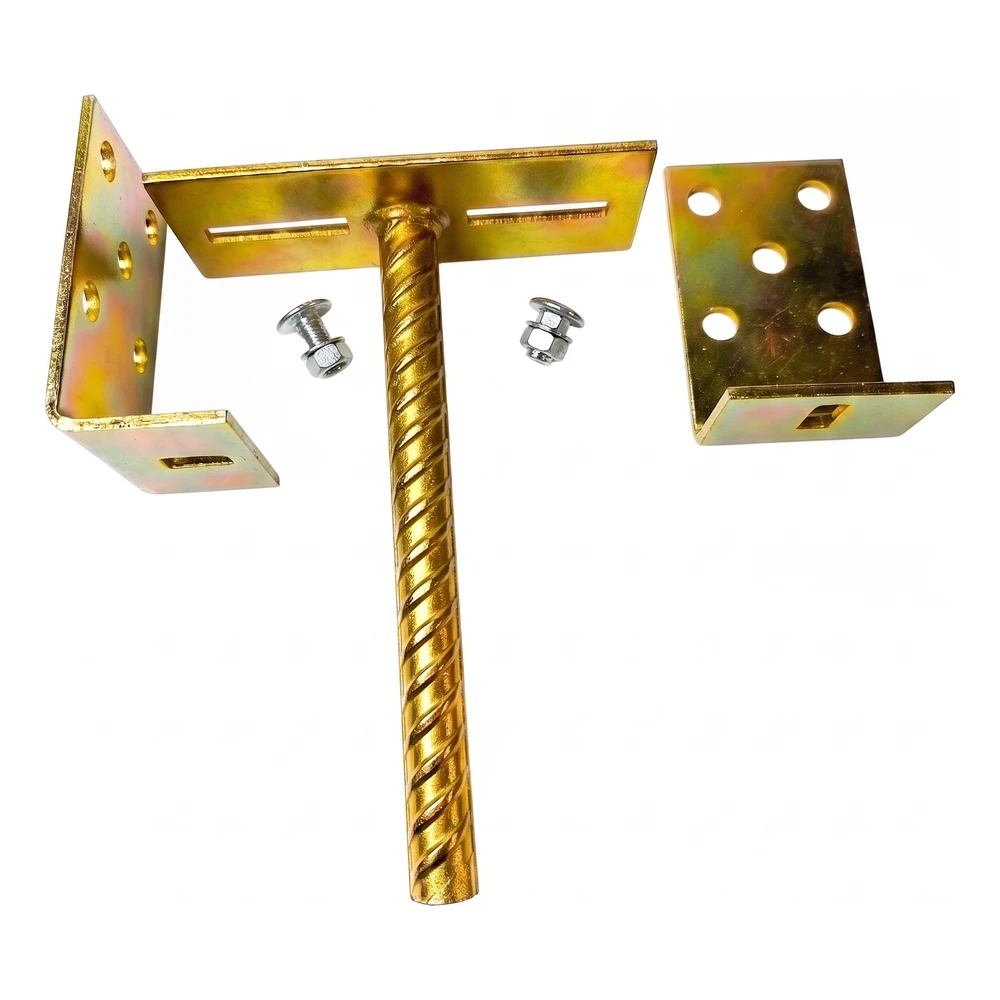

The post base has a gold electro-galvanised finish, which protects against corrosion and allows use both indoors and outdoors. The adjustment elements – the side angle brackets – slide along slotted guides and are locked with bolts and nuts, so setting the width is quick and repeatable. It is sold as a complete set ready for installation – the set includes the body with reinforcing rod, two side angle brackets and fixing bolts.
Design features
- Smooth adjustment of width to suit different post sections
- Reinforcing rod for durable anchoring in the concrete foundation
- Thick steel plate providing high load capacity and joint rigidity
- Electro-galvanised finish protecting against corrosion in outdoor conditions
- Mounting holes in the angle brackets for easy fixing with bolts
- Slotted guides enabling smooth adjustment without dismantling
- Complete set – body, angle brackets and bolts in one pack
Applications
- Installing timber posts in concrete foundations – shelters, gazebos, pergolas
- Fencing structures – setting fence posts in foundation footings
- Canopies and carports – fixing load-bearing elements to a concrete base
- Decking structures – anchoring posts supporting terraces and platforms
- Outbuildings – log stores, sheds and garages with a timber frame
The post base is sold individually. Its compact dimensions place it in the small parcel category, which simplifies delivery logistics to the building site. The adjustable design helps reduce the number of stock variants – one model suits posts across a wide range of sections.
