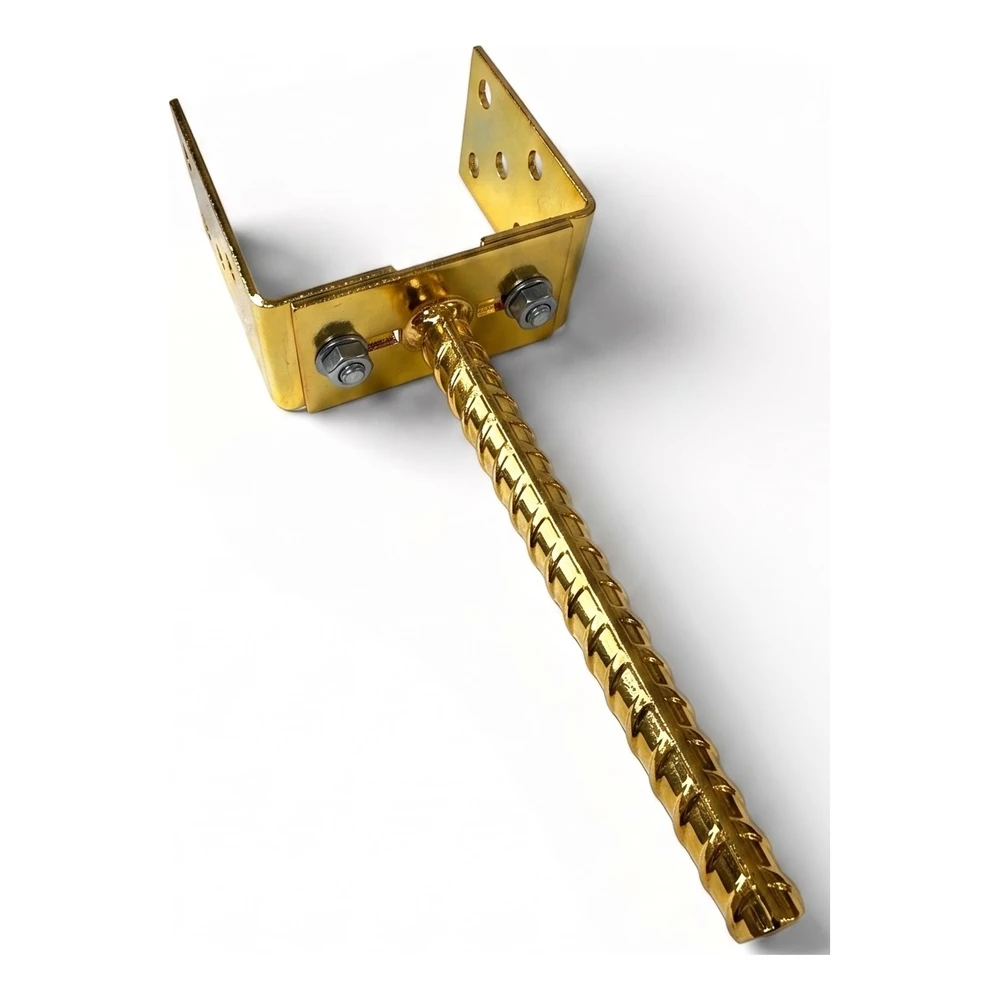

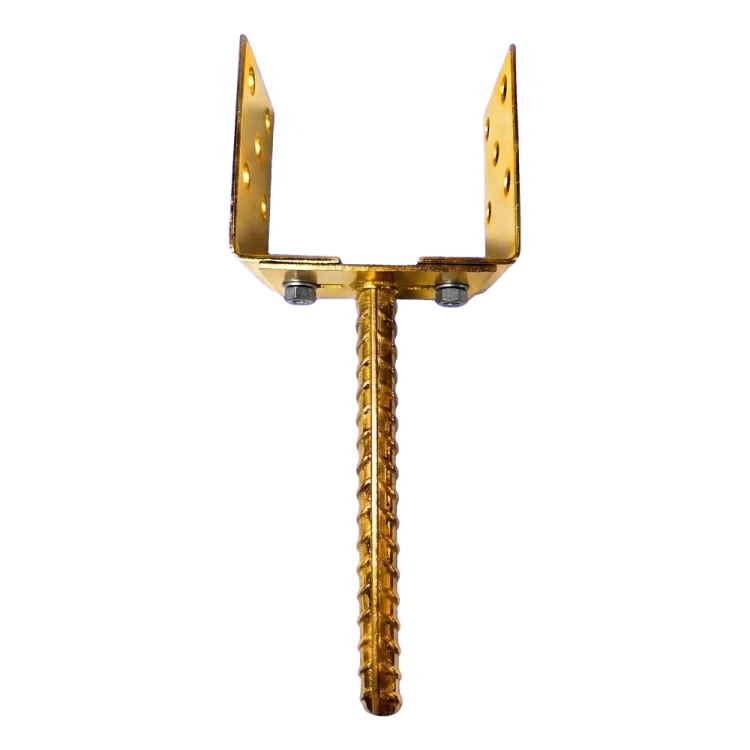

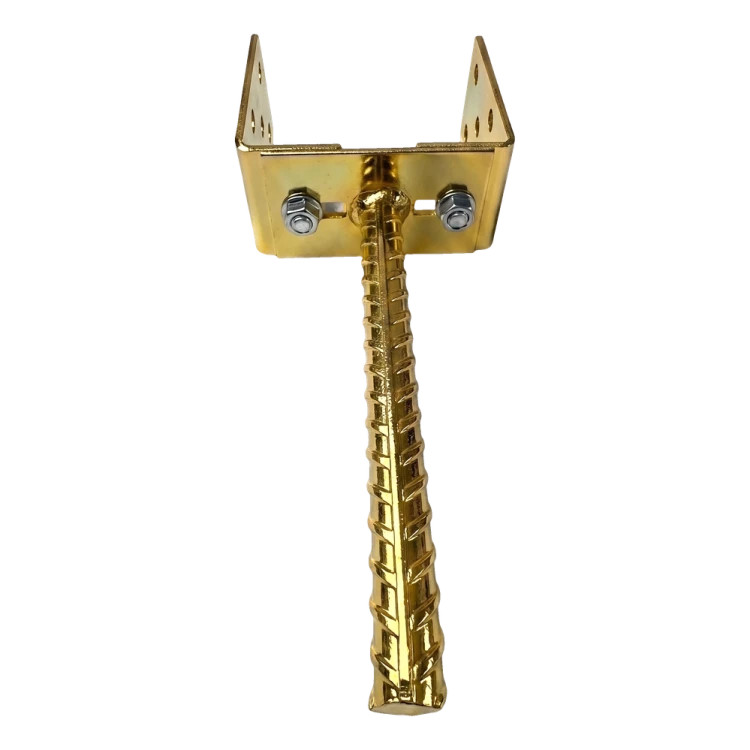

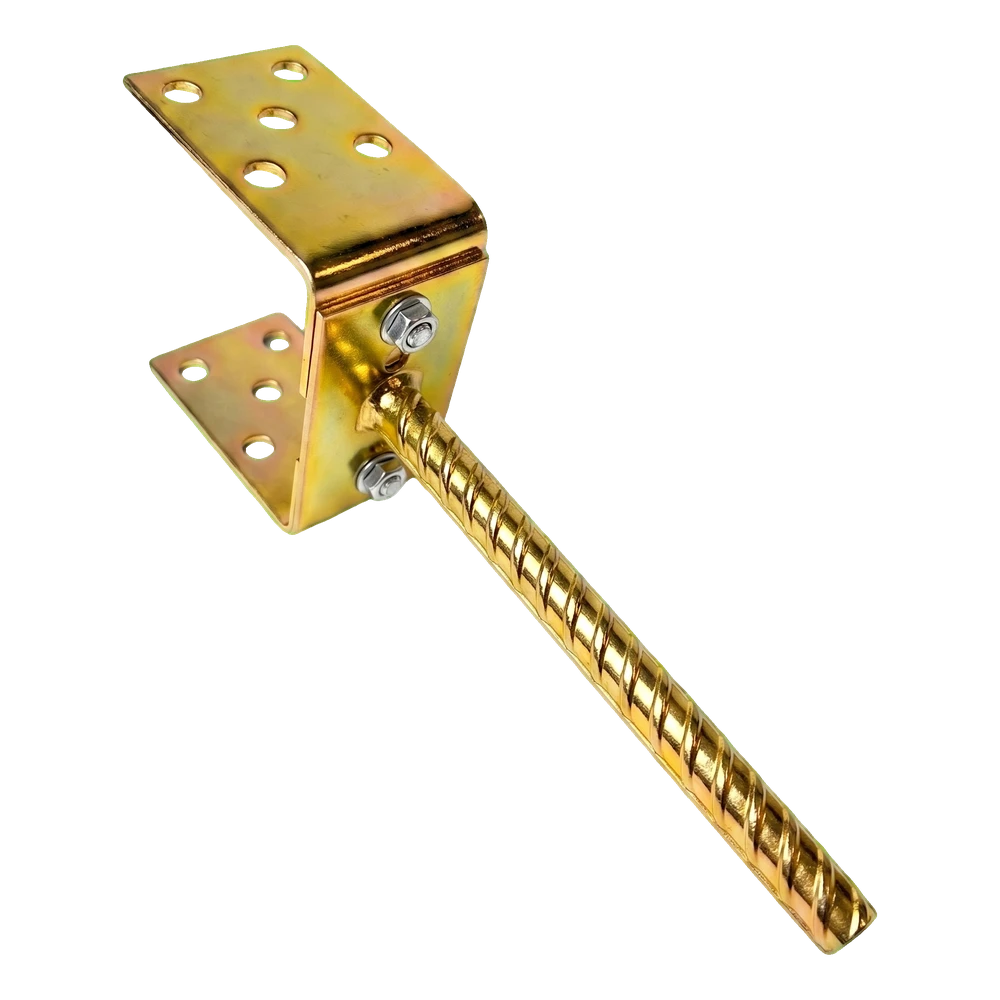

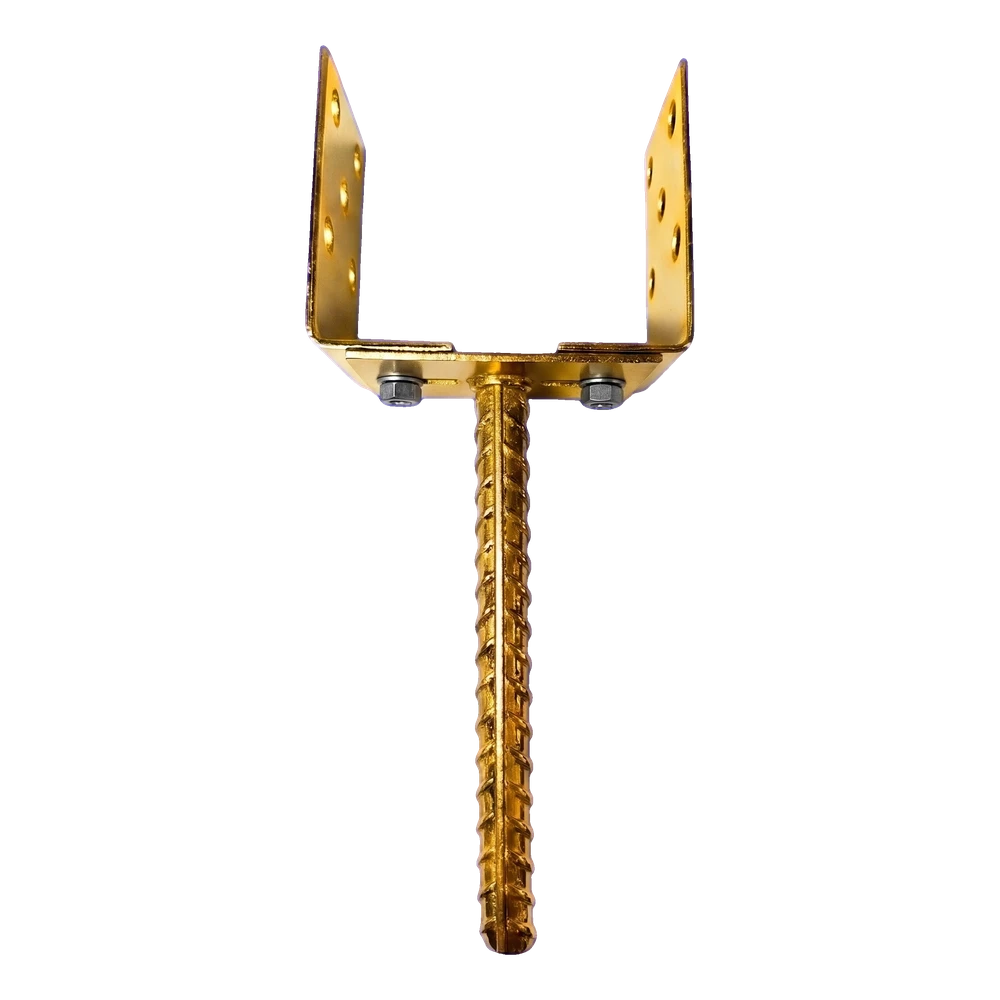

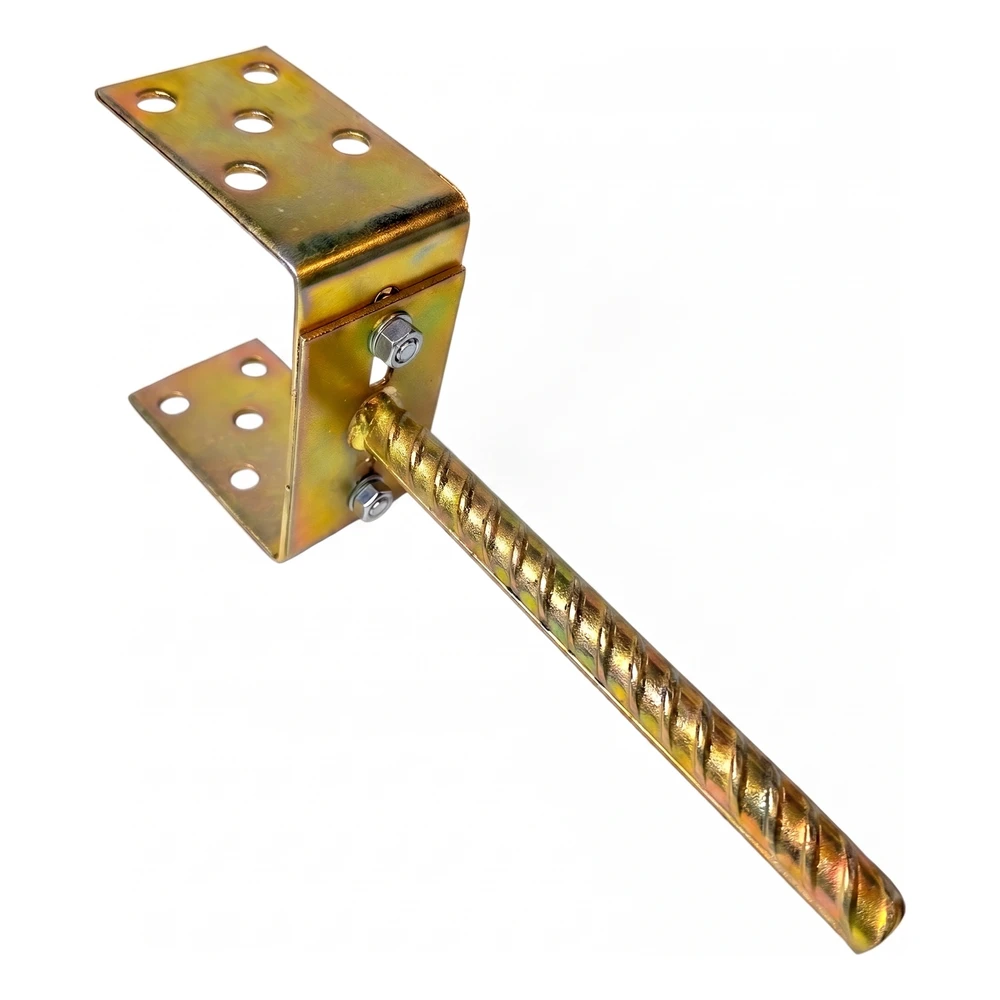

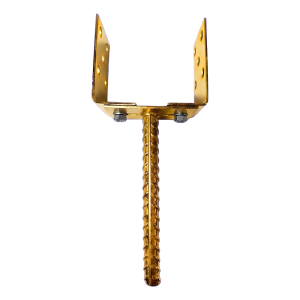

Adjustable concrete-in post base (with rod) 0–125 mm – 190 mm rod, 3 mm plate, gold zinc-plated
Leave feedback on the product
Adjustable concrete-in post base with rod, electro-galvanised steel, gold colour. Width adjustment range 0–125 mm, rod length 190 mm, plate thickness 3 mm, weight 0.9 kg. For fixing timber posts in concrete foundations.
Product code: 002-490
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 3
- Connector Type Post base with rod
- Material Steel
- Coating Yellow zinc
Description
Adjustable concrete-in post base (with rod) 0–125 mm – 190 mm rod, 3 mm plate, gold zinc-plated
The adjustable post bracket with rod is a durable steel connector designed for setting timber posts in concrete foundations. Thanks to its smooth width adjustment, it allows you to precisely align the post position relative to the anchoring point, which significantly simplifies installation work on site.

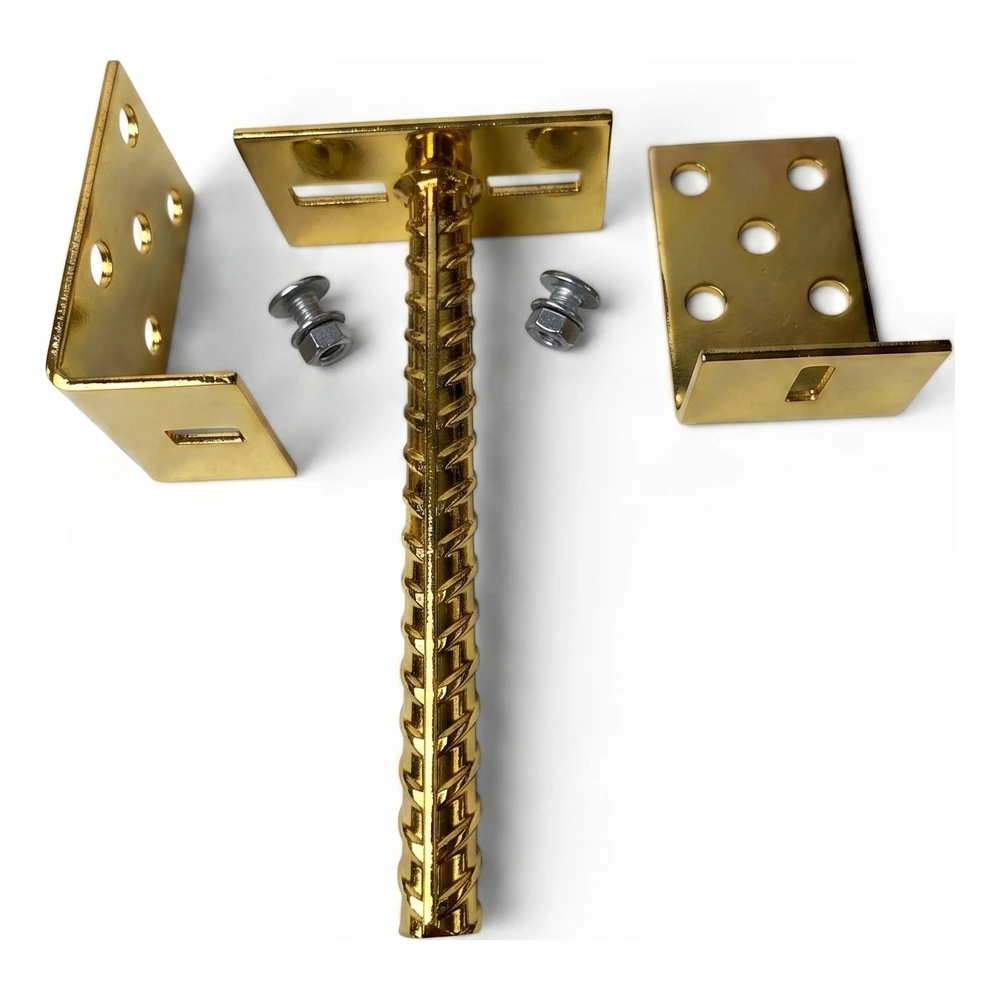

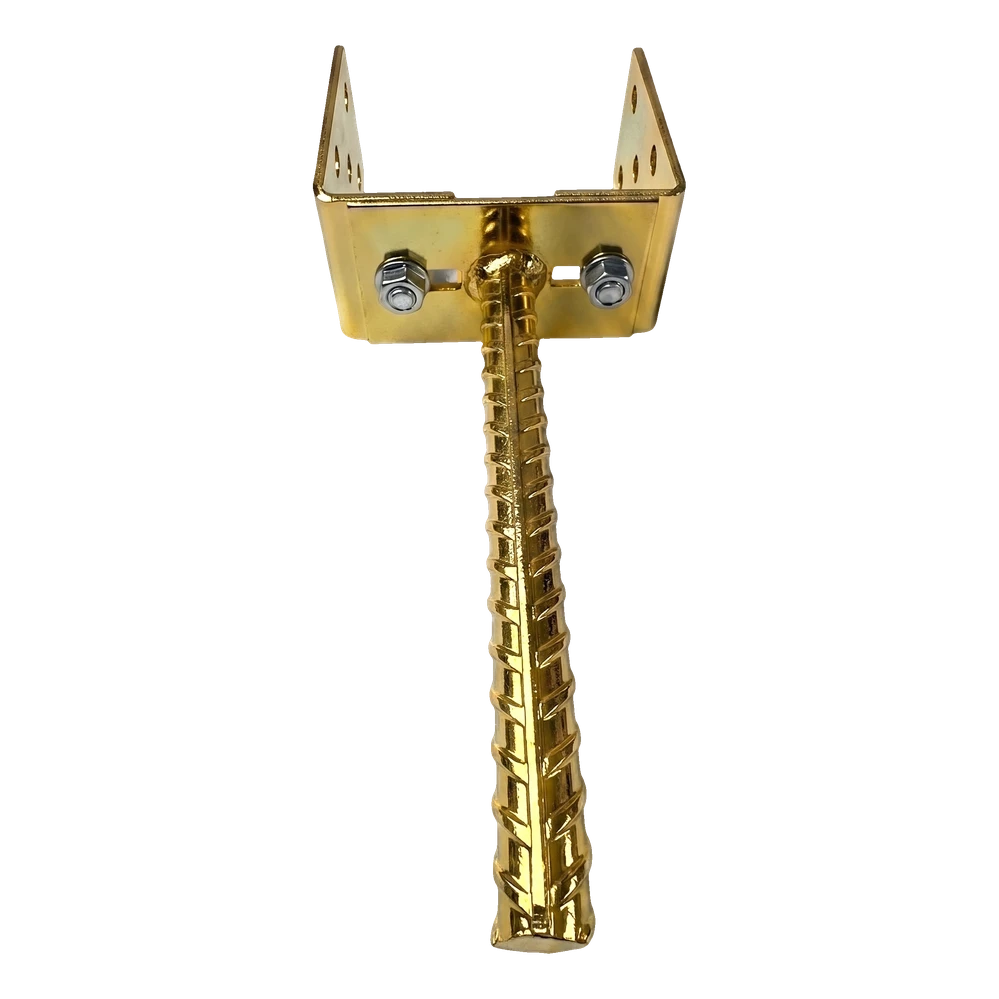

The bracket consists of two adjustable angle brackets mounted on a ribbed rod, which is embedded in the fresh concrete of the foundation. The angle brackets are drawn together with bolts, enabling smooth adjustment of the spacing and a secure clamp on a post of the chosen width.
The bracket is made of thick steel plate, which provides adequate rigidity and load-bearing capacity of the connection. The whole is coated with a gold-coloured zinc coating that protects the steel against corrosion and gives the part an attractive appearance that goes well with light structural timber. The ribbed rod guarantees durable anchoring in concrete — the ribs increase adhesion and prevent the bracket from rotating in the foundation. The product is sold as a complete set, ready for immediate use.
Design features
- Smooth adjustment to suit various timber post cross-sections
- Ribbed rod ensuring durable anchoring in the concrete foundation
- Thick steel plate guaranteeing the rigidity and load-bearing capacity of the entire connection
- Anti-corrosion zinc coating in an attractive gold shade
- Two movable angle brackets with mounting holes for fastening to the post
- Tightening bolts included for precise adjustment of the angle bracket spacing
- Ready to install — complete set in a single package
Applications
- Timber posts in carports, pergolas and garden gazebos
- Fences — mounting timber posts on foundation footings
- Frame structures — anchoring vertical elements in concrete strip and pad foundations
- Decks and canopies — a secure connection between timber and foundation with no contact with the ground
- PV structures — setting load-bearing posts for ground-mounted support structures
The adjustable bracket with rod is a proven solution wherever a timber post must be permanently and stably connected to a concrete foundation. The width adjustment eliminates the need to order brackets for a specific post cross-section — one size fits different elements, which simplifies logistics and storage.
