Adjustable bolt-down post base (with plate) 0–125 mm – 3 mm plate, silver zinc-plated
Leave feedback on the product
Adjustable bolt-down post base with plate, electro-galvanised steel, silver colour. Width adjustment range 0–125 mm, bottom plate 100 x 100 mm, post standoff from the ground 85 mm, plate thickness 3 mm. Weight 0.920 kg. For timber posts.
Product code: 002-485
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 3
- Connector Type Post base with plate
- Material Steel
- Coating Silver zinc
Description
Adjustable bolt-down post base (with plate) 0–125 mm – 3 mm plate, silver zinc-plated
The adjustable post bracket with plate is a durable steel connector designed for fixing timber posts to a concrete foundation. Thanks to smooth width adjustment, the bracket allows the side holders to be fitted to different post cross-sections, which significantly increases its versatility on site.

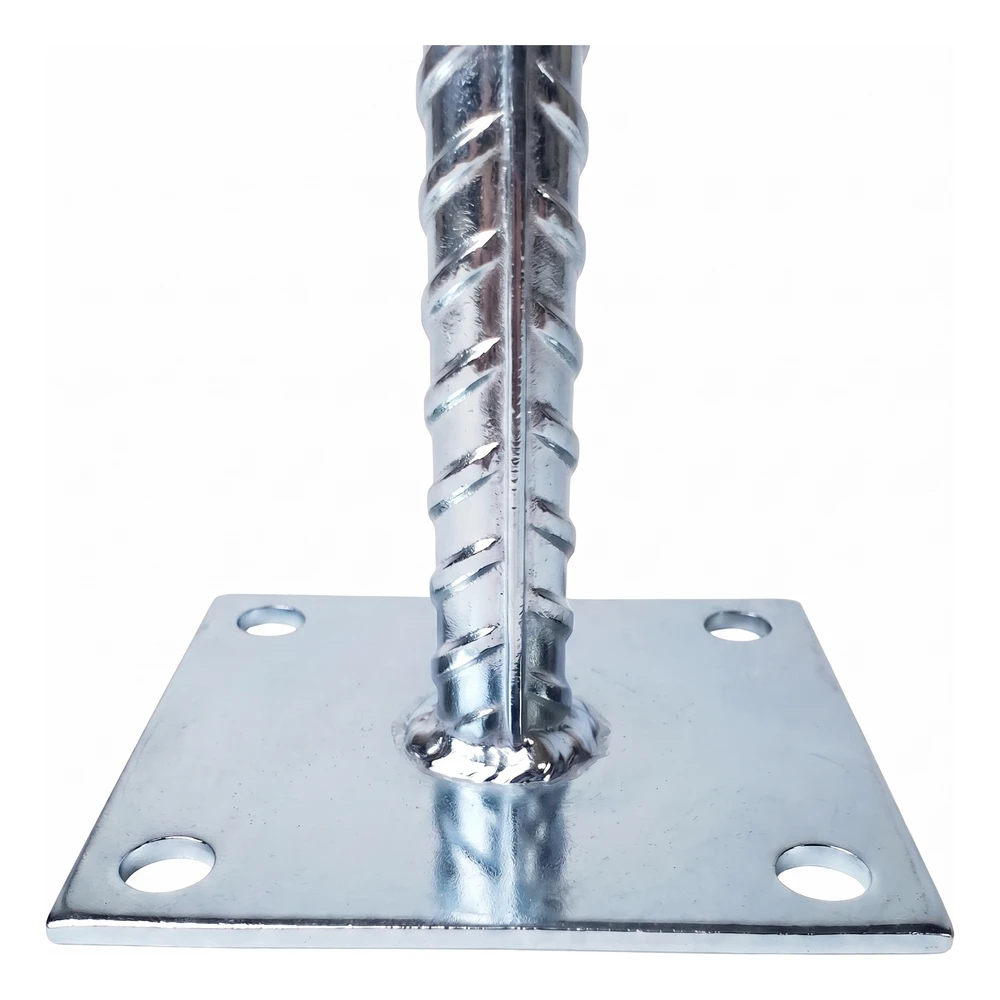

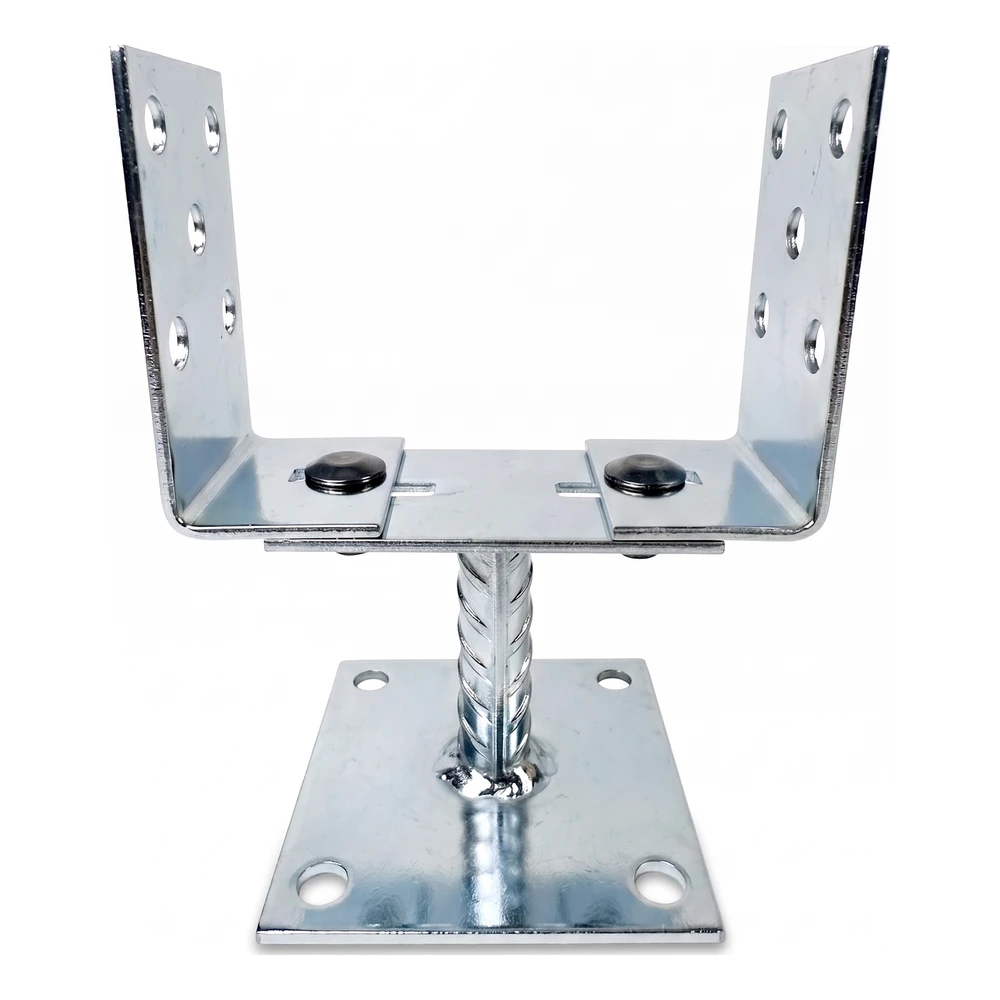

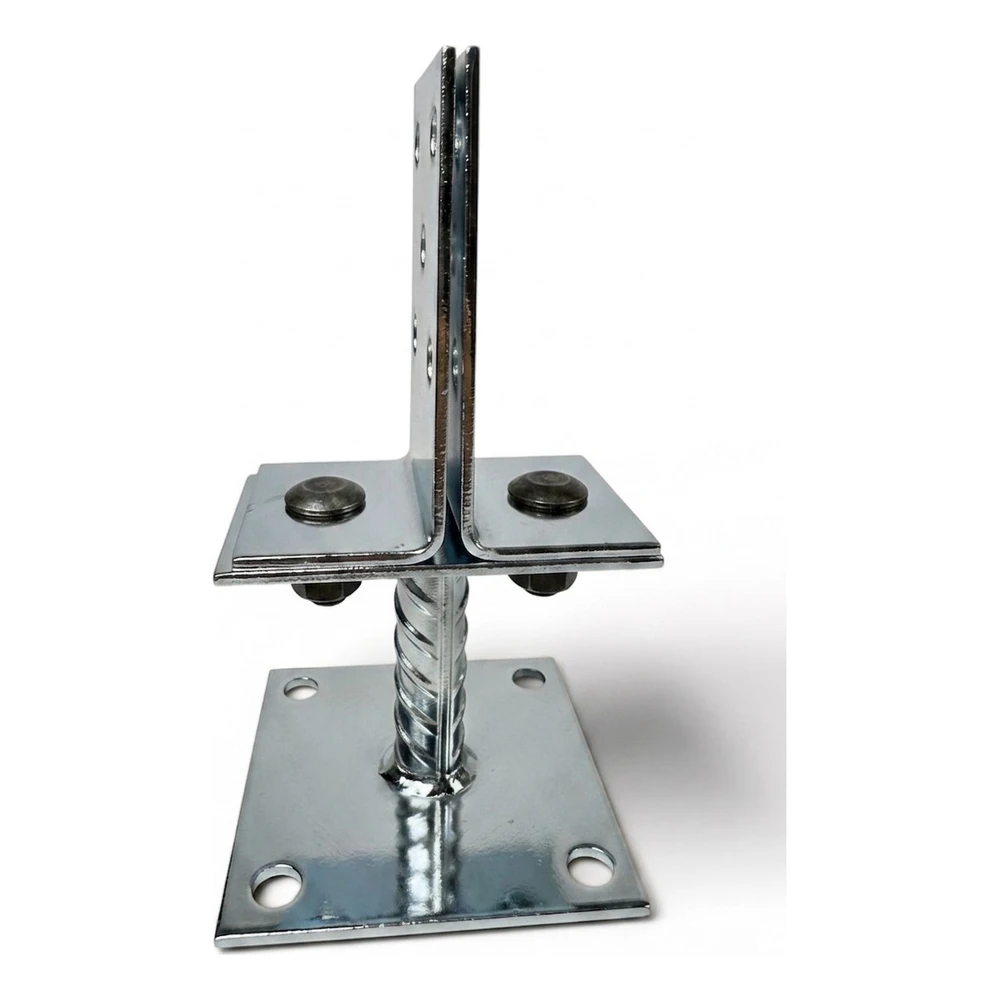

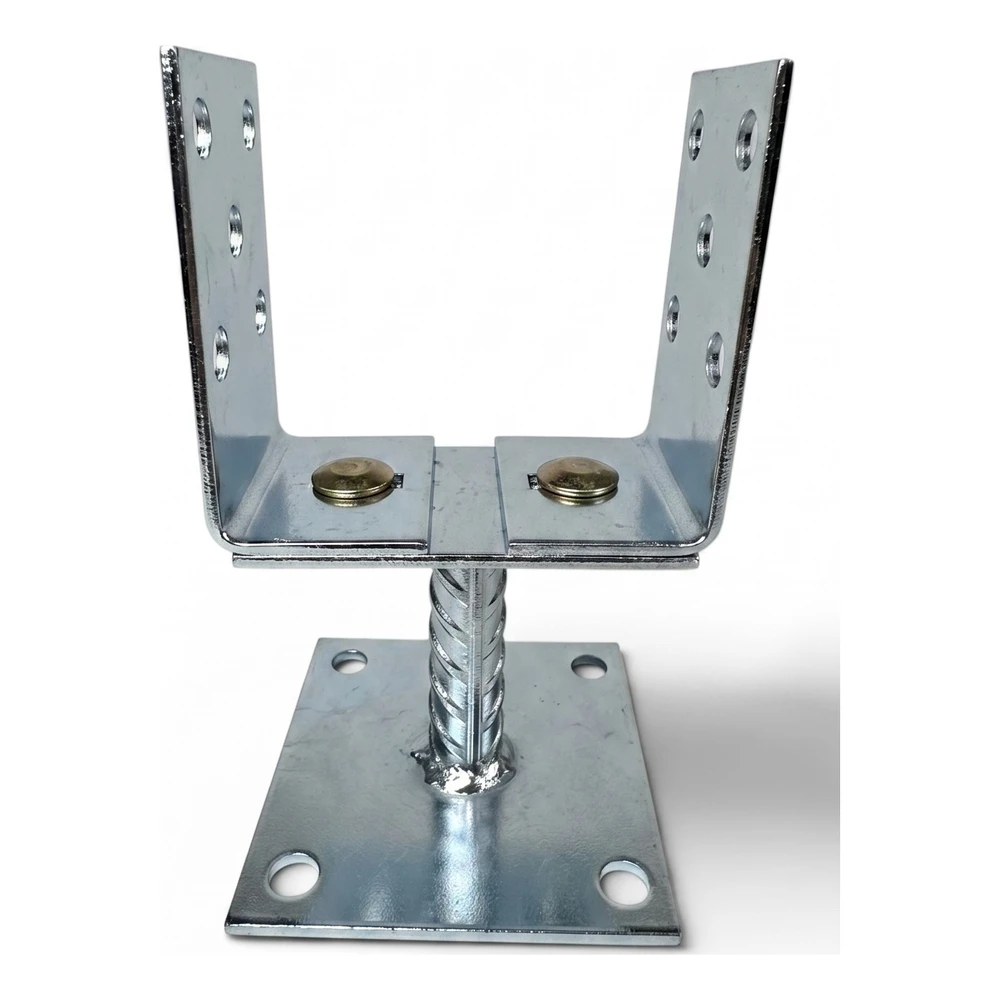

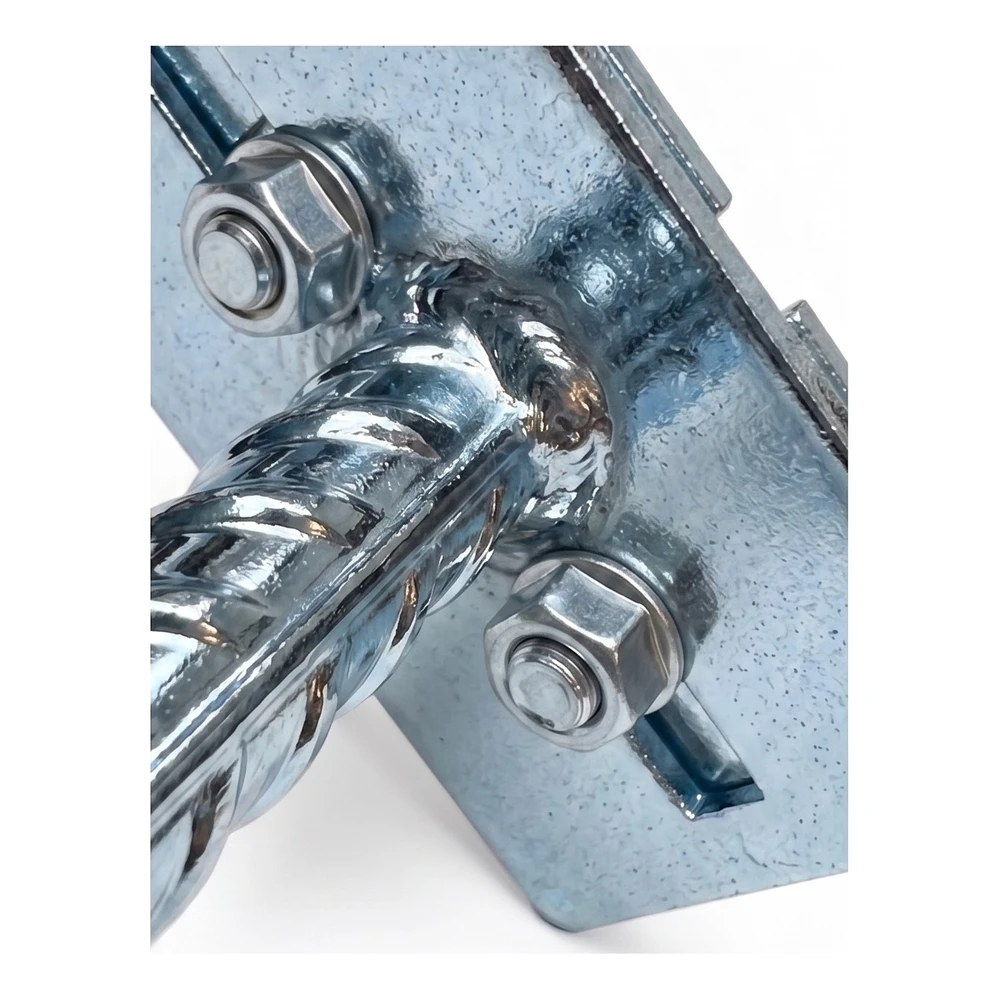

The bracket consists of a bottom plate mounted on a ribbed rebar pin and two movable side plates fixed with bolts. The pin is embedded in the concrete foundation, while the side plates grip the post and are tightened to the chosen width. This design effectively protects the timber from contact with moisture and rainwater, providing an appropriate post standoff from the ground.

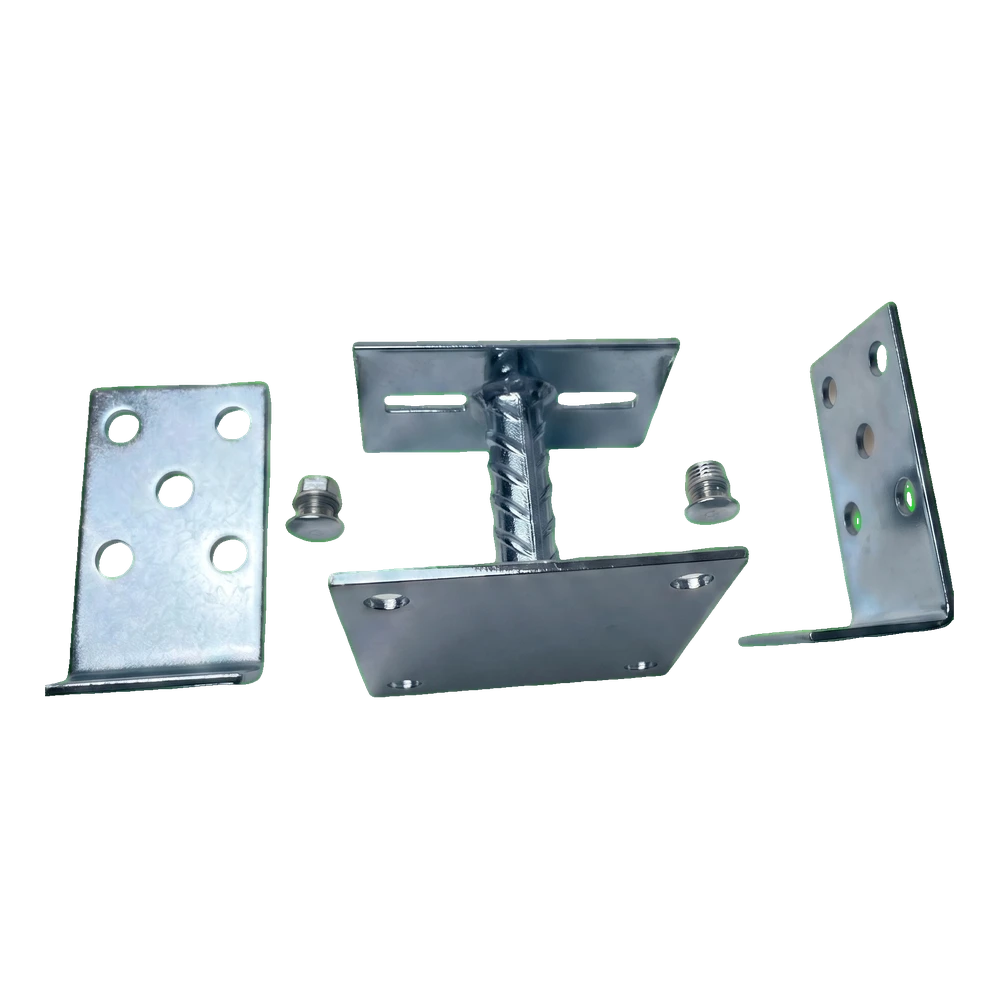

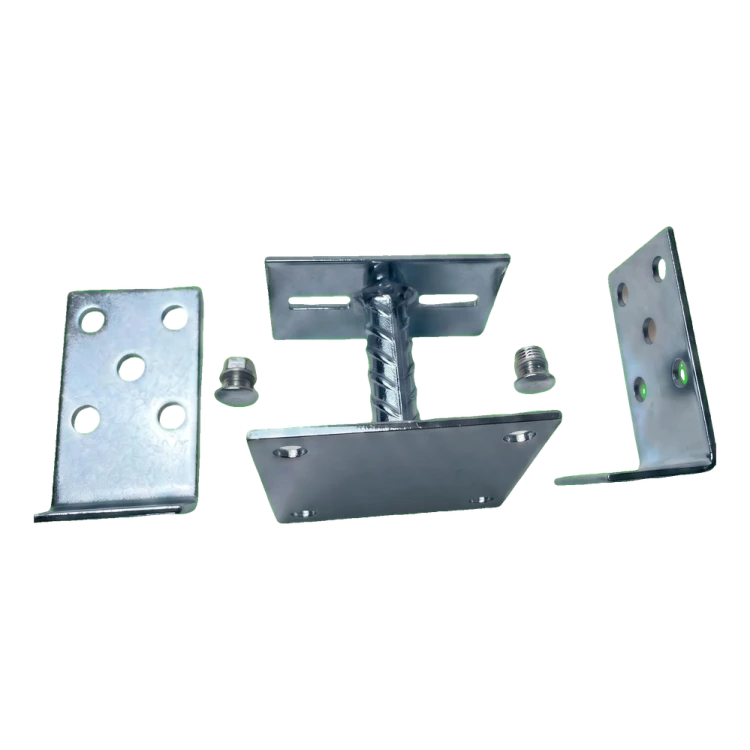

The bracket is made of steel coated with silver electro-galvanised zinc, which provides corrosion resistance in typical weather conditions. The solid thickness of the side plates ensures a highly rigid connection and keeps the post stable even under considerable loads. The product is sold as a complete set — the pack contains the bracket with pin, two side plates and mounting bolts, eliminating the need to source fasteners separately.
Bracket features
- Smooth adjustment — fits different timber post cross-sections
- Solid construction — high rigidity and durability of the connection
- Stable mounting base — secure seating on a concrete foundation
- Isolation from the ground — protects the post from capillary rising damp
- Corrosion protection — zinc coating extends the service life of the connector
- Ribbed pin — secure anchoring in concrete with no risk of rotation
- Complete set — bracket, side plates and bolts in one pack
Applications
- Pergolas and shelters — fixing load-bearing posts of garden structures to concrete footings
- Gazebos and canopies — durable seating of timber posts while maintaining a gap above the ground
- Fences — fixing timber posts to a plinth or pad foundation
- Timber structures — anywhere a post must be isolated from damp ground
- Decks and jetties — anchoring load-bearing elements of decking structures to concrete foundations
The adjustable bracket with plate is a solution valued by professional contractors for its simple installation and versatility. Simply embed the pin in the prepared foundation, and once the concrete has set, place the post between the plates and tighten the bolts to the required width. No welding or specialist tools are needed, so installation is quick and requires no additional training for the crew.
