Adjustable balustrading elbow 90°–180° for 40x40x2 mm profile – AISI 304 stainless steel satin
0
Description
Adjustable balustrading elbow 90°–180° for 40x40x2 mm profile – AISI 304 stainless steel satin

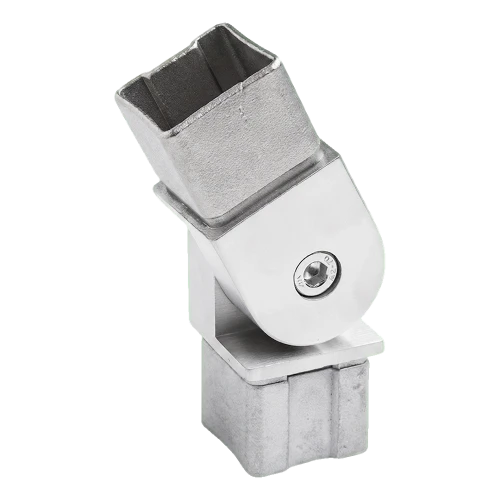

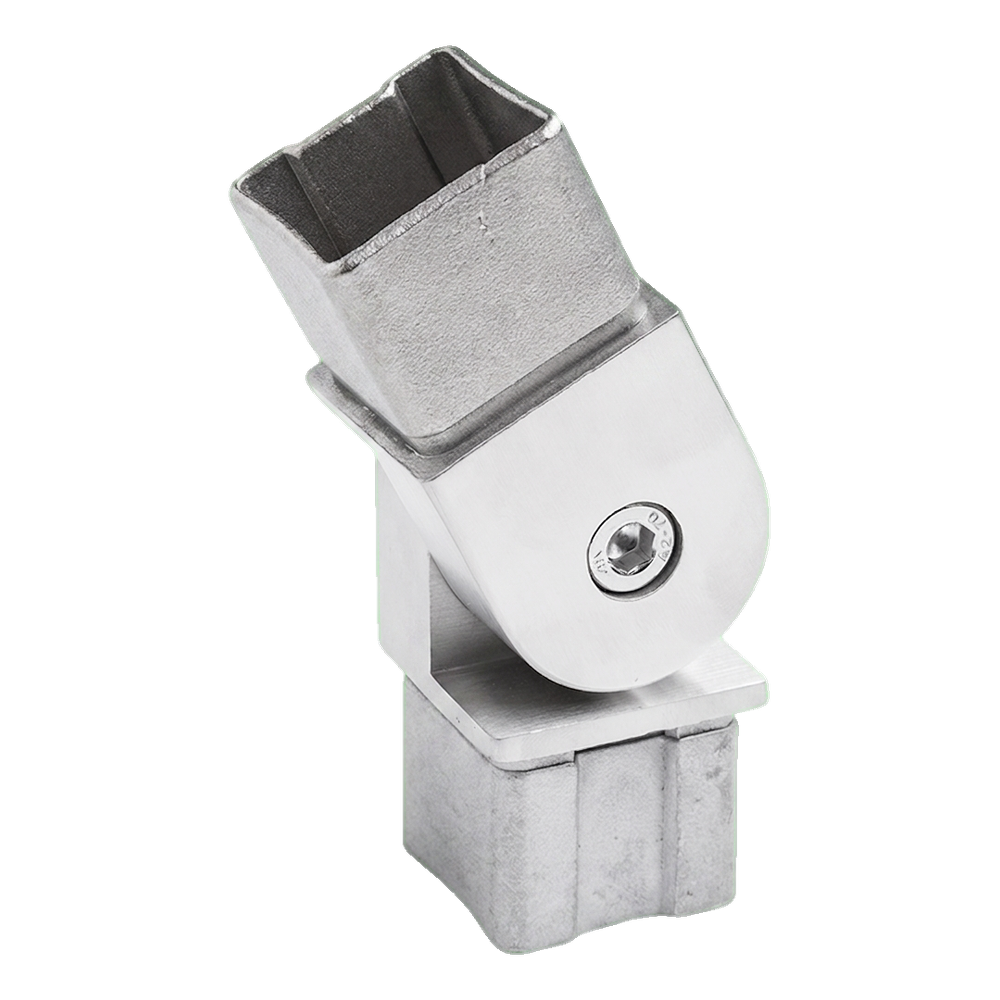

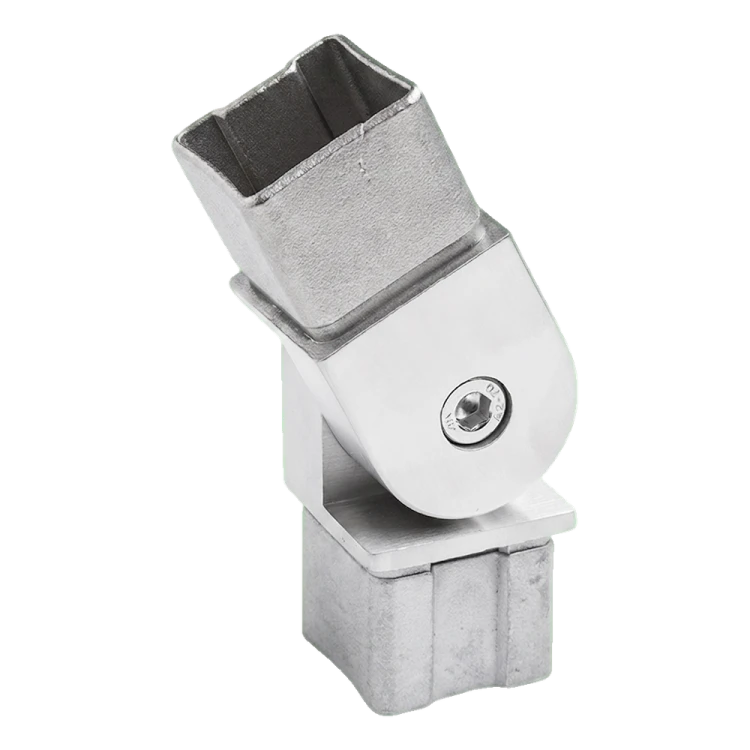

Adjustable elbow 90°–180° is a precision balustrading connector designed for square profiles 40x40 mm with wall thickness 2 mm. The element made from stainless steel AISI 304 with elegant satin finish provides durable and aesthetic connection of handrails to posts in stainless steel balustrades. Thanks to the adjustable joint, it allows angle setting from 90° to 180°, which permits free adjustment of handrail inclination to the shape of stairs, landings and ramps — without the need for welding or cutting profiles at angles.
Assembly of the connector is carried out using the bonding method with anaerobic adhesive. The adhesive bonds under contact with metal and cures by cutting off oxygen supply, ensuring strong and externally invisible connection. For installation teams, this means quick and clean installation without the need to use welding equipment on site.
Technical parameters
- Type: adjustable elbow
- Angle range: 90°–180°
- Profile: 40x40 mm, wall thickness 2 mm

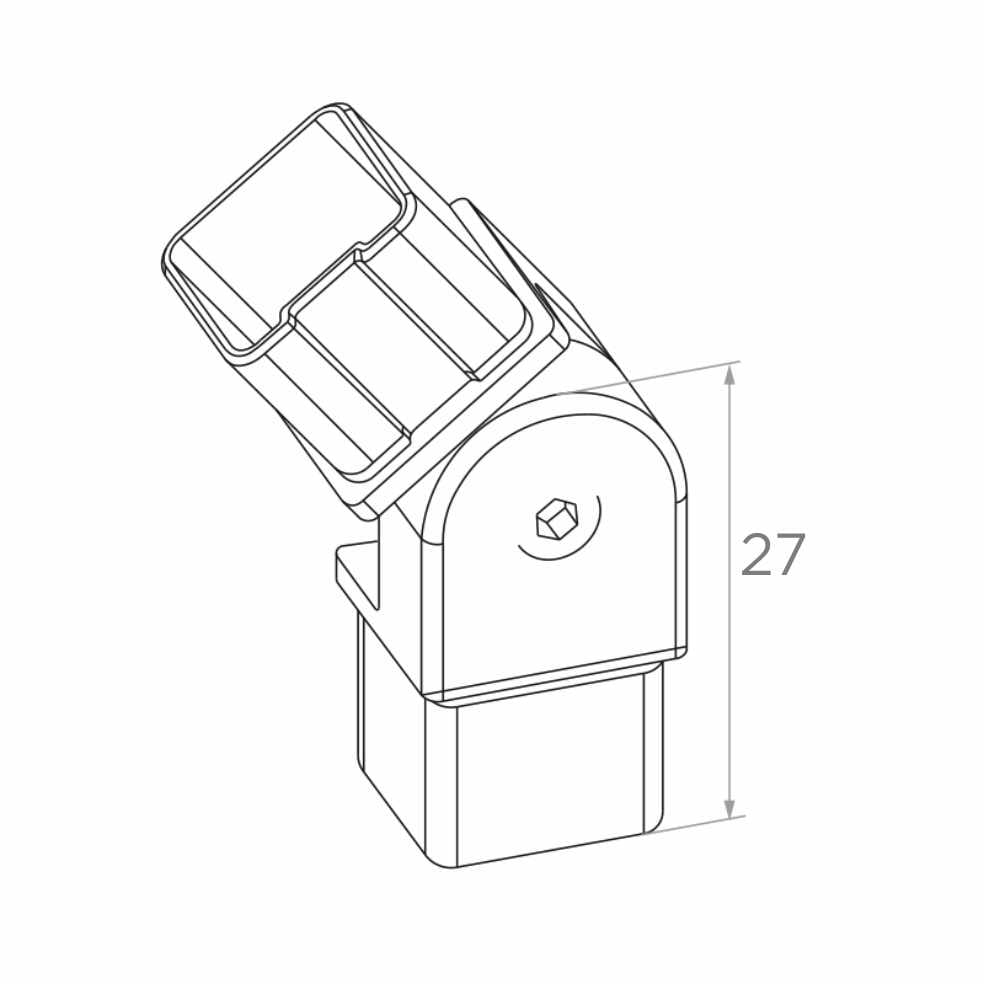

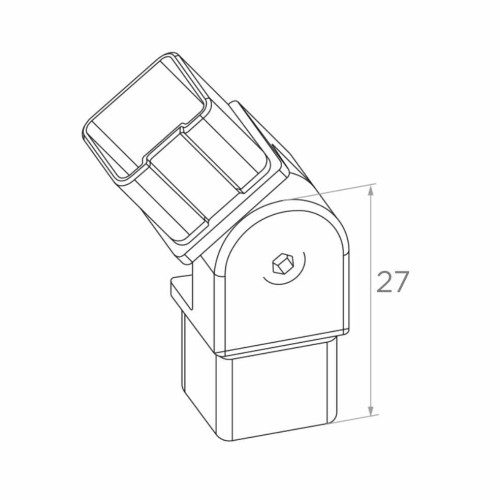

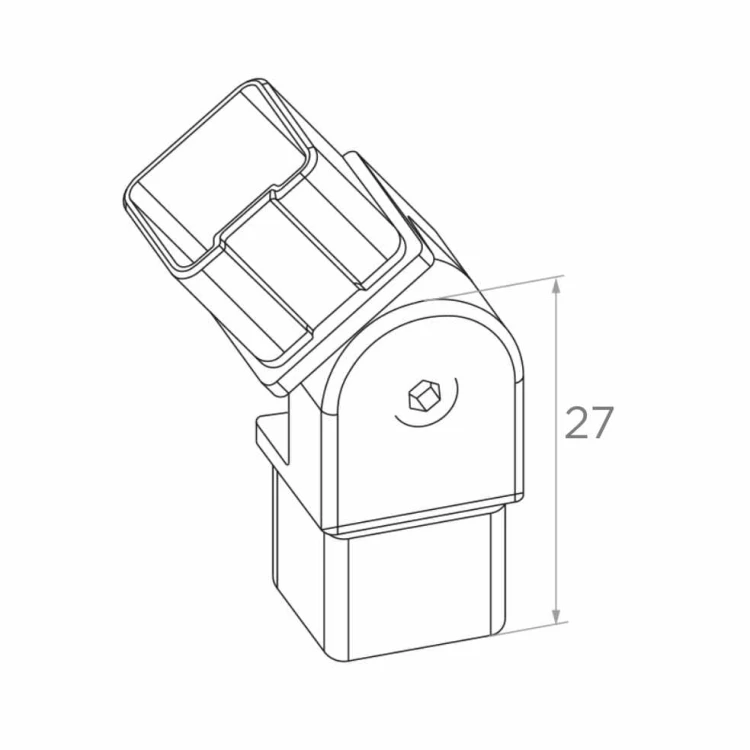

- Dimension H (mounting section height): 27 mm
- Material: AISI 304 stainless steel
- Finish: satin
- System: 40x40
- Assembly: bonding (anaerobic adhesive)
- Weight: 0.58 kg
- EAN: 5901289673235
Application and compatibility
The connector is designed for balustrading systems based on square profiles 40x40 mm. It enables creation of angular connections on stairs and ramps, where the handrail inclination angle changes according to the design. The joint allows precise angle adjustment directly on site, eliminating the need for prior cutting of elements at specific angles. The product is intended for use with anaerobic adhesive — we recommend using dedicated adhesive for balustrading connections in stainless steel.
Technical data
| Material | AISI 304 |
| Finish | Satin |
