Adjustable balustrade elbow 90°–180° for rod ø 12 mm – stainless steel AISI 304 satin
0
Description

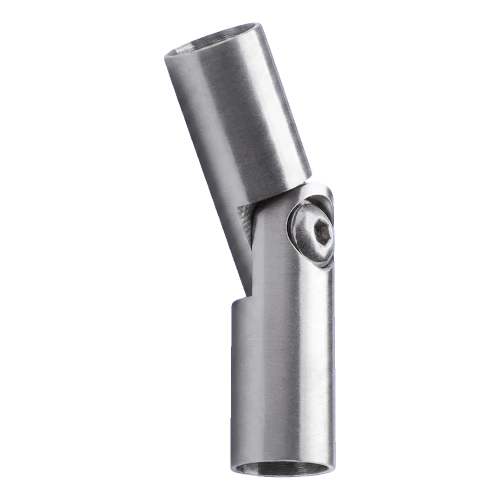

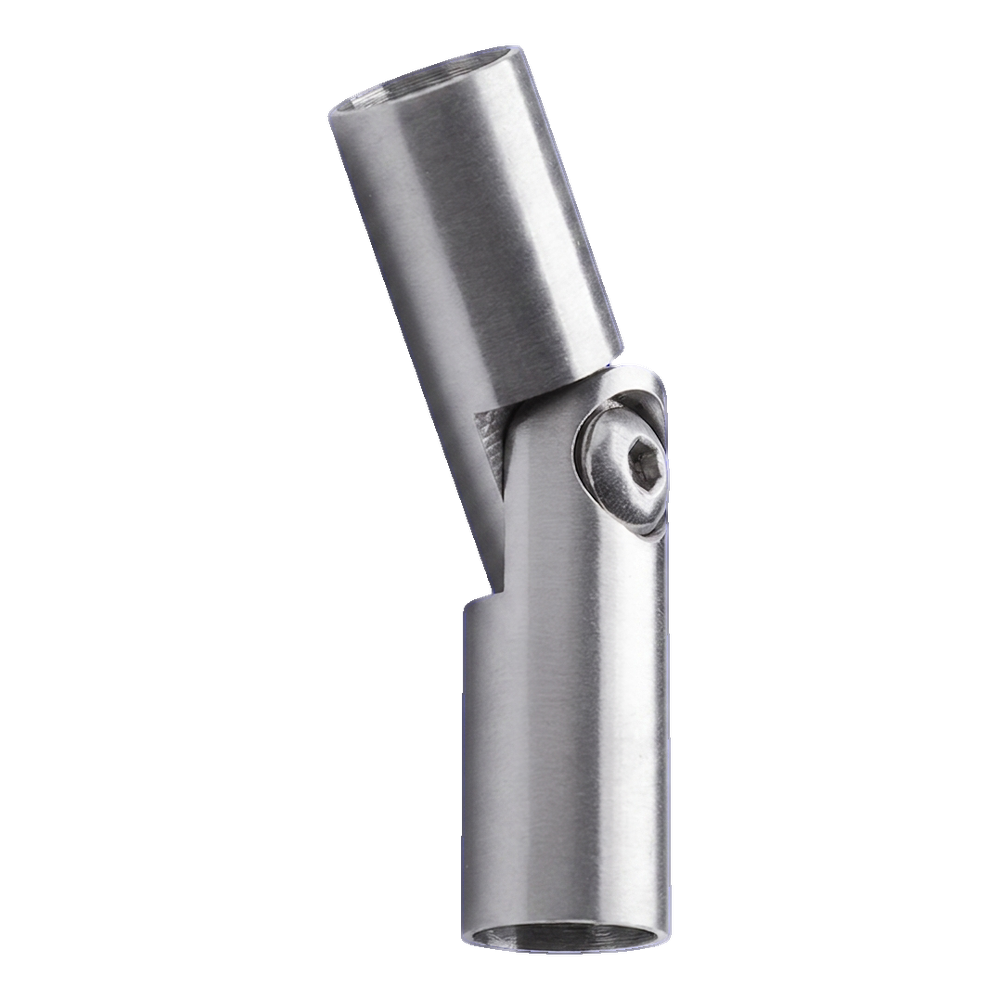

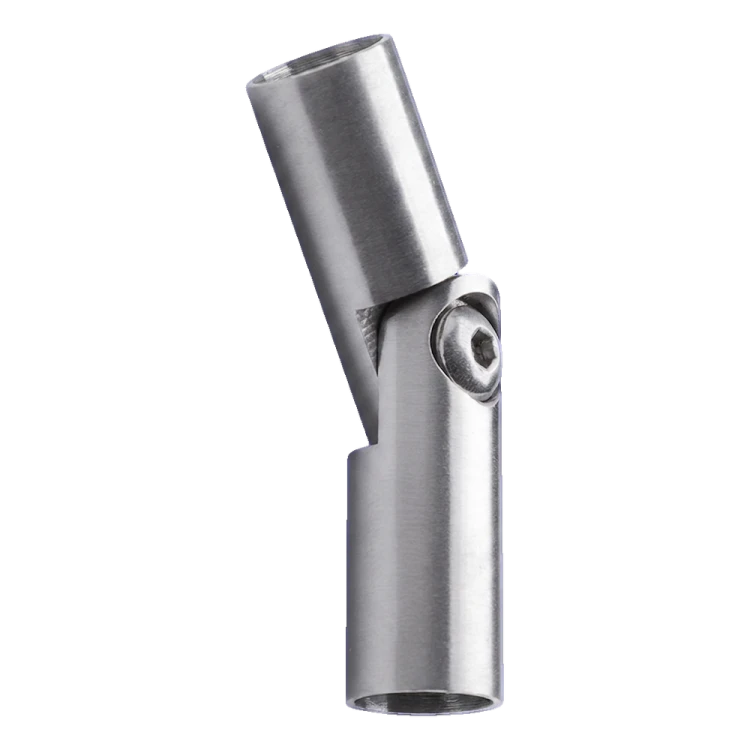

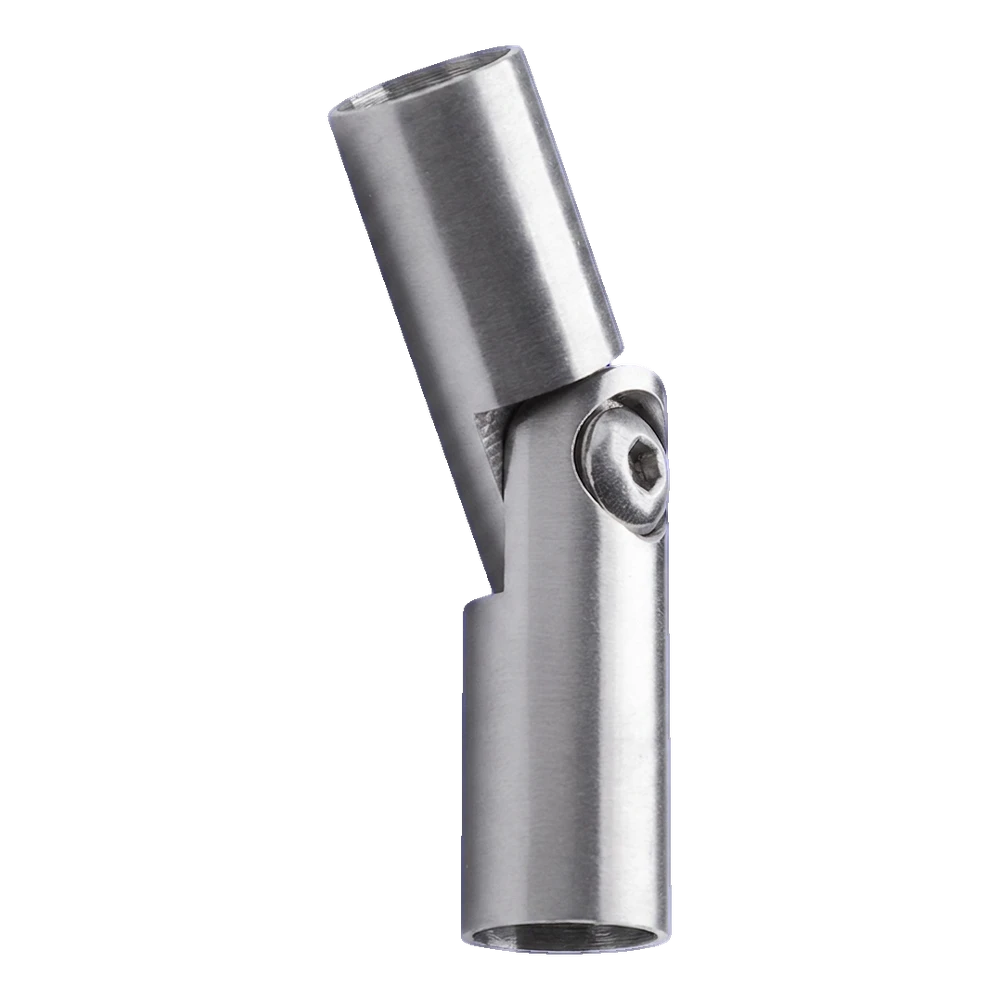

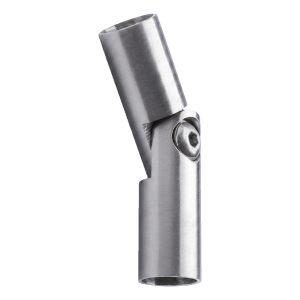

Adjustable balustrade elbow 90°–180° for rod ø 12 mm – stainless steel AISI 304 satin
Adjustable elbow 90°–180° is a balustrade connector designed for durable and aesthetic connection of rods or handrails with diameter ø 12 mm. Thanks to the adjustable joint with range 90° to 180° it enables precise angle adjustment in corners of balcony, terrace and stair balustrades — without the need for cutting and welding elements on site.
The connector is made from high-quality stainless steel AISI 304 with satin finish, which ensures high corrosion resistance and consistent appearance with other brushed steel balustrade elements. The angle setting is adjusted using an Allen screw, allowing for quick and secure installation without specialist tools.

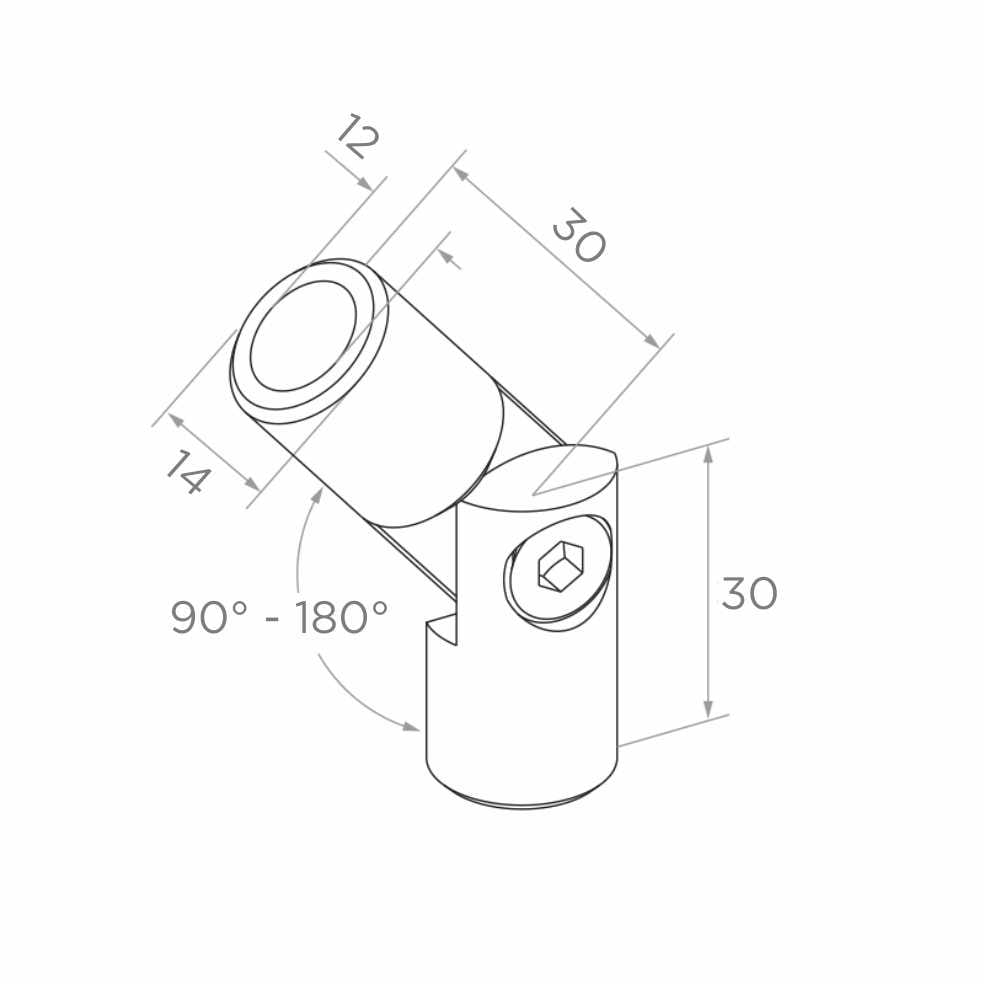

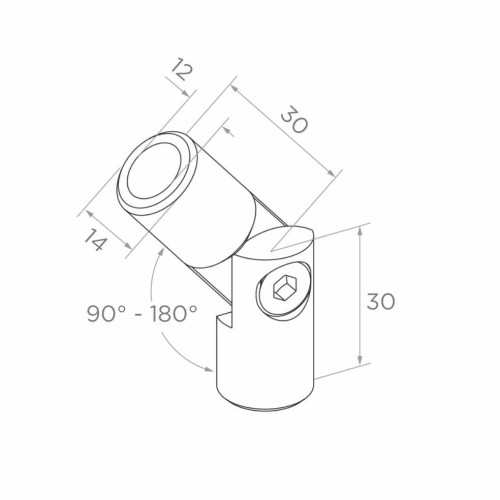

Dimensions and technical parameters
- Internal diameter (rod/tube hole): 12 mm
- External sleeve diameter: 14 mm
- Upper arm length: 30 mm
- Lower arm length: 30 mm
- Angle adjustment range: 90°–180°
- Material: stainless steel AISI 304
- Surface finish: satin (brushed)
- Fixing method: screwed – Allen screw
- Weight: 0.03 kg
- EAN: 5901289673297
Application
The adjustable elbow is an essential structural element when building balustrades with complex shapes. It is used wherever the handrail or infill changes direction — in balcony corners, on terrace turns and in stair transitions. The adjustable angle allows the installer to adapt the balustrade geometry to actual site conditions, eliminating the need for welding and reducing installation time.
Technical data
| Material | AISI 304 |
| Finish | Satin |
