Adjustable Post Support Bracket with Rod 0–165 mm – 190 mm Rod, Galvanised
Leave feedback on the product
Adjustable post support with rod, electro-galvanised steel, silver. Width adjustment range 0-165 mm, ribbed rod length 190 mm, plate thickness 3 mm. Weight 1.15 kg. For setting timber posts in concrete foundations.
Product code: 002-191
Description
Adjustable post support with rod 0-165 mm, Silver zinc-plated
The adjustable post support with rod is a durable steel connector designed for setting timber posts in concrete foundations. Thanks to its smooth width adjustment, it allows you to precisely match the spacing to the cross-section of the post being installed, making it a versatile solution on site.

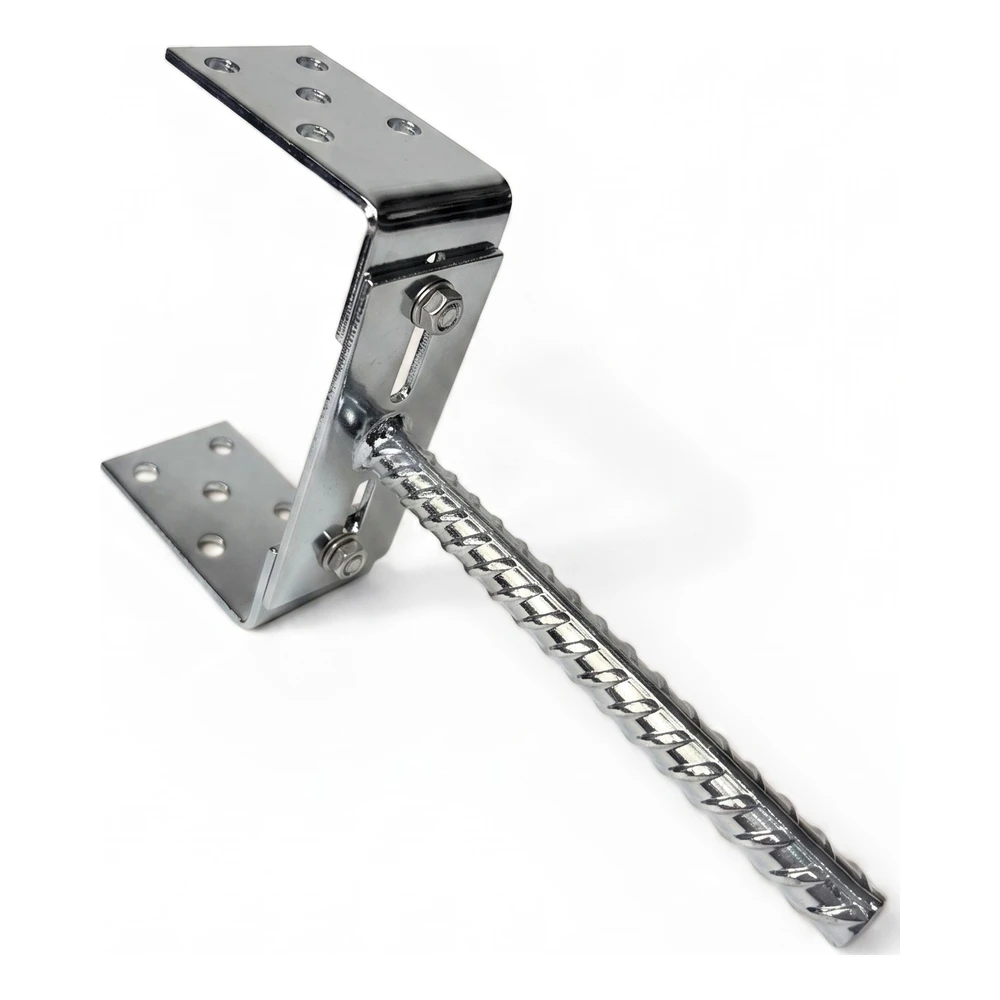

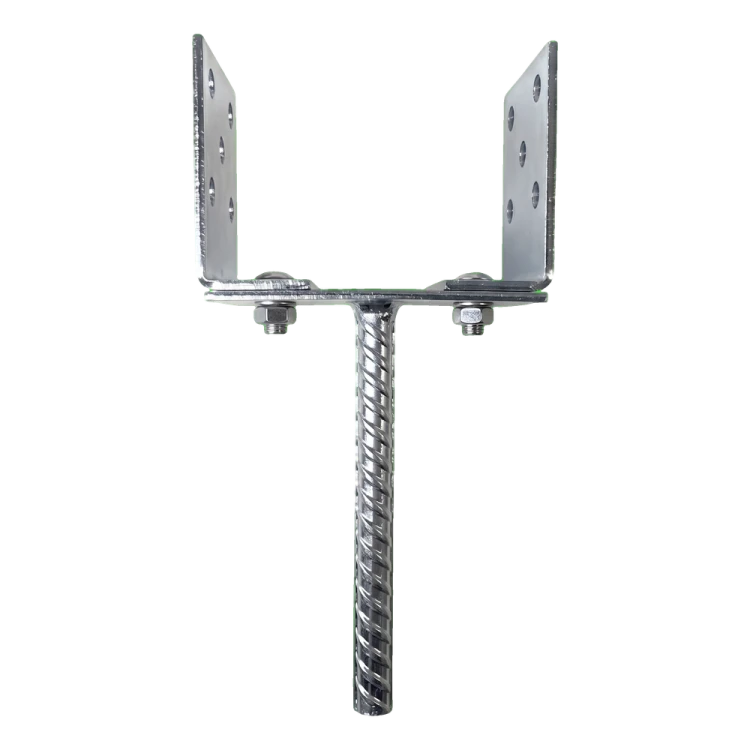

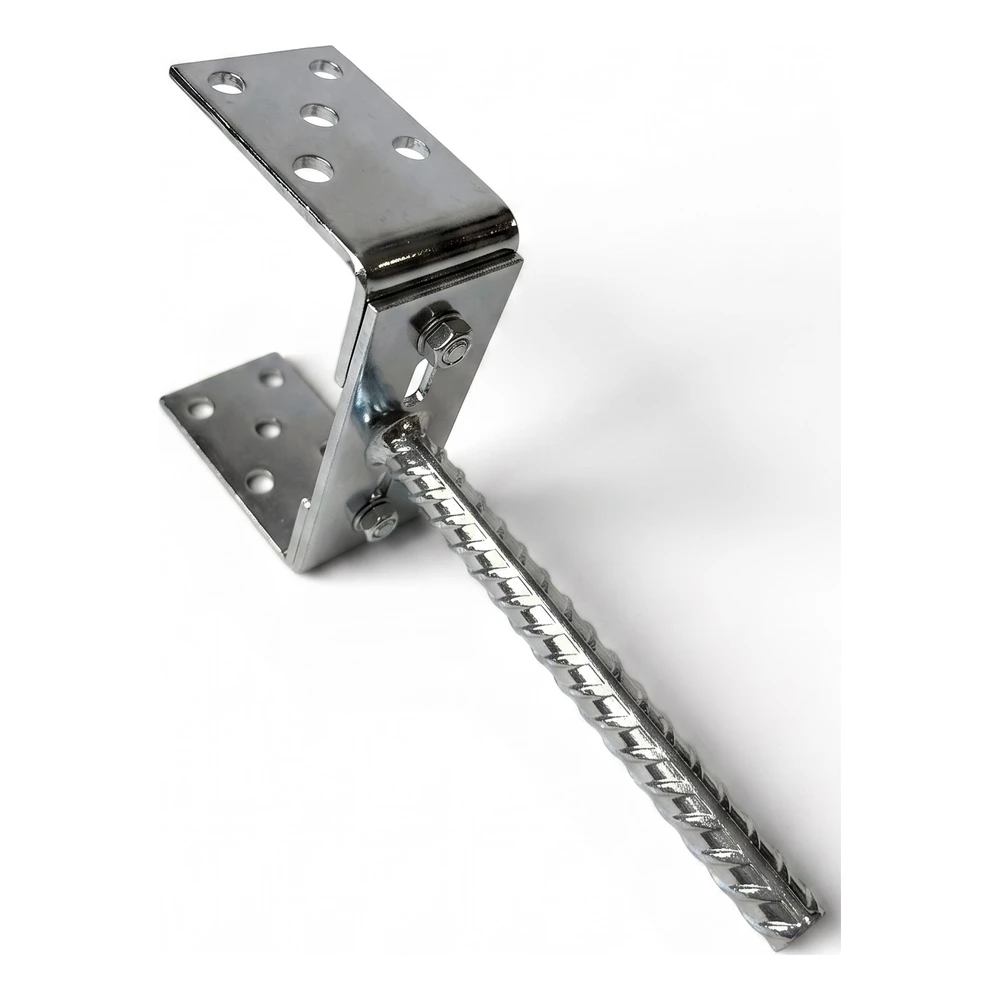

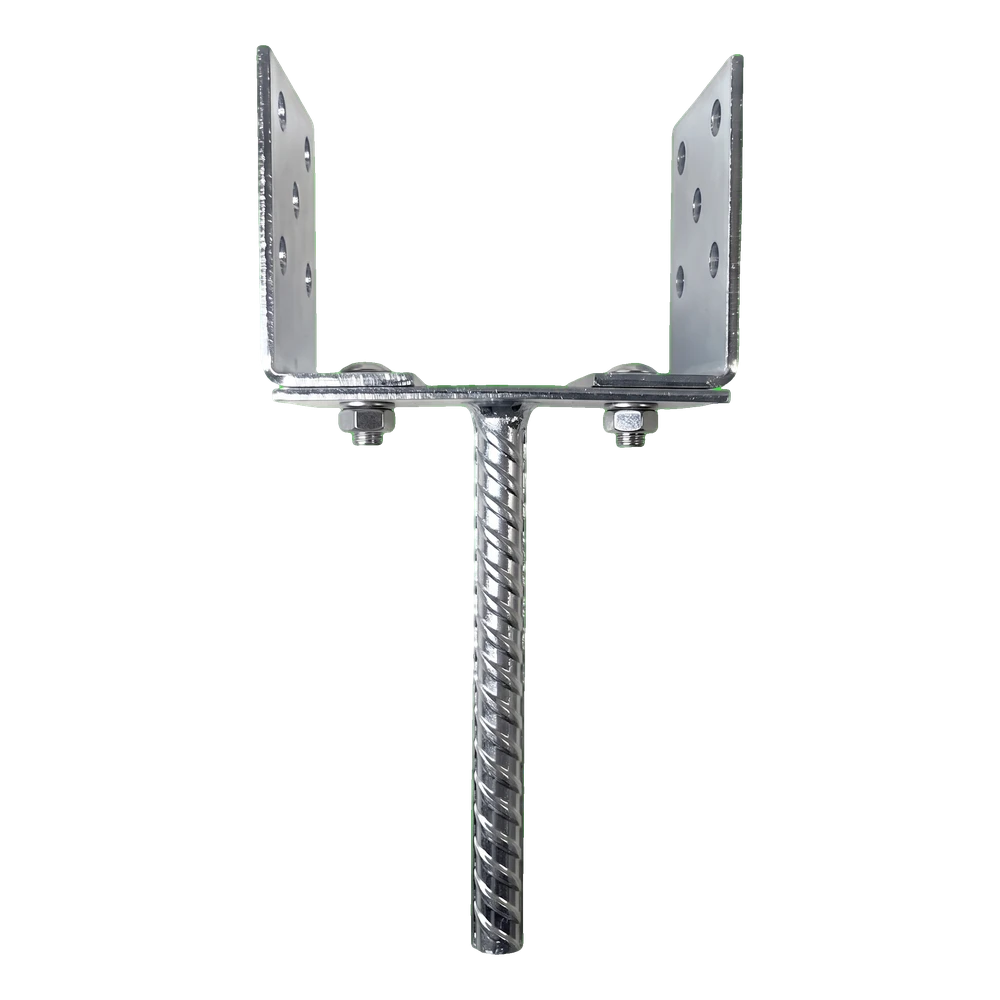

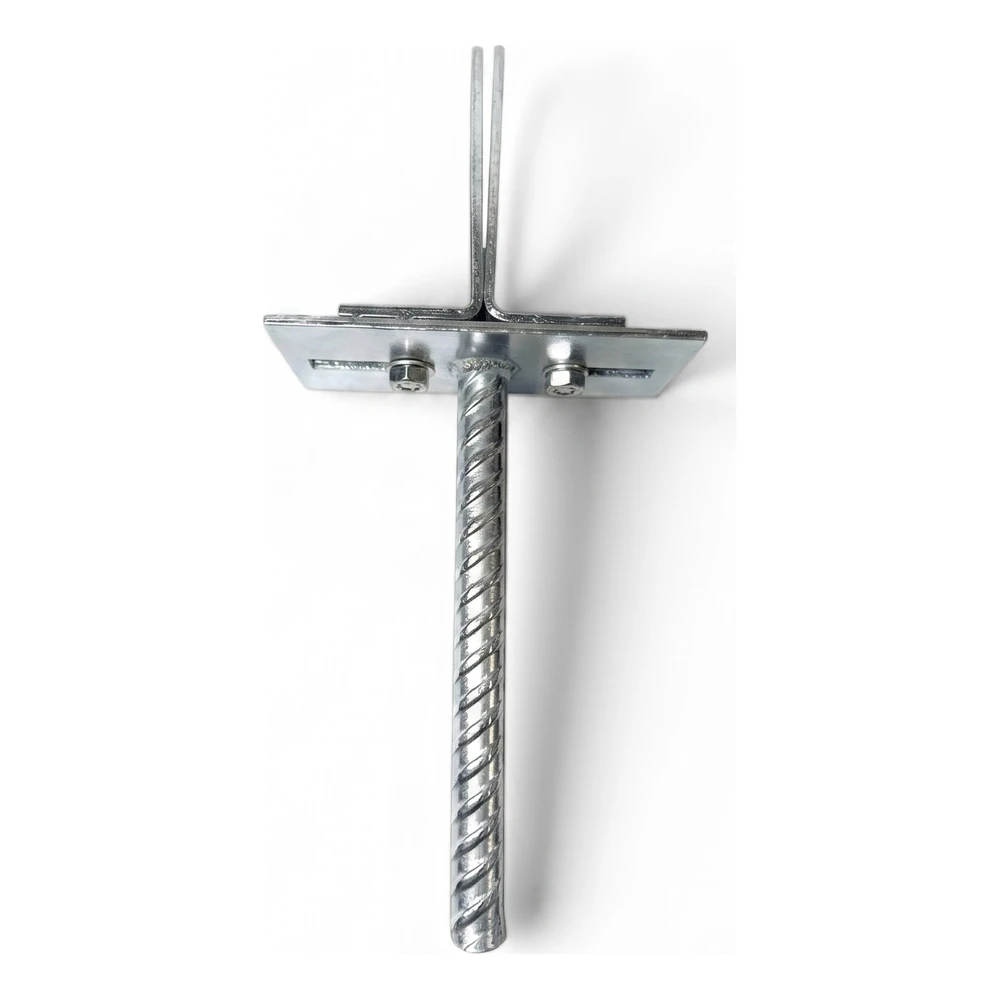

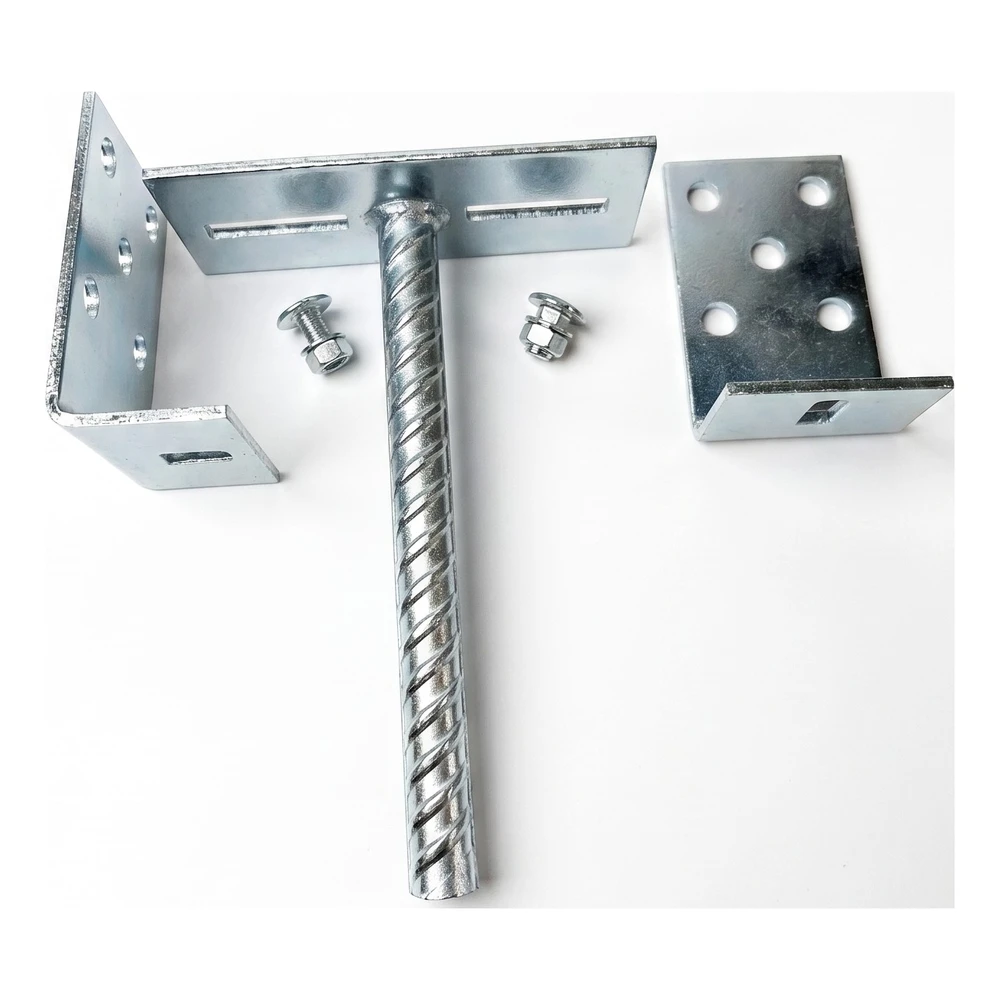

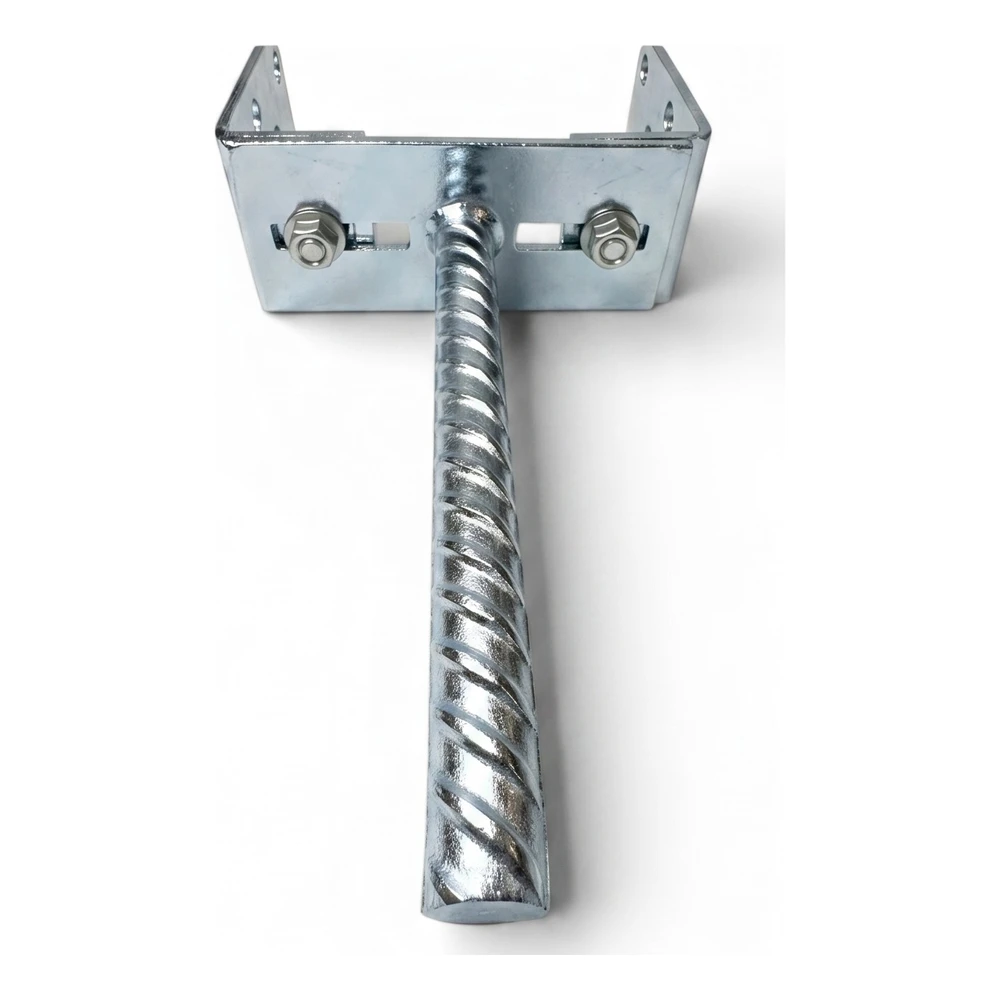

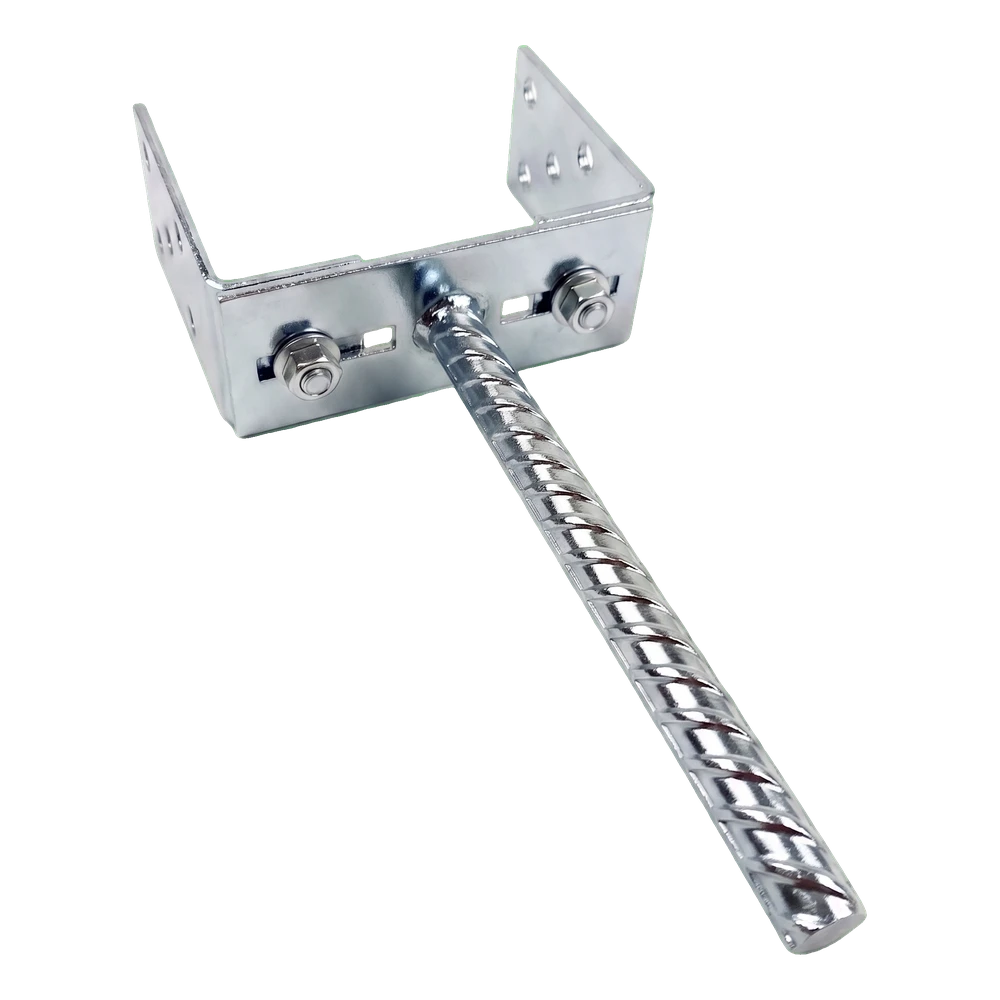

The support consists of two movable U-shaped wings bolted to a central flat-bar base, from which a ribbed rod protrudes to be set in fresh concrete. Once the concrete has set, the wings are positioned to the required width and tightened with the adjustment bolts. The solid welded joint between the rod and the base ensures the rigidity and load-bearing capacity of the entire connection.
The silver electro-galvanised finish protects the support against corrosion and ensures durability in outdoor conditions. The mounting holes in the wings allow the post to be fixed directly with screws or through bolts, making the connection stable and resistant to lateral forces. The support is sold as a complete item with the rod and adjustment bolts already fitted — simply set it in the foundation and fix the post.
Design features
- Adjustable wings for fitting posts of various cross-sections
- Ribbed rod providing durable anchoring in the concrete

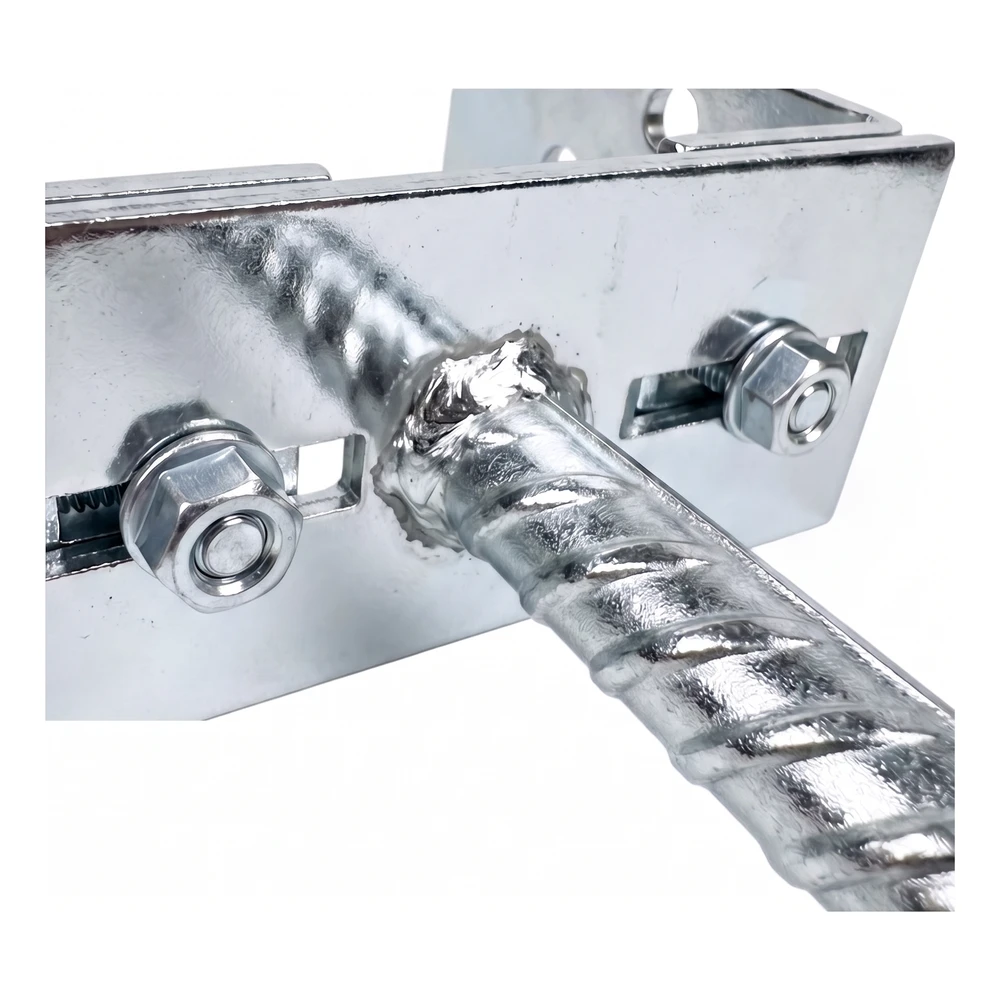

- Welded joint between the rod and the base for maximum rigidity
- Mounting holes in the wings for screws or through bolts
- Adjustment bolts included for quick setting of the spacing
- Compact design for easier transport and storage
- Ready to install — no additional accessories required
Applications
- Timber structure posts — shelters, pergolas, gazebos, terrace canopies
- Fencing — gate and wicket posts set in foundation footings
- Photovoltaic structures — timber supports for ground-mounted systems
- Timber-frame construction — post anchors in pad foundations
- Small architectural features — lighting posts, information boards
The support is supplied as a single piece, ready for immediate installation. Its compact dimensions and low weight mean the item falls into the small parcel category, which simplifies logistics even for larger orders.
