Adjustable Post Support 110×110 mm, M24 Thread – Height 250 mm, Galvanised
Leave feedback on the product
Adjustable post support, 110x110 mm, with M24 thread, galvanised steel, silver. Stud height 250 mm, base plate thickness 4 mm, weight 1.45 kg. For fixing timber posts in carports, pergolas, fences and decks.
Product code: 002-178
Description
Adjustable Post Support 110 M24 x 250 mm
The 110x110 mm adjustable post support with an M24 thread and a stud height of 250 mm is a sturdy steel connector designed for fixing timber posts in building structures. Made from silver-coloured galvanised steel, it provides durable corrosion protection and many years of service in outdoor conditions.

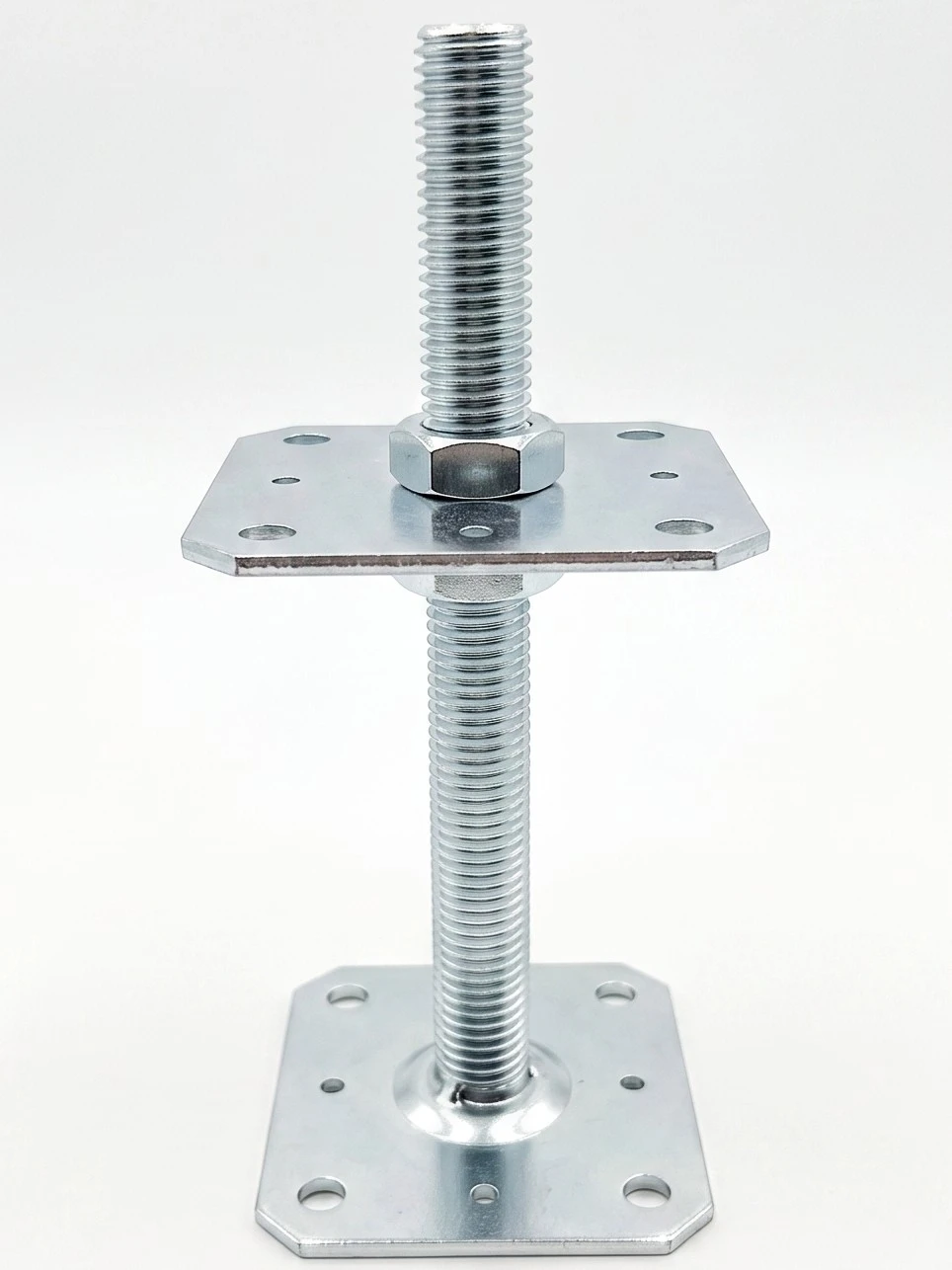

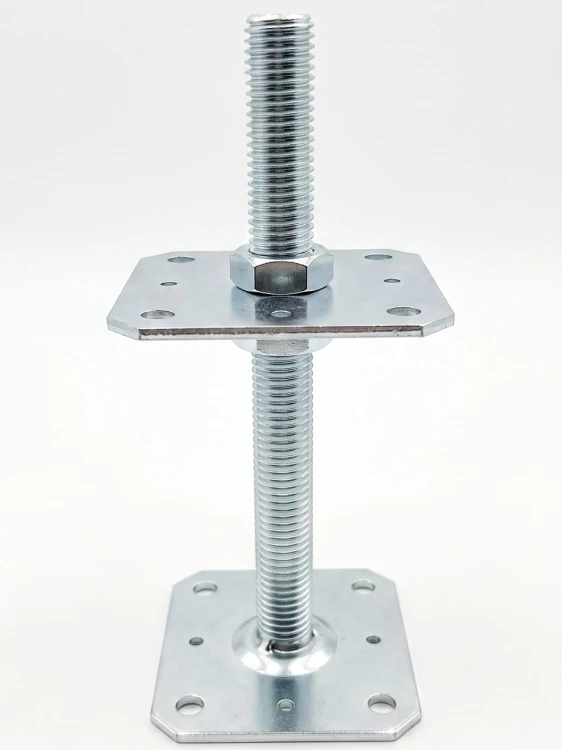

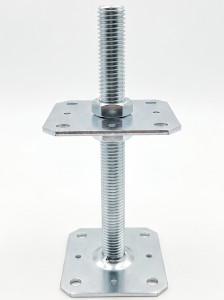

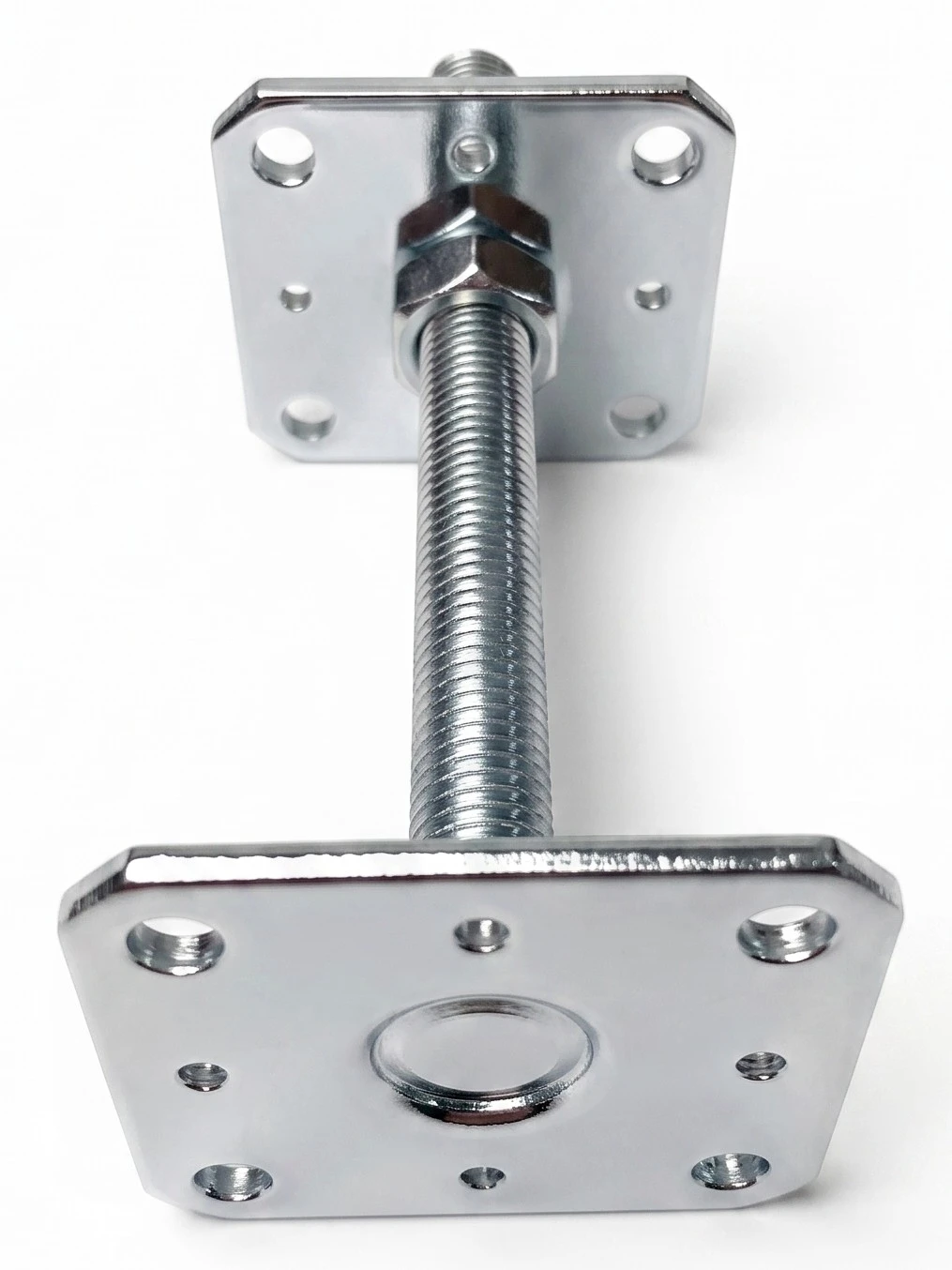

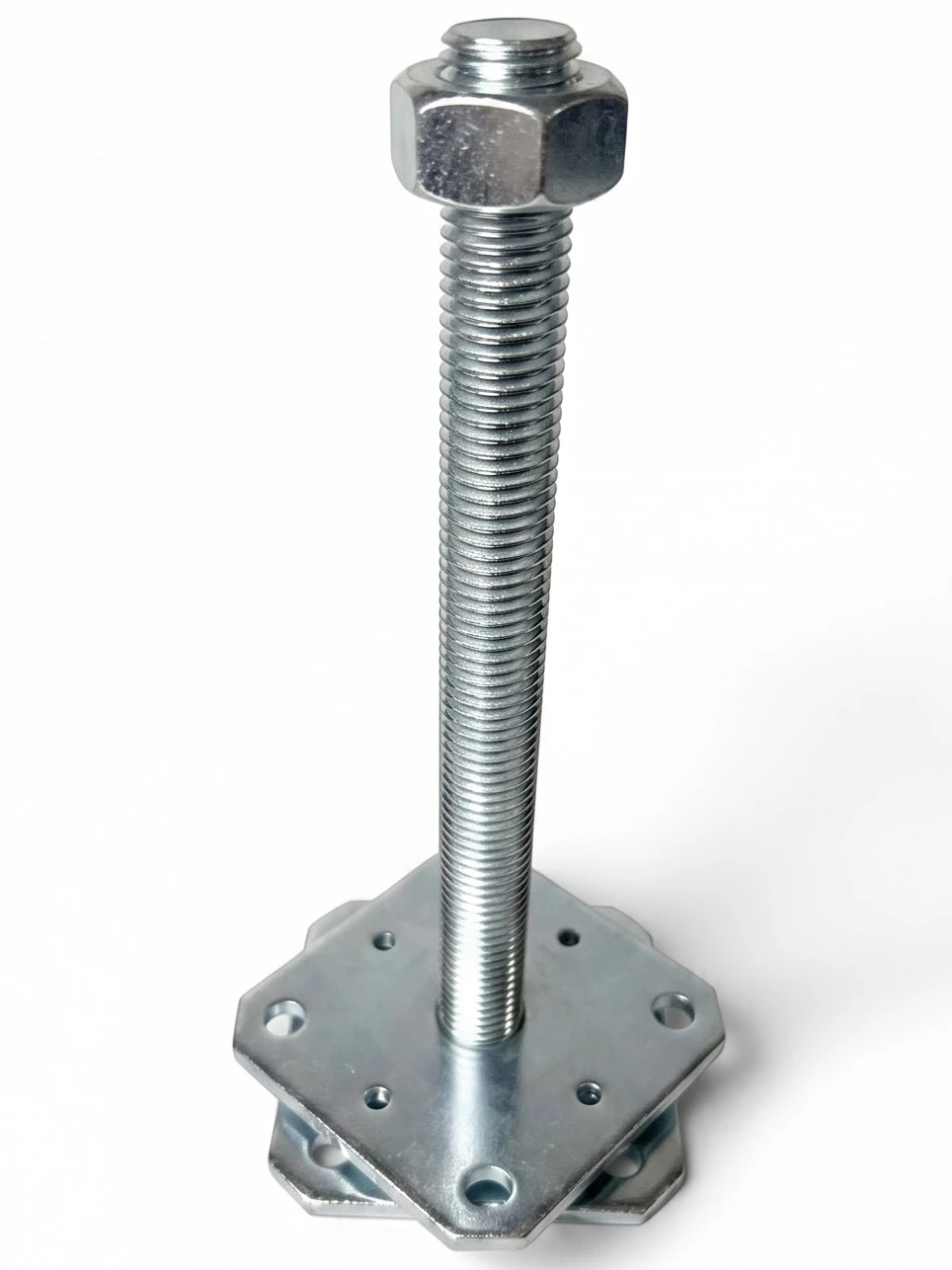

The support consists of a lower base plate with a welded M24 threaded stud and a movable upper plate with an adjustment nut. This design allows the post height to be set precisely after installation, without the need to cut the timber elements. Both plates measure 110x110 mm and have mounting holes for fixing to the substrate and to the post.

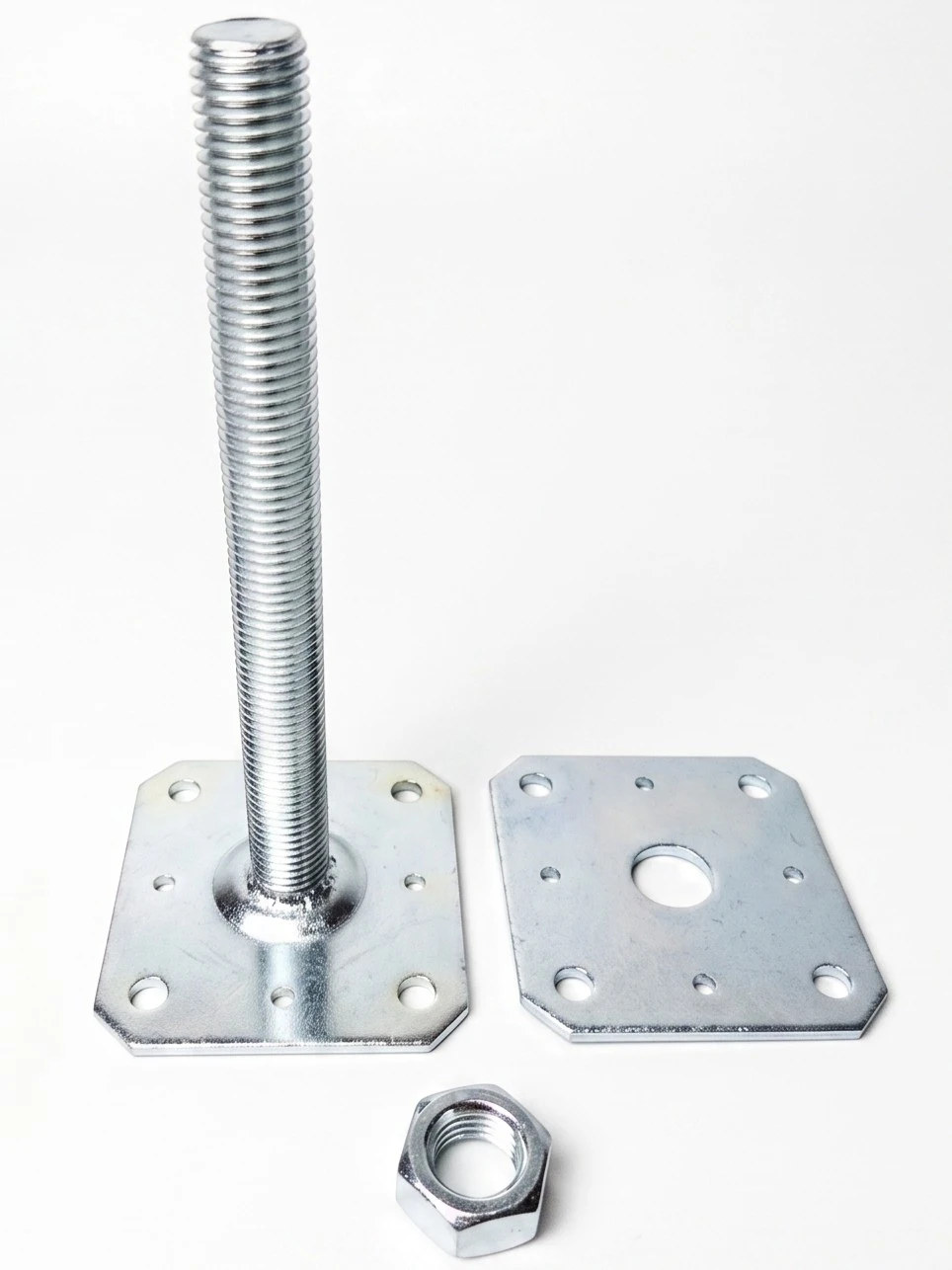

The base plate, 4 mm thick, ensures adequate rigidity and load-bearing capacity for the whole connection. Hot-dip galvanising in a silver finish protects the steel components against corrosion, which is particularly important for structures exposed to ground moisture or rainfall. The support is sold as a complete set — 1 piece includes the stud with lower plate, the sliding upper plate and an M24 adjustment nut, so the installer receives a ready-to-fit component without having to source additional accessories.
Design features
- Height adjustment — the M24 threaded stud allows precise levelling of the post
- Galvanised steel — durable anti-corrosion coating in a silver finish
- 4 mm plate — thick base ensuring stability and load-bearing capacity of the connection
- Mounting holes in both plates for easy fixing to the substrate and the post
- Complete set — stud with base, upper plate and nut in one pack
- 110x110 mm plates — suited to posts of standard cross-sections
- Versatile installation — suitable for both chemical and mechanical anchoring
Applications
- Shelters and carports — fixing load-bearing posts on foundation pads
- Pergolas and gazebos — adjustable positioning of timber structures in the garden
- Fences — setting posts in a plinth with the option of correcting the level
- Decks and jetties — connecting supporting posts to pad foundations
- Photovoltaic structures — fixing timber elements in ground-mounted support structures
The adjustable support is a reliable solution wherever a timber post must be isolated from direct contact with the ground while being precisely levelled. It works equally well in residential construction and in agricultural and garden structures. Thanks to the fully threaded stud, the height adjustment range is continuous, which makes it possible to compensate for foundation unevenness without any additional machining of the components.
