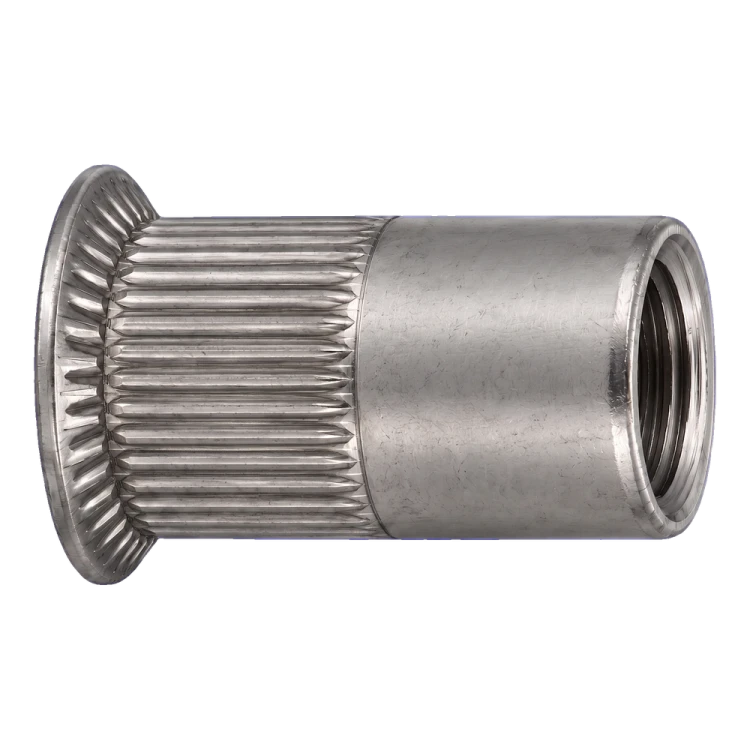

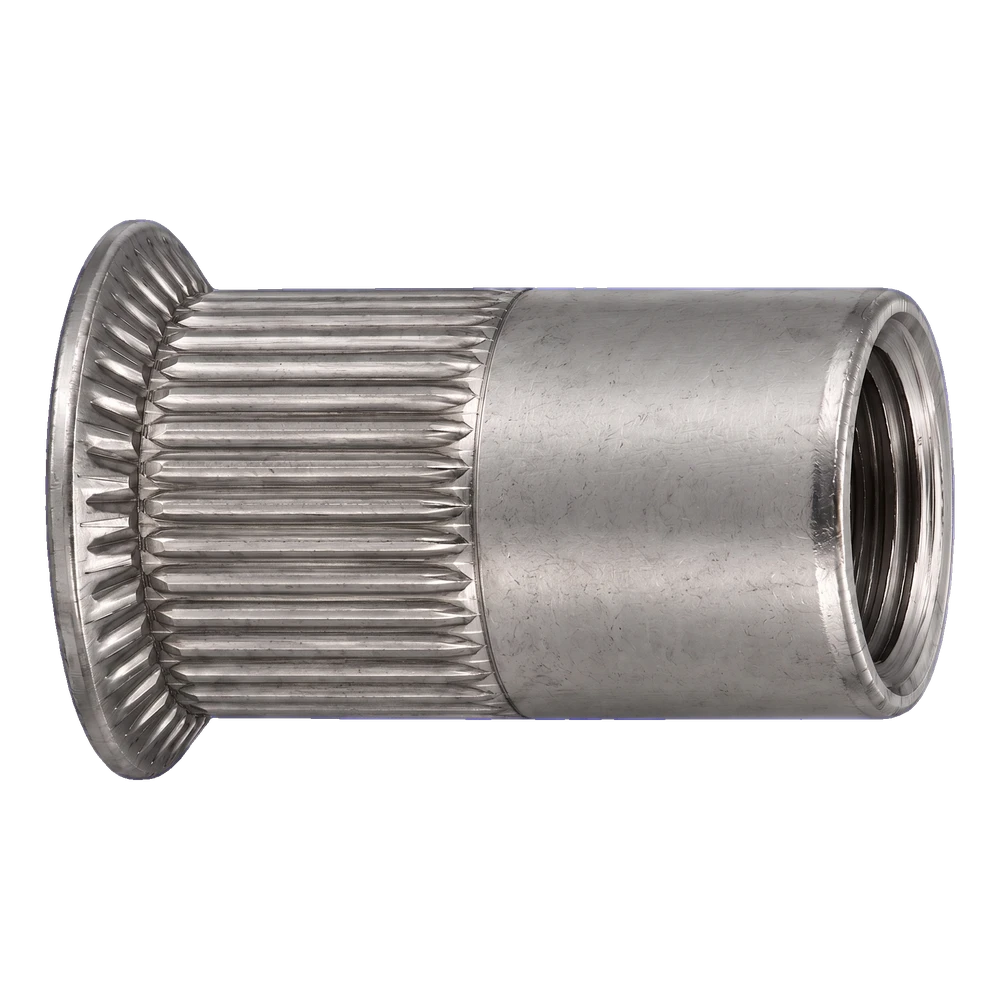

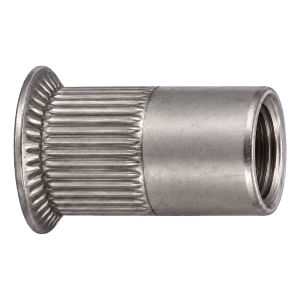

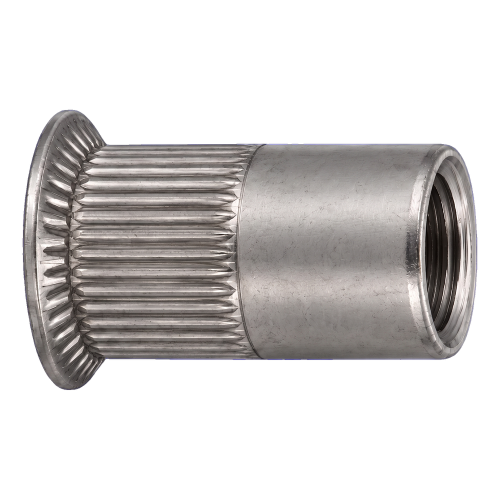

A4 stainless steel rivet nut M6×16 mm – countersunk head, knurled shank – box of 250 pcs

Go to Product feedback

M6x16 mm countersunk head rivet nut, A4 stainless steel (AISI 316). Round knurled shank, open-end type. Head diameter 12 mm, head height 1.7 mm. Grip range 1.5–4.5 mm. Ref..

Go to full description
with VAT without VAT
Price €59.41
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] nitonakretki #1015

  • Material A4 - stainless steel
  • Thread type M6
  • Grip range [mm] 1,5–4,5
  • Head type countersunk
  • Quantity per pack [pcs] 250
  • Shank round knurled

Description

Rivet nut · M6 × 16 mm

Countersunk head, round knurled shank, open-end design, A4 stainless steel

M6Thread
1.5–4.5 mmGrip range
A4Stainless steel
250 pcsper box
Dimension drawing of the M6 × 16 mm rivet nut with a countersunk head, half section and view from the head, values: l1 = 16 mm, l2 = 7 mm, d2 = 8.9 mm, d3 = 12 mm, k = 1.7 mm, thread M6
Open the dimension drawing in full size
Illustrative drawing for size M6 × 16 mm. Nominal values according to the manufacturer's data sheet.

Quick choice

ApplicationM6 thread in thin sheet metal and profiles – installation from one side
Material thickness1.5–4.5 mm (grip range)
ConditionsA4: where chlorides are present (sea, swimming pool), choose the material for the exposure conditions
InstallationRivet nut tool, M6 nosepiece

Dimensions

Thread d1M6
Overall length l116 mm
Length of the knurled part l2 (from the head)7 mm
Shank diameter d28.9 mm
Head diameter d312 mm
Head height k1.7 mm
Grip range1.5–4.5 mm
Headcountersunk head
Shankround knurled, open
Mounting holeround Ø 9.0 mm
Nominal values according to the manufacturer's data sheet.
Mounting hole according to the general rule of rivet nut manufacturers: 0.1 mm larger than the shank. In thin, hard or coated sheet, make a test first.

Material and strength

MaterialA4 stainless steel
Shear force5 490 N [1]
Tensile force20 590 N [1]
[1] Values according to the manufacturer's data sheet (rivet nut test); they are not the load capacity of a particular joint.

Chloride environment

E.g. by the sea or a swimming pool: choose the material according to the exposure conditions and the design recommendations.

Packaging

Sales unitbox of 250 pcs
Box weight0.93 kg [2]
[2] Weight and sales unit according to supplier data.

Preparing the installation

  • ✓Check the material thickness: it must be within 1.5–4.5 mm.
  • ✓Drill a round hole Ø 9.0 mm (0.1 mm larger than the shank d2 = 8.9 mm); remove burrs.
  • ✓Set with a rivet nut tool with a M6 nosepiece; the head should sit against the surface.

Important

The grip range applies to the total material thickness under the head. Set in a countersunk hole, the countersunk head sits flush with the material surface. The knurled shank limits the rivet nut from turning in the hole. The load capacity of the joint depends on the material and thickness of the element – it is set by the design.
