A2 stainless steel wood screw DIN 571 8×80 mm – hexagon head – box of 100 pcs

Go to Product feedback

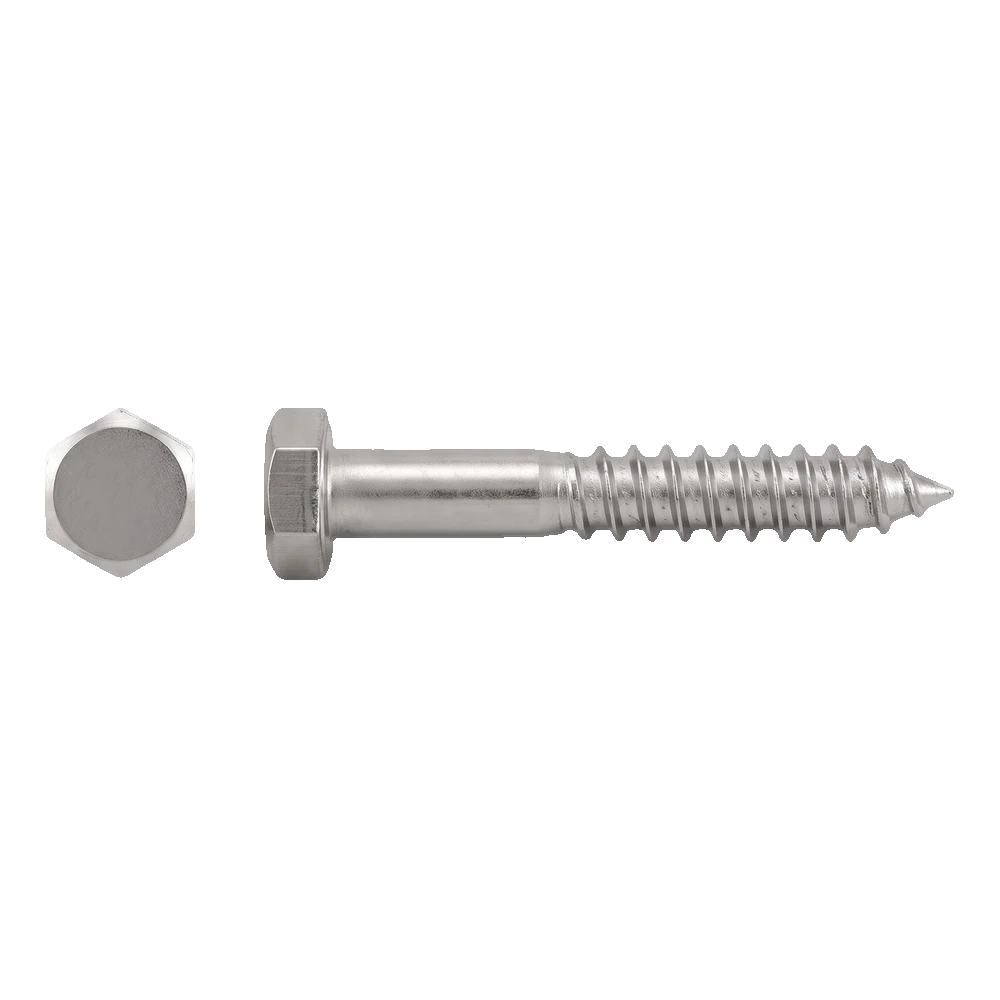

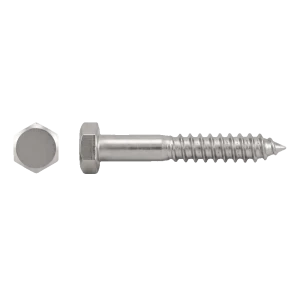

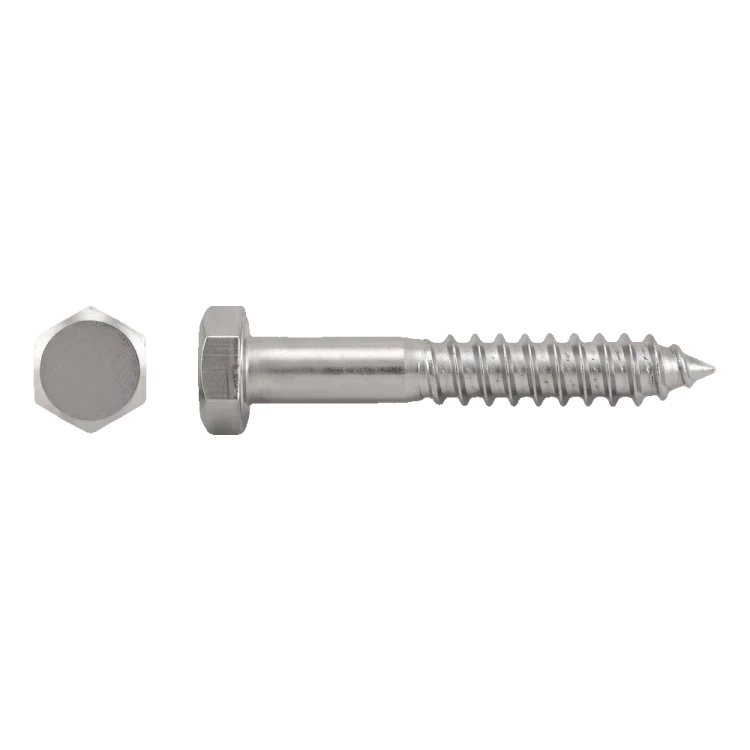

Hexagon head wood screw, A2 stainless steel, DIN 571. Dimensions 8 x 80 mm, A/F 13 mm spanner size, head height 5.5 mm, head diagonal 14.2 mm. Thread length b ≥ 0.6 x l. CRC II class. For timber structures.

Go to full description
with VAT without VAT
Price €26.14
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] Wkręty #80

  • Material A2 - stainless steel
  • Diameter 8
  • Length [mm] 80
  • Thread partial thread
  • Drive SW13
  • Coating Black anodised
  • Quantity per pack [pcs] 100
  • Brand F&F FILIPOWSKI

Description

DIN 571 · 8 × 80 mm

Hexagon head wood screw, A2 stainless steel

SW13Spanner
A2Stainless steel
100 pcsper box
2.65 kgBox weight
Dimension drawing of the DIN 571 8 × 80 mm wood screw with values: l = 80 mm, b ≥ 48 mm, k = 5.5 mm, d = 8 mm, s = SW13, e ≥ 14.2 mm
Open the dimension drawing in full size
Illustrative drawing to DIN 571 for size 8 × 80 mm, proportions to scale. b, e – minimum values; others – nominal.

Quick choice

ApplicationJoining timber elements
ConditionsA2: where chlorides are present (sea, swimming pool), choose the material for the exposure conditions
InstallationSpanner SW13; choose the pilot hole for the timber

About the product

A DIN 571 screw is a hexagon head wood screw. It is driven with an open-ended spanner, ring spanner or socket in size SW13, not a screwdriver. The head is 5.5 mm high and measures at least 14.2 mm across corners.

The 8 × 80 mm screw has a length of 80 mm and a thread diameter of 8 mm, and according to the standard the thread is at least 48 mm long. Choose the pilot hole for the type of timber; pre-drilling near the edges of the element is advisable to reduce the risk of splitting.

The screw is made of A2 stainless steel, corrosion resistance class CRC II according to EN 1993-1-4. Where chlorides are present, for example by the sea or a swimming pool, choose the material according to the exposure conditions and the design recommendations. DIN 571 specifies the screw geometry, not the load capacity of the joint – this depends on, among other things, the timber, the screw engagement depth and the joint layout, and is set by the design. Sold in boxes of 100 pcs; each box weighs 2.65 kg.

Dimensions and standard

Thread diameter d8 mm
Length l80 mm
Thread length bmin. 48 mm
Head height k5.5 mm
Spanner size sSW13 (hexagon head)
Width across corners emin. 14.2 mm
StandardDIN 571
b, e – minimum values; others – nominal (DIN 571).

Material and environment

MaterialA2 stainless steel
Corrosion resistanceCRC II [1]
[1] CRC II – corrosion resistance class of A2 steel according to EN 1993-1-4.

Chloride environment

E.g. by the sea or a swimming pool: choose the material according to the exposure conditions and the design recommendations.

Packaging

Sales unitbox of 100 pcs
Box weight2.65 kg [2]
[2] Weight and sales unit according to supplier data.

Preparing the installation

  • ✓Choose the pilot hole for the type of timber.
  • ✓Pre-drill near the edges of the element – this reduces the risk of splitting.
  • ✓Drive in with an open-end, ring or socket spanner SW13.

Important

DIN 571 defines the geometry of the product, not the load capacity of a particular joint. The load capacity depends, among other things, on the timber, the screw-in depth and the joint layout – it is set by the design.
