90° bent handrail elbow for tube ø 16x1.5 mm – AISI 304 stainless steel satin
0
Description

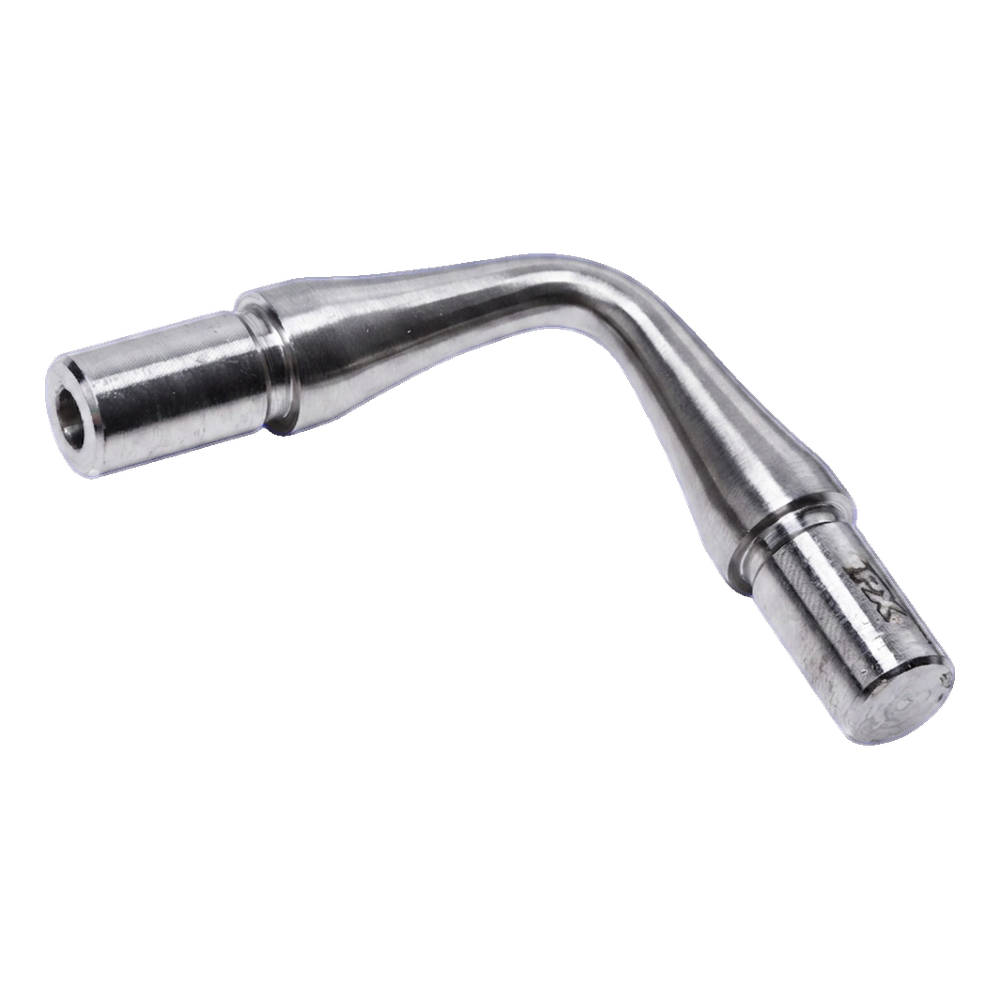

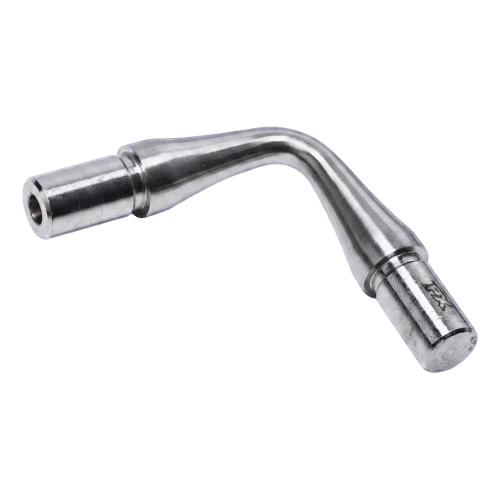

90° bent handrail elbow for tube ø 16x1.5 mm – AISI 304 stainless steel satin
90° bent elbow for handrail tubes ø 16×1.5 mm, made of stainless steel AISI 304 in satin finish. Connector designed for mounting interior balustrades with complex layouts — allows for aesthetic and durable connection of two tube sections at a right angle. The element serves both structural and decorative functions, forming a finishing detail of the balustrade.
The elbow is mounted by bonding using anaerobic adhesive, which cures in contact with metal and hardens after cutting off the air supply. Thanks to this, the connection is invisible from the outside, and the whole maintains a clean, uniform appearance without the need for welding.

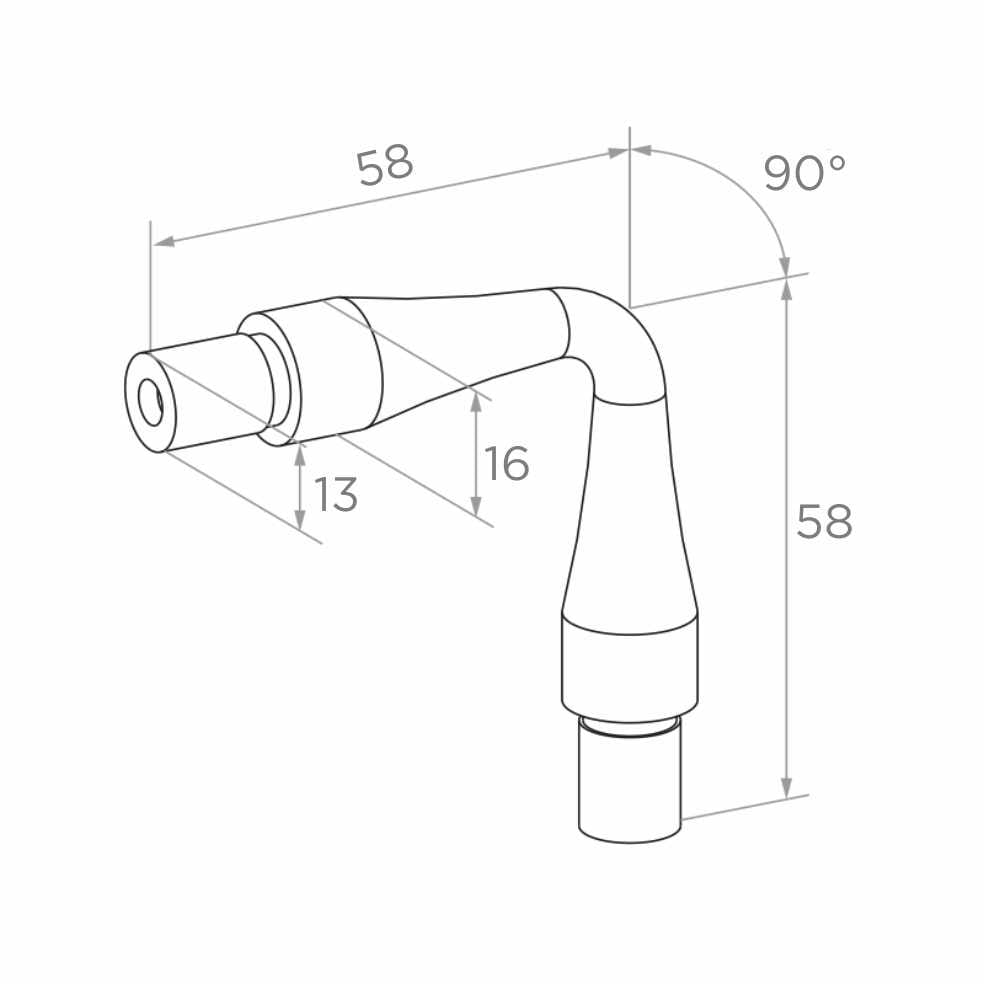

Dimensions and technical parameters
- Bending angle: 90°
- Horizontal arm length: 58 mm
- Vertical arm length: 58 mm
- External diameter (flush with tube): 16 mm
- Mounting diameter (inserted into tube): 13 mm
- Fits tube: ø 16×1.5 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting method: bonding (anaerobic adhesive)
- Application: interior balustrades
- Weight: 0.08 kg
- EAN: 5901289673389
Application and mounting
The elbow is designed for professional mounting of interior balustrades, where precise tube routing at 90° angle is required. Symmetrical arms with length 58 mm provide adequate bonding reach, guaranteeing connection stability. The mounting diameter 13 mm fits perfectly inside the ø 16×1.5 mm tube, which facilitates quick element positioning before bonding.
Stainless steel AISI 304 guarantees high corrosion resistance and long-lasting aesthetics, whilst the satin finish gives the balustrade a modern, elegant character. The product works perfectly in combination with other balustrade elements available in our offer — elbows with different angles and shapes, both in satin and polished versions.
Technical data
| Material | AISI 304 |
| Finish | Satin |
