90° bent balustrade elbow for fi 12x1.0 mm tube – AISI 304 stainless steel satin
0
Description

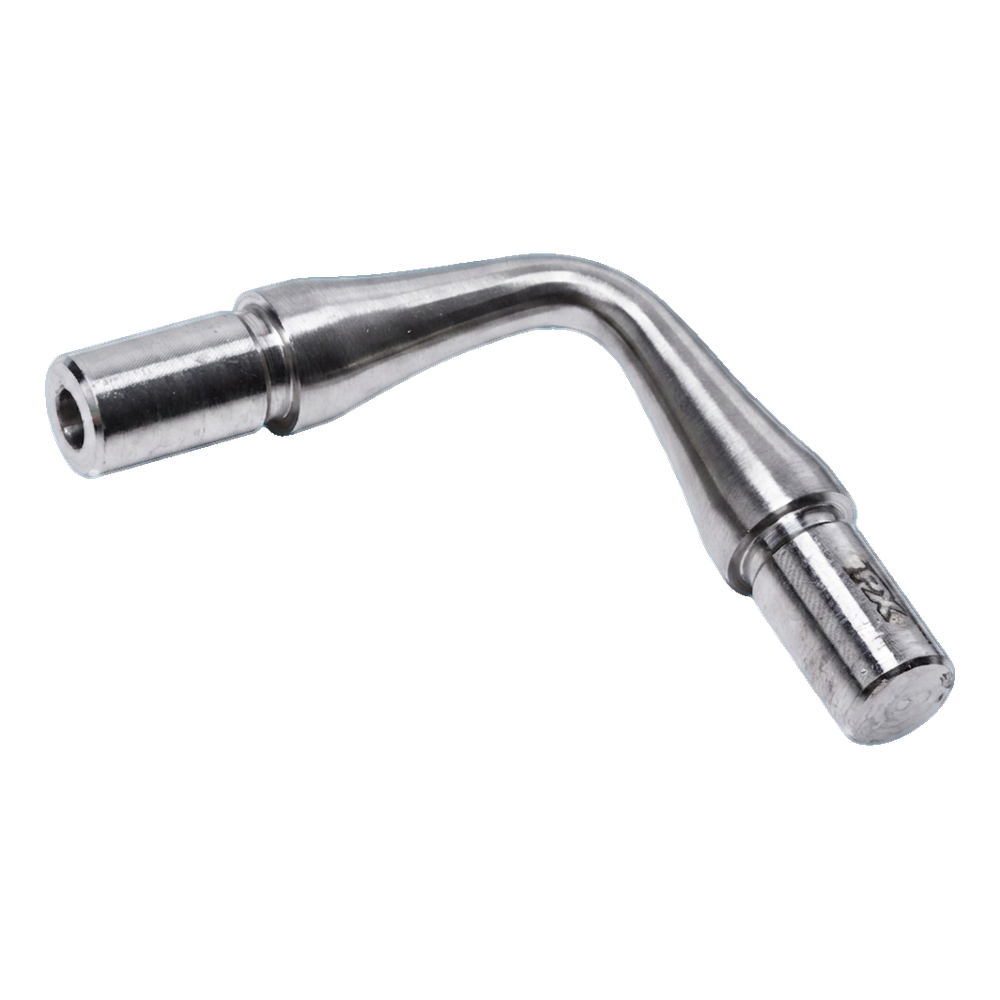

90° bent balustrade elbow for fi 12x1.0 mm tube – AISI 304 stainless steel satin
90° bent elbow for fi 12×1.0 mm balustrade tube is a precisely manufactured connector made of AISI 304 stainless steel with satin finish. It enables changing the handrail direction at a right angle, allowing the creation of balusters with complex shapes — both in commercial and residential buildings. The element is installed using the bonding method with anaerobic adhesive, which eliminates the need for welding and guarantees an aesthetic, invisible connection.
Anaerobic adhesive bonds upon contact with metal and hardens after cutting off the air supply, ensuring a durable and reliable connection without damaging the surface of the elements. This makes installation quick, clean and requires no additional finishing work after balustrade assembly.

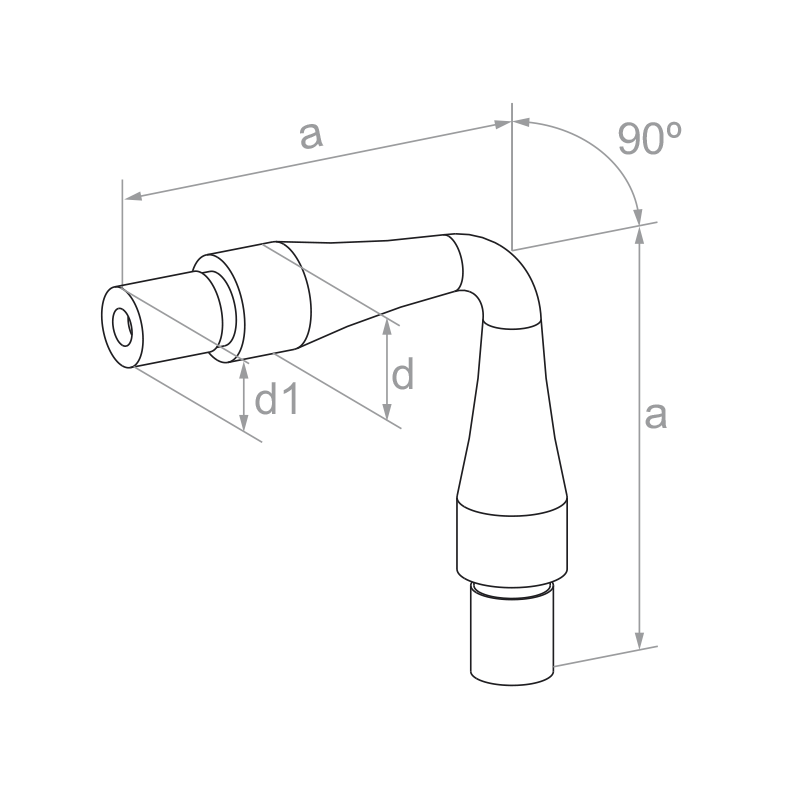

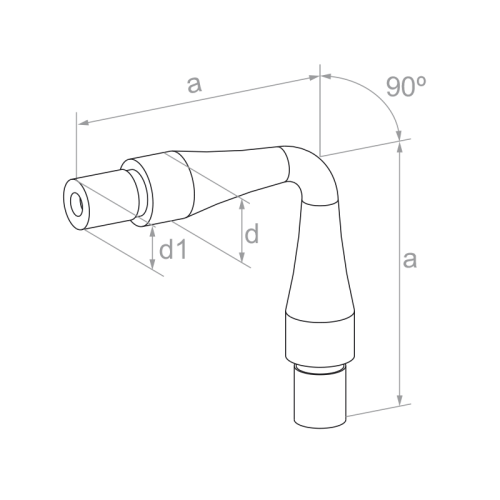

Dimensions and technical specification
- Bending angle: 90°
- Arm length (a): 54 mm / 54 mm
- Tube diameter: fi 12 mm
- Tube wall thickness: 1.0 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Installation method: bonding (anaerobic adhesive)
- Weight: 0.06 kg
- EAN: 5901289673365
Application
The elbow is designed for constructing internal balustrades from 12 mm diameter stainless steel tubes. It serves both a structural function — connecting tube sections at a 90° angle — and a decorative function, constituting an aesthetic finishing element of the handrail. The satin finish gives the balustrade a modern, understated appearance and perfectly complements other elements in the same product line.
The connector is universal — it fits standard fi 12×1.0 mm balustrade tubes. In combination with other system elements (elbows at various angles, T-joints, bends, end caps), it allows for designing and constructing balustrades with any configuration, adapted to the individual requirements of each project.
Technical data
| Material | AISI 304 |
| Finish | Satin |
