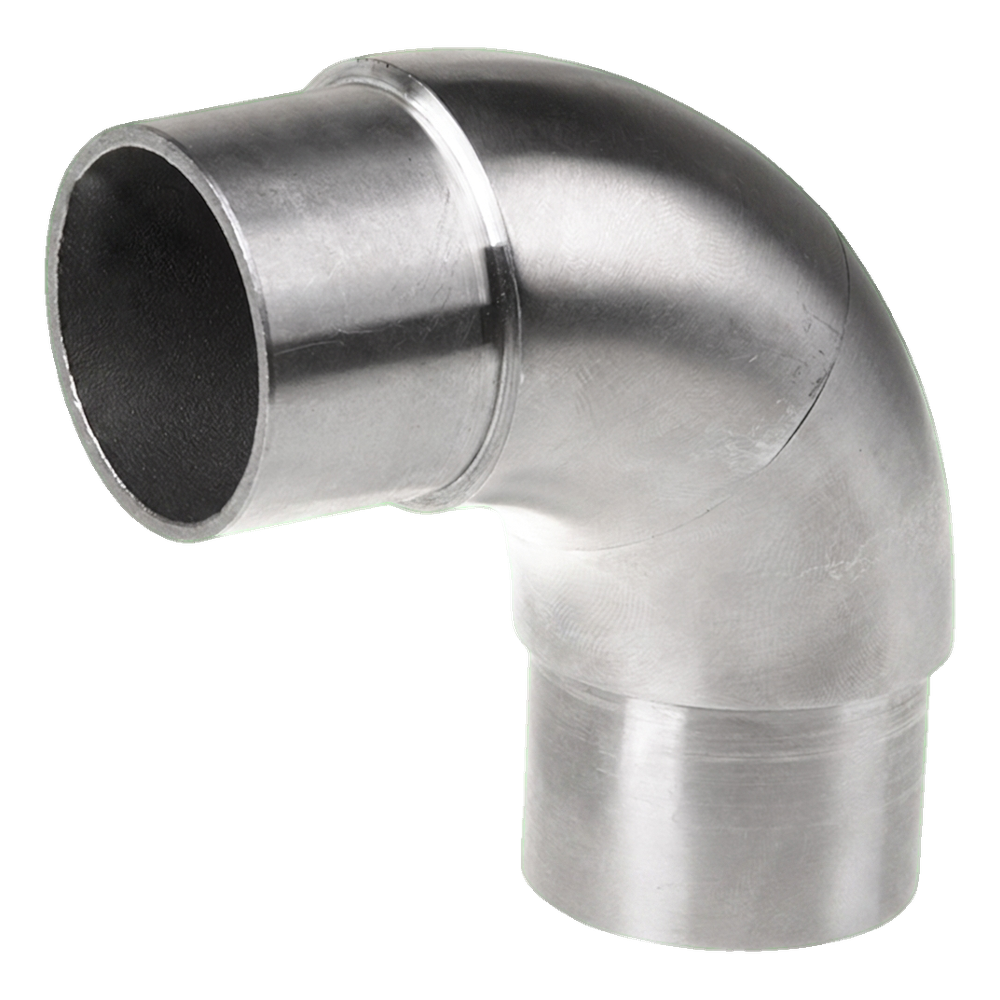

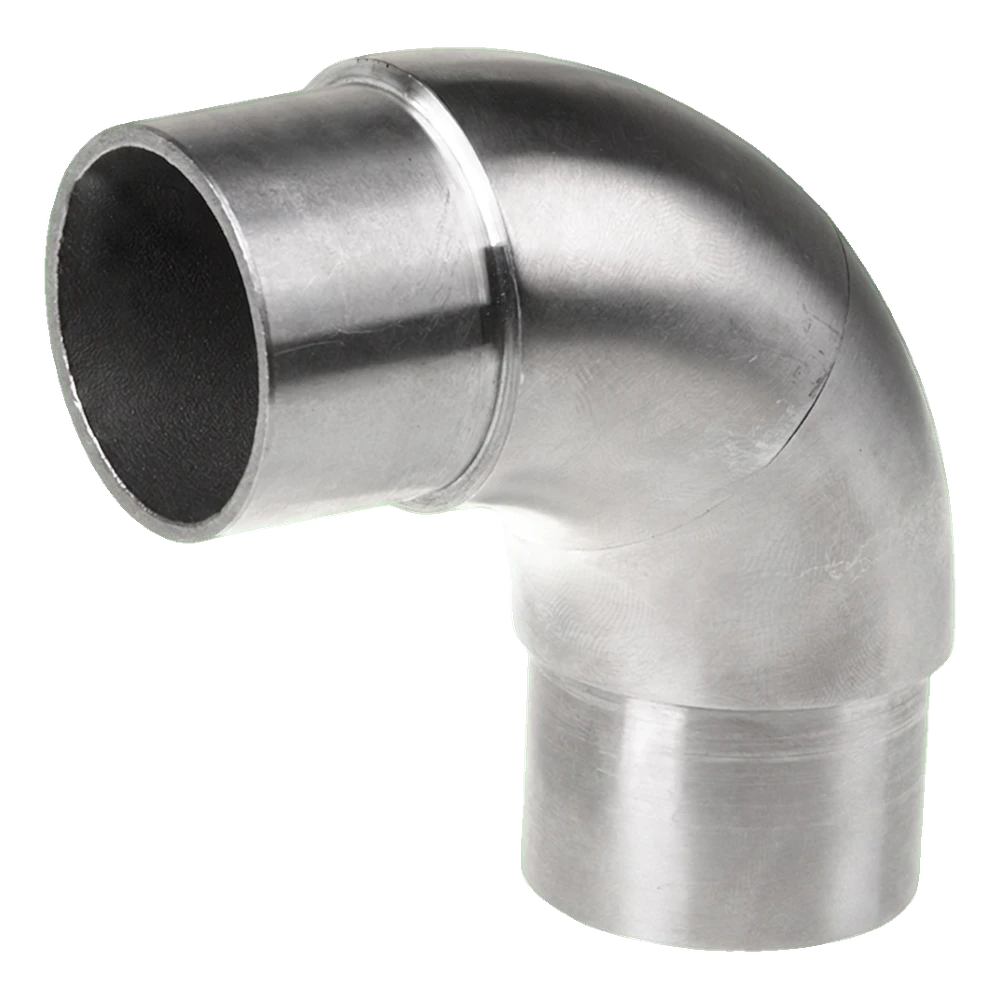

90° Gentle Elbow for Adhesive Bonding – Stainless Steel Balustrade System 42.4 mm, Satin Finish
Description
90° Gentle Elbow for Adhesive Bonding – Stainless Steel Balustrade System 42.4 mm, Satin Finish
90° gentle elbow for adhesive bonding is an aesthetic structural connector designed for constructing stainless steel balustrades in the 42.4 mm system. The elbow enables smooth directional change of the handrail at a right angle, creating an elegant, gentle transition without visible welds or screws.
The element is connected using adhesive bonding with anaerobic adhesive dedicated to stainless steel. This assembly method ensures a durable and invisible connection that does not compromise the surface finish – an ideal solution for installations where perfect aesthetics matter.
The elbow is manufactured from AISI 304 steel with a satin finish, making it suitable for internal applications – stair balustrades, galleries, mezzanines, or circulation routes in commercial and residential buildings.

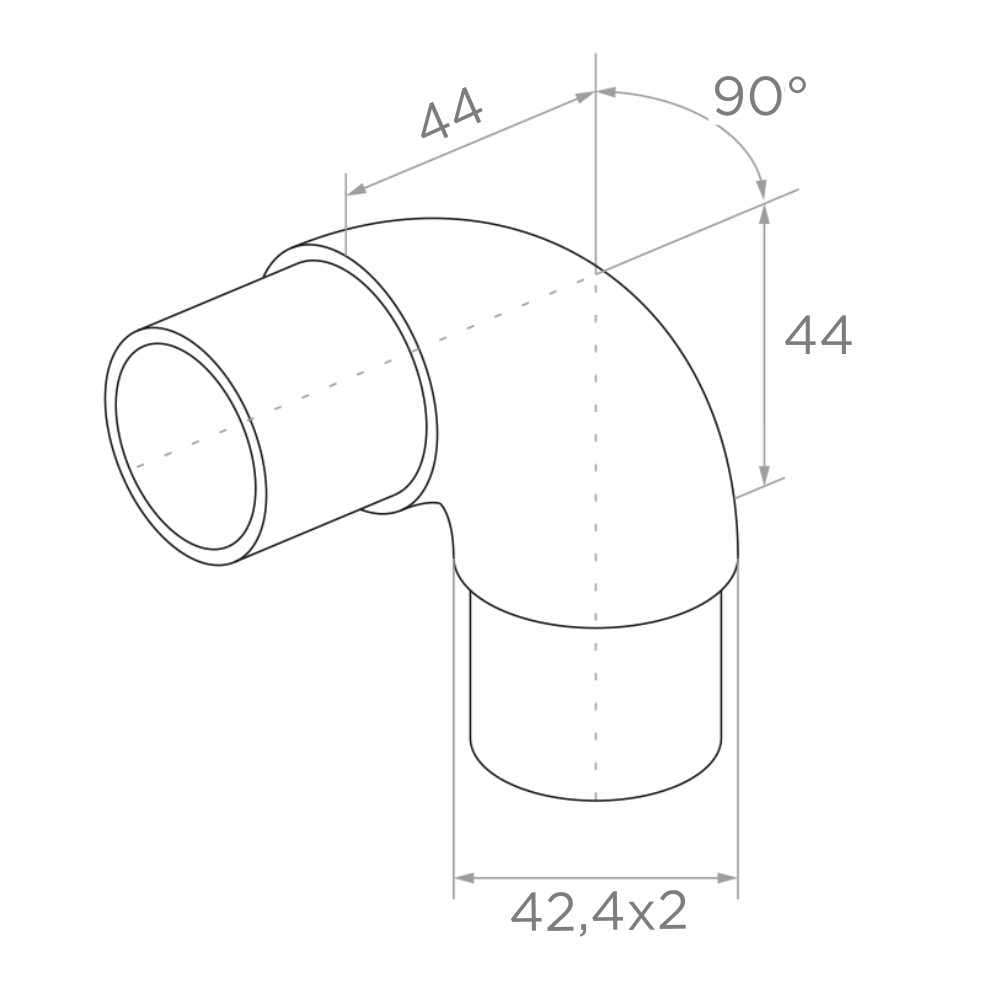

Dimensions and technical parameters
- Bend angle: 90°
- Tube external diameter: 42.4 mm
- Wall thickness: 2 mm
- Axial distance (horizontal): 44 mm
- Axial distance (vertical): 44 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Assembly method: adhesive bonding (anaerobic adhesive)
- Weight: 0.23 kg
- EAN: 5901289673068
Application and assembly
The elbow is designed for connecting tubes with a diameter of 42.4 mm and wall thickness of 2 mm in stainless steel balustrade systems. The connector slides onto the tube ends and is secured with anaerobic adhesive, ensuring quick assembly without welding – particularly important for finishing work on-site where sparks and overheating could damage the surroundings.
The satin surface finish ensures a uniform, matt appearance throughout the entire balustrade construction. AISI 304 steel guarantees corrosion resistance under internal usage conditions, resulting in many years of installation durability without the need for maintenance.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
