90° Gentle Balustrade Elbow Bonded AISI 316 - Tube 42.4x2 mm, Satin
Description

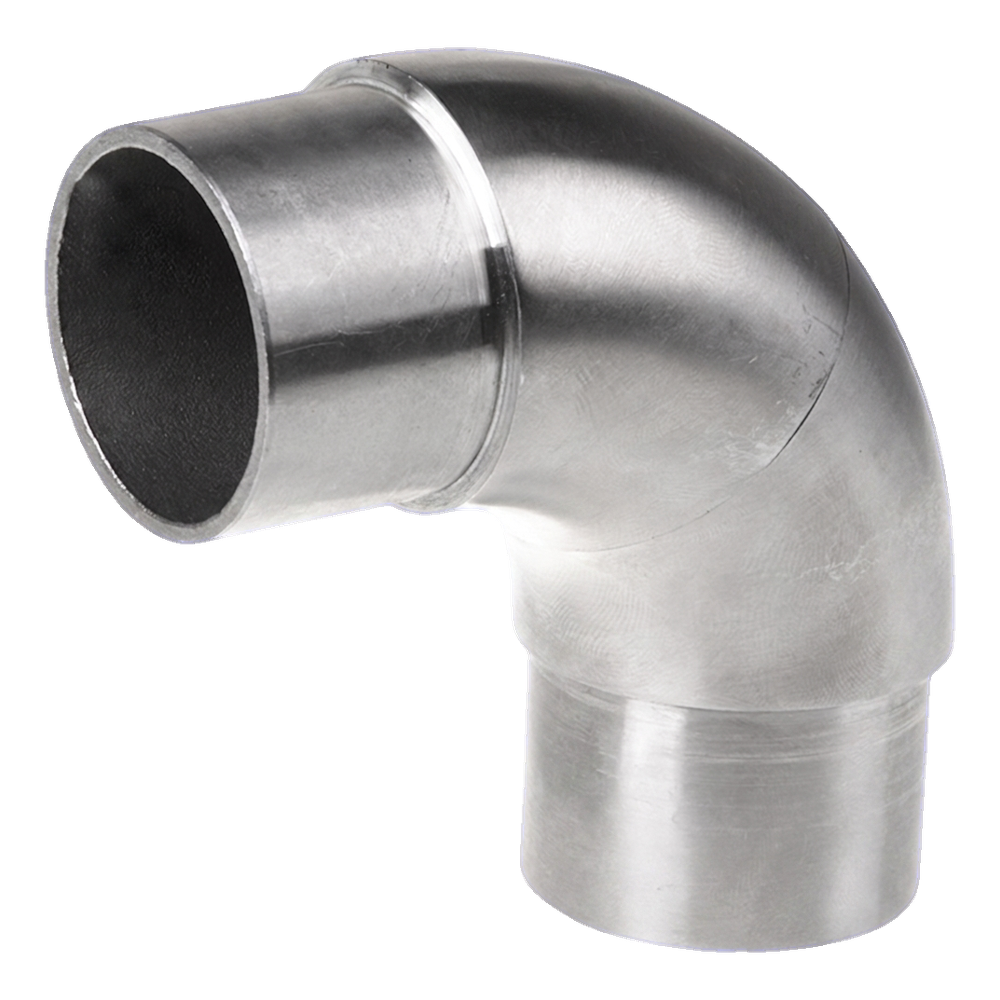

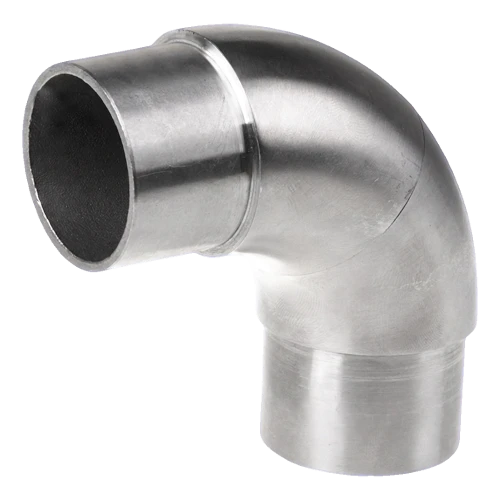

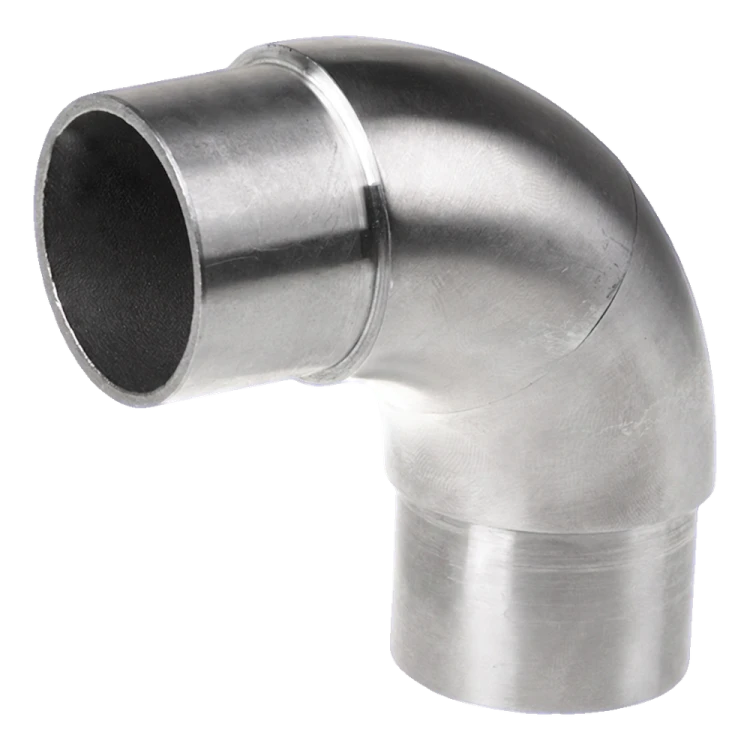

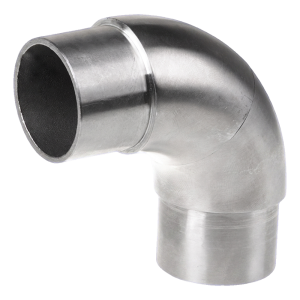

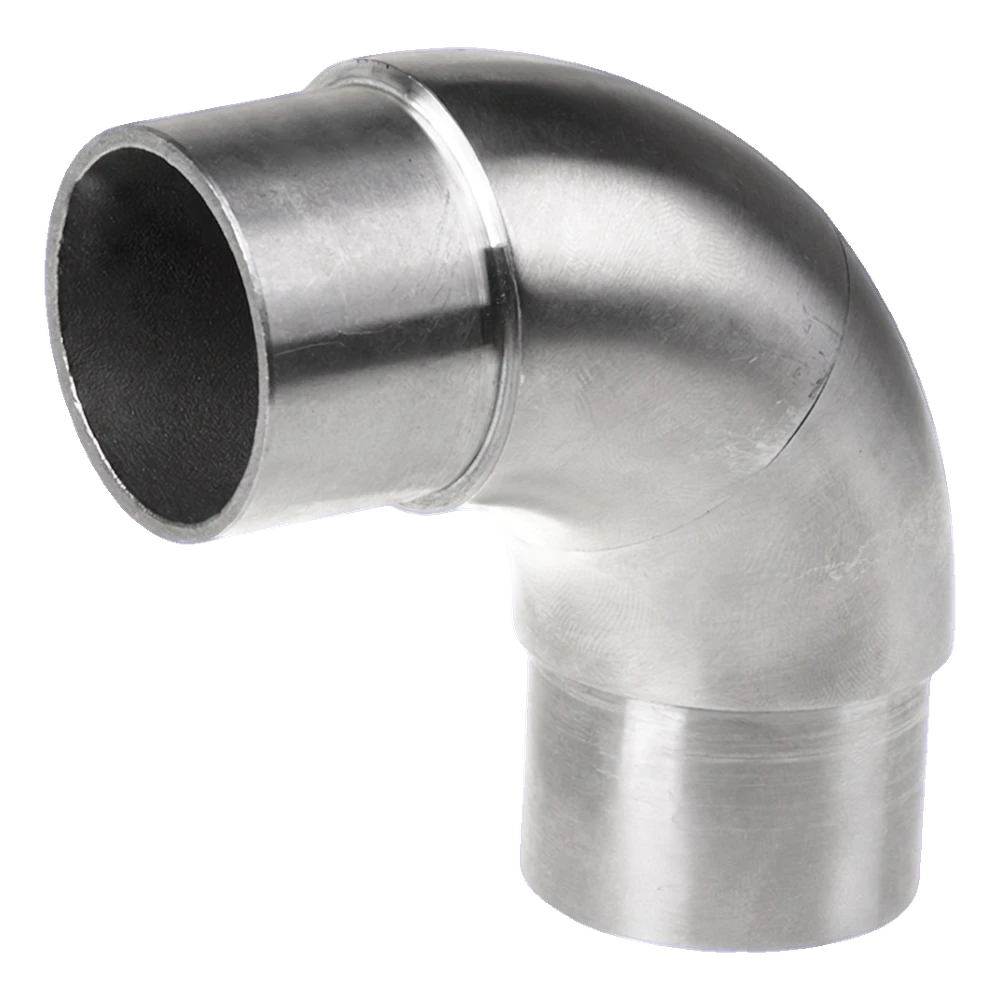

90° Gentle Balustrade Elbow Bonded AISI 316 - Tube 42.4x2 mm, Satin
90° gentle bonded elbow is a durable balustrade connector made from stainless steel, designed to connect tubes with 42.4 mm diameter. Thanks to the gently rounded bending profile, the element gives the balustrade an elegant, modern appearance whilst ensuring a solid and durable connection. An ideal solution for installation companies implementing internal and external balustrade projects — bonded installation eliminates the need for welding, which significantly speeds up implementation and allows maintaining an undisturbed surface finish.
The elbow is installed using the bonding method with anaerobic adhesive, which bonds upon contact with metal and hardens after cutting off the oxygen supply. This connection method guarantees a tight, invisible joint without welding marks — the finished effect is aesthetic and professional immediately after installation.

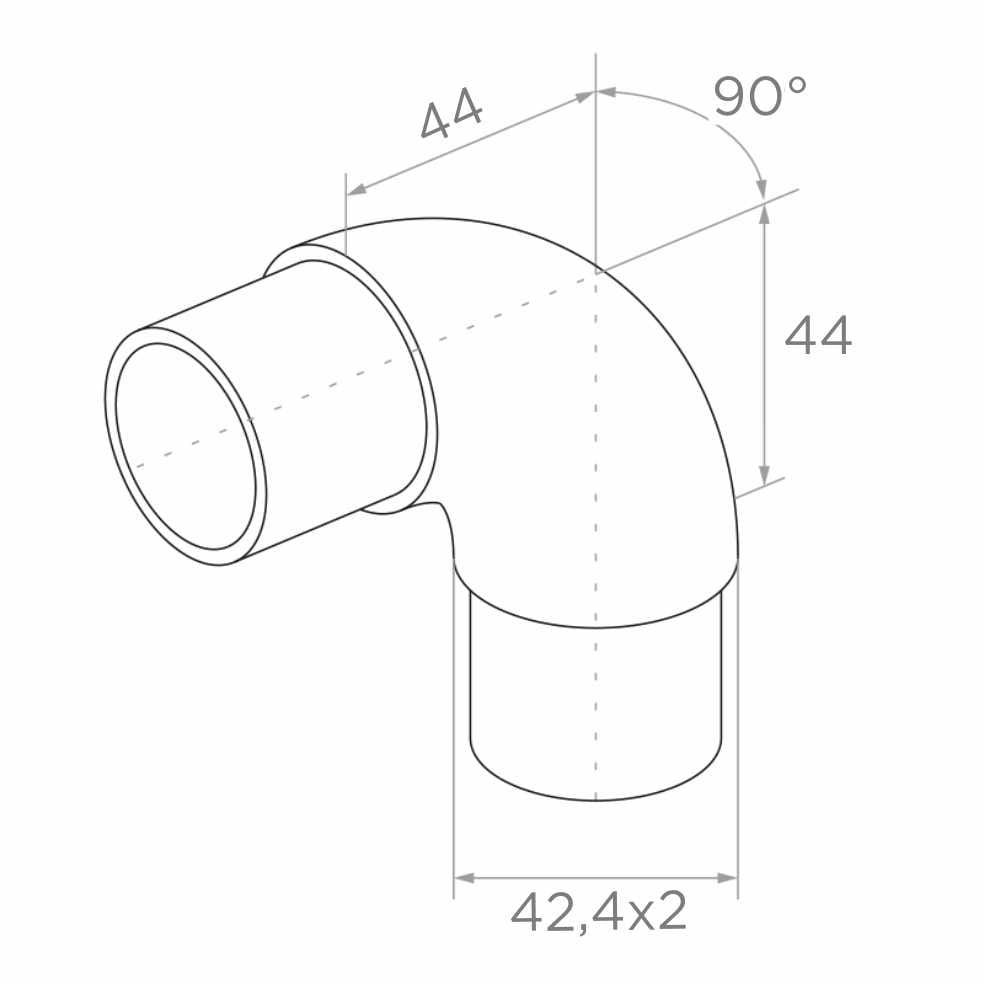

Dimensions and technical data
- Type: gentle elbow (curved) bonded
- Bending angle: 90°
- Tube diameter: 42.4 mm
- Wall thickness: 2 mm
- Arm reach (L1): 44 mm
- Arm height (L2): 44 mm
- Tube system: 42.4
- Material: stainless steel AISI 316
- Surface finish: satin
- Weight: 0.26 kg
- EAN: 5901289673082
Application and installation
The elbow is designed for building steel balustrades with irregular shapes — everywhere where the handrail route requires a 90° direction change. The element serves both structural and decorative functions, providing an aesthetic finish for the connection of two tube sections. Execution in AISI 316 stainless steel in satin finish ensures high corrosion resistance, which allows use both inside buildings and outdoors — including in environments with increased humidity or near the sea.
Technical data
| Material | AISI 316 |
| Finish | Satin |
| Mounting System | 42.4 mm |
